12.1 inch TFT Touch Screen Embedded Industrial Panel PC p
PPC-P121-H is a touch-controlled tablet computer solution designed for human computer interface applications. It uses Intel ®J1900 processor/Intel I5-4200U/I5-7200U/I7-7500U processor, onboard 2GB DDR3/4GB DDR3 memory, LCD with resolution of 1024x768 and high temperature full-surface capacitive touch screen.The whole machine adopts 9-36V DC power supply, which can effectively control the internal heat of the computer.It provide more diversified data storage devices, while supporting MSATA/SSD and SATA2.5" notebook hard disk;

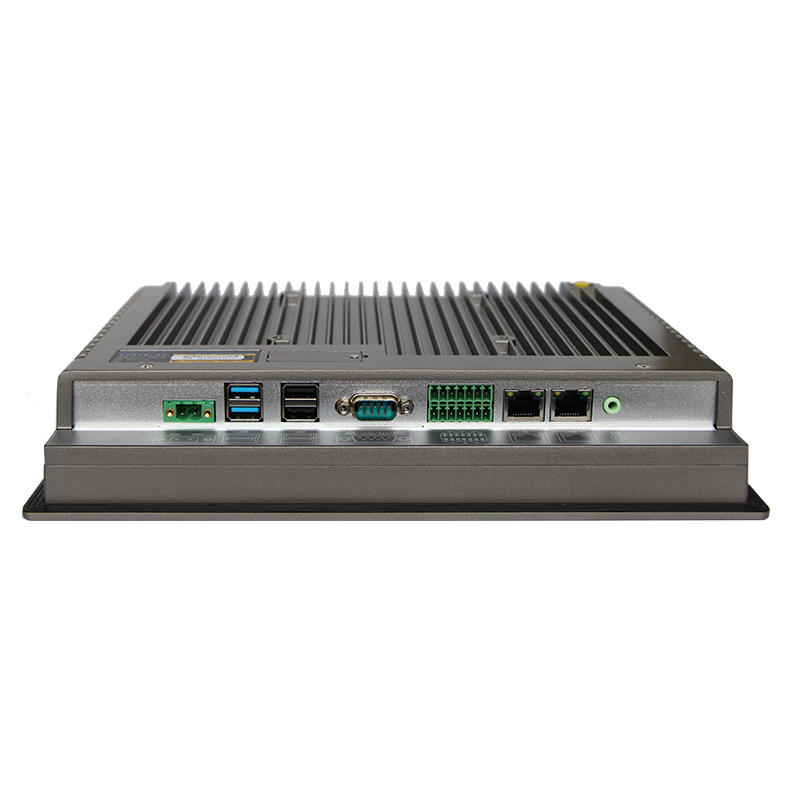

It integrates rich I/O interface 6 x RS232 or 4 x rs232/2 x 485,2 x 10 ~1000M Ethernet ports,2 x USB2.0 and 2 x USB3.0 ports.
PPC-P121-H supports panel embedded installation and wall-mounted installation, which can be completed only by tightening 4 mounting clips. It is very convenient for installation and maintenance.
The front panel complies with NEMA/IP65 waterproof and dustproof standard, which can effectively control the water droplets and steam splashing into the main engine and affect the normal operation of the equipment;
The equipment adopts a fanless design, limited control of dust into the equipment, to ensure a more stable operation of the equipment, through the external surface of the heat sink to the system internal heat quickly distributed, so that it can adapt to more severe site environment;Most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, intelligent power, food traceability and other upper computer monitoring and control.
PPC-P121-H is compatible with Windows7, Windows10, Linux and other mainstream operating systems and embedded operating systems. It can run the application software and programs based on the above operating systems independently developed by customers. The installation of industrial automation configuration software can form a powerful man-machine interface.
It integrates rich I/O interface 6 x RS232 or 4 x rs232/2 x 485,2 x 10 ~1000M Ethernet ports,2 x USB2.0 and 2 x USB3.0 ports.
PPC-P121-H supports panel embedded installation and wall-mounted installation, which can be completed only by tightening 4 mounting clips. It is very convenient for installation and maintenance.
The front panel complies with NEMA/IP65 waterproof and dustproof standard, which can effectively control the water droplets and steam splashing into the main engine and affect the normal operation of the equipment;
The equipment adopts a fanless design, limited control of dust into the equipment, to ensure a more stable operation of the equipment, through the external surface of the heat sink to the system internal heat quickly distributed, so that it can adapt to more severe site environment;Most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, intelligent power, food traceability and other upper computer monitoring and control.
PPC-P121-H is compatible with Windows7, Windows10, Linux and other mainstream operating systems and embedded operating systems. It can run the application software and programs based on the above operating systems independently developed by customers. The installation of industrial automation configuration software can form a powerful man-machine interface.
Adopt the latest technology die stamping machine case, the outer shell is firm and beautiful appearance
12.1" true color LCD, resolution 1024x768 optional, backlight service life up to 50,000 hours
The touch screen USES a full-plane capacitive touch screen.It gets 50 million hits
9 ~ 36V wide voltage DC power input, to meet the field power supply
Support for built-in 4G/WIFI and Bluetooth devices (optional)
The large aluminum fin active cooling design ensures that the tablet can work uninterrupted in harsh industrial conditions.
12.1" true color LCD, resolution 1024x768 optional, backlight service life up to 50,000 hours
The touch screen USES a full-plane capacitive touch screen.It gets 50 million hits
9 ~ 36V wide voltage DC power input, to meet the field power supply
Support for built-in 4G/WIFI and Bluetooth devices (optional)
The large aluminum fin active cooling design ensures that the tablet can work uninterrupted in harsh industrial conditions.
Specification: PPC-P121-H
Ordering Information:
System parameters |
CPU | J1900/I5-4200U/i5-7200U/i7-7500U |
RAM | 2GB DDR3/4GB DDR3 onboard | |
Disk | MINIMSATA | |
I/O interface |
Network port | 2 x Intel Gigabit Ethernet |
Audio | RTLALC662 audio controller, LINE-out port | |
USB | 2 x USB2.0, 2 x USB3.0 | |
Serial port | 6 x RS232(2 can be set to RS485/RS422) | |
LCD screen |
Display | 12.1”TFT LED |
Resolution | 1280x800 | |
Brightness | 350cd/m2 | |
Contrast | 800:1 | |
Maximum color | 16M | |
Touch screen |
Types of | Capacitive |
Click life | 250 grams of strength, 50 million times | |
Response time | <5ms | |
Transmittance | above 90% | |
High temperature test | 85℃/1000hrs | |
Constant temperature and humidity test | 85℃/90%RH/1000hrs | |
Mechanism parameters |
Panel cabinet | The case adopts cast aluminum mold |
Installation method | Embedded in panel, VESA mountable with bracket | |
Power input | 9~36V DC power supply | |
Overall dimensions | 321x252x51mm | |
Box size | 304x237x47mm | |
Hole Size | 306x239mm | |
Power | 20W | |
Weight | 2KG | |
Environmental parameters |
Operating temperature | -20~60℃(Electronic disk) |
Storage temperature | -30~80℃ | |
Front panel protection | IP65 standard |
Product number | Configuration |
PPC-P121-H/J1900 | J1900/4G/2 x RJ-45/4 x USB/4 x RS232+1 x RS485+1 x (RS232/422/485)/optional 9-36V |
PPC-P121-H/I5-4200U | I5-4200U/4G/2 x RJ-45/4 x USB/4 x RS232+1 x RS485+1 x (RS232/422/485)/optional 9-36V |
PPC-P121-H/I5-7200U | I5-7200U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485//optional 9-36V |
PPC-P121-H/I7-7500U | I7-7500U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485)/optional 9-36V |
-
