Desktop Fanless Network Appliance with Intel Gemini Lake/Gemini Lake-R platform processor, 4 x LAN, SATA and M.2 SSD slot

Onboard Intel Gemini Lake/Gemini Lake-R J/N series processors

Integrated Intel UHD Core Graphics 600

H-DMI, DP display interface, support dual-screen display

Single channel DDR4, maximum support 8G/2400MHz

1 x mPCIE Slot, support 3G/4G module

1 x M.2 Key M, support 2242/2280 SSD

4 x 2.5G network card, 10/100/1000/2500 adaptive

12V power supply

Model No.		NCF-GM4NSX
Form Factor		Desktop
Platform	Processor Options	Intel Gemini Lake/Gemini Lake-R Platform Processors
	CPU Socket	Onboard
	Chipset	SoC
	OS Support	OS: Wi-ndows 10/11;Lin-ux
BIOS		AMI UEFI BIOS
System Memory	Technology	DDR4/2400MT/s
	Max. Capacity	8GB
	Socket	1 x 260pin SODIMM
Networking	Ethernet Ports	4 x Intel I225V 2.5 Gigabit Ethernet, supports wake-up on LAN, network card startup
Storage	M.2	1 x M.2 KEY M
	display	Intel UHD HD Graphics 600 with DirectX 12 support, OpenGL 4.4
		1 x HDMI, maximum resolution 4096X2160@30Hz
		1 x DP, maximum resolution 4096X2160@30Hz
	SATA	1 x SATA3.0
	Mini SAS	-
	HDD/SSD Support	-

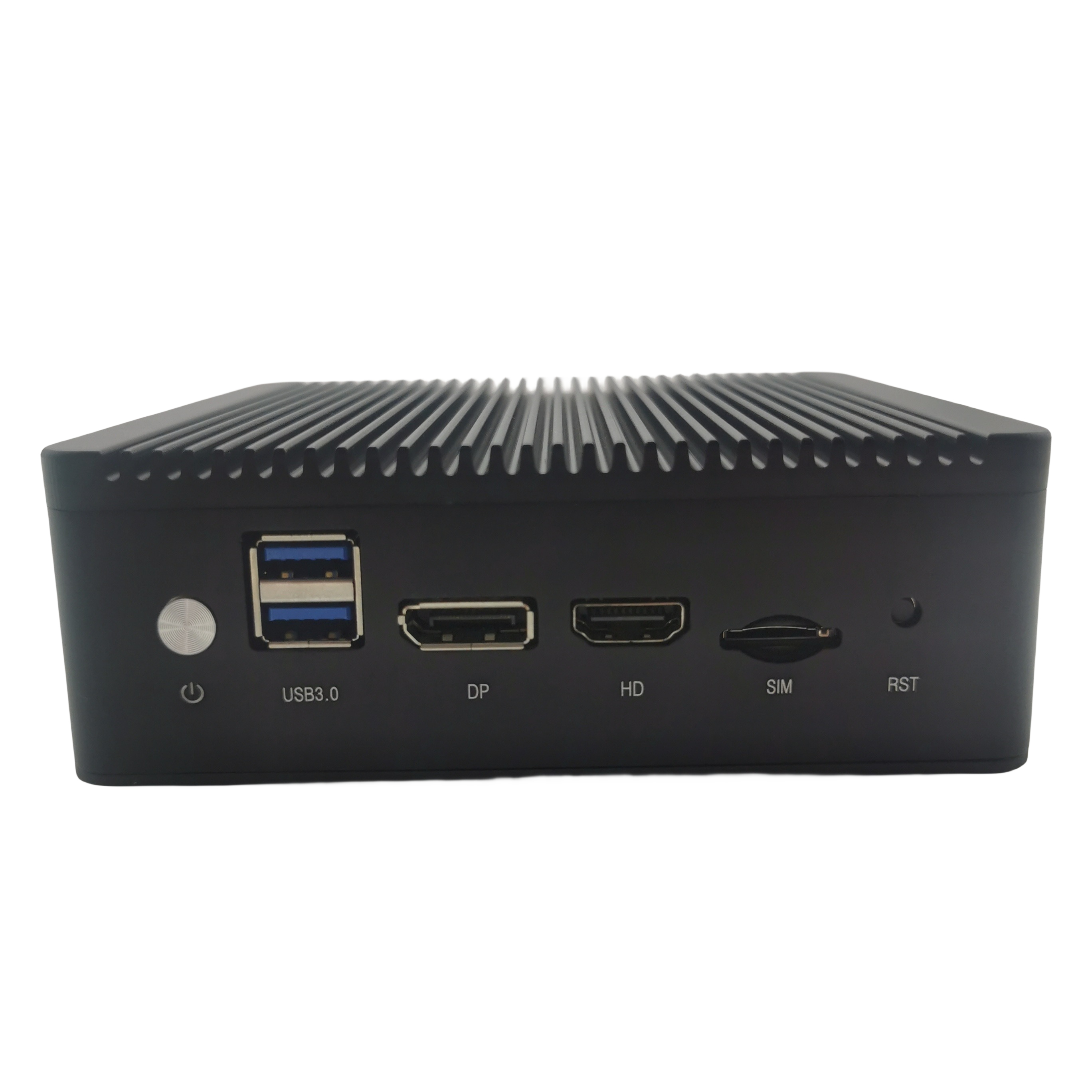

I/O Interface	Power Button	1 x Power Button
	RESET Button	1 x RESET Button
	Console	-
	Reset Button	-
	Display	1 x D-PI port, 1 x H-DMI port
	Power Input	DC 12V
Expansion	PCIe X1	-
	1 x Mini PCIe	-
	SIM	SIM slot
	LED	1 x Power LED, 1 x HDD LED
	Ethernet	4 x LAN
	USB	2 x USB 2.0
	mPCIe	1 x mPCIE slot, support 3G/4G-LTE module
	WIFI	Optional
Miscellaneous
	Internal RTC with Li Battery	Yes
TPM	-
Cooling	Processor	CPU Heat Sink
Cooling	System	-
Environmental Parameters	Temperature	-10℃~60℃(Operating)/ -20℃~70℃(Storage)
Environmental Parameters	Humidity	5 ~ 90% Non condensing
System Dimensions	(WxHxD)	117 x 107 x 34mm
System Dimensions	Weight	0.45KG
Package Dimensions	(WxHxD)	235 x190 x 75mm
Package Dimensions	Weight	0.75KG
Power	Type/Watts	AC TO DC, 36W / 60W (optional)
Power	Input	90~264V @47~63Hz
Approvals and Compliance		CE, FCC, RoHS
