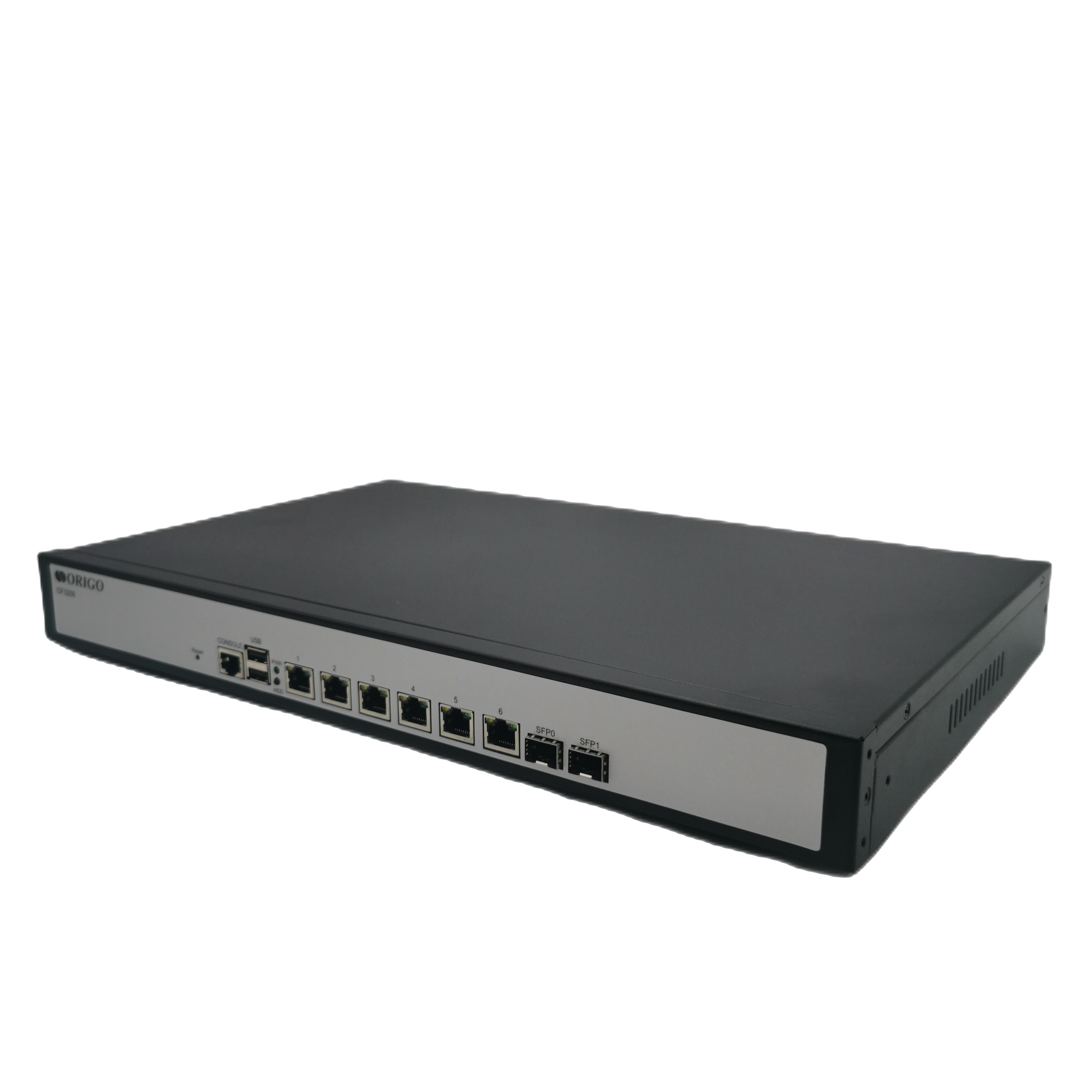

1U Rackmount Network Appliance based on Intel Celeron 3865U

　　

The FW-SK62 is a cost-effective, high performance 1U rackmount network security system based on Intel Celeron 3865U Dual-core CPU, taking advantage of the advances in Intel's Cougar Point architecture. The Celeron 3865U CPU is targeted at UTM, firewall, VPN, IPS and WAN optimization applications from SMB to Enterprise environment. The system has 6 built-in GbE LAN ports, 2 built-in GbE SFP ports, 1 x DDR3 1600 SO-DIMMs, 2 x system cooling fans and open frame power supply.



l Intel Dual-core Celeron 3865U Dual Core 1.8GHz

l Built-in 6 GbE LAN ports and 2 GbE SFP

l Supports 1* SODIMM DDR3, up to 8 GB DDR3 Memory

l Intel 82574L GbE LAN controller and i350 SFP controller

l 2 x system cooling fans

Specification:                 FW-SK62





Model No.

FW-SK62



Form Factor



1U 19” Rackmount

Platform

Processor Options

Support Intel Celeron 3865U 1.8G Dual Core processor

CPU Socket

BGA1356

Chipset

SoC

Security Acceleration

N/A

BIOS



AMI UEFI BIOS

System Memory

Technology

1600MHz DDR3 memory

Max. Capacity

8GB

Socket

  1 x SODIMM DDR3

Networking

Ethernet Ports

6 x Intel 82574L 1GbE Lan

2 x Intel I350-AM2: 2 x 1GbE SFP

Bypass

-

I/O Interface

Reset Button

--

LED

  Power/Storage

Power Button

  -

Console

1x RJ45

USB

2 x USB 2.0 ports at rear

1 x USB 2.0 via internal headers

LCD Module

-

Display

1x VGA

Power Input

  1 x AC

Storage

HDD/SSD Support

  1 x 2.5'' bays

Onboard Storage

  SATA 3.0Gb/s connector x 1

Mini PCIe Socket x 1, support Msata

Expansion

PCIe

-

Mini-PCIe

-

Miscellaneous

Watchdog

Yes

Internal RTC with Li Battery

Yes

TPM

-

Cooling

Processor

CPU fan

System

2x cooling fans

Environmental

Parameters

Temperature

0℃~45℃/ -20℃~70℃

Humidity

5 ~ 90% non condensing

System Dimensions

(WxHxD)

432 x 266 x 46 mm

Weight

4.2 kg

Package Dimensions

(WxHxD)

-

Weight

-

Power

Type/Watts

220W 1U Flex ATX PSU

Input

90~264V@47~63Hz

Approvals and Compliance

CE, FCC
