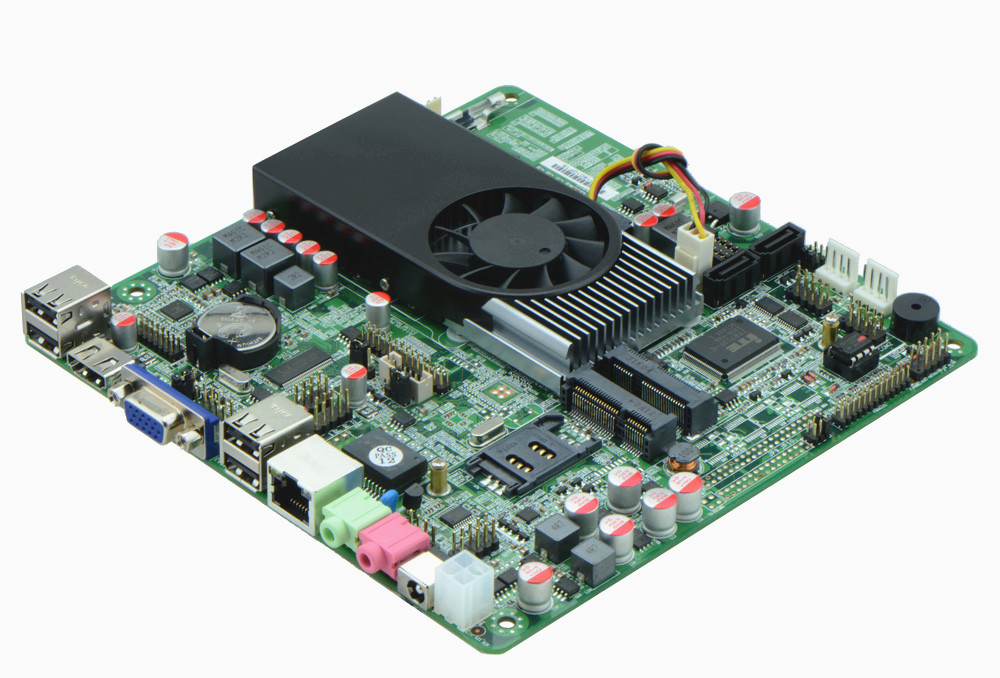

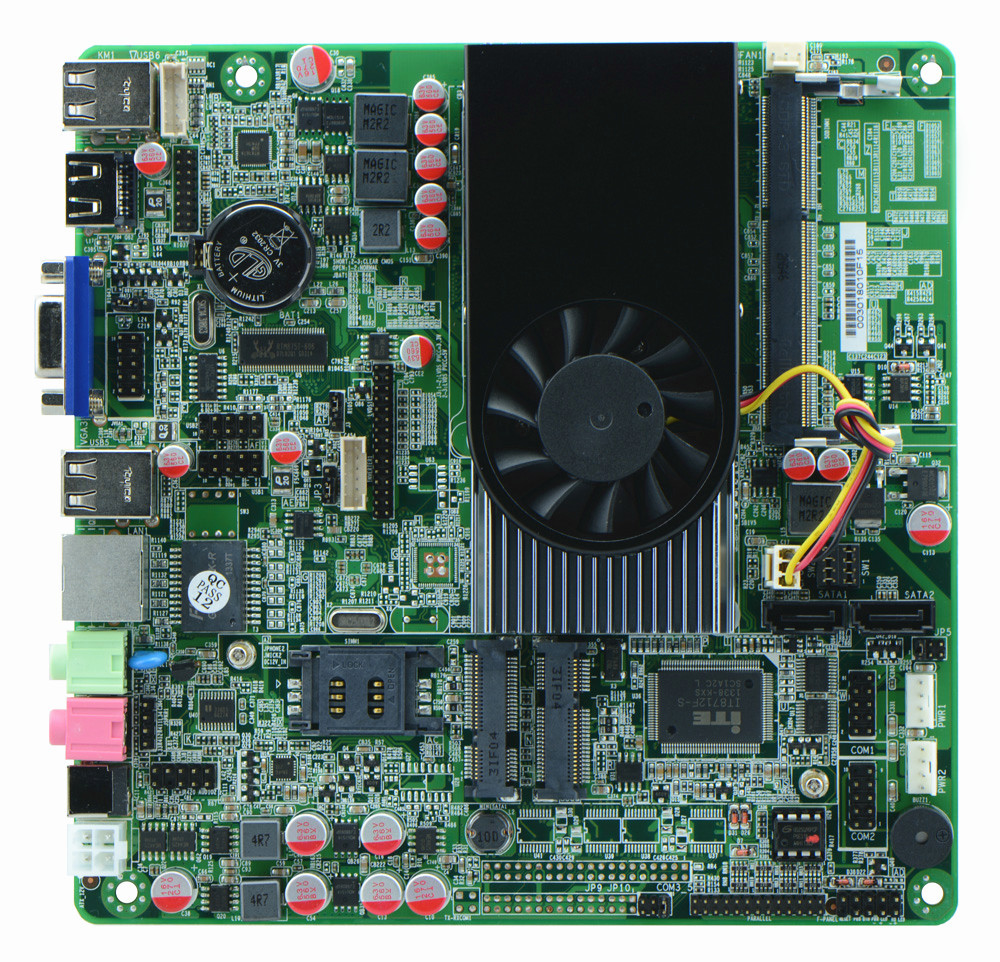

Intel Atom D2550 thin ITX motherboard ITX-M27

Intel Atom dual core D2550 processor(1.86GHz)
Intel Atom D2550+NM10 express chipset
Built in Intel GMA3600 graphics core(shared memory of 128/224 Mb)
1 x SO-DIMM DDR3 1066/800 memory, Max. 4Gb
1 x mini-PCIE slot, supports Wifi/3G modules
1 x MSATA(can be connected to SSD, Wifi, select this or SATA2 )
1 RTL8111E 1000M Ethernet controller
Mini ITX form factor(170mm x 170mm)

　　
Intel Atom dual core D2550 processor(1.86GHz)
Intel Atom D2550+NM10 express chipset
Built in Intel GMA3600 graphics core(shared memory of 128/224 Mb)
1 x SO-DIMM DDR3 1066/800 memory, Max. 4Gb
1 x mini-PCIE slot, supports Wifi/3G modules
1 x MSATA(can be connected to SSD, Wifi, select this or SATA2 )
1 RTL8111E 1000M Ethernet controller
Mini ITX form factor(170mm x 170mm)
Product Model ITX-M27
CPU Integrated Intel Atom D2550 dual core processor(1.86GHz)
Chipset Intel NM10 Chipset
Memory 1 x SO-DIMM DDR3 memory slot, supports 1066/800 Mhz, Max. 4GB.
Video Built in Intel GMA3600 graphics core(128/224 Mb shared memory), supports 1080P
 video playback, supports VGA/HDMI/LVDS display output, LVDS, supports single channel 24 bit.
Expansion Slot 1 x mini PCI-e slot, supports wifi/3G module
LAN 1 x RTL8111E 1000M Ethernet controller, supports Wake On Lan
Storage 2 x SATA2 HDD interface, select from SATA2 and SSD, jumper controls switch
1 x MSATA slot, supports SSD and Wifi
Audio Onboard Realtek ALC662 6 channel high fidelity audio chip, supports MIC, line out.

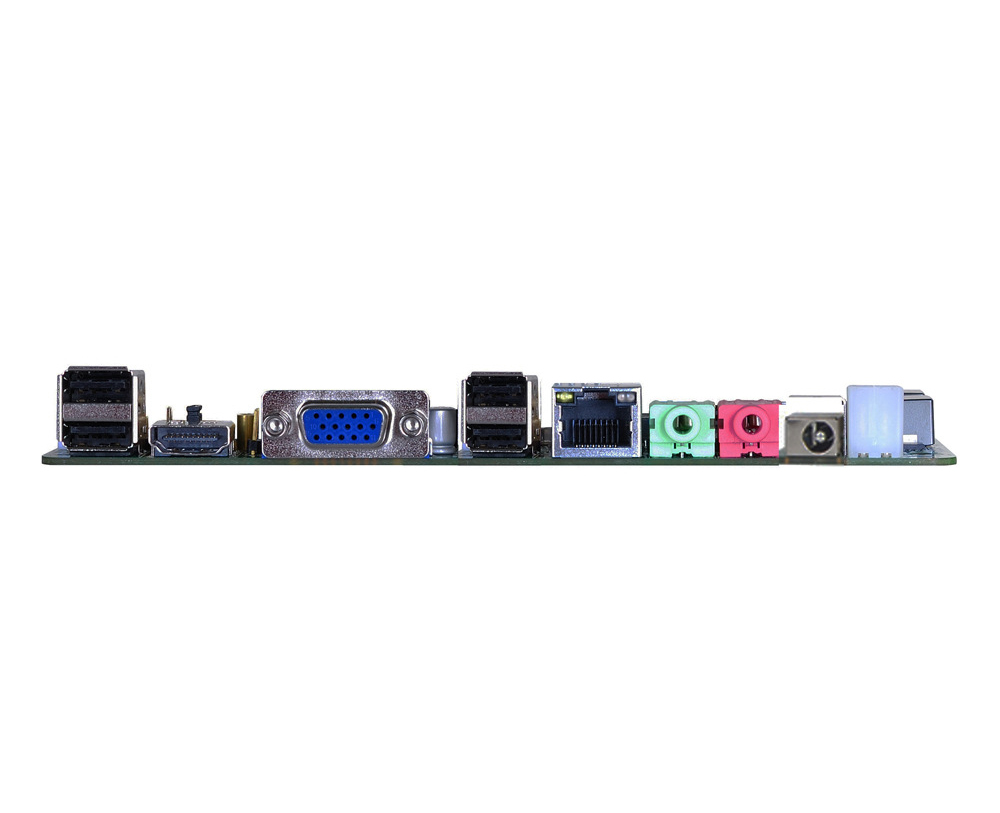

Rear I/O Panel 1 x 12V DC_JACK input
1 x HDMI port
1 x VGA port
4 x USB 2.0 ports
1 x RJ45 LAN port
1 x Line out(green)
1 x MIC(red)
Internal I/O Interface 1 x LVDS connector, 2 x15-pin, single channel 24 bit
1 x JHDMI header, same signal as HDMI, 2 x 8-pin
1 x JVGA header, same signal with DB15, 2 x 5-pin
1 x LPT connector
2 x RS232 connectors
4 x USB 2.0 connectors
1 x KB/MS connector
1 x audio connector(front panel audio port)
1 x CD-IN power amplifier connector, supports direct speaker output
1 x FP1 front panel function button and indicator light header, 2 x 5-pin
1 x LVDS INVERTER connector
1 x ATX_12V power JACK, can be +12v input and output power interface
1 x SIM slot
Fan connector 1 x CPU Fan connector and 1 x System Fan connector, 3-pin
GPIO Supports 4 channel GPIO
BIOS AMI 16MB Flash ROM
Watch Dog Supports hardware reset function(256 level, 0-255 seconds)
PSU DC_12V single power supply input
Working Temp -10℃～60℃
Storing Temp -20℃～70℃
Working Humidity 5%-95% relative humidity, non-condensing
Dimension 170mm x 170mm
Mini ITX form factor

  • DocumentDocument

    1. V1:
    2. V2:
      • ' target='_blank'>Datasheet
      • ' target='_blank'>User Guide
      • ' target='_blank'>3G/4G USB Modem Compatibility List
      • ' target='_blank'>Quick Installation Guide

  • Image (High Resolution)

  • SoftwareSoftware

    1. V1:
      • ' target='_blank'>Firmware
    2. V2:
      • ' target='_blank'>Firmware
    How to find the hardware version?
    For example: V1.6 = V1
