AMD A6-4455M mini itx motherboard DC12V

Onboard AMD Trinity APU A6-4455M Quad core 2.1GHz TDP 17W
AMD A75 express chipset
Onboard AMD Radeon HD 7000 series graphics
2 x dual channel DDR3 13331066/800 RAM, Max. 16Gb
4 x SATA2 interface, transit rate reaches 300Mb/s
2 x mini PCIe slot, supports Wifi/3G module/SSD, jumper controls interface switch
2 x RTL8111E 1000M Ethernet Card, supports Wake On LAN
1 x PCIe 16x slot
6 x RS232 headers, COM2 supports RS422/485 mode

　　
Onboard AMD Trinity APU A6-4455M Quad core 2.1GHz TDP 17W
AMD A75 express chipset
Onboard AMD Radeon HD 7000 series graphics
2 x dual channel DDR3 13331066/800 RAM, Max. 16Gb
4 x SATA2 interface, transit rate reaches 300Mb/s
2 x mini PCIe slot, supports Wifi/3G module/SSD, jumper controls interface switch
2 x RTL8111E 1000M Ethernet Card, supports Wake On LAN
1 x PCIe 16x slot
6 x RS232 headers, COM2 supports RS422/485 mode

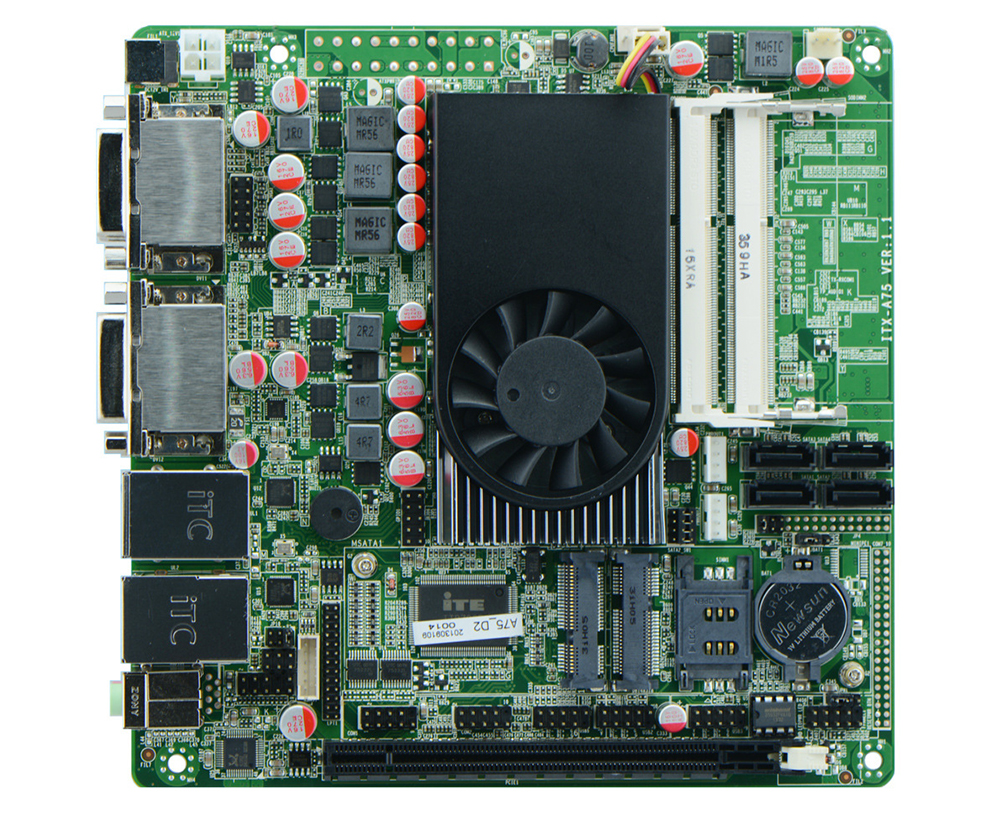

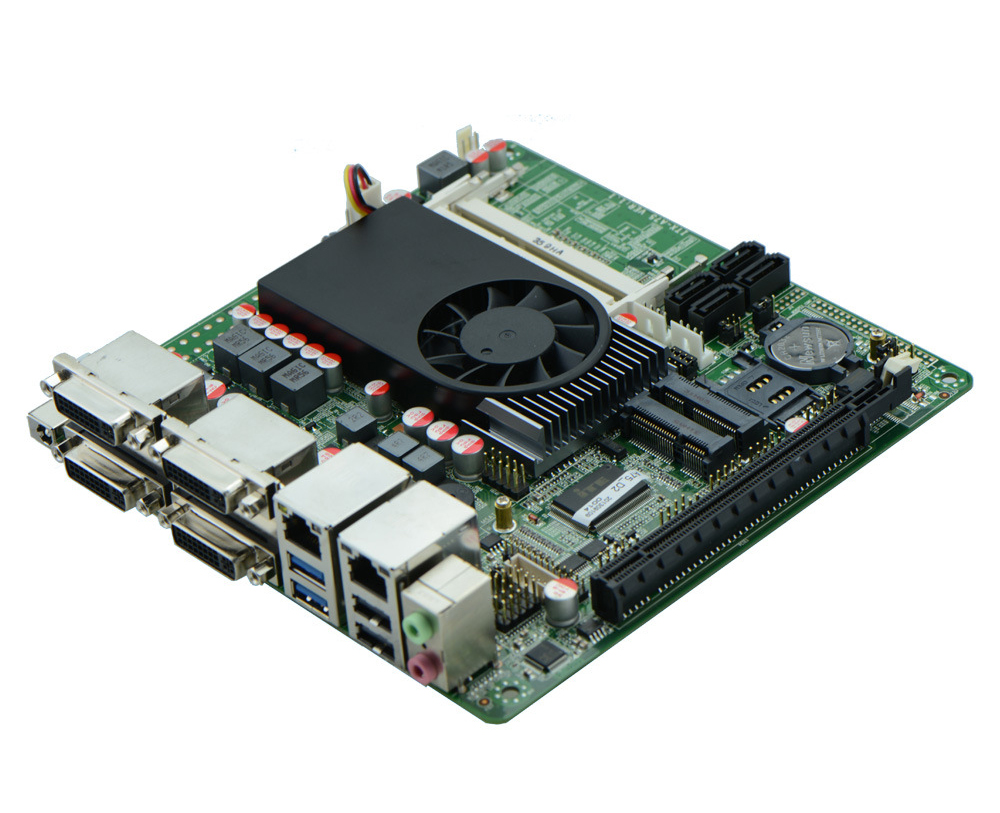

Product Model ITX-A75 VER:1.1
CPU Onboard AMD Trinity APU A6-4455M quad core 2.1GHz
Chipset Intel ICH8M Chipset
Memory 1 x SO-DIMM DDR3 memory slot, supports 1066/800 Mhz, Max. 2GB.
Graphics Integrated AMD Radeon HD7000G series graphics core
Offers 4 DVI ports, supports quad display.
Expansion Slot 1 x mini PCIe slot, supports Wifi and 3G module
1 x PCIe 16x slot
1 x MSATA slot, supports SSD/WIFI, jumper sets interface switch
LAN 2 x RTL8111E 1000M Ethernet controller, supports Wake On Lan, PXE booting.
Storage 4 x SATA2 HDD headers, transfer rate reaches 3Gbps
Audio Onboard Realtek ALC662 6 channel high fidelity audio chip, supports MIC, line out.

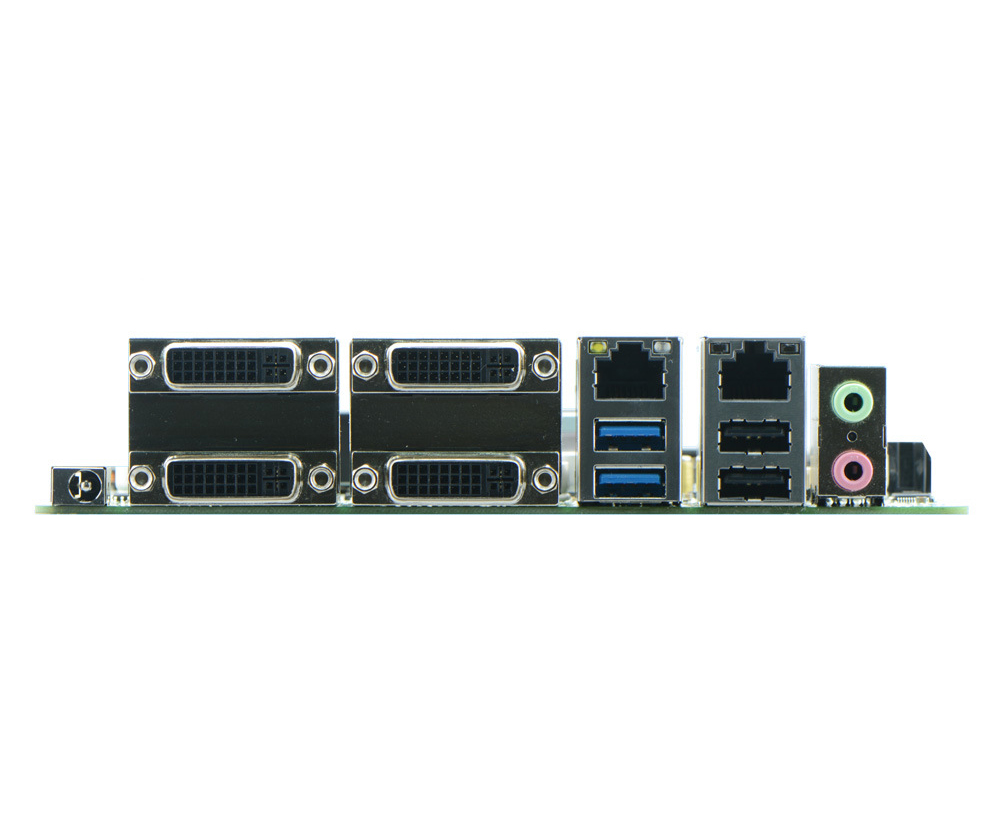

Rear I/O Panel 1 x 12V DC_JACK input
4 x DVI ports
2 x RJ-45 LAN ports
2 x USB 3.0 ports
2 x USB 2.0 ports
1 x audio I/O port(MIC and line-out)
Internal I/O Interface 2 x RS232 headers, COM2 supports RS422/485 mode
1 x TX-RXCOM RS422/485 header
1 x audio front panel interface 2 x 5-pin
1 x LPT header, 2 x 13-pin
4 x USB 2.0 headers
1 x PS/2 keyboard mouse header
1 x SIM slot
2 x PWROUT, HDD power supply interface
1 x FP1 front panel function button and indicator light header, 2 x 5-pin
1 x ATX_12V(able to function as +12V input and output power interface)
Fan connector 1 x CPU Fan connector and 1 x System Fan connector
GPIO Supports 4 channel input and output GPIO
BIOS AMI 32MB Flash ROM
Watch Dog Supports hardware reset function(256 level, 0-255 seconds)
PSU DC_12V single power supply
Working Temp -10℃～60℃
Storing Temp -20℃～70℃
Working Humidity 0%-95% relative humidity, non-condensing
Dimension 170mm x 170mm
Mini ITX form factor
