Intel G41 LGA771 6LAN firewall motherboard
Supports Intel LGA771 Xeon series dual core, quad core processors
Intel G41+ICH7R express chipset
Integrated Intel GMA4500 graphics core(supports DirectX 10)
2 x 204-pin dual channel 1333/1066/800 memory, Max. 8Gb
1 x PCIe 8x slot, supports fiber optic module
3 x Serial ATA2 3Gb/s controller
1 x 52P CF card slot
6 x 82574L 1000M auto adaptive Ethernet card
2 x RS232 headers, CISCO standard interface for COM1
Supports Intel LGA771 Xeon series dual core, quad core processors
Intel G41+ICH7R express chipset
Integrated Intel GMA4500 graphics core(supports DirectX 10)
2 x 204-pin dual channel 1333/1066/800 memory, Max. 8Gb
1 x PCIe 8x slot, supports fiber optic module
3 x Serial ATA2 3Gb/s controller
1 x 52P CF card slot
6 x 82574L 1000M auto adaptive Ethernet card
2 x RS232 headers, CISCO standard interface for COM1
Intel G41+ICH7R express chipset
Integrated Intel GMA4500 graphics core(supports DirectX 10)
2 x 204-pin dual channel 1333/1066/800 memory, Max. 8Gb
1 x PCIe 8x slot, supports fiber optic module
3 x Serial ATA2 3Gb/s controller
1 x 52P CF card slot
6 x 82574L 1000M auto adaptive Ethernet card
2 x RS232 headers, CISCO standard interface for COM1
| Product Model | FMG41XE |
| CPU | Supports Intel LGA771 Xeon series dual core, quad core processors |
| Chipset | Intel G41+ICH7R Chipset |
| Memory | 2 x SO-DIMM DDR3 memory slot, supports 1333/1066 Mhz, Max. 8GB. |
| Video | Integrated Intel GMA4500 graphics core, supports VGA display ouput |
| Expansion Slot | 1 x PCI-e 8x slot, supports fiber optical and SFP module |
| 1 x PCI slot | |
| LAN | Integrated 6 x Intel 82574L 1000M Ethernet chip |
| Supports Wake On LAN, PXE booting, LAN1-4 supports bypass | |
| Storage | 3 x SATA2 HDD interfaces, transfer rate reaches 3Gbps, supports RAID function |
| 1 x MSATA slot, supports SSD | |
| 1 x IDE interface | |
| 1 x CF card slot | |

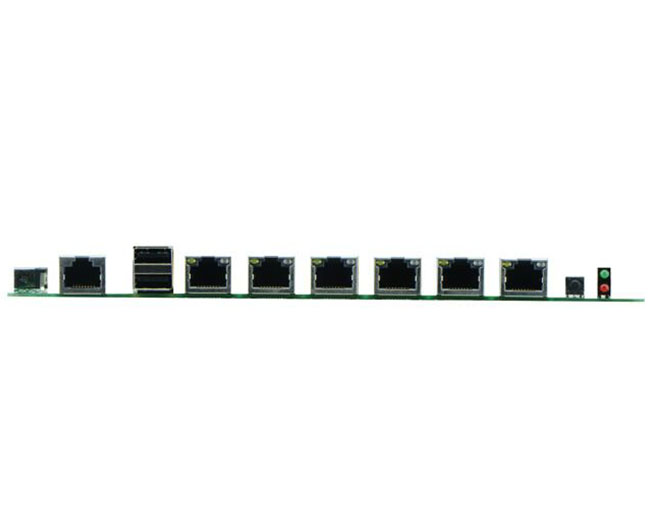

| Rear I/O Panel | 1 x COM CISCO standard port |
| 2 x USB 2.0 ports | |
| 6 x RJ-45 ports | |
| 1 x POWER switch | |
| 1 x LED1(POWERLED/HDDLED) | |
| Internal I/O Interface | 1 x JVGA header, 2 x 5-pin |
| 1 x LAN_LED header, 2 x 13-pin | |
| 4 x USB 2.0 headers | |
| 1 x COM header | |
| 1 x FP1 header(2 x 5-pin, front panel function button and indicating light interface) | |
| 1 x PS/2 keyboard and mouse interface | |
| Fan connector | 1 x CPU Fan connector and 1 x System Fan connector, 3-pin |
| GPIO | Supports 4 channel GPIO |
| BIOS | AMI 8MB DPI Flash ROM |
| Watch Dog | Supports hardware reset function(256 level, 0-255 seconds) |
| PSU | ATX PSU, 24-pin |
| Working Temp | -10℃～60℃ |
| Storing Temp | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 220mm x 220mm |
-
