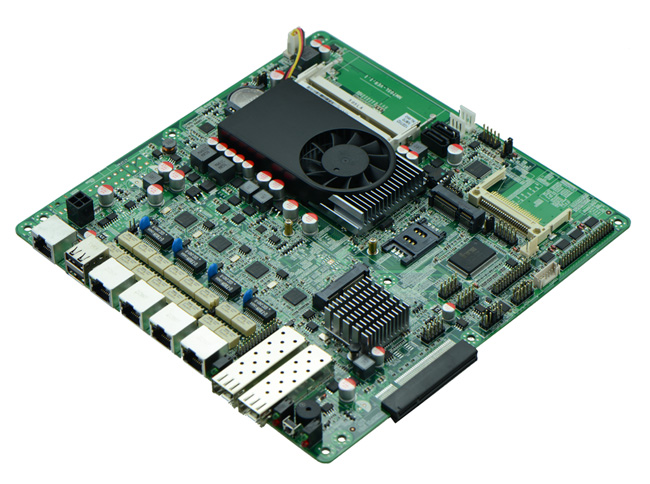

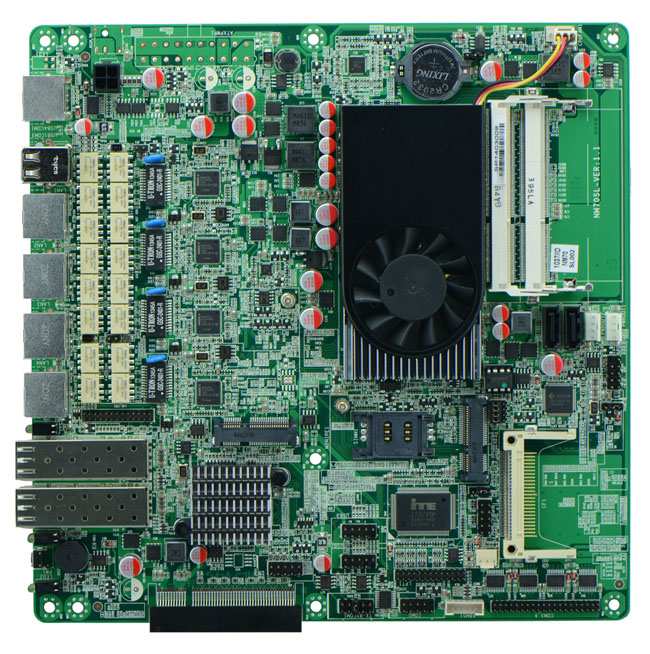

Intel Celeron 1037U firewall motherboard two SFP
Integrated Intel Celeron 1037U dual core processor(1.8GHz)
Intel NM70 express chipset
Integrated Intel HD graphics core, provides VGA display
Dual channel 1333/1066/800 memory, Max. 16Gb
Provides 2 mini PCIe slots, supports SSD/Wifi/3G module
Provides 6 RS232 headers, COM2/3 supports RS232/422/485 modes
2 x Intel NH82580EB 1000M fiber optical Ethernet port
4 x Intel 82574L 1000M Ethernet port
Supports SATA, CF card, SSD storage
Integrated Intel Celeron 1037U dual core processor(1.8GHz)
Intel NM70 express chipset
Integrated Intel HD graphics core, provides VGA display
Dual channel 1333/1066/800 memory, Max. 16Gb
Provides 2 mini PCIe slots, supports SSD/Wifi/3G module
Provides 6 RS232 headers, COM2/3 supports RS232/422/485 modes
2 x Intel NH82580EB 1000M fiber optical Ethernet port
4 x Intel 82574L 1000M Ethernet port
Supports SATA, CF card, SSD storage
Intel NM70 express chipset
Integrated Intel HD graphics core, provides VGA display
Dual channel 1333/1066/800 memory, Max. 16Gb
Provides 2 mini PCIe slots, supports SSD/Wifi/3G module
Provides 6 RS232 headers, COM2/3 supports RS232/422/485 modes
2 x Intel NH82580EB 1000M fiber optical Ethernet port
4 x Intel 82574L 1000M Ethernet port
Supports SATA, CF card, SSD storage
| Product Model | FMN70SL_O |
| CPU | Onboard Intel Celeron 1037U dual core processor |
| Chipset | Intel NM70 express chipset |
| Memory | 2 x SO-DIMM DDR3 memory slot, supports 1333/1066 Mhz, Max. 16GB. |
| Video | Integrated Intel HD 2500 graphics core, supports VGA display ouput |
| Expansion Slot | 1 x PCI-e 8x slot, supports fiber optical and SFP module |
| 1 x mini PCIe slot, supports Wifi and 3G module | |
| LAN | 2 x Intel NH82580EB 1000M fiber optical Ethernet ports |
| 4 x Intel 82574L 1000M Ethernet ports, | |
| 2 sets BYPASS available | |
| Storage | 2 x SATA2 HDD interfaces, transfer rate reaches 3Gbps1 x MSATA slot, |
| 1 x CF card slot(or SSD) | |
| 1 x MSATAIII, transit rate reaches 6Gbps | |

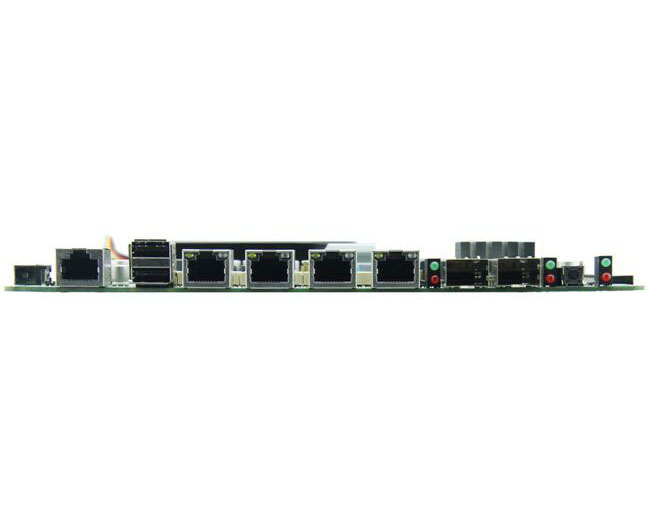

| Rear I/O Panel | 1 x COM CISCO standard port |
| 2 x USB 2.0 ports | |
| 4 x RJ-45 ports | |
| 2 x fiber optical socket | |
| 1 x POWER switch | |
| 1 x LED1(POWERLED/HDDLED) | |
| 2 x SFPLED | |
| Internal I/O Interface | 1 x JVGA header, 2 x 5-pin |
| 1 x LAN_LED header, 2 x 13-pin | |
| 1 x LPT interface | |
| 5 x RS232 headers, COM2 supports RS422/485 modes | |
| 1 x TX-RXCOM RS422/485 headers | |
| 1 x PS/2 keyboard and mouse interface | |
| 4 x USB 2.0 headers | |
| 1 x FP1 header(2 x 5-pin, front panel function button and indicating light interface) | |
| 2 x PWROUT, HDD power supply interface | |
| Fan connector | 1 x CPU Fan connector, 4-pin; and 1 x System Fan connector, 3-pin |
| GPIO | Supports 4 channel GPIO |
| BIOS | 32M SMT Flash ROM |
| Watch Dog | Supports hardware reset function(256 level, 0-255 seconds) |
| PSU | DC_12V single PSU |
| Working Temp | -10℃～60℃ |
| Storing Temp | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 220mm x 220mm |
-
