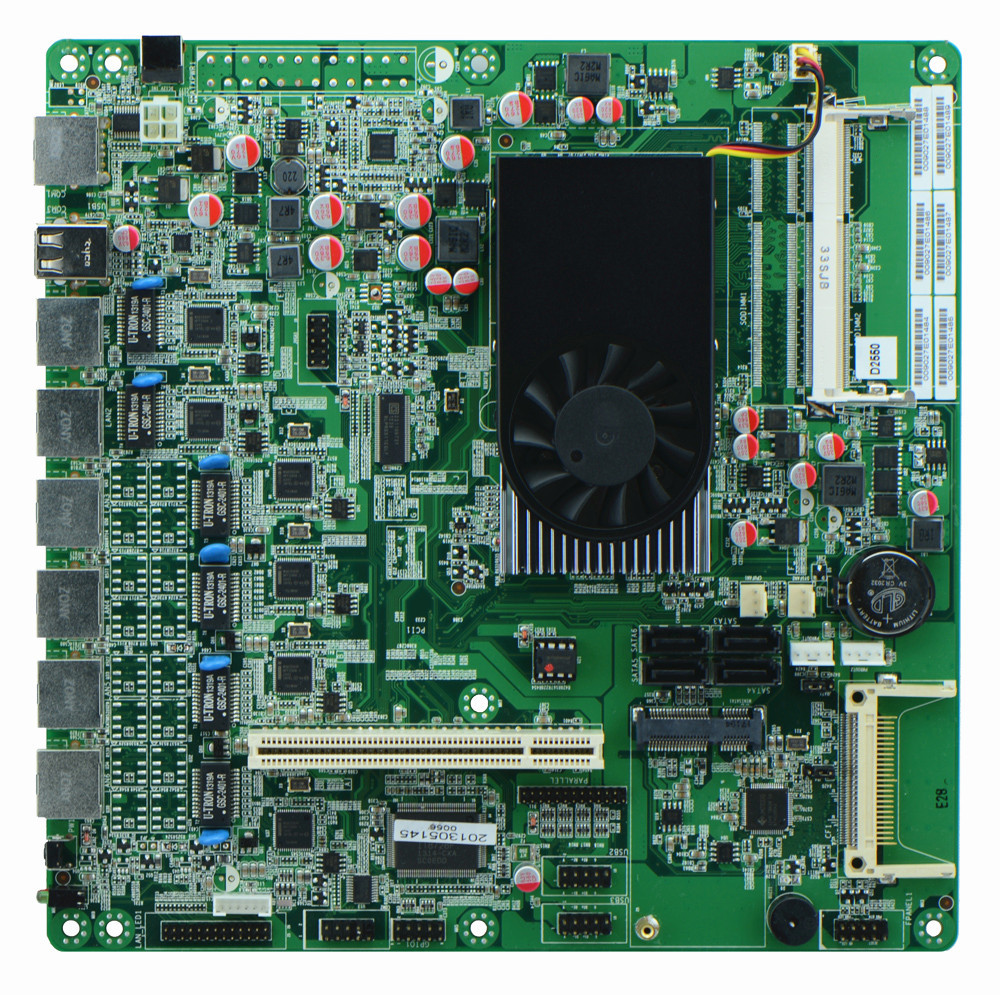

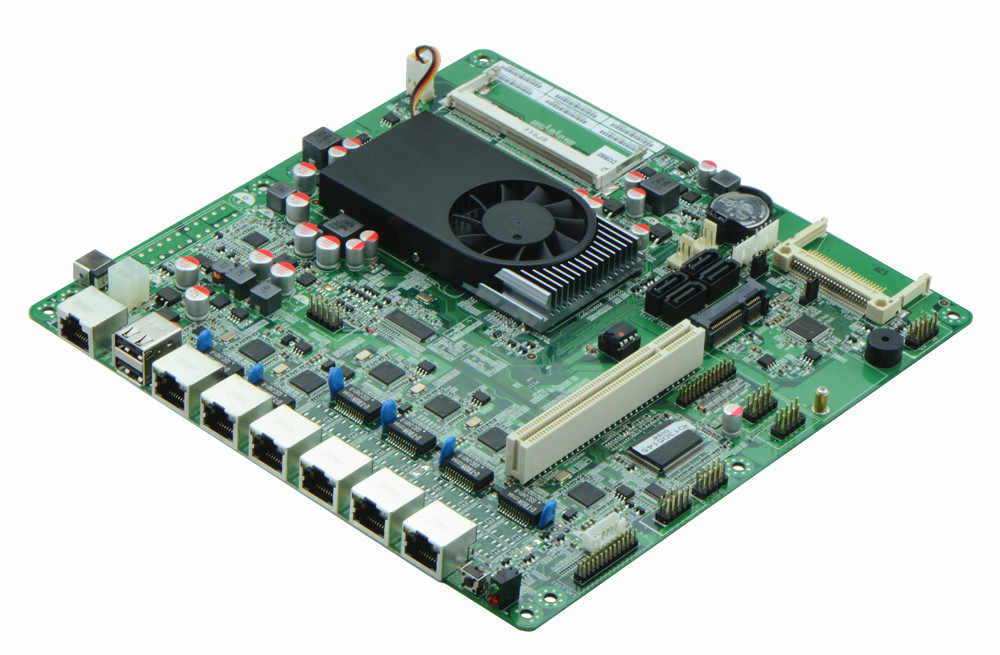

Intel Atom D2550 6LAN firewall motherboard
Integrated Intel Atom D2550 dual core processor(1.86GHz)
Intel ICH10R express chipset
Integrated Intel GMA3600 graphics core, provides VGA display
Supports SO DDR3 1333/1066/800 memory, Max. 4Gb
Provides 1 x PCI slot and MSATA slot
6 x Intel 82583V 1000M Ethernet port, and supports Bypass function
4 x SATA interfaces, and provides 1 50-pin CF card slot
Supports 256 level Watch Dog function
Integrated Intel Atom D2550 dual core processor(1.86GHz)
Intel ICH10R express chipset
Integrated Intel GMA3600 graphics core, provides VGA display
Supports SO DDR3 1333/1066/800 memory, Max. 4Gb
Provides 1 x PCI slot and MSATA slot
6 x Intel 82583V 1000M Ethernet port, and supports Bypass function
4 x SATA interfaces, and provides 1 50-pin CF card slot
Supports 256 level Watch Dog function
Intel ICH10R express chipset
Integrated Intel GMA3600 graphics core, provides VGA display
Supports SO DDR3 1333/1066/800 memory, Max. 4Gb
Provides 1 x PCI slot and MSATA slot
6 x Intel 82583V 1000M Ethernet port, and supports Bypass function
4 x SATA interfaces, and provides 1 50-pin CF card slot
Supports 256 level Watch Dog function
| Product Model | D25SL/D25SL_B |
| CPU | Onboard Intel Atom D2550 dual core processor(1.86GHz) |
| Chipset | Intel ICH10R express chipset |
| Memory | 1 x SO-DIMM DDR3 memory slot, supports 1066/800 Mhz, Max. 4GB. |
| Video | Integrated Intel GMA3600 graphics core, supports VGA display ouput |
| Expansion Slot | 1 x MSATA slot, supports SSD, USB Wifi |
| 1 x PCI slot | |
| LAN |
Integrated 6 x Intel 82583V 1000M Ethernet card, support Wake On LAN, PXE booting, among which LAN1-4 supports 2 sets of Bypass function(D25SL cannot support Bypass) |
| Storage | 4 x SATAII HDD interface 3Gb/s |
| 1 x CF card slot | |

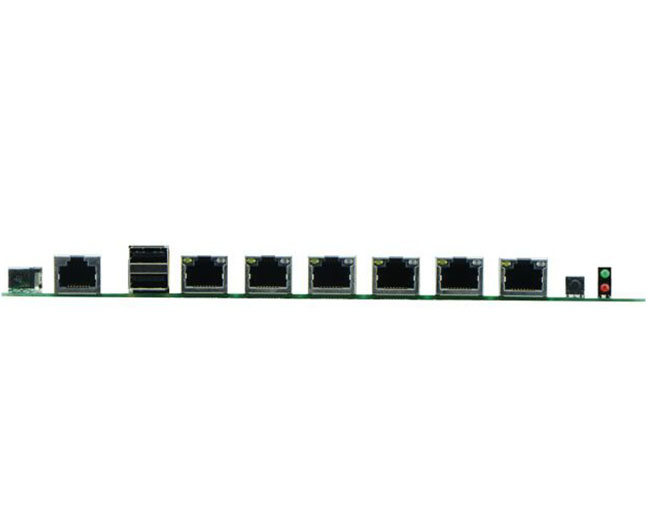

| Rear I/O Panel | 1 x COM CISCO standard port |
| 2 x USB 2.0 ports | |
| 6 x RJ-45 ports | |
| 1 x POWER switch | |
| 1 x LED1(POWERLED/HDDLED) | |
| 1 x 12V DC_JACK input interface(on the side) | |
| Internal I/O Interface | 1 x JVGA header, 2 x 5-pin |
| 1 x LAN_LED header, 2 x 13-pin | |
| 1 x LPT interface | |
| 4 x USB 2.0 headers | |
| 1 x RS232 header | |
| 1 x PS/2 keyboard and mouse interface | |
| 1 x FP1 header(2 x 5-pin, front panel function button and indicating light interface) | |
| 1 x ATX_12V, can be used as +12V input and output power supply interface | |
| 2 x PWROUT, HDD power supply interface | |
| Fan connector | 1 x CPU Fan connector, and 2 x System Fan connectors, 3-pin |
| GPIO | Supports 4 channel GPIO |
| BIOS | AMI 16MB DPI Flash ROM |
| Watch Dog | Integrated in the chip(256 level, 0-255 seconds) |
| PSU | DC_12V single PSU |
| Working Temp | -10℃～60℃ |
| Storing Temp | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 220mm x 220mm |
-
