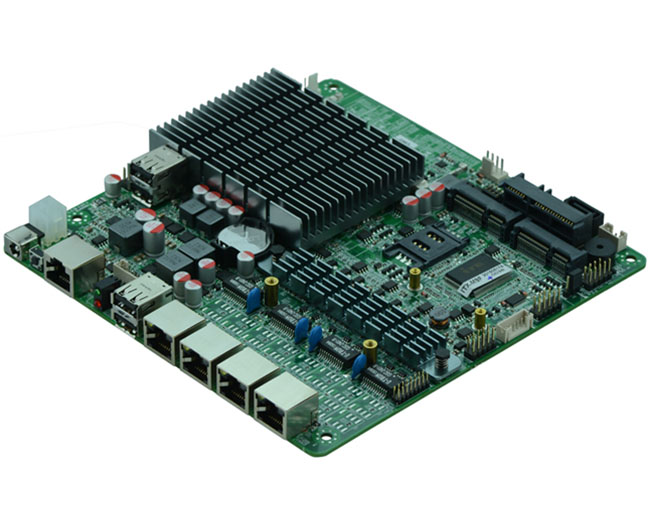

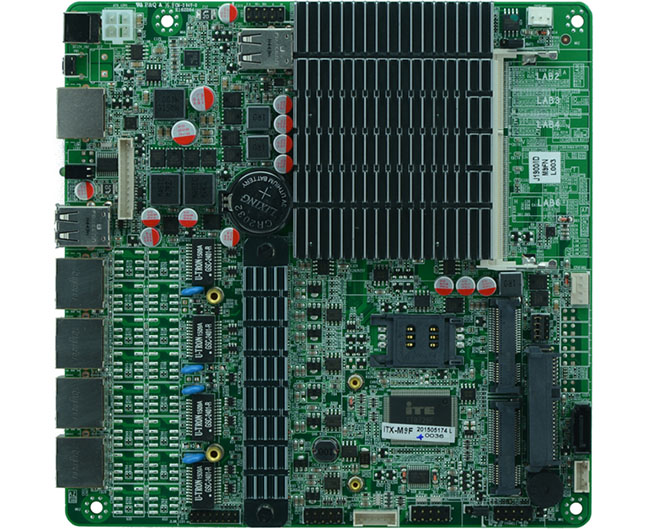

Intel Celeron J1900 4LAN firewall motherboard

Integrated Intel Celeron J1900 quad core processor(2.0GHz)
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3 1333/1066 memory, Max. 8Gb
1 x 2.5 inch HDD bay, can install HDD directly onboard, 1 x SATA header, 1 x MSATA slot(support ssd and usb wifi)
4 x Intel 82583V GbE network
1 x 12V-19V DC_JACK in
Mini ITX Form Factor(170mm x 170mm)

　　
Integrated Intel Celeron J1900 quad core processor(2.0GHz)
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3 1333/1066 memory, Max. 8Gb
1 x 2.5 inch HDD bay, can install HDD directly onboard, 1 x SATA header, 1 x MSATA slot(support ssd and usb wifi)
4 x Intel 82583V GbE network
1 x 12V-19V DC_JACK in
Mini ITX Form Factor(170mm x 170mm)
Product Model FMITX-M9F
CPU Onboard Intel Celeron J1900 Bay Trail quad core processor(2.0GHz)
Chipset Based on Intel Bay Trail SOC platform, CPU integrated
Memory 1 x SO-DIMM DDR3 memory slot, supports 1333/1066 Mhz, Max. 8GB.
Video Integrated Intel HD graphics core
Expansion Slot 1 x MSATA slot
1 x MINI PCIE slot(supports wifi, 3g module)
LAN Integrated 4 x Intel 82583v 1000M Ethernet card, support Wake On LAN
Storage 1 x 2.5 inch notebook hdd bay, can install hdd directly
1 x SATAII HDD interface(alternative to 2.5 inch hdd)
1 x MSATA

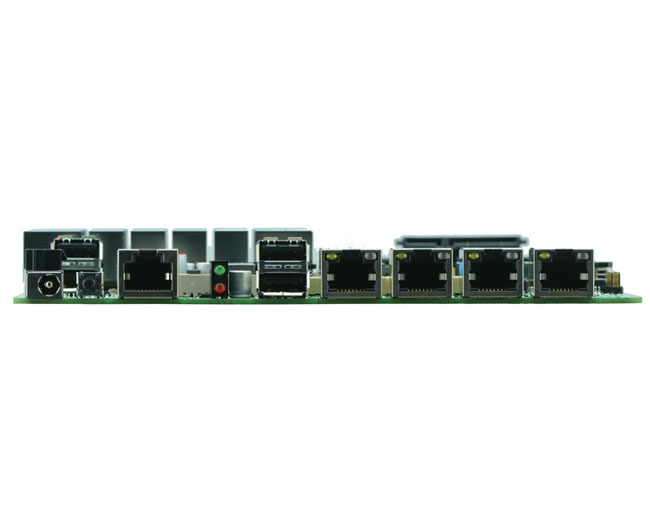

Rear I/O Panel 1 x COM CISCO standard port
2 x USB ports(Upper USB 2.0, down USB 3.0)
4 x RJ-45 ports
1 x POWER switch
1 x LED1(POWERLED/HDDLED)
1 x 12V-19V DC_JACK input interface
Internal I/O Interface 1 x VGA header, 1 x 12-pin
1 x LAN_LED header, 2 x 8-pin
4 x USB 2.0 headers
1 x COM header
1 x PS/2 keyboard and mouse interface
1 x FP1 header(2 x 5-pin, front panel function button and indicating light interface)
1 x ATX 4PIN, can be used as 12V-19V input and output power supply interface
1 x 2PIN power header, can be used as 12V-19V input and output power supply interface
1 x HDD power header
1 x SIM slot
Fan connector 1 x CPU Fan connector, and 1 x System Fan connector
GPIO Supports 4 channel GPIO
BIOS AMI 32MB DPI Flash ROM
Watch Dog Integrated in the chip(256 level, 0-255 seconds)
PSU 12V-19V single PSU
Working Temp -10℃～60℃
Storing Temp -20℃～70℃
Working Humidity 5%-95% relative humidity, non-condensing
Dimension 170mm x 170mm
