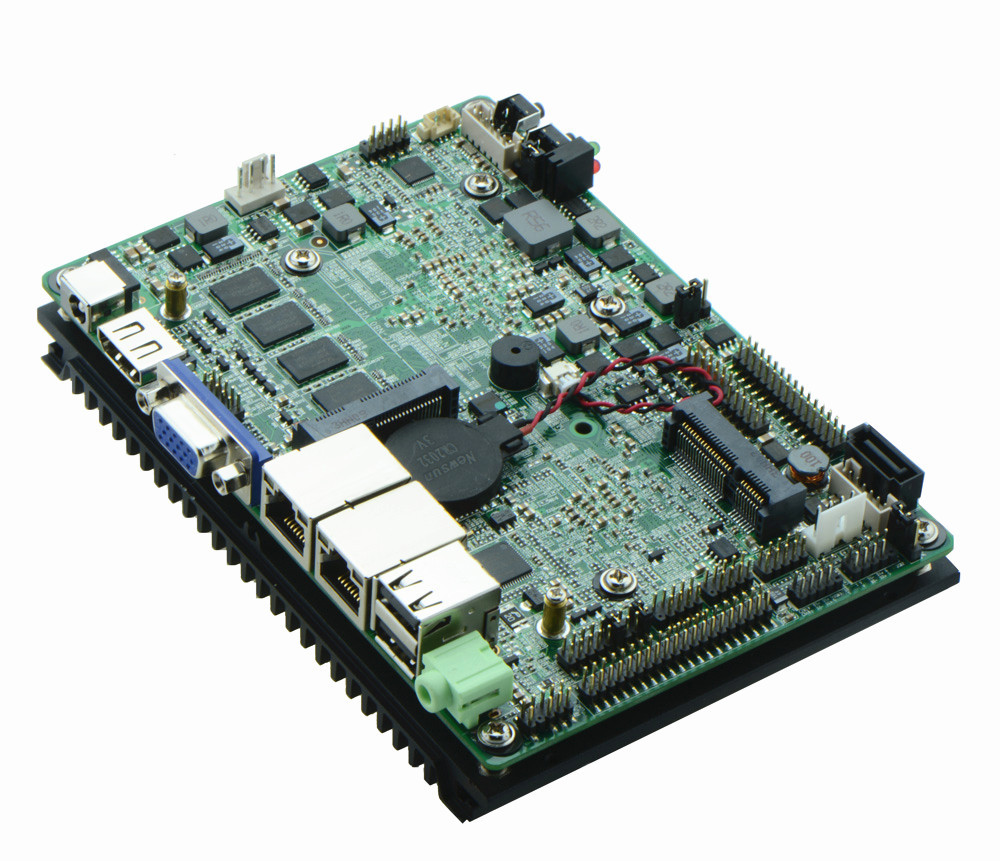

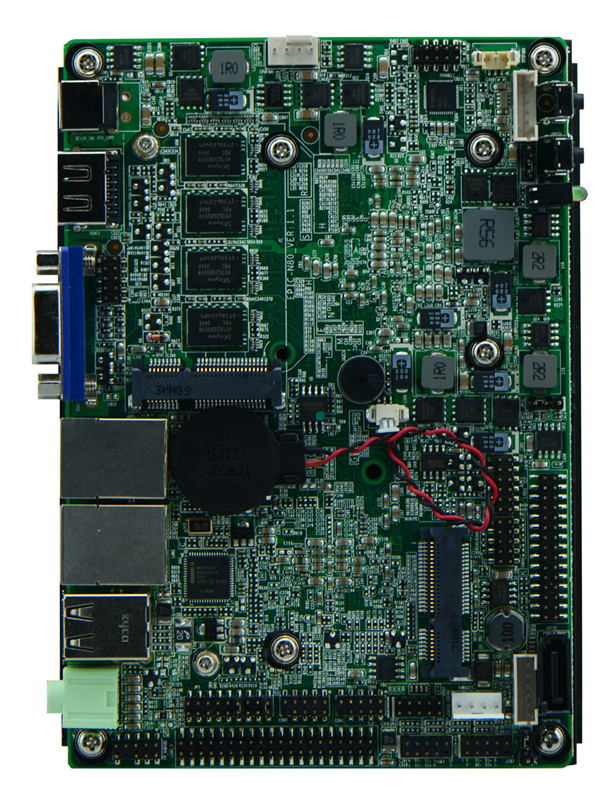

Intel Celeron 1037U 3.5inch EPIC industrial motherboard
Onboard AMD T56N dual core processor
AMD Hudson M1 chipset
Integrated HD6310 graphics core, supports VGA/HDMI/LVDS sync/async
1 DDR3 2GB express memory, Max. 4G
2 mini PCIe slot, supports SSD/wireless Wifi
Supports 4 x RS232 COM headers, COM2 supports RS232/422/485 mode
Integrated 2 x Intel 82583V 1000M Ethernet controller, supports Wake On LAN
Integrated Realtek ALC662 6 channel high fidelity audio controller
Supports 6 USB 2.0 headers
Onboard AMD T56N dual core processor
AMD Hudson M1 chipset
Integrated HD6310 graphics core, supports VGA/HDMI/LVDS sync/async
1 DDR3 2GB express memory, Max. 4G
2 mini PCIe slot, supports SSD/wireless Wifi
Supports 4 x RS232 COM headers, COM2 supports RS232/422/485 mode
Integrated 2 x Intel 82583V 1000M Ethernet controller, supports Wake On LAN
Integrated Realtek ALC662 6 channel high fidelity audio controller
Supports 6 USB 2.0 headers
AMD Hudson M1 chipset
Integrated HD6310 graphics core, supports VGA/HDMI/LVDS sync/async
1 DDR3 2GB express memory, Max. 4G
2 mini PCIe slot, supports SSD/wireless Wifi
Supports 4 x RS232 COM headers, COM2 supports RS232/422/485 mode
Integrated 2 x Intel 82583V 1000M Ethernet controller, supports Wake On LAN
Integrated Realtek ALC662 6 channel high fidelity audio controller
Supports 6 USB 2.0 headers
| Product Model | EPIC-N80 |
| CPU | Integrated Intel Celeron 1037U dual core processor 1.8GHz, TDP 17W |
| Chipset | Intel NM70 express chipset |
| Memory | Onboard DDR3 2GB express memory(4GB available) |
| Video |
Intel HD Graphics core, provides VGA/HDMI/LVDS display output, LVDS support dual channel 24 bit, supports sync/async |
| Expansion Slot | 1 x mini PCI-e slot, supports wifi/3G module |
| 1 x MSATA slot, supports SSD, WIFI, transit rate of SSD can reach 600 Mb/s | |
| LAN | 2 x Intel 82583V 1000M Ethernet controller, supports Wake On Lan |
| Storage | 1 x SATA2 HDD interface, transit rate can reach 300 Mb/s |
| 1 x JSATAII slot, supports SATA HDD | |
| Audio |
Onboard Realtek ALC662 6 channel high fidelity audio chip, supports MIC, line out, power amplifier |

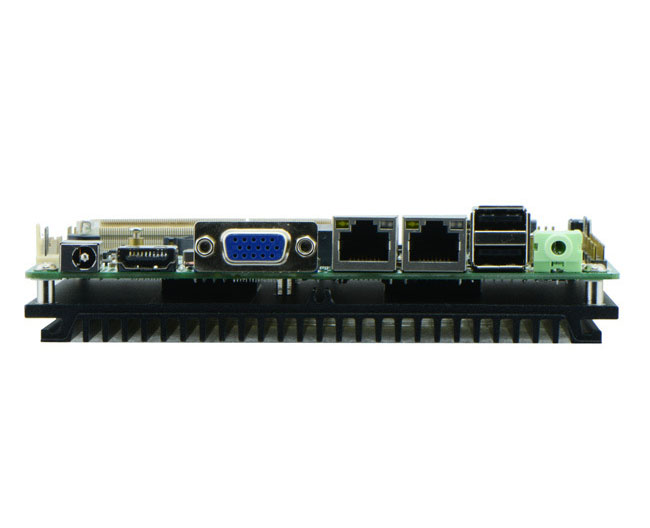

| Rear I/O Panel | 1 x 12V DC_JACK input |
| 1 x HDMI port | |
| 1 x VGA port | |
| 2 x USB 2.0 ports | |
| 2 x RJ45 LAN ports | |
| 1 x Line out(green) | |
| 1 x MIC(red) | |
| 1 x POWER, 1 x RESET, 1x LED1(POWERLED/HDDLED) | |
| Internal I/O Interface | 1 x LVDS connector, 2 x15-pin |
| 1 x JVGA1 header, same signal with DB15, 2 x 5-pin | |
| 6 x RS232 connectors, COM2 supports 485/422 function | |
| 1 x JLPC header, 2 x 6-pin | |
| 4 x USB 2.0 connectors | |
| 1 x PS/2 keyboard and mouse interface, 1 x 6-pin | |
| 1 x AUDIO header, front panel audio interface, 2 x 5-pin | |
| 1 x FP1 front panel function button and indicator light header, 2 x 5-pin | |
| 1 x SIM slot | |
| 2 x JSATA2 headers, 1 x 5-pin | |
| 1 x PWROUT HDD power supply headers | |
| 1 x LVDS INVERTER connector | |
| Fan connector | 1 x CPU Fan connector, 3-pin |
| GPIO | Supports 4 channel GPIO |
| BIOS | AMI 32MB Flash ROM |
| Watch Dog | Supports hardware reset function(256 level, 0-255 seconds) |
| PSU | DC_12V single power supply input |
| Working Temp | -10℃～60℃ |
| Storing Temp | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 148mm x 102mm |
-
