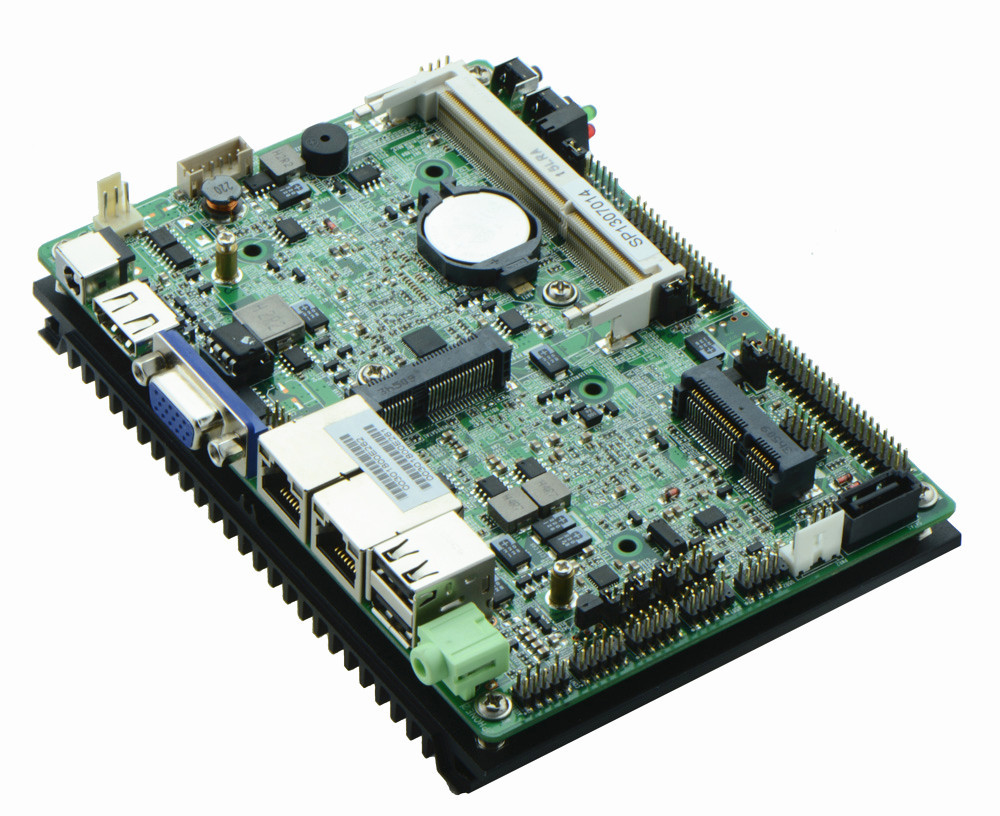

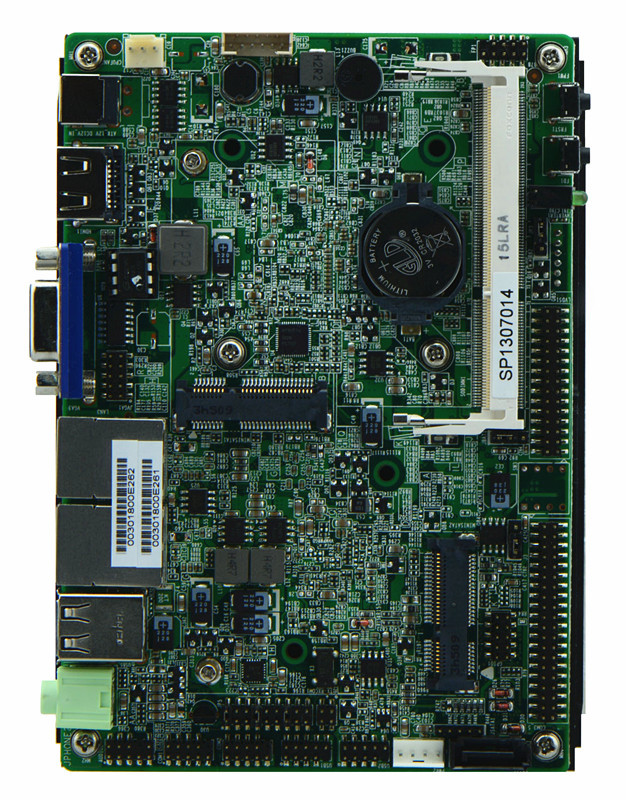

Intel N2600/N2800 3.5 inch motherboard DC12V

Integrated Intel Atom N2600/N2800 processor(1.6/1.86GHz)
Intel NM10 express chipset
Supports 1 x DDR3 SO-DIMM 2GB, Max. 4Gb(2Gb for N2600)
Supports VGA, HDMI, LVDS sync/async display
Integrated 2 RTL8111E 1000M Ethernet controller
Provides 6 RS232 COM headers, COM2 supports RS232/422/485 mode
2 mini PCIe slot, supports SSD/wireless Wifi
Integrated Realtek ALC662 6 channel high fidelity audio controller

　　
Integrated Intel Atom N2600/N2800 processor(1.6/1.86GHz)
Intel NM10 express chipset
Supports 1 x DDR3 SO-DIMM 2GB, Max. 4Gb(2Gb for N2600)
Supports VGA, HDMI, LVDS sync/async display
Integrated 2 RTL8111E 1000M Ethernet controller
Provides 6 RS232 COM headers, COM2 supports RS232/422/485 mode
2 mini PCIe slot, supports SSD/wireless Wifi
Integrated Realtek ALC662 6 channel high fidelity audio controller
Product Model EPIC-N26/N28
CPU Integrated Intel Atom dual core N2600 1.66GHz processor
Integrated Intel Atom dual core N2800 1.86GHz processor
Chipset Intel NM10 express chipset
Memory 1 x SO-DIMM DDR3 memory slot, supports 1066/800MHz, Max. 2Gb(EPIC-N28 supports 4Gb memory)
Video Integrated Intel GMA3600 Graphics core(EPIC-N28 integrates GMA3650 core), supports VGA/HDMI/LVDS sync/async, LVDS supports
single channel 24 bit, supports sync/async
Expansion Slot 1 x mini PCI-e slot, supports wifi
LAN Integrated 2 x RTL8111E 1000M Ethernet controller, supports Wake On Lan, PXE function
Storage 1 x SATA2 HDD interface
1 x MSATA slot, supports SSD
Audio Onboard Realtek ALC662 6 channel high fidelity audio chip, supports MIC, line out

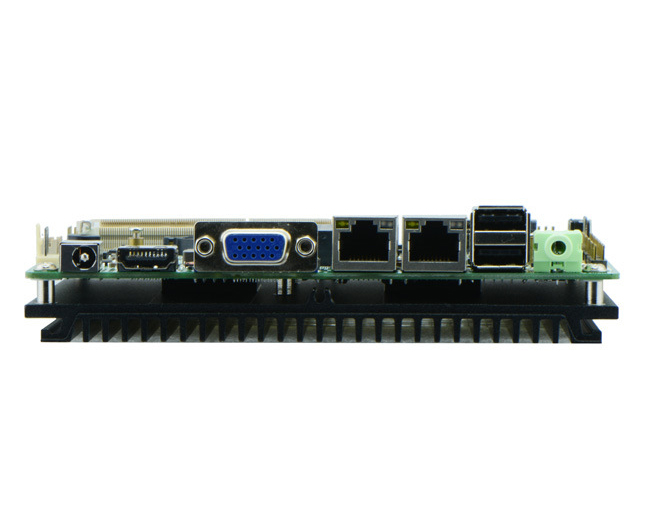

Rear I/O Panel 1 x 12V DC_JACK input
1 x HDMI port
1 x VGA port
2 x USB 2.0 ports
2 x RJ45 LAN ports
1 x Line out port
1 x POWER, 1 x RESET, 1x LED1(POWERLED/HDDLED)(Front panel)
Internal I/O Interface 1 x LVDS connector, 2 x15-pin
1 x JVGA header, same signal with DB15, 2 x 5-pin
6 x RS232 connectors, COM2 supports 485/422 function
1 x TX-RXCOM, RS422/485 mode
4 x USB 2.0 connectors
1 x PS/2 keyboard and mouse interface
1 x AUDIO header, front panel audio interface, 2 x 5-pin
1 x FP1 front panel function button and indicator light header, 2 x 5-pin
1 x PWROUT HDD power supply headers
1 x LVDS INVERTER connector
Fan connector 1 x CPU Fan connector, 3-pin
GPIO Supports 4 channel GPIO
BIOS AMI 16MB Flash ROM
Watch Dog Supports hardware reset function(256 level, 0-255 seconds)
PSU DC_12V single power supply input
Working Temp -10℃～60℃
Storing Temp -20℃～70℃
Working Humidity 5%-95% relative humidity, non-condensing
Dimension 148mm x 102mm
