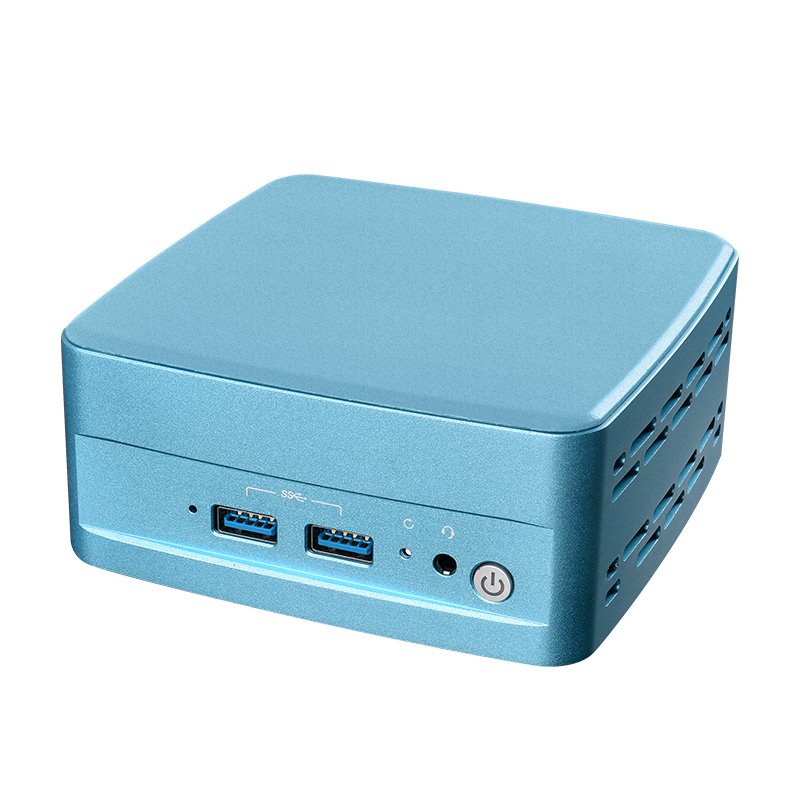

Armortec aluminum alloy Fanless Mini PC Computer with Intel
Supports Intel Core 12/-13 generation-U/-P series processors
Dual-channel DDR5 memory expansion, up to 64GB expansion
HDMI 2.0/Type-C display
Metal body with oxidized and CNC engraved surface, copper fan cooler
Intel 2.5G network, single and dual network options; expandable WIFI, built-in antenna
Specification: NUC-AL2H2L
| Model No. | NUC-ALN2H2L |
| Processor | Onboard support for Intel Core 12th generation Alder Lake-U/-P and 13th generation Raptor Lake-U/-P series processors |
| RAM | 2 DDR5 SO-DIMM slots, with a maximum expandable capacity of 64GB |
| Store | 1 M.2 2280 slot (supports PCIe4.0 x4 NVMe protocol) |
| The internet | Intel 2.5G network card, with single or dual network options |
| Wireless | Optional M.2 E-Key WIFI/BT with built-in antenna |
|

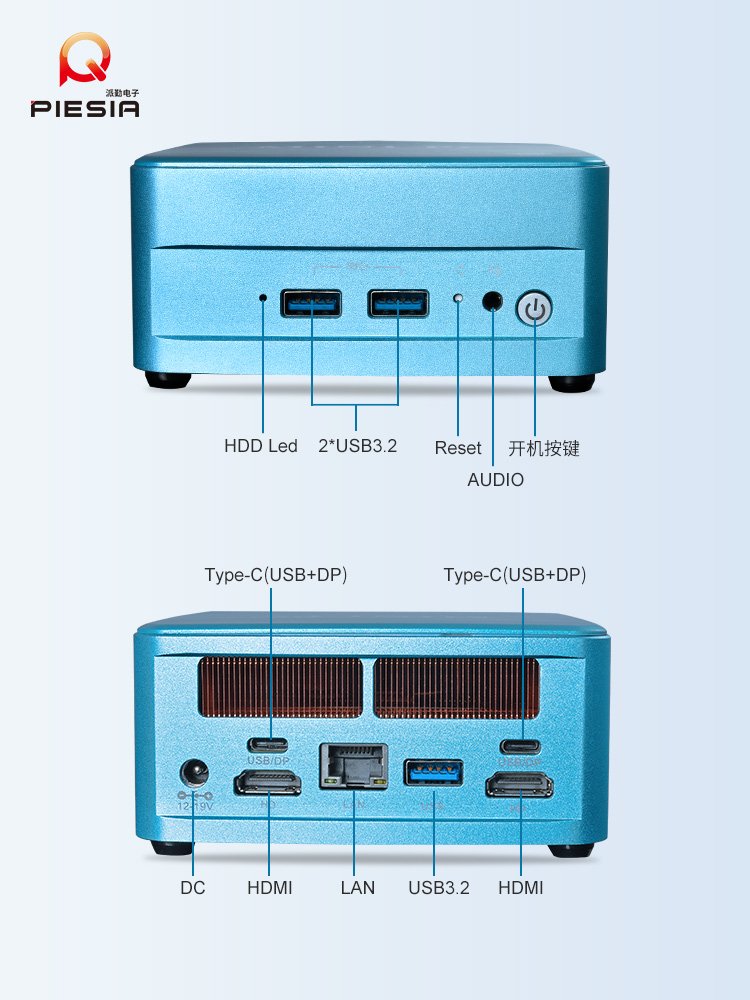

I/O interface |
1*power switch |
| 2*Intel 2.5G network cards (with single or dual network options) | |
| 2*HDMI2.0 interfaces | |
| 2*Type-C interfaces (USB3.2 + DP) | |
| Frontplane I/O interface | 1*DC power port |
| 1*dual-purpose audio port | |
| 2*USB3.1 interfaces | |
| Packaging | Default white packaging with dimensions of 181x152x115mm |
| OS | windows10/11/Linux |
| Power type | DC 12-19V, 150W |
| Storage temperature | -20℃~70℃ |
| Operating temperature | -10℃～70℃ |
| Working humidity | 5%-95% relative humidity, non-condensing |
| Net weight | 1000g for the computer case (excluding adapter) |
| Dimension | 114.5x114.5x54mm for the machine, 181x153x112mm for the packaging, and 485x380x260mm for the outer box |
-
