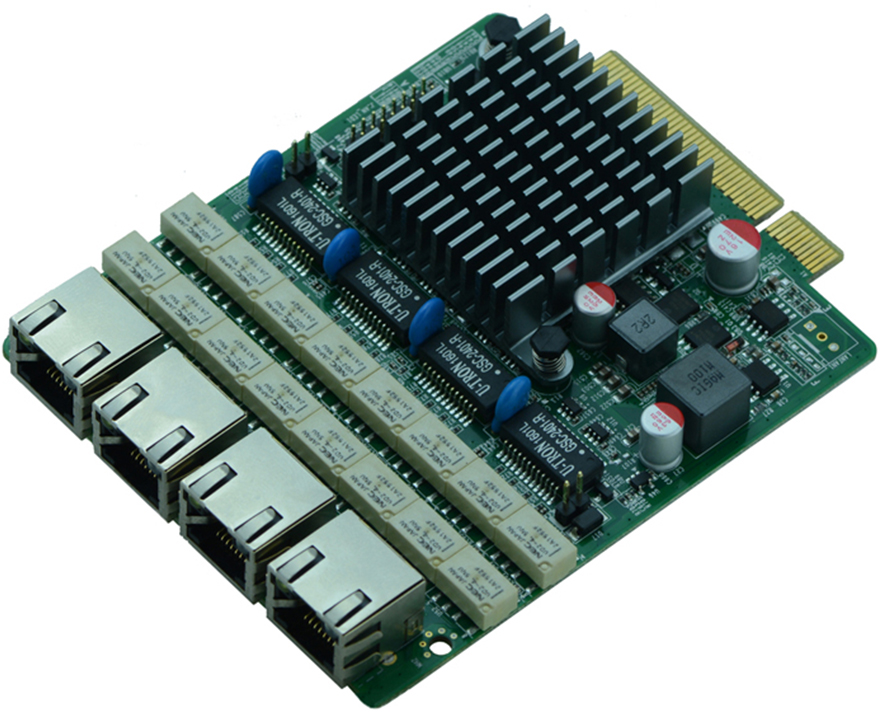

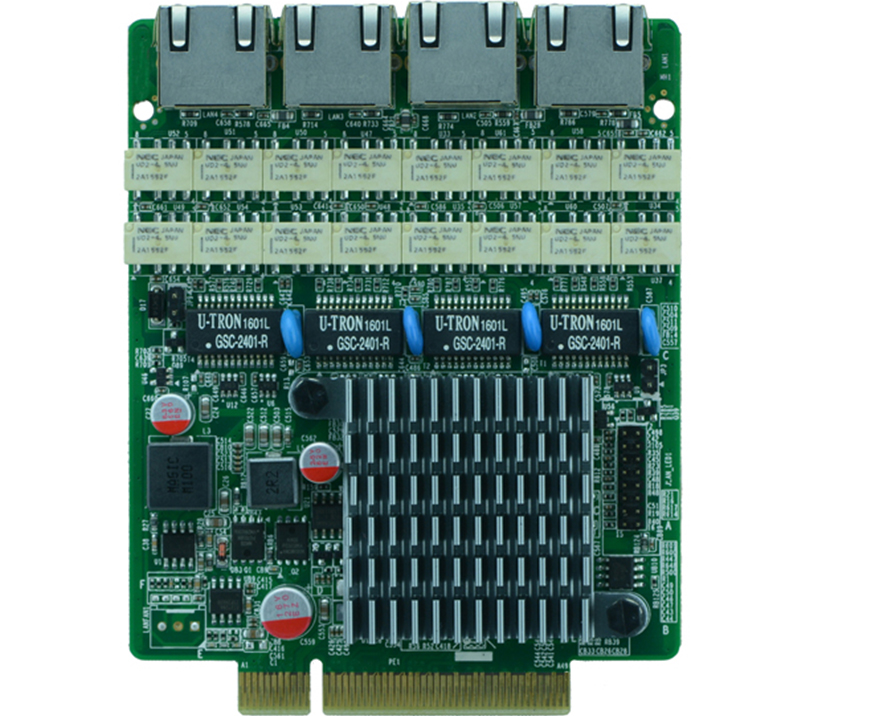

OPT584 VER:1.0

Chipset:Intel® 82580EB 1000Mbps LAN；
Support 4*SFP+10/100/1000 Ethernet Ports；
Support PCIe x8 Gold finger power supply；
Sizes：121.9mm（Length）×64mm（Width）×18mm（Height）；

　　
OPT584 Is a high performance PCIE 8X Gigabit Ethernet, using Intel® 82580DB Gigabit Ethernet chip. It supports 4*1000Mbps SFP+ interfaces，supporting PCIe 2.0. The physical sequence of each network port can reach 128 transferring and receiving. It supports auto-negotiation、IPSec Security function.

This module is in accordance with the design of short PCIE card with strong applicability. It can adapt the corresponding platform or motherboard widely used in network security devices and also be applied to the server device to meet the bandwidth requirements.
Chipset:Intel® 82580EB 1000Mbps LAN；
Support 4*SFP+10/100/1000 Ethernet Ports；
Support PCIe x8 Gold finger power supply；
Sizes：121.9mm（Length）×64mm（Width）×18mm（Height）；
Chip set: Intel® 82580DB Gigabit Network Core；
dimension：； 121.9mm（L）×64mm（W）×18mm（H）
Network function Provide 4*SFP+ Gigabit fiber network interface；
Power characteristics PCIe x8 Gold finger power supply;；
