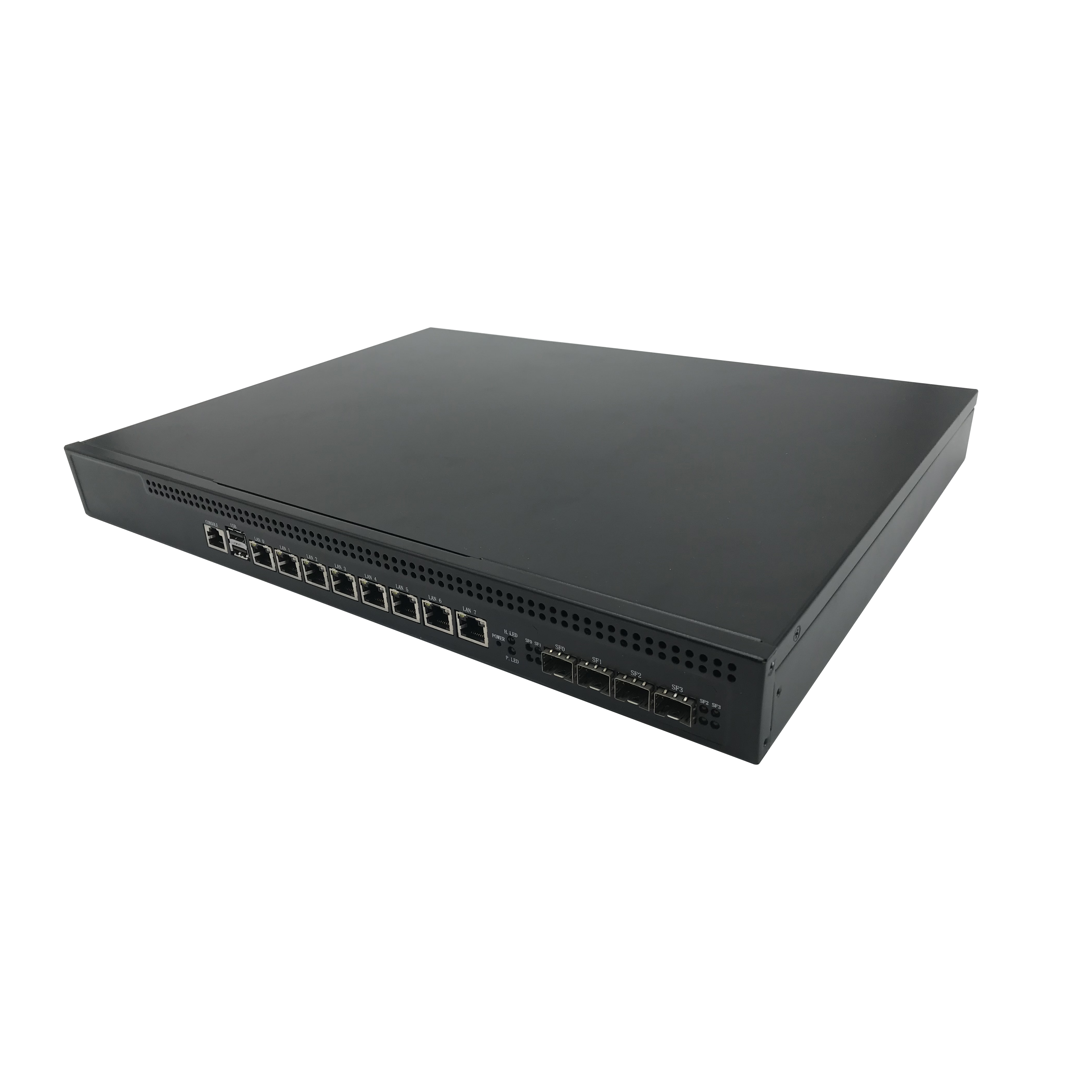

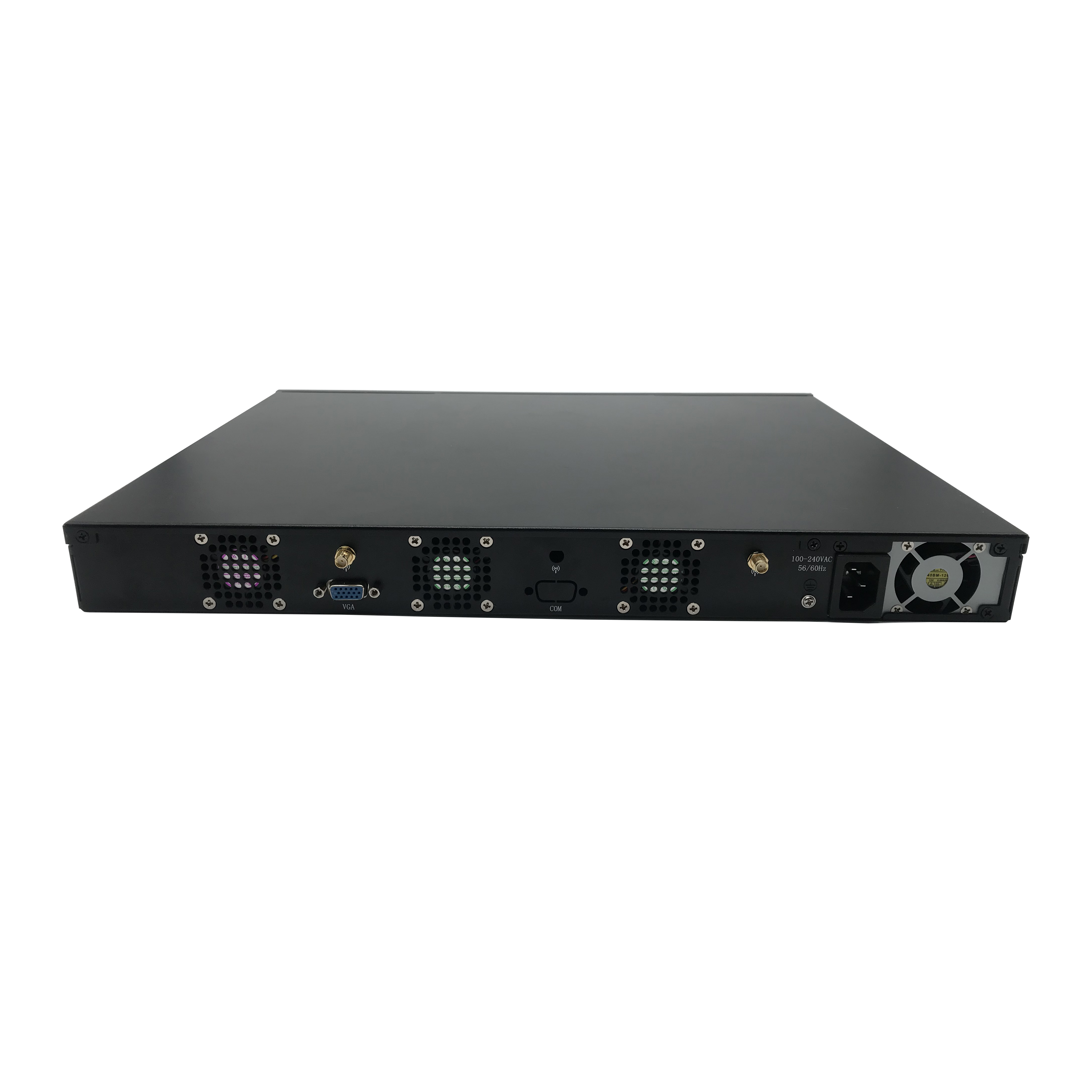

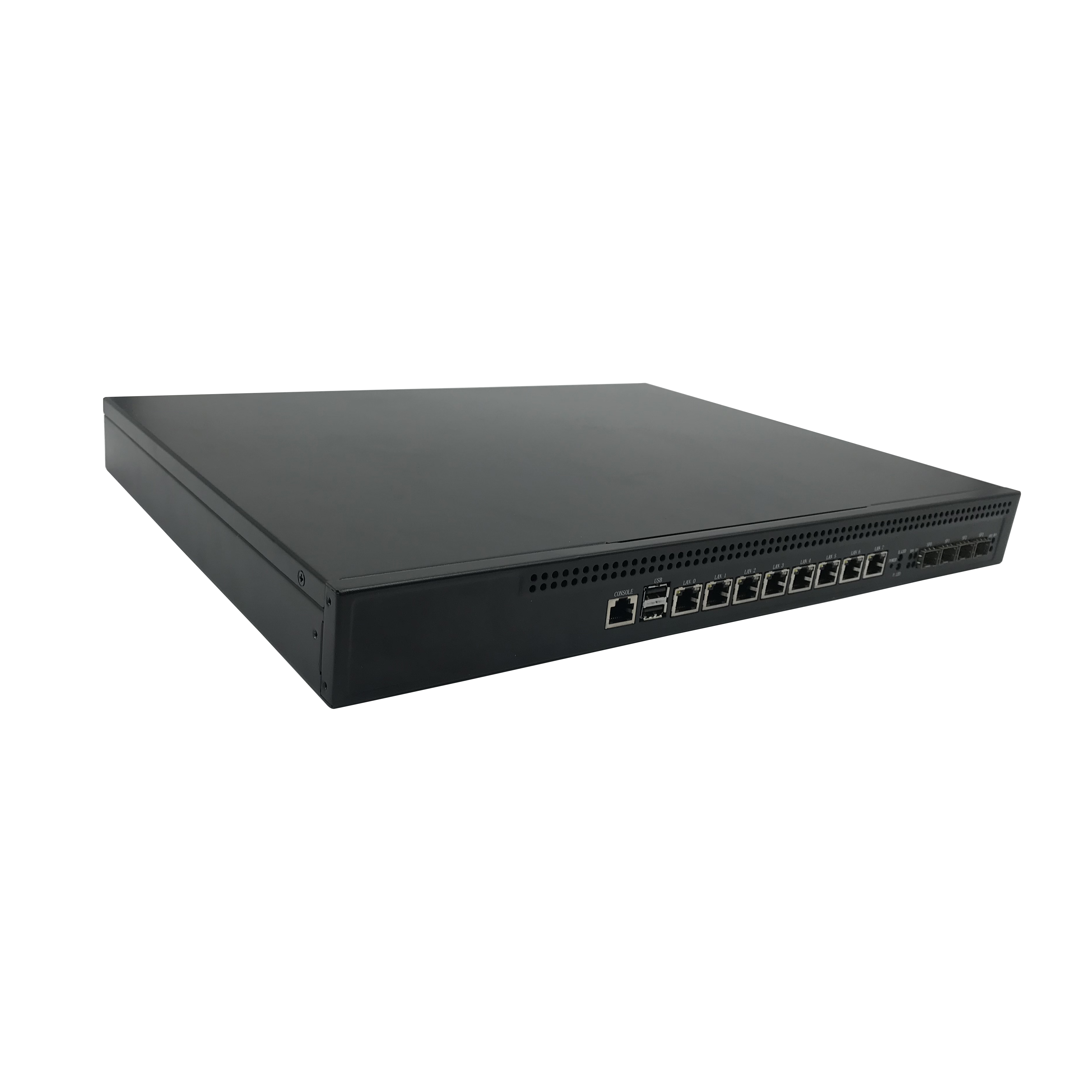

1U Rackmount Network Appliance with Intel Skylake/Kaby Lake/
Feature:
Supports LGA1151 6th/7th/8th Gen Core i3/i5/i7 Pentium/Celeron Xeon E3 1200 v5/v6/(C236 chipset) processors
Deploy Intel Intel H170 express chipset
Supports 2 x DDR4 SO-DIMM memory, Max. 32GB
Integrated with 8*Intel i211 GbE Ethernet cards, supports Wake On LAN, PXE booting
Supports 1 x expanded NIC with 4 x GbE/10GbE SFP or 4 x GbE RJ45(optional)
Supports 1 x RS232 console port(RJ45 type, Cisco Standard)
Supports 4 x USB 2.0 headers, 2 x USB 3.0 headers, 2 x USB 3.0 ports
Supports MSATA SSD, CF card, SATA HDD storage
Specification: FW-1781-4O
Ordering Information
Packing List
Optional Accessories
Model No. | FW-1781-4O | |
Form Factor | 1U 19” Rackmount | |
Platform | Processor Options |
Intel 6th/7th/8th Gen Core i7/i5/i3, Pentium, Celeron(H170 chipset) Intel 6th/7th/8th Core i7/i5/i3, Pentium, Celeron, Xeon E3 1200 v5/v6(C236 chipset) |
CPU Socket | 1x LGA1151 | |
Chipset | Intel H170 | |
Security Acceleration | N/A | |
BIOS | AMI SPI Flash BIOS | |
System Memory | Technology | DDR4 2400/2133 MHz |
Max. Capacity | 32GB | |
Socket | 2x 260pin SODIMM | |
Networking | Ethernet Ports |
8x GbE RJ45 Intel i211 1 x NIC slot(4 x GbE SFP or 4 x 10Gbe SFP+) |
Bypass | 2 x pairs | |
I/O Interface | Reset Button | - |
LED | Power/Storage | |
Power Button | 1x Power button | |
Console | 1x RJ45 | |
USB | 2x USB 3.0 | |
LCD Module | - | |
Display | 1x VGA | |
Power Input | AC power inlet on PSU | |
Storage | HDD/SSD Support | 2x 2.5'' bays |
Onboard Storage | 1x m-SATA, 1X 2.5'' notebook SATA port | |
Expansion | PCIe | 1x PCIe X8 |
Mini-PCIe | 1 x Mini PCIe(For WiFi and 4G), 1 x SIM(For 4G) | |
Miscellaneous | Watchdog | Yes |
Internal RTC with Li Battery | Yes | |
TPM | - | |
Cooling | Processor | CPU fan |
System | 2 x cooling fans | |
Environmental Parameters | Temperature | 0℃~45℃/ -20℃~70℃ |
Humidity |
5 ~ 90% non condensing / 5 ~ 95%, non condensing |
|
System Dimensions | (WxHxD) | 428x44x321mm |
Weight | 4.5 kg | |
Package Dimensions | (WxHxD) | 510x130x440mm |
Weight | 5.2 kg | |
Power | Type/Watts |
220W single ATX PSU 300W redundant ATX PSU(Optional) |
Input | 90~264V@47~63Hz | |
Approvals and Compliance | CE, FCC Class B |
Ordering Information
Part number | PCH | DDR4 | RJ45 | NIC | Bypass | Console | USB 3.0 | 2.5'' HDD | 3.5'' HDD | PCIe | Power |
FW-1781-4OA | H170 | 2 | 8 x Intel i211 | N/A | - | 1 | 2 | 2 | N/A | 1 x PCIe X8 | AC 220W single ATX |
FW-1781-4OB | H170 | 2 | 8 x Intel i211 | 4 x 1G SFP | - | 1 | 2 | 2 | N/A | 1 x PCIe X8 | AC 220W single ATX |
FW-1781-4OC | H170 | 2 | 8 x Intel i211 | 4 x 10G SFP+ | - | 1 | 2 | 2 | N/A | 1 x PCIe X8 | AC 220W single ATX |
FW-1781-4OD | H170 | 2 | 8 x Intel i211 | N/A | - | 1 | 2 | 2 | N/A | 1 x PCIe X8 | AC 300W Redundant ATX |
FW-1781-4OB | H170 | 2 | 8 x Intel i211 | 4 x 1G SFP | - | 1 | 2 | 2 | N/A | 1 x PCIe X8 | AC 300W Redundant ATX |
FW-1781-4OF | H170 | 2 | 8 x Intel i211 | 4 x 10G SFP+ | - | 1 | 2 | 2 | N/A | 1 x PCIe X8 | AC 300W Redundant ATX |
Packing List
1 | SATA data cable |
2 | Power cord 3P 180cm, China |
3 | Rack ears |
4 | Accessory screw bag |
Optional Accessories
1 | Power cord 3P 180cm, USA |
2 | Power cord 3P 180cm, Europe |
3 | Power cord 3P 180cm, UK |
4 | Power cord 3P 180cm, Japan |
5 | Power cord 3P 180cm, India |
-
