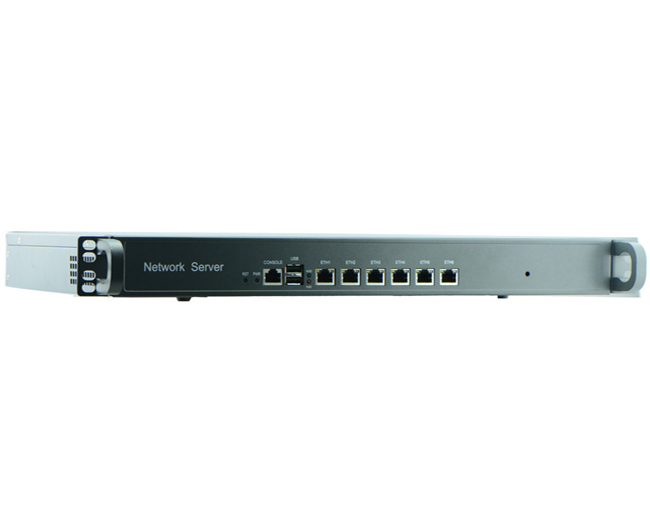

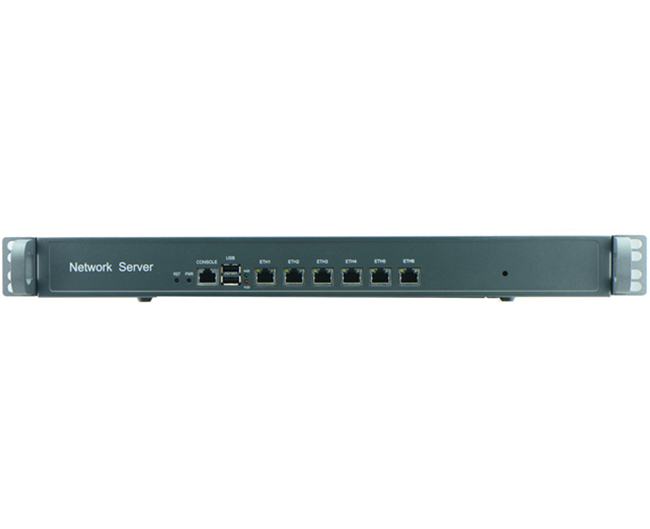

Intel Celeron 3855U Dual Core 1U Rackmount 6 x GbE WGI210AT
Adopts dedicated multi lan application scheme to design
Features excellent network performance
Onboard Intel Celeron 3855U Dual Core Processor(Compatible with Skylake-U Celeron/Pentium/Core i3/Core i5/Core i7)
Supports 2 x DDR4 SO DIMM memory, Max. 32GB
6 Intel WGI210AT NIC, supports Wake On LAN, PXE booting
Supports 1 x console, 2 x USB 2.0
Supports SSD, SATA HDD storage
Thank you for choosing the FWD-3861. The system is powered by the newest Intel Celeron 3855U Processors, codenamed Skylake, with the Intel SoC Series Chipset. It supports up to 32GB of DDR4 system memory at 2133MHz on dual-channel DIMM banks. The FWD-3861 is equipped with advanced I/O capacity which includes an RJ-45 console port, one mini PCIe slot (PCIe Generation 2.0), 1 Serial-ATA ports (comply with SATA Standard 2.0), 1 x notebook HDD slot, 1 x M.2 slot, a mini SATA slot and a CompactFlash slot.
The onboard Ethernet ports be configured with bypass depending on the module specification.
The onboard Ethernet ports be configured with bypass depending on the module specification.
Adopts dedicated multi lan application scheme to design
Features excellent network performance
Onboard Intel Celeron 3855U Dual Core Processor(Compatible with Skylake-U Celeron/Pentium/Core i3/Core i5/Core i7)
Supports 2 x DDR4 SO DIMM memory, Max. 32GB
6 Intel WGI210AT NIC, supports Wake On LAN, PXE booting
Supports 1 x console, 2 x USB 2.0
Supports SSD, SATA HDD storage
Features excellent network performance
Onboard Intel Celeron 3855U Dual Core Processor(Compatible with Skylake-U Celeron/Pentium/Core i3/Core i5/Core i7)
Supports 2 x DDR4 SO DIMM memory, Max. 32GB
6 Intel WGI210AT NIC, supports Wake On LAN, PXE booting
Supports 1 x console, 2 x USB 2.0
Supports SSD, SATA HDD storage
| Model No. | FWD-3861 | |
| Form Factor | 1U 19” Rackmount | |
| Platform | Processor Options | Intel Celeron 3855U Dual Core Processor(Compatible with Skylake-U Celeron/Pentium/Core i3/Core i5/Core i7) |
| CPU Socket | Onboard | |
| Chipset | SoC | |
| Security Acceleration | N/A | |
| BIOS | AMI SPI Flash BIOS | |
| System Memory | Technology | DDR4 2133 MHz |
| Max. Capacity | 32GB | |
| Socket | 2 x 204pin SODIMM | |
| Networking | Ethernet Ports | 6 x GbE WGI210AT |
| Bypass | 2 x pairs(Optional) | |
| I/O Interface | Reset Button | - |
| LED | Power/Storage | |
| Power Button | 1x ATX Power switch, 1x Power button | |
| Console | 1x RJ45 | |
| USB | 2x USB 2.0 | |
| LCD Module | - | |

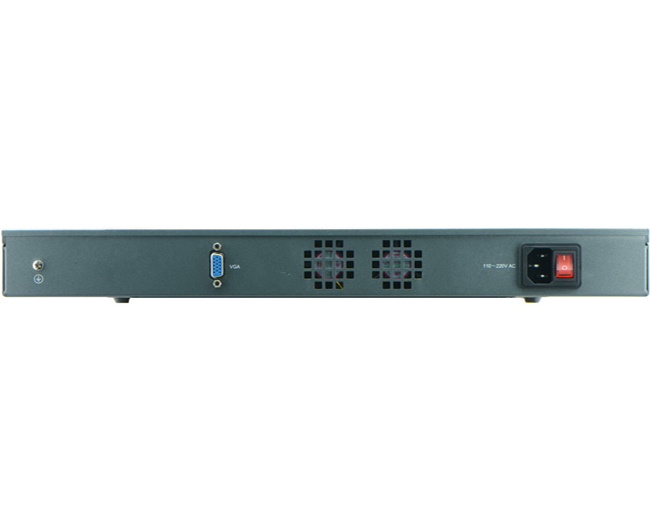

| Display | 1x VGA | |
| Power Input | AC power inlet on PSU | |
| Storage | HDD/SSD Support | 2x 2.5'' bays or |
| 1x 3.5'' bay | ||
| Onboard Storage | 1x m-SATA, 1x M.2(signal alternative to each other) | |
| Expansion | PCIe | - |
| Mini-PCIe | Yes | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU fan |
| System | 2x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5 ~ 90% non condensing / | |
| 5 ~ 95%, non condensing | ||
| System Dimensions | (WxHxD) | 430x44.5x280mm |
| Weight | 4.2 kg | |
| Package Dimensions | (WxHxD) | 520x130x360mm |
| Weight | 5.4 kg | |
| Power | Type/Watts | 60W Open Frame PSU |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC Class B | |
-
