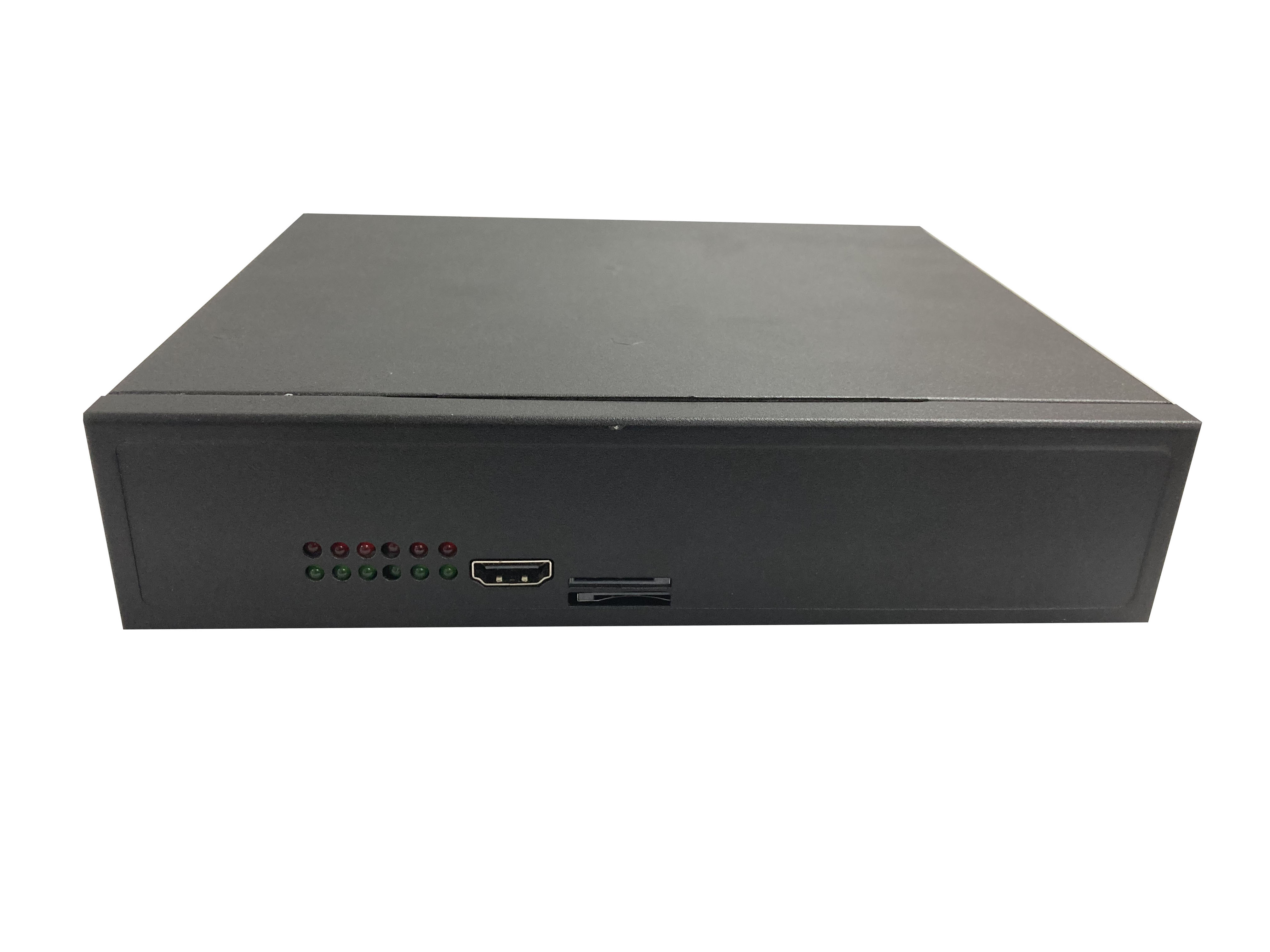

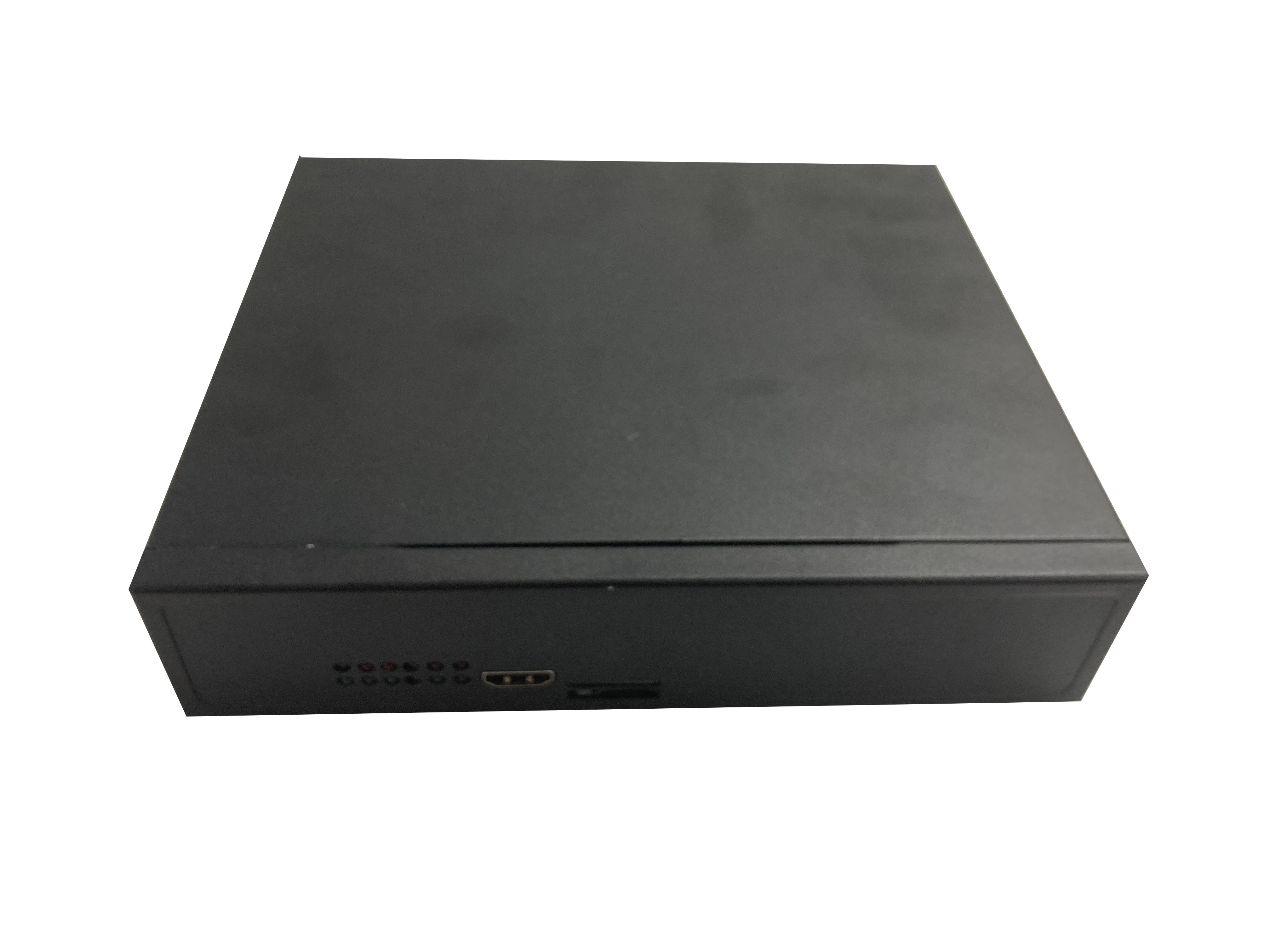

Desktop Network Appliance Powered by Intel Celeron J3455 Pro

　　

NC-AP4M

Desktop Network Appliance with Intel Celeron J3455 Processors, 4 LAN, Dual Mini PCIe, Dual SIM, PCIe and m-SATA slot, BYPASS

The NC-AP4M, powered by the Celeron J3455 processor, is a desktop form factor network appliance designed for entry-level network security, gateway or vCPE.



Intel Celeron J3455 Quad Core Quad Threads, Turbo 2.3GHz

1 x SODIMM DDR3L 1600MHz 1.35V memory, Max. 8GB

1 x MSATA slot(USB / SATA signal, supporting USB Wi-Fi / LTE / SSD)

1 x Mini PCIe slot (USB / PCIe, PCIe signal and LAN3 colay, supporting Wi-Fi / LTE)

1 x PCIe slot (PCIe x1, signal and LAN4 colay)

2 x SIM slots supporting dual LTE

4 x Intel i225 2.5GbE network, optional 2 pairs of Bypass

2 x USB 3.0, 1 x HDMI

Mini Desktop Form Factor

Model No.

NC-AP4M

Form Factor

Desktop

Platform

Processor Options

Intel Celeron J3455 processor

CPU Socket

Onboard

Chipset

SoC

OS Support

Windows all, Linux

BIOS

AMI UEFI BIOS

System Memory

Technology

DDR3L 1600 MHz

Max. Capacity

8GB

Socket

1 x 204pin SODIMM

Networking

Ethernet Ports

Intel Ethernet Controller i225, 2.5 GbE x 4

Bypass

2 Pair (Optional)

Storage

HDD/SSD Support

1 x 2.5” HDD bay

CF/SD

-

mSATA

1 x MSATA

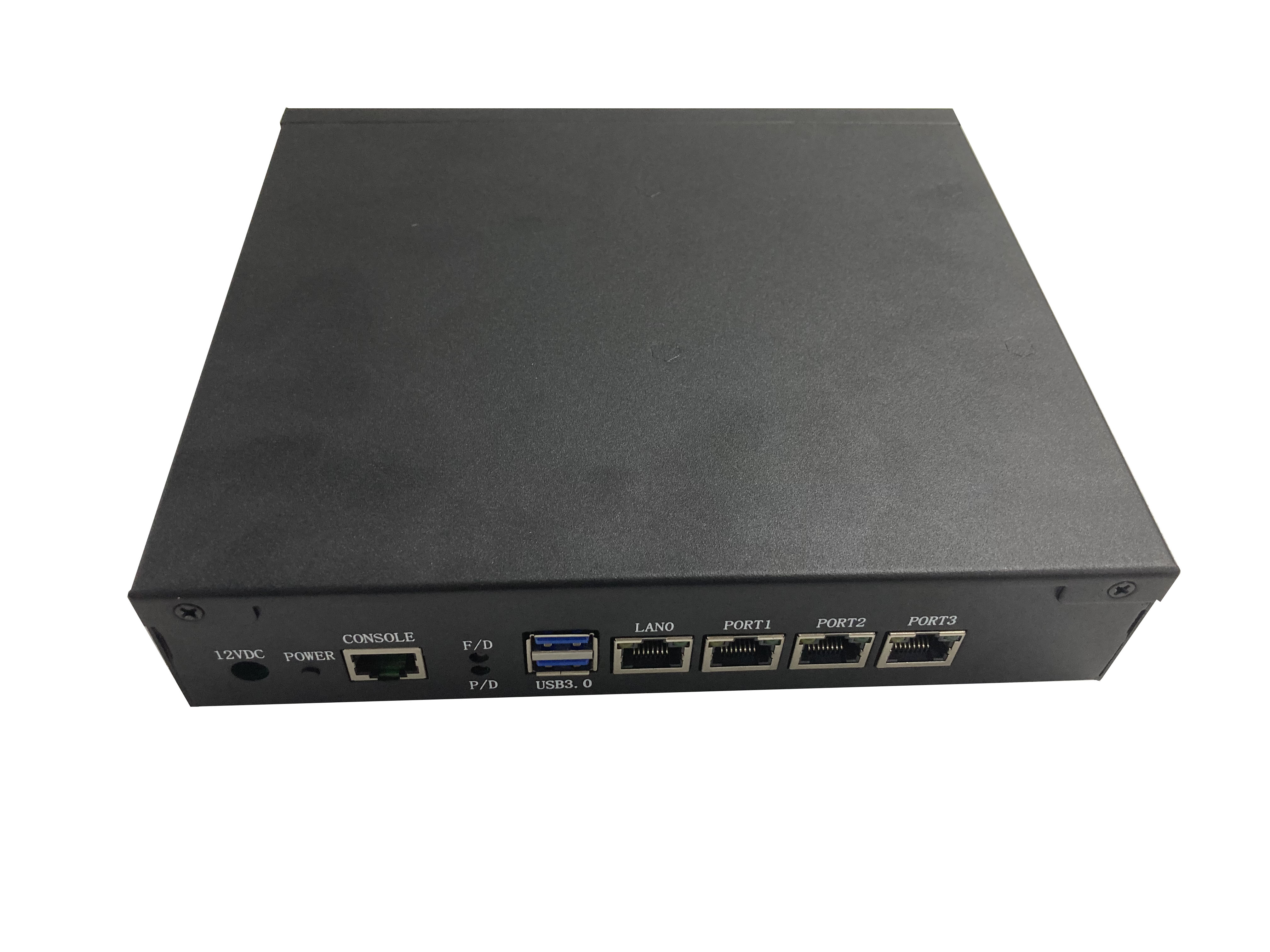

I/O Interface

Power Button

1 x Power button

LAN port

4 x RJ45 port

Console

1 x RJ45 console

USB

2 x USB 3.0

SIM

2 x SIM slot, insert SIM cards from outside of chassis

LED

Power LED x 1,

HDD Active x 1,

LAN LED x 8(Optional Status LED x 1),

1 x LTE/5G LED,1 x Wi-Fi LED

Power Input

40W, 12V DC-in power connector

Expansion

PCIe

1 x PCIe slot (Colayed PCIe signal with LAN)

Mini-PCIe

2 x Mini-PCIe, both support USB signal, one of them colayed PCIe lane with LAN 3

Miscellaneous

Watchdog

256 level

Internal RTC with Li Battery

Yes

TPM

1 x TPM header

MTBF

90630

Cooling

Processor

CPU Heat Sink

System

1x cooling fans

Environmental Parameters

Temperature

0℃~45℃/ -20℃~70℃

Humidity

5 ~ 90% non condensing

System Dimensions

(WxHxD)

205x45x175mm

Weight

1.2kg

Package Dimensions

(WxHxD)

270x125x240mm

Weight

2.1kg

Power

Type/Watts

60W Open Frame PSU

Input

90~264V@47~63Hz

Approvals and Compliance

CE, FCC, RoHS
