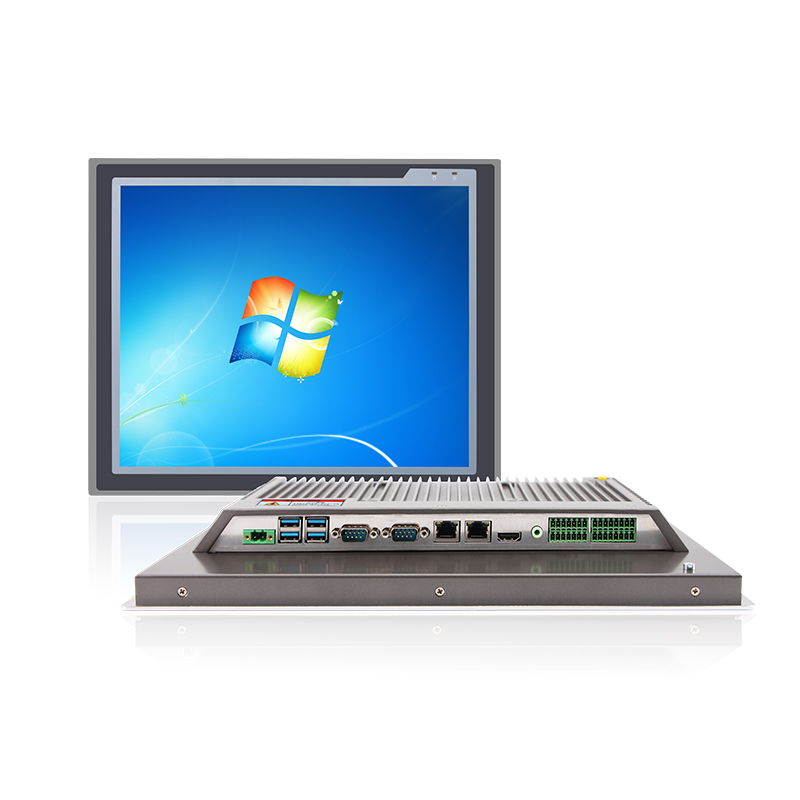

18.5 inch TFT Touch Screen Embedded Industrial Panel PC p
PPC-P185-HY is a touch-controlled tablet computer solution designed for human interface applications. It uses Intel ®J1800 processor /J1900 processor/Intel I5 4200U/I5 7200U/I7 7500U processor, onboard 4GB DDR3 memory (upgradable 12G memory), LCD screen with resolution of 1366x768 and full-plane capacitive touch screen.The whole machine adopts 9-36V DC power supply, which can effectively control the internal heat of the computer.It provide more diversified data storage devices, while supporting MSATA/SSD and SATA2.5" notebook hard disk;Integrated with rich I/O interface, 6 x rs232 or 4 x rs232/2 x 485,2 x 10 ~ 1000M Ethernet ports and 4 x USB3.0 ports.
PPC-P185-HY supports a variety of installation methods, such as wall hanging, bracket and rotary arm, which is very convenient for installation and maintenance.The front panel complies with NEMA/IP65 waterproof and dustproof standard, which can effectively control the water droplets and steam splashing into the main engine and affect the normal operation of the equipment;The equipment adopts a fanless design, limited control of dust into the equipment, to ensure a more stable operation of the equipment, through the external surface of the heat radiators to the system internal heat quickly distributed, so that it can adapt to more severe site environment;Most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, intelligent power, food traceability and other upper computer monitoring and control.
PPC-P185-HY is compatible with Windows7, Windows10, Linux and other mainstream operating systems and embedded operating systems. It can run the application software and programs based on the above operating systems independently developed by customer
PPC-P185-HY supports a variety of installation methods, such as wall hanging, bracket and rotary arm, which is very convenient for installation and maintenance.The front panel complies with NEMA/IP65 waterproof and dustproof standard, which can effectively control the water droplets and steam splashing into the main engine and affect the normal operation of the equipment;The equipment adopts a fanless design, limited control of dust into the equipment, to ensure a more stable operation of the equipment, through the external surface of the heat radiators to the system internal heat quickly distributed, so that it can adapt to more severe site environment;Most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, intelligent power, food traceability and other upper computer monitoring and control.
PPC-P185-HY is compatible with Windows7, Windows10, Linux and other mainstream operating systems and embedded operating systems. It can run the application software and programs based on the above operating systems independently developed by customer

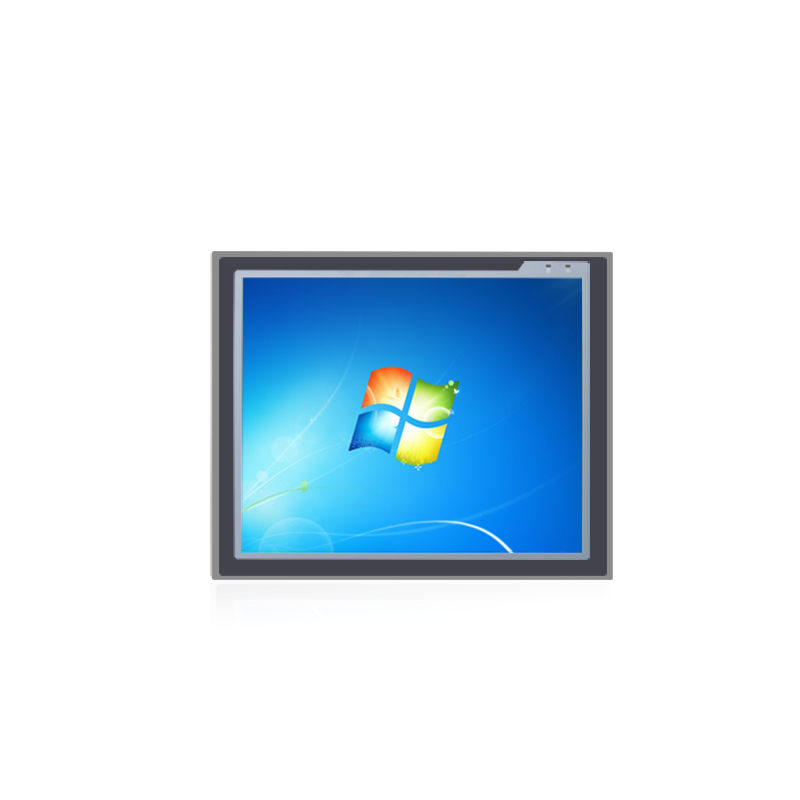

18.5" true color LCD, resolution 1366x768, backlight service life up to 50,000 hours
The front panel achieves IP65 protection to prevent dust and sputtering water droplets from entering the display
Ultra-thin design, save cabinet space, shock and shock resistance
9 ~ 36V wide voltage DC power input, to meet the industrial field power supply precision capacitive touch screen, with a lot of industrial field application characteristics
Both panel embedded and standard VESA installation are supported, Users can choose the installation method flexibly
The front panel achieves IP65 protection to prevent dust and sputtering water droplets from entering the display
Ultra-thin design, save cabinet space, shock and shock resistance
9 ~ 36V wide voltage DC power input, to meet the industrial field power supply precision capacitive touch screen, with a lot of industrial field application characteristics
Both panel embedded and standard VESA installation are supported, Users can choose the installation method flexibly
Specification: PPC-P185-HY
Ordering Information:
System parameters |
CPU | J1800/J1900/I5-4200U/I5-7200U/I7-7500U |
RAM | 4GB DDR3 on board (extensible) | |
Disk | MINIMSATA | |

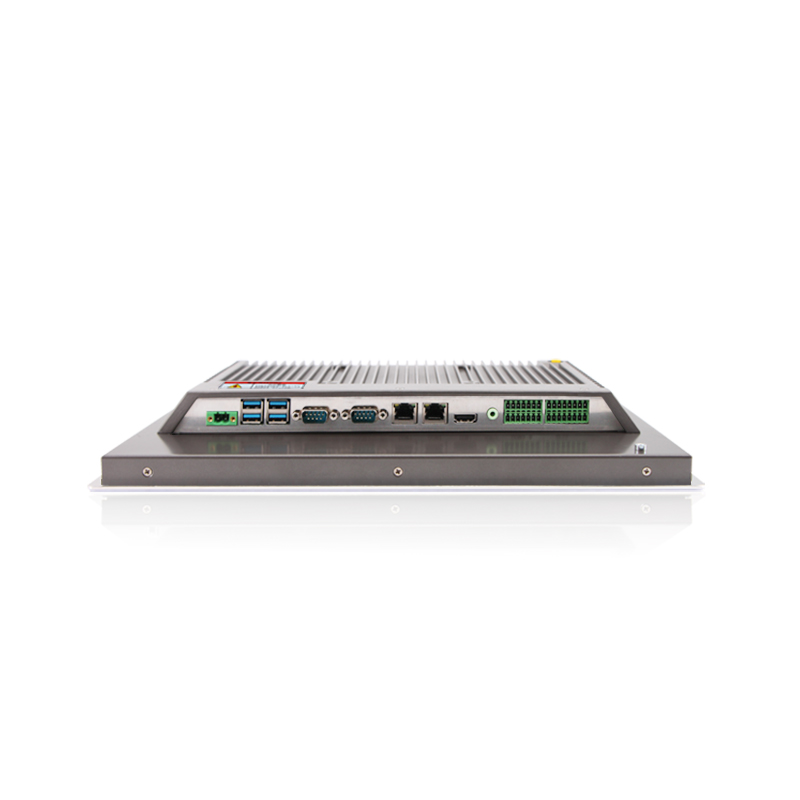

I/O interface |
network port | 2 x Intel Gigabit Ethernet |
Audio | RTLALC662 audio controller, LINE-out port | |
USB | 4 x USB3.0 | |
GPIO | 14 | |
Serial port | 6 x RS232(2 can be set to RS485/RS422) | |
LCD screen |
Display | 18.5”TFT LED |
Resolution | 1366x768 | |
Brightness | 350cd/m2 | |
Contrast | 800:1 | |
Maximum color | 16M | |
Touch screen |
Types of | Capacitive |
Click life | 250 grams of strength, 50 million times | |
Response time | <5ms | |
Transmittance | above 90% | |
High temperature test | 85℃/1000hrs | |
Constant temperature and humidity test | 85℃/90%RH/1000hrs | |
Mechanism parameters |
Panel cabinet | Aluminum profile face frame |
Installation method | Wall mount | |
Power input | 9~36V DC power supply | |
Overall dimensions | 460mmx284mmx45mm | |
Power | 30W | |
Weight | 4KG | |
Environmental parameters |
Operating temperature | -20~60℃(Electronic disk) |
Storage temperature | -30~80℃ | |
Front panel protection | IP65 standard |
Product number | Configuration |
PPC-P185-HY/J1800(economical) | J1800/4G/1 x RJ-45/4 x USB/2 x RS232/12v |
PPC-P185-HY/J1900(economical) | J1800/4G/1 x RJ-45/4 x USB/2 x RS232/12v |
PPC-P185-HY/J1900(industrial) | J1900/4G/2 x RJ-45/4 x USB/4 x RS232+1 x RS485+1 x (RS232/422/485)/optional 9-36V |
PPC-P185-HY/I5-4200U(industrial) | I5-4200U/4G/2 x RJ-45/4 x USB/4 x RS232+1 x RS485+1 x (RS232/422/485)/optional 9-36V |
PPC-P185-HY/I5-7200U(industrial) | I5-7200U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485)/optional 9-36V |
PPC-P185-HY/I7-7500U(industrial) | I7-7500U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485)/optional 9-36V |
-
