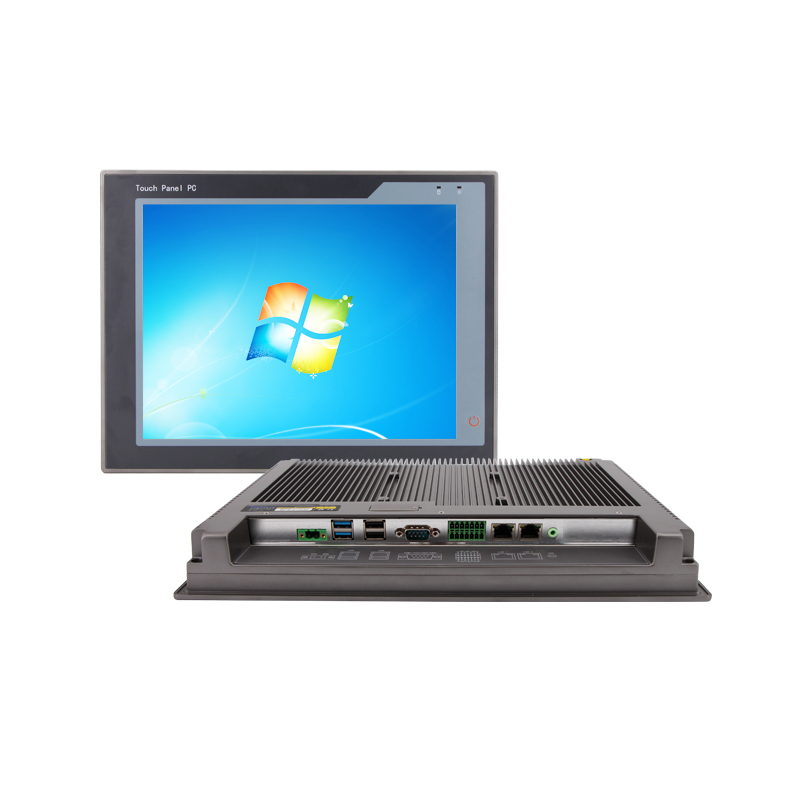

15 inch TFT Touch Screen Embedded Industrial Panel PC pow
PPC-P150-K is a touch panel computer solution designed for human-machine interface applications. It uses Intel J1900 processor/Intel I5-4200U/I5-7200U/I7-7500U processor, onboard 4GB DDR3 memory (max Upgradable 16G memory), LCD screen with a resolution of 1024x768 and full-plane resistive touch screen. The whole machine adopts 9~36V DC power supply, which can effectively control the internal heat of the computer; provides a more diversified data storage device, and supports MSATA/SSD and SATA2.5" notebook hard disks; integrates a wealth of I/O interfaces, 6 x RS232 or 4 x RS232/2 x 485, 2 x 10~1000M Ethernet ports and 4 x USB3.0 ports.
PPC-P150-K supports panel embedded installation and wall-mounted installation. It only needs 4 mounting clips to be tightened. Installation and maintenance are very convenient; the front panel meets the NEMA/IP65 waterproof and dustproof standard, which can effectively control the splash caused by the scene. Water droplets and water vapor enter the host and affect the normal operation of the equipment; the equipment adopts a fanless design, limited control of dust entering the equipment, ensuring a more stable operation of the equipment, and quickly dissipating the internal heat of the system through the external surface heat sink to make it adaptable More harsh on-site environment; most suitable for application in factory automation, machinery manufacturing, numerical control equipment, textile equipment, intelligent power, food traceability and other host computer monitoring and control.
PPC-P150-K is compatible with mainstream operating systems and embedded operating systems such as Windows7, Windows10, Linux, etc., and can run application software and programs based on the above operating systems independently developed by customers, and install industrial automation configuration software to form a powerful man-machine interface.
PPC-P150-K supports panel embedded installation and wall-mounted installation. It only needs 4 mounting clips to be tightened. Installation and maintenance are very convenient; the front panel meets the NEMA/IP65 waterproof and dustproof standard, which can effectively control the splash caused by the scene. Water droplets and water vapor enter the host and affect the normal operation of the equipment; the equipment adopts a fanless design, limited control of dust entering the equipment, ensuring a more stable operation of the equipment, and quickly dissipating the internal heat of the system through the external surface heat sink to make it adaptable More harsh on-site environment; most suitable for application in factory automation, machinery manufacturing, numerical control equipment, textile equipment, intelligent power, food traceability and other host computer monitoring and control.
PPC-P150-K is compatible with mainstream operating systems and embedded operating systems such as Windows7, Windows10, Linux, etc., and can run application software and programs based on the above operating systems independently developed by customers, and install industrial automation configuration software to form a powerful man-machine interface.
Using the latest technology die stamping chassis, solid shell and beautiful appearance
15 "true color LCD display with a resolution of 1024x768 and a backlight life of up to 50000 hours
The touch screen adopts high-temperature five-wire resistance type. The number of clicks can reach 35 million times
9 ~ 36V wide voltage DC power input, meet the industrial site power supply
Support built-in 4G / WIFI and Bluetooth devices (optional)
The large area aluminum fin active heat dissipation design ensures that the tablet can work uninterruptedly in harsh industrial sites
15 "true color LCD display with a resolution of 1024x768 and a backlight life of up to 50000 hours
The touch screen adopts high-temperature five-wire resistance type. The number of clicks can reach 35 million times
9 ~ 36V wide voltage DC power input, meet the industrial site power supply
Support built-in 4G / WIFI and Bluetooth devices (optional)
The large area aluminum fin active heat dissipation design ensures that the tablet can work uninterruptedly in harsh industrial sites
Specification: PPC-P150-K
Ordering Information:
System parameters |
CPU | J1900/I5-4200U/I5-7200U/I7-7500U processor |
RAM | Onboard 4GB DDR3 (expandable) | |
Disk | Support MSATA / SSD and SATA2.5 "notebook hard drives | |

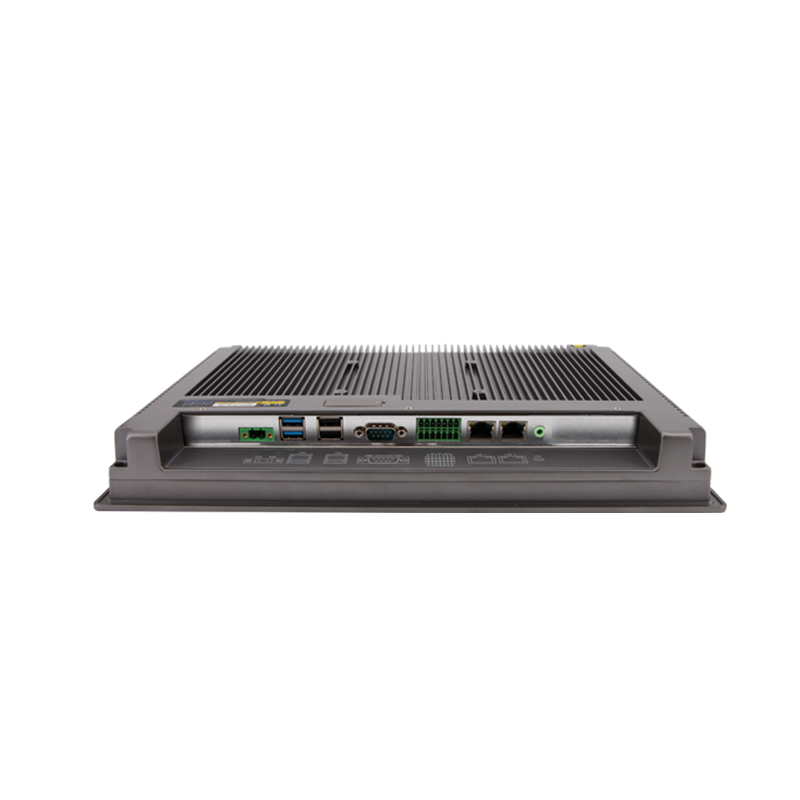

I/O interface |
Network port | 2 x Intel Gigabit Ethernet |
Audio | RTLALC662 audio controller, LINE-out port | |
USB | 4 x USB3.0 | |
Serial port | 6 x RS232(2 can be set to RS485/RS422) | |
GPIO | 14 channels (custom) | |
LCD screen |
Display | 15”TFT LED |
Resolution | 1024x768 | |
Brightness | 350cd/m2 | |
Contrast | 800:1 | |
Maximum color | 16M | |
Touch screen |
Types of | High-temperature five-wire analog resistance |
Click life | 250 grams of strength, 35 million times | |
Response time | <5ms | |
Transmittance | above 85% | |
High temperature test | 85℃/1000hrs | |
Constant temperature and humidity test | 85℃/90%RH/1000hrs | |
Mechanism parameters |
Panel cabinet | The casing adopts cast aluminum mold |
Installation method | The panel is embedded, and it can be installed with the bracket by VESA | |
power input | 9~36V DC power supply | |
Hole Size | 375x288mm | |
Overall dimensions | 390x300x50mm | |
Cabinet size | 372x286x45mm | |
Power | 23W | |
Weight | 3KG | |
Environmental parameters |
Operating temperature | -20~60℃(Electronic disk) |
Storage temperature | -30~80℃ | |
Front panel protection | IP65 standard |
Product number | Configuration |
PPC-P150-K/J1900 | J1900/4G/2 x RJ-45/4 x USB/4 x RS232+1 x RS485+1 x (RS232/422/485)/Optional 9-36V |
PPC-P150-K/I5-4200U | I5-4200U/4G/2 x RJ-45/4 x USB/4 x RS232+1 x RS485+1 x (RS232/422/485)/Optional 9-36V |
PPC-P150-K/I5-7200U | I5-7200U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485)/Optional 9-36V |
PPC-P150-K/I7-7500U | I7-7500U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485)/Optional 9-36V |
-
