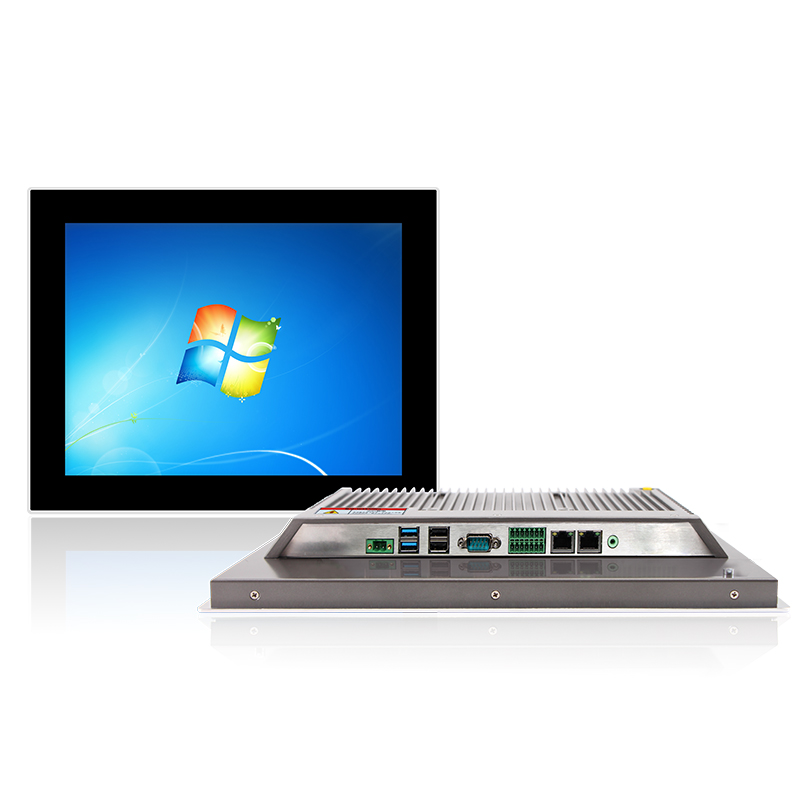

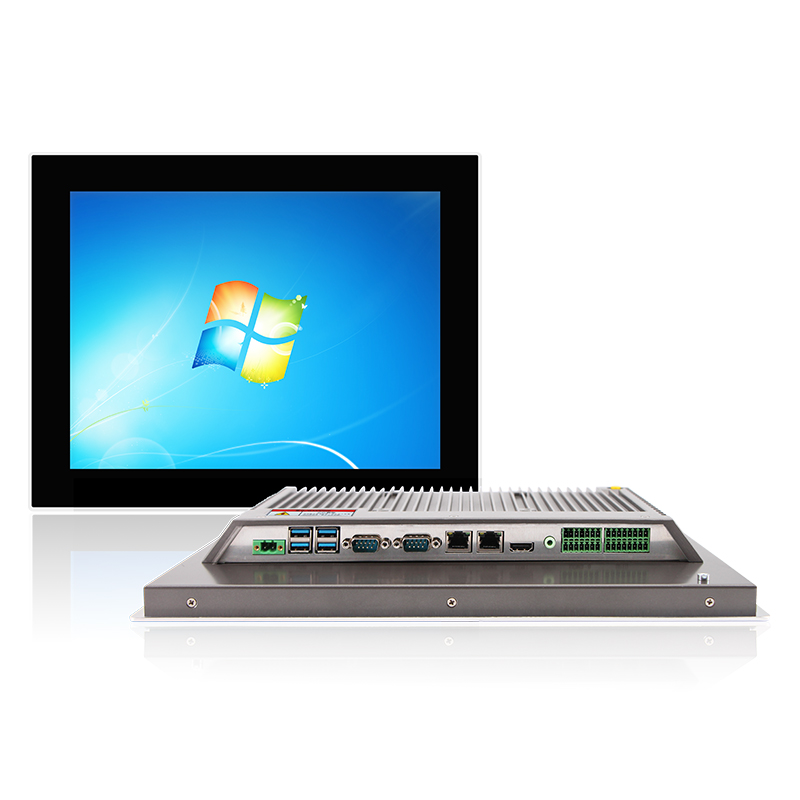

15 inch TFT Touch Screen Embedded Industrial Panel PC pow
PPC-P150-HV is a touch panel computer solution designed for human-machine interface applications, Adopt Intel® J1800 processor/J1900 processor/Intel I5 4200U/I5 7200U/I7 7500U processor, 4GB DDR3 onboard memory , With a resolution of 1024x768 LCD screen and a full-plane capacitive touch screen. The whole machine adopts 9~36V DC power supply to effectively control the internal heat of the computer; provide more diversified data storage devices and support MSATA / SSD and SATA2.5 "notebook hard drives; integrate a rich I / O interface, 6 x RS232 Or 4 x RS232 / 2 x 485, 2 x 10~1000M Ethernet ports and 4 x USB3.0 ports.
PPC-P150-HV supports panel installation and wall-mounted installation, only need 4 installation clips to tighten , The installation and maintenance are very convenient; the front panel conforms to the NEMA / IP65 waterproof and dustproof standard, which effectively controls the water droplets and water vapor splashed on site to enter the host and affect the normal operation of the device; the device adopts a fanless design, which limits the dust to enter the device , To ensure a more stable operation of the equipment, through the external surface heat sink to quickly dissipate the internal heat of the system, so that it can adapt to the harsher on-site environment; it is most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, smart power Monitoring and control of host computers such as food traceability.
PPC-P150-HV is compatible with mainstream operating systems such as Windows7, Windows10, Linux and embedded The operating system can run the application software and programs based on the above operating systems independently developed by the customer, and install the industrial automation configuration software to form a powerful human-machine interface.
PPC-P150-HV supports panel installation and wall-mounted installation, only need 4 installation clips to tighten , The installation and maintenance are very convenient; the front panel conforms to the NEMA / IP65 waterproof and dustproof standard, which effectively controls the water droplets and water vapor splashed on site to enter the host and affect the normal operation of the device; the device adopts a fanless design, which limits the dust to enter the device , To ensure a more stable operation of the equipment, through the external surface heat sink to quickly dissipate the internal heat of the system, so that it can adapt to the harsher on-site environment; it is most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, smart power Monitoring and control of host computers such as food traceability.
PPC-P150-HV is compatible with mainstream operating systems such as Windows7, Windows10, Linux and embedded The operating system can run the application software and programs based on the above operating systems independently developed by the customer, and install the industrial automation configuration software to form a powerful human-machine interface.
15 "true color LCD display with a resolution of 1024x768 and a backlight life of up to 50,000 hours
The front panel achieves IP65 protection level to prevent dust and spattered water droplets from entering the display
The ultra-thin design saves cabinet space and is resistant to shock and vibration
9~36V wide voltage DC power input, meet the industrial site power supply
High-precision capacitive touch screen, with many industrial site application features, while supporting panel
embedded and standard VESA installation, users can flexibly choose the installation method
The front panel achieves IP65 protection level to prevent dust and spattered water droplets from entering the display
The ultra-thin design saves cabinet space and is resistant to shock and vibration
9~36V wide voltage DC power input, meet the industrial site power supply
High-precision capacitive touch screen, with many industrial site application features, while supporting panel
embedded and standard VESA installation, users can flexibly choose the installation method
Specification: PPC-P150-HV
Ordering Information:
System parameters |
CPU | J1800/J1900/I5-4200U/I5-7200U/I7-7500U processor |
RAM | Onboard 4GB DDR3 (expandable) | |
Disk | Support MSATA / SSD and SATA2.5 "notebook hard drives | |
I/O interface |
Network port | 2 x Intel Gigabit Ethernet |
Audio | RTLALC662 audio controller, LINE-out port | |
USB | 4 x USB3.0 | |
Serial port | 6 x RS232(2 can be set to RS485/RS422) | |
GPIO | 14 channels (custom) | |
LCD screen |
Display | 15”TFT LED |
Resolution | 1024x768 | |
Brightness | 350cd/m2 | |
Contrast | 800:1 | |
Maximum color | 16M | |
Touch screen |
Types of | High precision capacitive |
Click life | 250 grams of strength, 50 million times | |
Response time | <5ms | |
Transmittance | above 95% | |
High temperature test | 85℃/1000hrs | |
Constant temperature and humidity test | 85℃/90%RH/1000hrs | |
Mechanism parameters |
Panel cabinet | Aluminum alloy frame |
Installation method | The panel is embedded, and it can be installed with the bracket by VESA | |
Power input | 9~36V DC power supply | |
Hole Size | 360mmx285mm | |
Overall dimensions | 370mmx290mmx48mm | |
Power | 30W | |
Weight | 4KG | |
Environmental parameters |
Operating temperature | -20~60℃(Electronic disk) |
Storage temperature | -30~80℃ | |
Front panel protection | IP65 standard |
Product number | Configuration |
PPC-P150-HV/J1800(Economical) | J1900/4G/1 x RJ-45/4 x USB/2 x RS232/12V |
PPC-P150-HV/J1900(Economical) | J1900/4G/1 x RJ-45/4 x USB/2 x RS232/12V |
PPC-P150-HV/J1900 | J1900/Onboard 4G/2 x RJ-45/4 x USB/4 x RS232+1 x RS485+1 x (RS232/422/485)/Optional 9-36V |
PPC-P150-HV/I5-4200U | I5-4200U/Onboard 4G/2 x RJ-45/4 x USB/4 x RS232+1x RS485+1 x (RS232/422/485)/Optional 9-36V |
PPC-P150-HV/I5-7200U | I5-7200U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485)/Optional 9-36V |
PPC-P150-HV/I7-7500U | I7-7500U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485)/Optional 9-36V |
-
