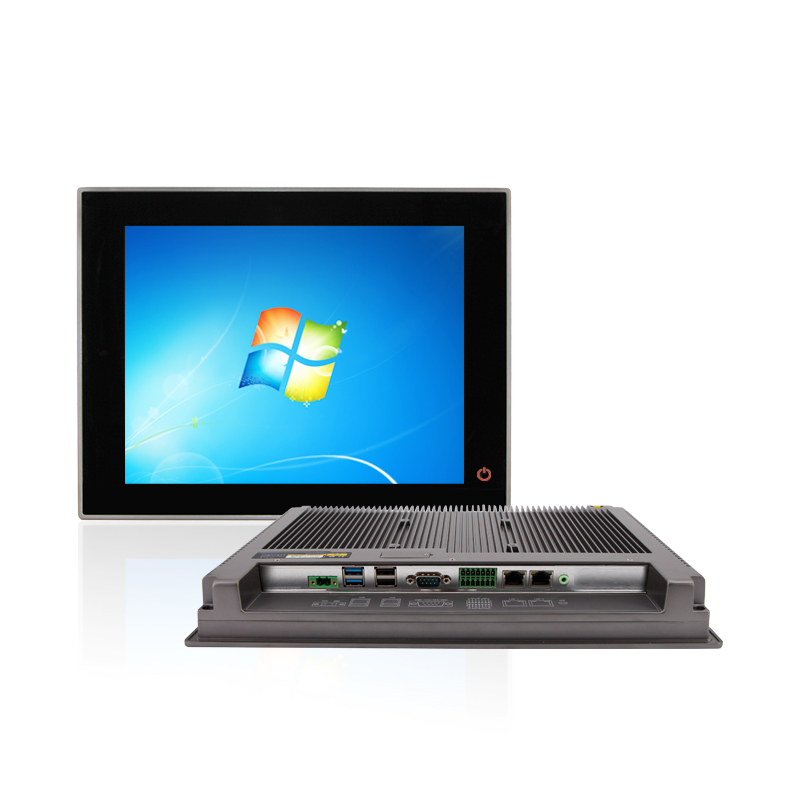

15 inch TFT Touch Screen Embedded Industrial Panel PC pow
PPC-P150-H is a touch panel computer solution designed for human-machine interface applications. It uses Intel® J1900 processor/Intel I5-4200U/I5-7200U/I7-7500U processor, onboard 2GB DDR3/4GB DDR3 memory, LCD with a resolution of 1024x768 and high-temperature full-screen capacitive touch screen. The whole machine adopts 9~36V DC power supply, which can effectively control the internal heat of the computer; provide a more diversified data storage device, support MSATA/SSD and SATA2.5" notebook hard disk at the same time; integrate a rich I/O interface, 6 x RS232 Or 4 x RS232/2 x 485, 2 x 10~1000M Ethernet ports and 2 x USB2.0, 2 x USB3.0 ports.
PPC-P150-H supports panel embedded installation and wall-mounted installation. It only needs 4 mounting clips to be tightened. Installation and maintenance are very convenient; the front panel meets the NEMA/IP65 waterproof and dustproof standard, which can effectively control the splash caused by the scene. Water droplets and water vapor enter the host and affect the normal operation of the equipment; the equipment adopts a fanless design, limited control of dust entering the equipment, ensuring a more stable operation of the equipment, and quickly dissipating the internal heat of the system through the external surface heat sink, so that it can adapt More harsh on-site environment; most suitable for application in factory automation, machinery manufacturing, numerical control equipment, textile equipment, intelligent power, food traceability and other host computer monitoring and control.
PPC-P150-H is compatible with mainstream operating systems and embedded operating systems such as Windows7, Windows10, Linux, etc. It can run application software and programs based on the above operating systems independently developed by customers, and install industrial automation configuration software to form a powerful man-machine interface.
PPC-P150-H supports panel embedded installation and wall-mounted installation. It only needs 4 mounting clips to be tightened. Installation and maintenance are very convenient; the front panel meets the NEMA/IP65 waterproof and dustproof standard, which can effectively control the splash caused by the scene. Water droplets and water vapor enter the host and affect the normal operation of the equipment; the equipment adopts a fanless design, limited control of dust entering the equipment, ensuring a more stable operation of the equipment, and quickly dissipating the internal heat of the system through the external surface heat sink, so that it can adapt More harsh on-site environment; most suitable for application in factory automation, machinery manufacturing, numerical control equipment, textile equipment, intelligent power, food traceability and other host computer monitoring and control.
PPC-P150-H is compatible with mainstream operating systems and embedded operating systems such as Windows7, Windows10, Linux, etc. It can run application software and programs based on the above operating systems independently developed by customers, and install industrial automation configuration software to form a powerful man-machine interface.
Using the latest technology to stamp the chassis, the shell is firm and the appearance is beautiful

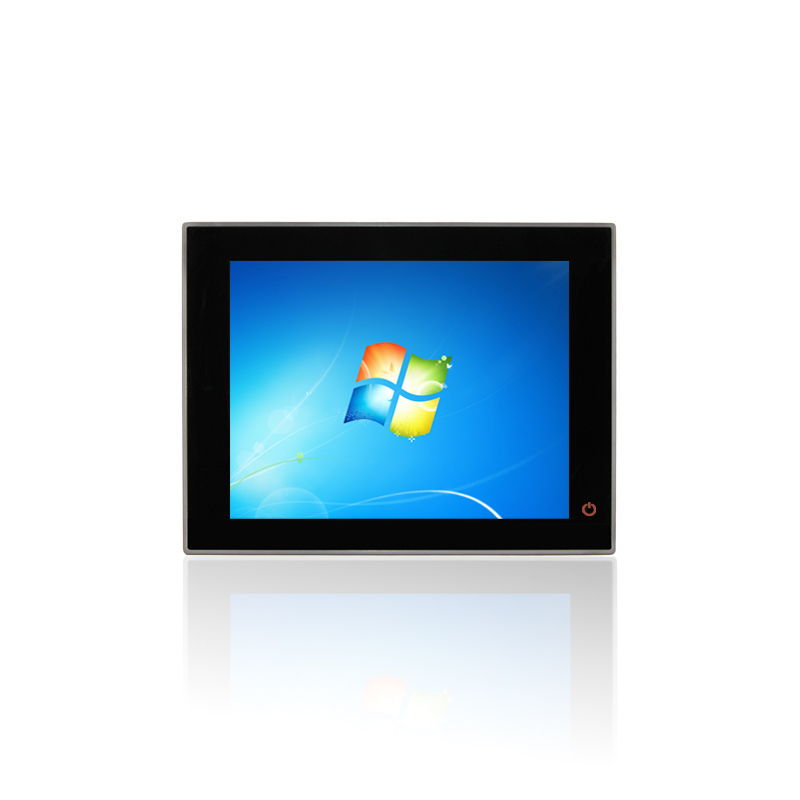

15" true color LCD display, resolution 1024x768, backlight service life up to 50000 hours
The touch screen adopts a full-flat capacitive touch screen. The number of clicks can reach 50 million times
9~36V wide-voltage DC power input, meeting industrial site power supply
Support built-in 4G/WIFI and Bluetooth devices (optional)
Large-area aluminum fin active heat dissipation design ensures that the tablet can work uninterrupted in harsh industrial scenes
15" true color LCD display, resolution 1024x768, backlight service life up to 50000 hours
The touch screen adopts a full-flat capacitive touch screen. The number of clicks can reach 50 million times
9~36V wide-voltage DC power input, meeting industrial site power supply
Support built-in 4G/WIFI and Bluetooth devices (optional)
Large-area aluminum fin active heat dissipation design ensures that the tablet can work uninterrupted in harsh industrial scenes
Specification: PPC-P150-H
Ordering Information:
System parameters |
CPU | J1900/I5-4200U/I5-7200U/I7-7500U processor |
RAM | Onboard 2GB DDR3/4GB DDR3 (expandable) | |
Disk | Support MSATA / SSD and SATA2.5 "notebook hard drives | |

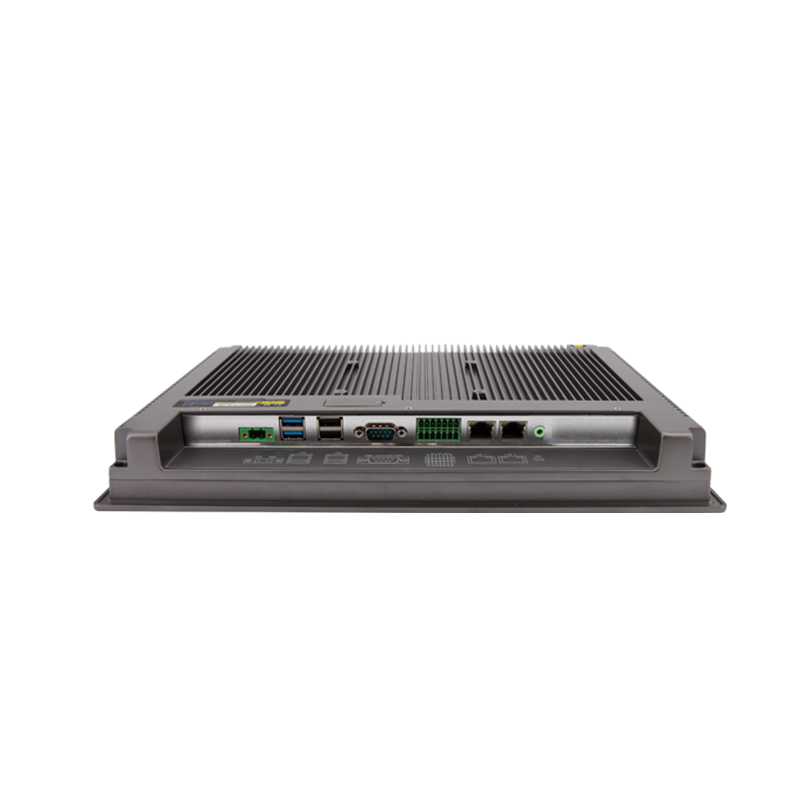

I/O interface |
Network port | 2 x Intel Gigabit Ethernet |
Audio | RTLALC662 audio controller, LINE-out port | |
USB | 2 x USB2.0, 2 x USB3.0 | |
Serial port | 6 x RS232(2 can be set to RS485/RS422) | |
LCD screen |
Display | 15”TFT LED |
Resolution | 1024x768 | |
Brightness | 350cd/m2 | |
Contrast | 800:1 | |
Maximum color | 16M | |
Touch screen |
Types of | Capacitive |
Click life | 250 grams of strength, 50 million times | |
Response time | <5ms | |
Transmittance | above 90% | |
High temperature test | 85℃/1000hrs | |
Constant temperature and humidity test | 85℃/90%RH/1000hrs | |
Mechanism parameters |
Panel cabinet | The case adopts cast aluminum mold |
Installation method | The panel is embedded, and it can be installed with the bracket by VESA | |
Power input | 9~36V DC power supply | |
Hole Size | 375x288mm | |
Overall dimensions | 390x300x50mm | |
Power | 20W | |
Weight | 3KG | |
Environmental parameters |
Operating temperature | -20~60℃(Electronic disk) |
Storage temperature | -30~80℃ | |
Front panel protection | IP65 standard |
Product number | Configuration |
PPC-P150-H/J1900 | J1900/Onboard4G/2 x RJ-45/4 x USB/4 x RS232+1 x RS485+1 x (RS232/422/485)/Optional 9-36V |
PPC-P150-H/I5-4200U | I5-4200U/Onboard 4G/2 x RJ-45/4 x USB/4 x RS232+1 x RS485+1 x (RS232/422/485)/Optional 9-36V |
PPC-P150-H/I5-7200U | I5-7200U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485)/Optional 9-36V |
PPC-P150-H/I7-7500U | I7-7500U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485)/Optional 9-36V |
-
