12.1 inch TFT Touch Screen Embedded Industrial Panel PC p
PPC-P121-K is a touch panel computer solution designed for human-machine interface applications. It uses Intel®JI900 processor/Intel I5 4200U/I5 7200U/I7 7500U processor, onboard 4GB DDR3 memory (expandable) , LCD with a resolution of 1024x768 and a full-plane resistive touch screen. The whole machine adopts 9~36V DC power supply, which can effectively control the internal heat of the computer; provides a more diversified data storage device, and supports MSATA/SSD and SATA2.5" notebook hard disks; integrates a wealth of I/O interfaces, 6 x RS232 Or 4 x RS232/2 x 485, 2 x 10~1000M Ethernet ports and 4 x USB3.0 ports.
PPC-P121-K supports panel embedded installation and wall-mounted installation. It only needs 4 mounting clips to be tightened. Installation and maintenance are very convenient; the front panel meets the NEMA/IP65 waterproof and dustproof standard, which effectively controls the splash Water droplets and water vapor enter the host and affect the normal operation of the equipment; the equipment adopts a fanless design, limited control of dust entering the equipment, ensuring a more stable operation of the equipment, and quickly dissipating the internal heat of the system through the external surface heat sink to make it adaptable More harsh on-site environment; most suitable for application in factory automation, machinery manufacturing, numerical control equipment, textile equipment, intelligent power, food traceability and other host computer monitoring and control.
PPC-P121-K is compatible with mainstream operating systems and embedded operating systems such as Windows7, Windows10, Linux, etc. It can run application software and programs based on the above operating systems independently developed by customers, and install industrial automation configuration software to form a powerful man-machine interface.
PPC-P121-K supports panel embedded installation and wall-mounted installation. It only needs 4 mounting clips to be tightened. Installation and maintenance are very convenient; the front panel meets the NEMA/IP65 waterproof and dustproof standard, which effectively controls the splash Water droplets and water vapor enter the host and affect the normal operation of the equipment; the equipment adopts a fanless design, limited control of dust entering the equipment, ensuring a more stable operation of the equipment, and quickly dissipating the internal heat of the system through the external surface heat sink to make it adaptable More harsh on-site environment; most suitable for application in factory automation, machinery manufacturing, numerical control equipment, textile equipment, intelligent power, food traceability and other host computer monitoring and control.
PPC-P121-K is compatible with mainstream operating systems and embedded operating systems such as Windows7, Windows10, Linux, etc. It can run application software and programs based on the above operating systems independently developed by customers, and install industrial automation configuration software to form a powerful man-machine interface.
Using the latest technology to stamp the chassis, the shell is firm and the appearance is beautiful
12.1" true color LCD display, resolution 1024x768, backlight service life up to 50000 hours
The touch screen adopts high temperature five-wire resistive type. The number of clicks can reach 35 million
9~36V wide-voltage DC power input, meeting industrial site power supply
Support built-in 4G/WIFI and Bluetooth devices (optional)

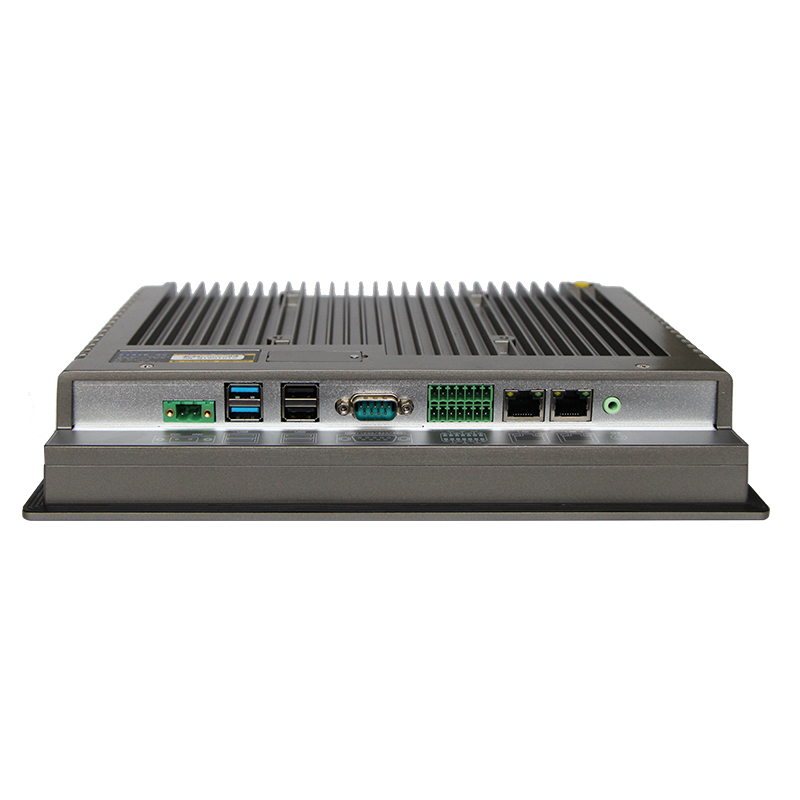

Large-area aluminum fin active heat dissipation design ensures that the tablet can work uninterrupted in harsh industrial scenes
12.1" true color LCD display, resolution 1024x768, backlight service life up to 50000 hours
The touch screen adopts high temperature five-wire resistive type. The number of clicks can reach 35 million
9~36V wide-voltage DC power input, meeting industrial site power supply
Support built-in 4G/WIFI and Bluetooth devices (optional)
Large-area aluminum fin active heat dissipation design ensures that the tablet can work uninterrupted in harsh industrial scenes
Specification: PPC-P121-K
Ordering Information:
System parameters |
CPU | J1900 /I5-4200U/I5-7200U/I7-7500U |
RAM | Onboard 4GB DDR3 (expandable) | |
Disk | MINIMSATA | |
I/O interface |
Network port | 2 x Intel Gigabit Ethernet |
Audio | RTLALC662 audio controller, LINE-out port | |
USB | 4 x USB3.0 | |
Serial port | 6 x RS232(2 can be set to RS485/RS422) | |
GPIO | 14 channels (custom) | |
LCD screen |
Display | 12.1”TFT LED |
Resolution | 1024x768 | |
Brightness | 350cd/m2 | |
Contrast | 800:1 | |
Maximum color | 16M | |
Touch screen |
Types of | High temperature five-wire analog resistive |
Click life | 250 grams of force, 35 million times | |
Response time | <5ms | |
Transmittance | above 85% | |
High temperature test | 85℃/1000hrs | |
Constant temperature and humidity test | 85℃/90%RH/1000hrs | |
Mechanism parameters |
Panel cabinet | The case adopts cast aluminum mold |
Installation method | Embedded in panel, VESA mountable with bracket | |
Power input | 9~36V DC power supply | |
Overall dimensions | 321x252x51mm | |
Box size | 304x237x45mm | |
Hole Size | 306x239mm | |
Power | 21W | |
Weight | 3KG | |
Environmental parameters |
Operating temperature | -20~60℃(Electronic disk) |
Storage temperature | -30~80℃ | |
Front panel protection | IP65 standard |
Product number | Configuration |
PPC-P121-K/J1900 | J1900/4G/2 x RJ-45/4 x USB/4 x RS232+1 x RS485+1 x (RS232/422/485)/optional 9-36V |
PPC-P121-K/I5-4200U | I5-4200U/4G/2 x RJ-45/4 x USB/4 x RS232+1 x RS485+1 x (RS232/422/485)/optional 9-36V |
PPC-P121-K/I5-7200U | I5-7200U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485//optional 9-36V |
PPC-P121-K/I7-7500U | I7-7500U/4G/2 x RJ-45/4 x USB/4 x RS232+2 x (RS232/422/485)/optional 9-36V |
-
