industrial Fanless Mini PC Intel Celeron J1900/3865U/Core i3

　　

Intel Celeron J1900/3865U/Core i3/Core i5/Core i7 6th/7th/8th Gen Processor Fanless Mini PC with 2 x COM, 4K Video Playback



Specification:                      NUC-N5350ZHD
model NUC-N5350ZHD
Case



 		 Material/structure All aluminum alloy/fanless
colour Iron gray
Dimensions (length, width, height) 155*155*52MM
Weight (bare metal net weight) 1.25KG
installation Desktop/Wall-mounted
Motherboard


 		 CPU Integrated Intel J1900/I3 I5 I7 dual-core four-thread processor TDP 15W
System chip Based on Intel®Skylake-U SOC platform
display Integrated Intel® Iris™ Graphics 540 supports DirectX 12 OpenGL 4.4, supports 4K
RAM 2*DDR4 SODIMM memory slot, support 2133MHz memory, maximum support 32GB

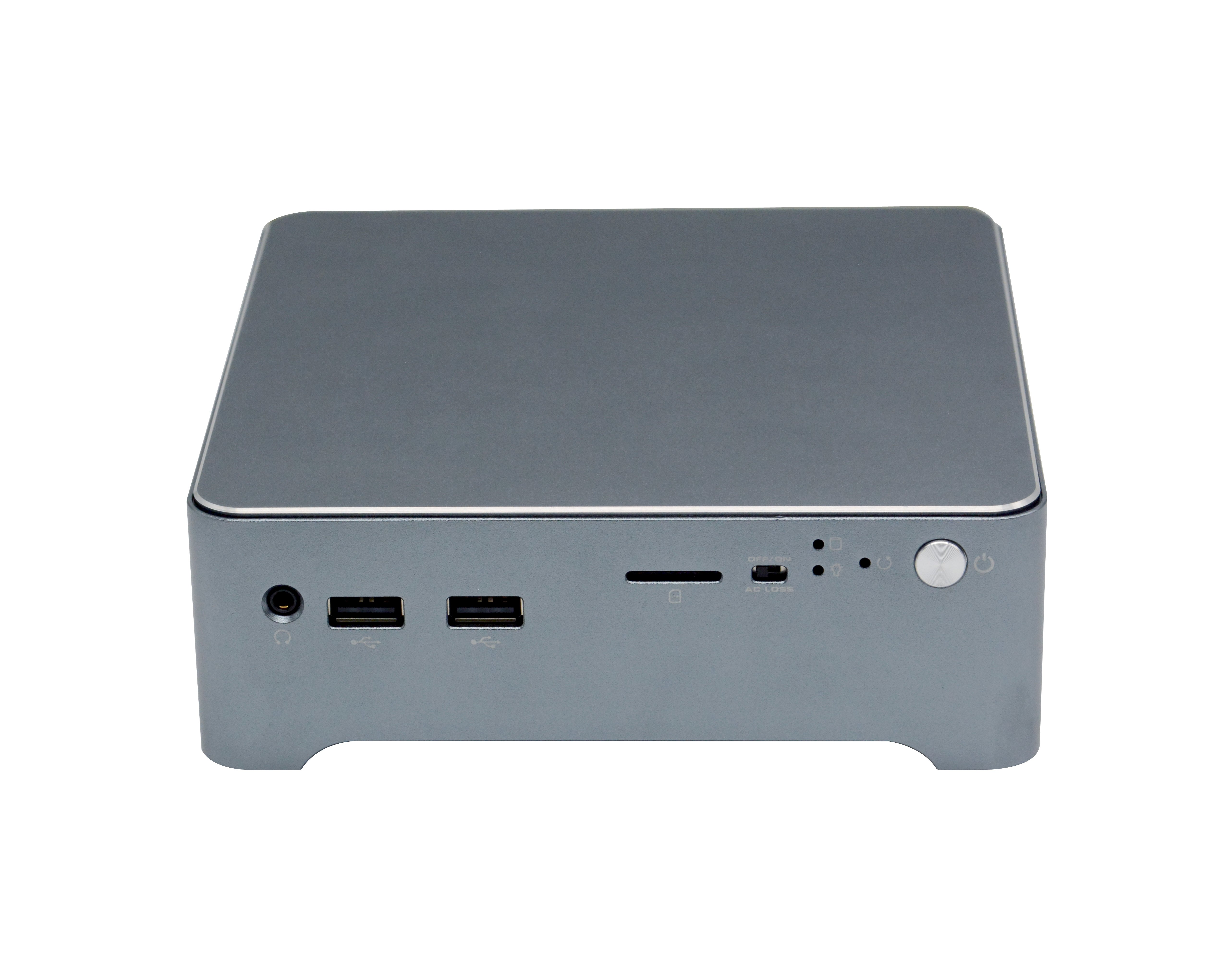

Front panel interface



 		 POWER 1*Power switch, 1*Reset switch
AC LOSS 1*AC LOSS (Toggle switch when power on)
USB 2* USB2.0 interface, 1* built-in USB dongle
Audio 1* Audio interface, support Line out/ MIC
SIM 1* SIM card slot, 3G/4G module application

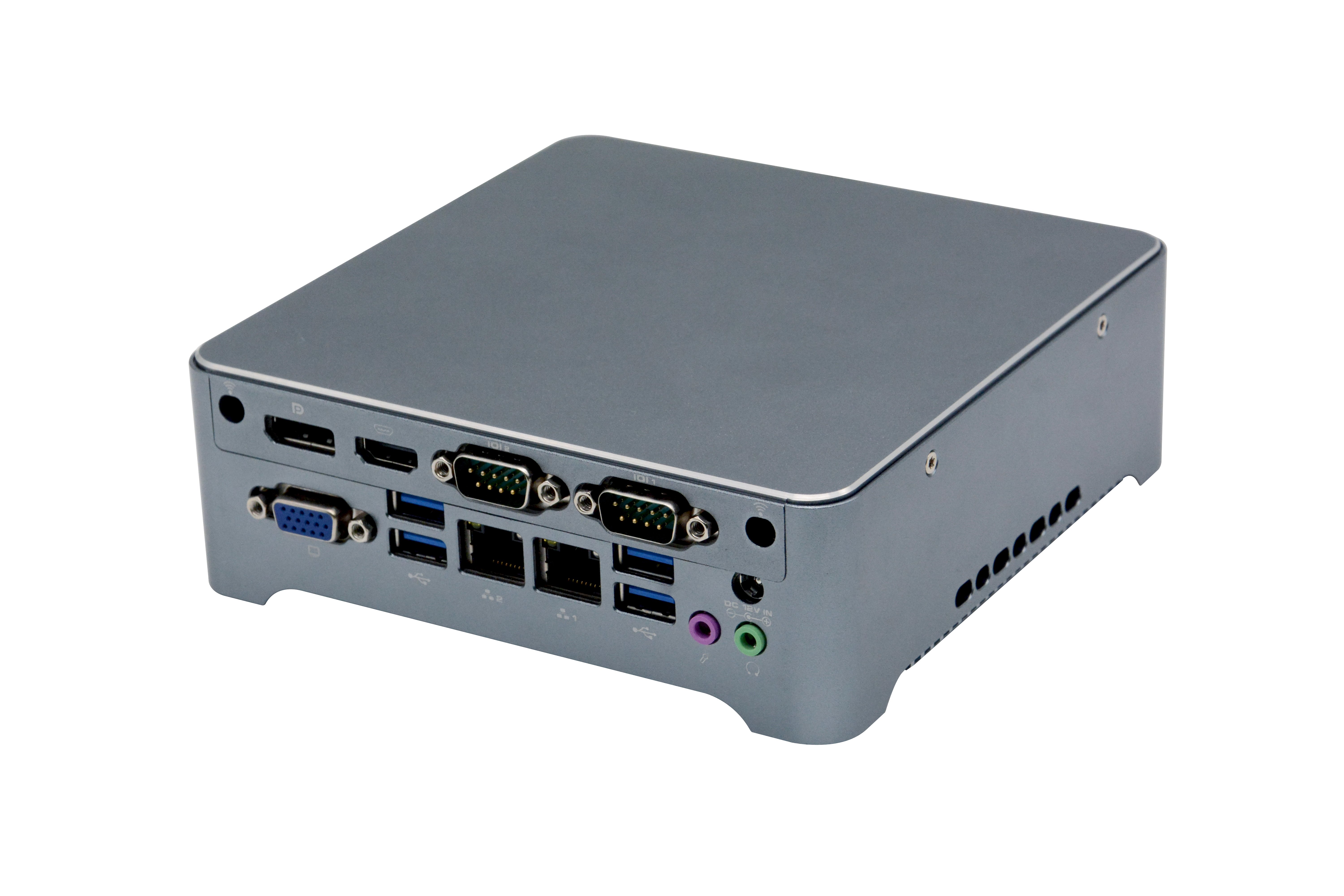

Rear panel interface




 		 Display interface 1*VGA interface (1920X1200@60Hz), 1*HDMI2.0 interface (4096X2304@60Hz), 1* DP interface (4096X2304@60Hz)
LAN 2*Intel® WGI211AT Gigabit network card, support Wake on LAN, PXE function
USB 4* USB3.0 interface
COM 2* RS232 DB9 serial interface, COM2 supports RS232/RS485 switch



No. Model Processor Memory M.2 HDMI USB2.0 USB3.0
1 NUC-N5350ZHD  J1900/2.0GHz 1*DDR3L N/A 1*HDMI1.4 5 1
2 3865U/1.8GHz 2*DDR4 1 1*HDMI2.0 2 4
3 I3 4120U/2.0GHz 1*DDR3L N/A 1*HDMI1.4 4 2
4 I5 5250U/1.6GHz 1*DDR3L N/A 1*HDMI1.4 4 2
5 I5 6360U/2.0GHz 2*DDR4 1 1*HDMI2.0 2 4
6 I7 6650U/2.2GHz 2*DDR4 1 1*HDMI2.0 2 4
7 I5 7200U/2.5GHz 2*DDR4 1 1*HDMI2.0 2 4
8 I7 7600U/2.8GHz 2*DDR4 1 1*HDMI2.0 2 4
9 I3 8145U/2.1GHz 2*DDR4 1 1*HDMI2.0 2 4
10 I5 8265U/1.6GHz 2*DDR4 1 1*HDMI2.0 2 4
11 I7 8565U/1.8GHz 2*DDR4 1 1*HDMI2.0 2 4



Specification:                      NUC-N5350ZHD
model NUC-N5350ZHD
Case



 		 Material/structure All aluminum alloy/fanless
colour Iron gray
Dimensions (length, width, height) 155*155*52MM
Weight (bare metal net weight) 1.25KG
installation Desktop/Wall-mounted
Motherboard


 		 CPU Integrated Intel J1900/I3 I5 I7 dual-core four-thread processor TDP 15W
System chip Based on Intel®Skylake-U SOC platform
display Integrated Intel® Iris™ Graphics 540 supports DirectX 12 OpenGL 4.4, supports 4K
RAM 2*DDR4 SODIMM memory slot, support 2133MHz memory, maximum support 32GB
Front panel interface



 		 POWER 1*Power switch, 1*Reset switch
AC LOSS 1*AC LOSS (Toggle switch when power on)
USB 2* USB2.0 interface, 1* built-in USB dongle
Audio 1* Audio interface, support Line out/ MIC
SIM 1* SIM card slot, 3G/4G module application
Rear panel interface




 		 Display interface 1*VGA interface (1920X1200@60Hz), 1*HDMI2.0 interface (4096X2304@60Hz), 1* DP interface (4096X2304@60Hz)
LAN 2*Intel® WGI211AT Gigabit network card, support Wake on LAN, PXE function
USB 4* USB3.0 interface
COM 2* RS232 DB9 serial interface, COM2 supports RS232/RS485 switch



No. Model Processor Memory M.2 HDMI USB2.0 USB3.0
1 NUC-N5350ZHD  J1900/2.0GHz 1*DDR3L N/A 1*HDMI1.4 5 1
2 3865U/1.8GHz 2*DDR4 1 1*HDMI2.0 2 4
3 I3 4120U/2.0GHz 1*DDR3L N/A 1*HDMI1.4 4 2
4 I5 5250U/1.6GHz 1*DDR3L N/A 1*HDMI1.4 4 2
5 I5 6360U/2.0GHz 2*DDR4 1 1*HDMI2.0 2 4
6 I7 6650U/2.2GHz 2*DDR4 1 1*HDMI2.0 2 4
7 I5 7200U/2.5GHz 2*DDR4 1 1*HDMI2.0 2 4
8 I7 7600U/2.8GHz 2*DDR4 1 1*HDMI2.0 2 4
9 I3 8145U/2.1GHz 2*DDR4 1 1*HDMI2.0 2 4
10 I5 8265U/1.6GHz 2*DDR4 1 1*HDMI2.0 2 4
11 I7 8565U/1.8GHz 2*DDR4 1 1*HDMI2.0 2 4
