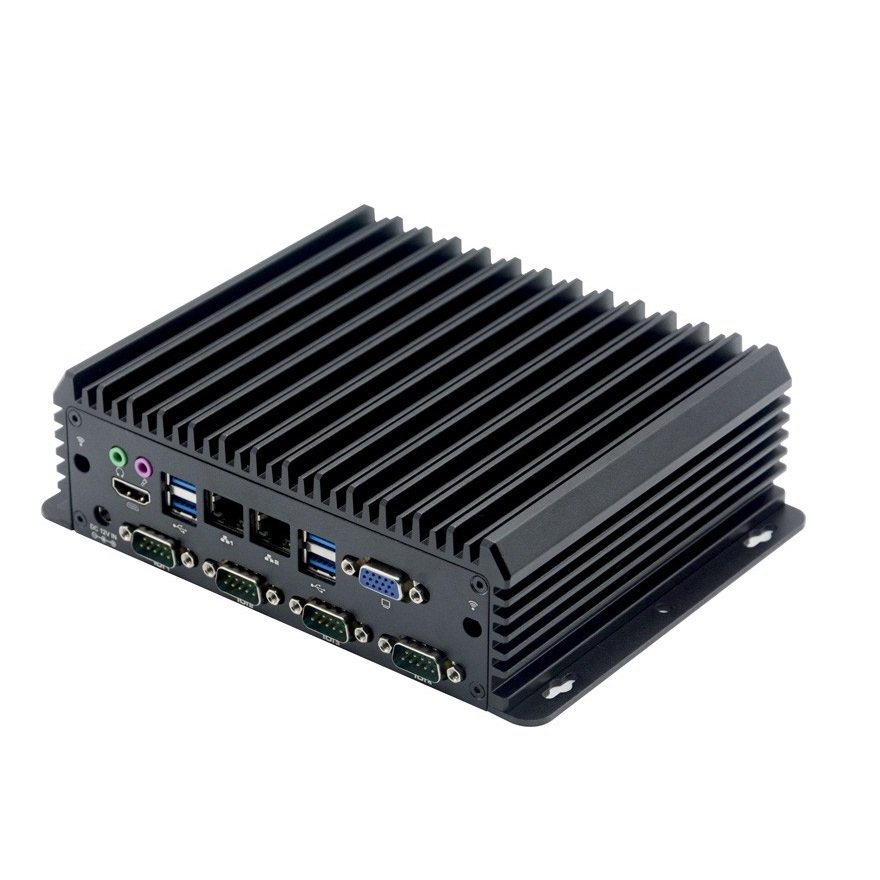

Model No.

EPC-C5750Z-C6(10210U)

Chassis

Material/structure

All aluminum alloy fanless

Color

Bright black

Dimension

174mmx148mmx57mm (L x W x H)

Weight (bare metal net weight)

1.35KG

Installation

Desktop/embedded

Motherboard

CPU

Integrated 8th generation Intel® I5 10210U 2.1GHz dual-core four-thread processor, TDP 15W

System chip

Based on Intel® Whiskey Lake-U SOC platform

Display

Integrated Intel® UHD Graphics supports DirectX 12 OpenGL 4.5

RAM

2 x DDR4 SODIMM memory slot, support dual-channel 2400MHz memory, maximum support 32GB

Front panel interface

POWER

1 x Power switch, 1 x Reset switch

AC LOSS

1 x AC LOSS (Toggle switch when power on)

USB

2 x USB2.0 port

Phoenix terminal

1 x 12pin, support four in and out GPIO, switch, 5V

COM

2 x DB9 serial interface, COM5, COM6 support RS232/RS485 switch

SIM

1 x SIM slot,3G/4G Module

Rear panel interface

Display port

1 x VGA port,1 x HDMI1.4 port

LAN

2 x Intel® WGI211AT gigabit network card, support Wake on LAN, PXE function

USB

4 x USB3.0 port

COM

4 x DB9 RS232 serial interface, COM1/2 supports the 9th pin 5V/12V charged

Audio

1 x Line out interface,1 x MIC interface

power supply

1 x DC power adapter interface, support DC12V power input

Storage

SATA

1 x 2.5 inch hard drive expansion

SSD

1 x MSATA SSD solid state drive expansion, transmission speed up to 6Gbps

Expand

Mini PCIE

1 x Mini PCIE slot, support WIFI/4G module

M.2

1 x M.2 slot, support M.2 2260/2280 NVME PCIE standard SSD

Software support

Microsoft Windows

Windows 10,64bit

Linux

Ubuntu

Watch Dog

Support hardware reset function (256 levels, 0~255 seconds)

Power requirement

Power type

External power adapter

Voltage input

DC 12V

Power output

AC TO DC,36W / 60W(Optional)

Environment

Operating Temp.

-10℃~60℃

Storage Temp.

-20℃~70℃

Relative Humidity

5%-95% Relative humidity, non-condensing

Vibration

0.5g rms/5-500HZ/random/operating

1

SATA data cable

2

Power cord 3P 180cm, China

3

Accessory screw bag
