Fanless Mini Desktop Industrial Copmuter with Integrated Int
Integrated Intel®Skylake-U I5 6360U Dual-Core Four-Thread processor
2 x DDR4 SODIMM memory slot, support dual channel 2133MHz memory, maximum support 32GB
Support independent dual display, 1 x HDMI and 1 x VGA display output
Support 2 x WGI211AT gigabit network card, support LAN wake-up, PXE function
Support 6 x DB9 RS232 serial interface, COM5/COM6 support RS232/RS485 switch function
Support 1 x 12PIN Phoenix terminal, four in and four out GPIO, switch, 5V
Support 4 x USB3.0 interface, 3 x USB2.0 interface
Power supply supports wide voltage 9~36V input
Fanless heat dissipation structure, all aluminum alloy material
2 x DDR4 SODIMM memory slot, support dual channel 2133MHz memory, maximum support 32GB
Support independent dual display, 1 x HDMI and 1 x VGA display output
Support 2 x WGI211AT gigabit network card, support LAN wake-up, PXE function
Support 6 x DB9 RS232 serial interface, COM5/COM6 support RS232/RS485 switch function
Support 1 x 12PIN Phoenix terminal, four in and four out GPIO, switch, 5V
Support 4 x USB3.0 interface, 3 x USB2.0 interface
Power supply supports wide voltage 9~36V input
Fanless heat dissipation structure, all aluminum alloy material
Specification:
Ordering Information
| Model |
EPC-C6850Z-C6 |
|
| Chassis | Structure | All aluminum alloy fanless |
| Colour | Bright black | |
| Dimension (L x W x H) | L205xW207xH57mm | |
| Weight (Net weight of bare metal) | 2.1KG | |
| Installation | Desktop / embedded | |
| Motherboard | CPU | Integrated Intel® Skylake-U I5 6360U/2.0GHz Dual-Core Four-Thread processor TDP 15W |
| Chipset | Based on Intel® Skylake-U SOC platform | |
| Display | Integrated Intel® Iris ™ Graphics 540 supports Direct X 12 Open GL 4.5 | |
| Ram | 2 x DDR4 SODIMM memory slot, support dual channel 2133MHz memory, maximum support 32GB | |

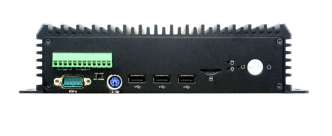

| Front panel interface | POWER | 1 x power switch, 1 x reset switch |
| AC LOSS | 1 x AC LOSS（Power on toggle switch） | |
| USB | 3 x USB2.0 interface, 1 x built-in USB dongle | |
| Phoenix Terminal | 1 x 12pin, support four input and four output GPIO, switch, 5V | |
| PS2 | 1 x PS2 interface | |
| COM | 1 x RS232 serial interface, COM6 supports RS485 mode | |
| SIM | 1 x SIM slot, 3G/4G module application | |

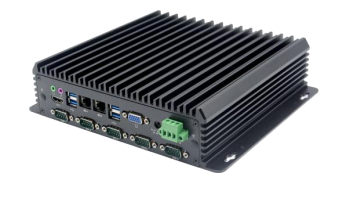

| Rear panel interface | COM | 5 x RS232 DB9 serial interface, COM5 supports RS485 mode |
| USB | 4 x USB3.0 interface | |
| LAN | 2 x Intel® WGI211AT Gigabit network card, support Wake on LAN, PXE function | |
| Display interface | 1 x VGA interface, 1 x HDMI1.4 interface | |
| Audio | 1 x Line out interface, 1 x MIC interface | |
| Power supply | 1 x DC power adapter interface, 1 x 3pin power interface, support 9~36V power input | |
| HDD | SATA | 1 x 2.5 inch hard disk expansion |
| SSD | 1 x MSATA SSD expansion,SSD transfer speed up to 6Gbps | |
|
Extend |
Mini PCIE | 1 x Mini PCIE slot, support WIFI / 4G module |
| M.2 | 1 x M.2 slot, support M.2 2260/2280 NVME PCIE x4 standard SSD | |
| OS | Microsoft Windows | Windows 10，64bit |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (256 levels, 0~255 seconds) | |
| Power | Power type | External power adapter |
| Input | 9V~36V wide voltage | |
| Output | 36W~180W | |
| Environment | Operating Temp. | -10℃～60℃ |
| Storage Temp. | -20℃～70℃ | |
| Relative Humidity | 5%-95% Relative humidity, no condensation | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| No. | Model | Processor | M.2 | Memory | Phoenix Terminal | LAN | COM | HDMI | VGA | USB2.0 | USB3.0 | Built-in USB | SIM | PS2 | power-input |
| 1 | EPC-C6850Z-C6（J1900） | J1900/2.0GHz | N/A | 1xDDR3L | 1x12PIN | 2 | 6 | 1 | 1 | 6 | 1 | 1 | 1 | 1 | 9V~36Vwide voltage |
| 2 | EPC-C6850Z-C6（3865U） | 3865U/1.8GHz | 1 | 2xDDR4 | 1x12PIN | 2 | 6 | 1 | 1 | 3 | 4 | 1 | 1 | 1 | 9V~36Vwide voltage |
| 3 | EPC-C6850Z-C6（4120U） | 4120U/2.0GHz | N/A | 1xDDR3L | 1x12PIN | 2 | 6 | 1 | 1 | 5 | 2 | N/A | 1 | 1 | 9V~36Vwide voltage |
| 4 | EPC-C6850Z-C6（5250U） | 5250U/1.6GHz | N/A | 1xDDR3L | 1x12PIN | 2 | 6 | 1 | 1 | 5 | 2 | N/A | 1 | 1 | 9V~36Vwide voltage |
| 5 | EPC-C6850Z-C6（6360U） | 6360U/2.0GHz | 1 | 2xDDR4 | 1x12PIN | 2 | 6 | 1 | 1 | 3 | 4 | 1 | 1 | 1 | 9V~36Vwide voltage |
| 6 | EPC-C6850Z-C6（6650U） | 6650U/2.2GHz | 1 | 2xDDR4 | 1x12PIN | 2 | 6 | 1 | 1 | 3 | 4 | 1 | 1 | 1 | 9V~36Vwide voltage |
| 7 | EPC-C6850Z-C6（7200U） | 7200U/2.5GHz | 1 | 2xDDR4 | 1x12PIN | 2 | 6 | 1 | 1 | 3 | 4 | 1 | 1 | 1 | 9V~36Vwide voltage |
| 8 | EPC-C6850Z-C6（7600U） | 7600U/2.8GHz | 1 | 2xDDR4 | 1x12PIN | 2 | 6 | 1 | 1 | 3 | 4 | 1 | 1 | 1 | 9V~36Vwide voltage |
| 9 | EPC-C6850Z-C6（8145U） | 8145U/2.1GHz | 1 | 2xDDR4 | 1x12PIN | 2 | 6 | 1 | 1 | 3 | 4 | 1 | 1 | 1 | 9V~36Vwide voltage |
| 10 | EPC-C6850Z-C6（8265U） | 8265U/1.6GHz | 1 | 2xDDR4 | 1x12PIN | 2 | 6 | 1 | 1 | 3 | 4 | 1 | 1 | 1 | 9V~36Vwide voltage |
| 11 | EPC-C6850Z-C6（8565U） | 8565U/1.8GHz | 1 | 2xDDR4 | 1x12PIN | 2 | 6 | 1 | 1 | 3 | 4 | 1 | 1 | 1 | 9V~36Vwide voltage |
-
