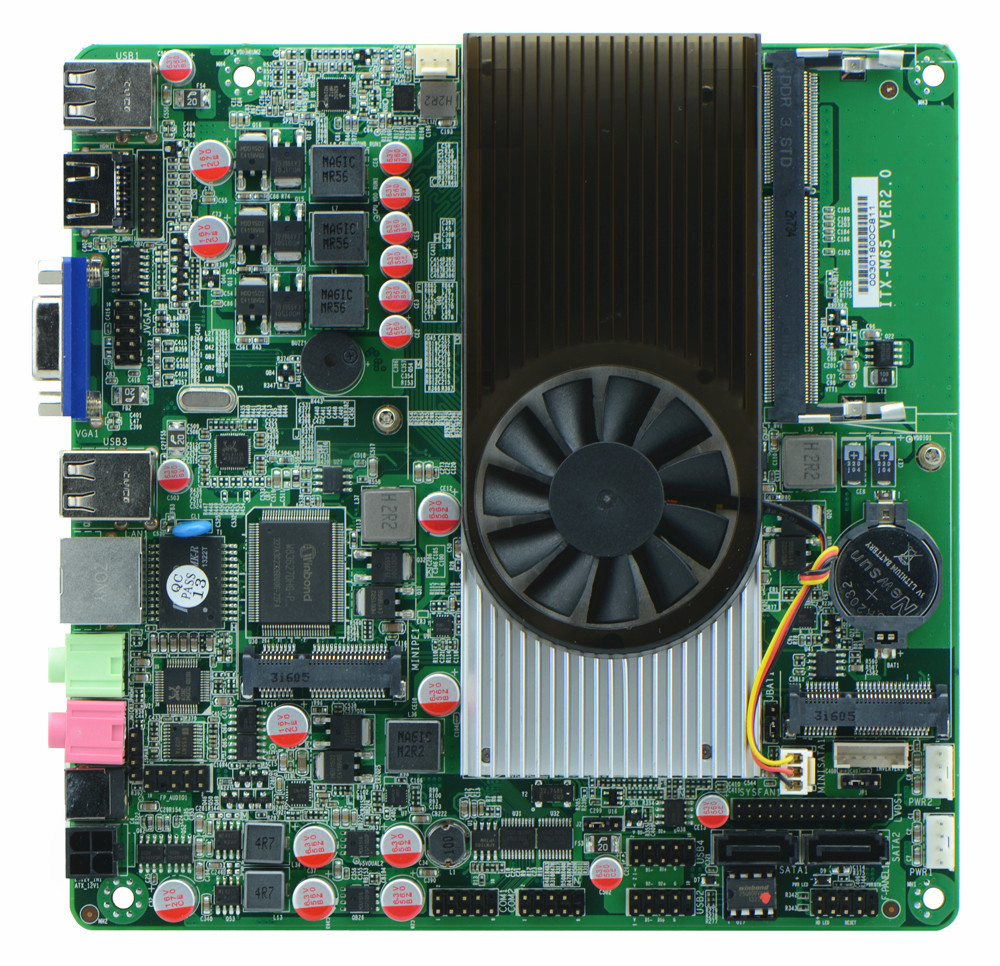

AMD N330 thin ITX motherboard TITX-M65
Onboard AMD N330 2.3G / N55 2.6G dual core processor
RS880M+SB820M express chipset
SO-DIMM DDR3 memory, Max. 4Gb
Integrated ATI HD4200 graphics core, supports VGA, dual HDMI and LVDS sync/async
Onboard 2 mini-PCIE slots, supports SSD/Wifi
1 RTL8111E 1000M Ethernet controllers, supports Wake On LAN
Integrated Realtek ALC662 6 channel high definition audio controller
Onboard AMD N330 2.3G / N55 2.6G dual core processor
RS880M+SB820M express chipset
SO-DIMM DDR3 memory, Max. 4Gb
Integrated ATI HD4200 graphics core, supports VGA, dual HDMI and LVDS sync/async
Onboard 2 mini-PCIE slots, supports SSD/Wifi
1 RTL8111E 1000M Ethernet controllers, supports Wake On LAN
Integrated Realtek ALC662 6 channel high definition audio controller
RS880M+SB820M express chipset
SO-DIMM DDR3 memory, Max. 4Gb
Integrated ATI HD4200 graphics core, supports VGA, dual HDMI and LVDS sync/async
Onboard 2 mini-PCIE slots, supports SSD/Wifi
1 RTL8111E 1000M Ethernet controllers, supports Wake On LAN
Integrated Realtek ALC662 6 channel high definition audio controller
Product Model | ITX-M65 |
CPU | Onboard AMD N550 2.6GHz dual core processor(ITX-M65_N55 configures) |
Onboard AMD N330 2.3GHz dual core processor(ITX-M65_N33 configures) | |
Chipset | RS880M+SB320M express chipset |
Memory | 1 x SO-DIMM DDR3 memory slot, supports 1066/800 Mhz, Max. 4GB. |
Video | Integrated AMD HD4200 graphics core, supports 1080P HD |
Supports VGA/HDMI/LVDS display output, LVDS supports dual channel 24 bit | |
Expansion Slot | 1 x mini PCI-e slot, supports wifi |
LAN | 1 x RTL8111E 1000M Ethernet controller, supports Wake On Lan, PXE booting |
Storage | 2 x SATA2 HDD interface |
1 x MSATA slot, supports SSD | |
Audio | Onboard Realtek ALC662 6 channel high fidelity audio chip, supports MIC, line out. |

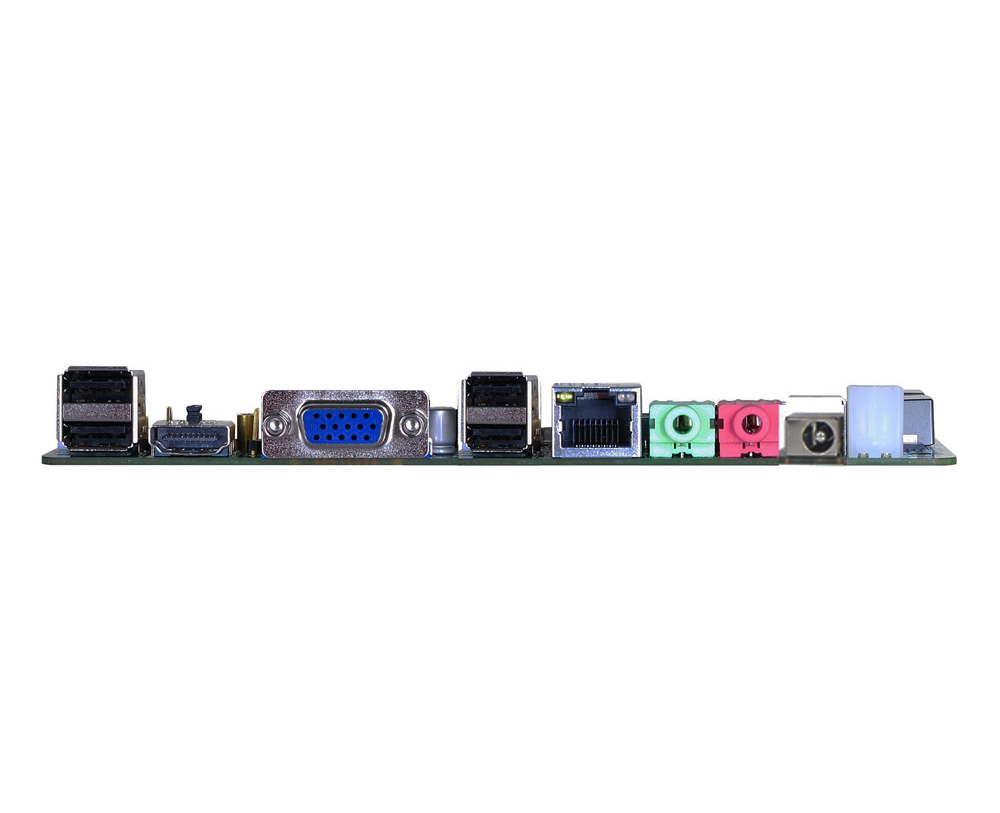

Rear I/O Panel | 1 x 12V DC_JACK input |
1 x HDMI port | |
1 x VGA port | |
4 x USB 2.0 ports | |
1 x RJ45 LAN port | |
1 x Line out(green) | |
1 x MIC(red) | |
Internal I/O Interface | 1 x LVDS connector, 2 x15-pin |
1 x JHDMI header, same signal as HDMI | |
1 x JVGA header, same signal with DB15 | |
2 x RS232 connectors | |
4 x USB 2.0 connectors | |
1 x audio connector(front panel audio port) | |
1 x CD-IN power amplifier connector | |
1 x FP1 front panel function button and indicator light header, 2 x 5-pin | |
1 x ATX_12V power JACK, can be +12v input and output power interface | |
2 x PWROUT HDD power supply connectors | |
1 x LVDS INVERTER connector | |
Fan connector | 1 x CPU Fan connector and 1 x System Fan connector, 3-pin |
GPIO | Supports 4 channel GPIO |
BIOS | AMI 8MB DPI Flash ROM |
Watch Dog | Supports hardware reset function(256 level, 0-255 seconds) |
PSU | DC_12V single power supply input |
Working Temp | -10℃~60℃ |
Storing Temp | -20℃~70℃ |
Working Humidity | 0%-95% relative humidity, non-condensing |
Dimension | 170mm x 170mm |
Mini ITX form factor |
-
