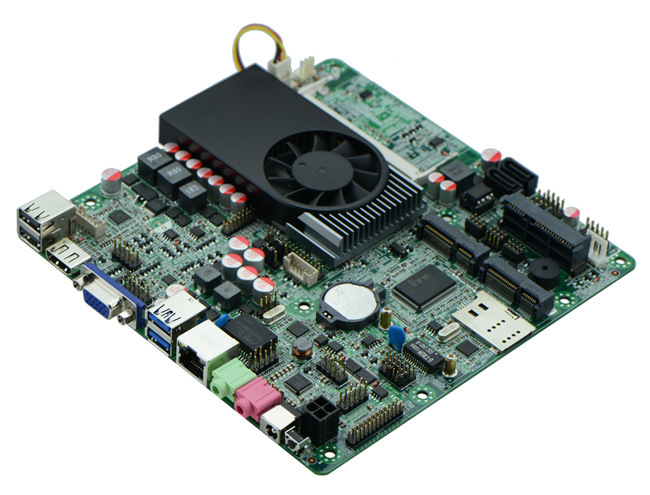

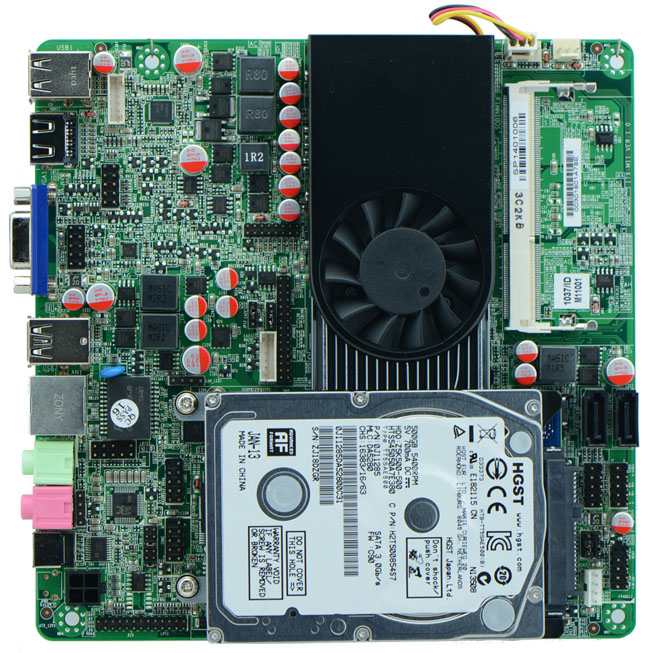

Intel Celeron 1037U thin ITX motherboard
Integrated Intel Celeron 1037 dual core processor(1.8GHz)
Intel HM65 express chipset
Integrated Intel HD graphics core, supports VGA, dual HDMI and LVDS video output
SO-DIMM DDR3 memory slot, supports 1333/1066 memory, Max. 8Gb
Onboard 2 mini-PCIE slots, supports SSD/wireless Wifi/USB Wifi/3G modules
Supports 1 2.5’’ HDD bay
Supports 2 RS232 headers
Supports 2 RTL8111E 1000M Ethernet controllers, supports Wake On LAN
Integrated Realtek ALC662 6 channel high definition audio controller
Integrated Intel Celeron 1037 dual core processor(1.8GHz)
Intel HM65 express chipset
Integrated Intel HD graphics core, supports VGA, dual HDMI and LVDS video output
SO-DIMM DDR3 memory slot, supports 1333/1066 memory, Max. 8Gb
Onboard 2 mini-PCIE slots, supports SSD/wireless Wifi/USB Wifi/3G modules
Supports 1 2.5’’ HDD bay
Supports 2 RS232 headers
Supports 2 RTL8111E 1000M Ethernet controllers, supports Wake On LAN
Integrated Realtek ALC662 6 channel high definition audio controller
Intel HM65 express chipset
Integrated Intel HD graphics core, supports VGA, dual HDMI and LVDS video output
SO-DIMM DDR3 memory slot, supports 1333/1066 memory, Max. 8Gb
Onboard 2 mini-PCIE slots, supports SSD/wireless Wifi/USB Wifi/3G modules
Supports 1 2.5’’ HDD bay
Supports 2 RS232 headers
Supports 2 RTL8111E 1000M Ethernet controllers, supports Wake On LAN
Integrated Realtek ALC662 6 channel high definition audio controller
| Product Model | ITX-M11 VER: 1.0 |
| CPU | Onboard Intel 1037U dual core 22nm processor (1.8Ghz) |
| Chipset | Intel HM65 Chipset |
| Memory | 1 x SO-DIMM DDR3 memory slot, supports 1333/1066 Mhz, Max. 8GB. |
| Video | Integrated Intel HD graphics core |
| Offers 1 VGA, 2 HDMI and 1 LVDS video output(supports dual channel 24bit) | |
| Supports HDMI1/VGA sync/async | |
| Supports LVDS/VGA sync/async | |
| Supports LVDS/HDMI1 sync/async | |
| Supports HDMI1/HDMI2 sync/async | |
| Expansion Slot | 1 x mini PCI-e slot, supports wifi/3G module |
| 1 x MSATA3 slot, suppports SSD/USB Wifi(by default) | |
| LAN |
1 x RTL8105E 100M Ethernet controller, supports Wake On Lan, PXE booting(And can add a Ethernet port through internal header, customization needed) |
| Storage | 2 x SATA3 HDD interface(select from SATA1 and MSATA, SATA1 by default) |
| 1 x SATA3 notebook HDD bay(SATA2 optional, by default notebook HDD) | |
| Audio | Onboard Realtek ALC662 6 channel high fidelity audio chip, supports MIC, line out. |

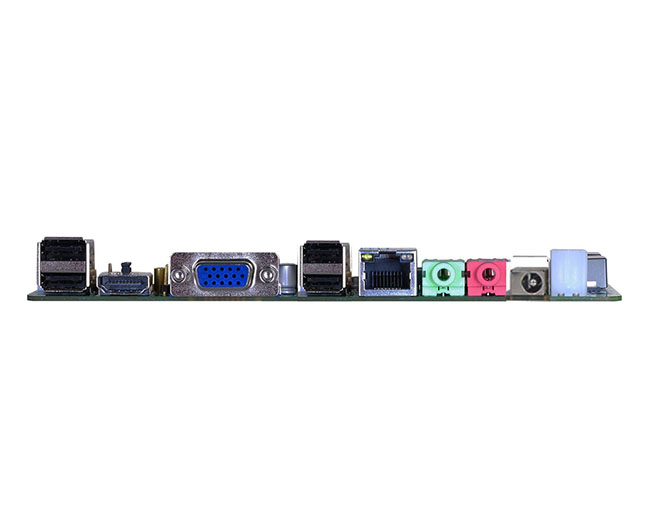

| Rear I/O Panel | 1 x 12V DC_JACK input |
| 1 x HDMI port | |
| 1 x VGA port | |
| 4 x USB 2.0 ports, 2 of which can support USB 3.0(customization needed) | |
| 1 x RJ45 LAN port | |
| 1 x Line out(green) | |
| 1 x MIC(red) | |
| 1 x Power or Reset switch(optional) | |
| Internal I/O Interface | 1 x LVDS connector, supports dual channel 24 bit LCD, 2 x15-pin |
| 1 x JHDMI header, 2 x 8-pin | |
| 1 x JVGA1 header, same signal with DB15, 12-pin | |
| 2 x RS232 connector, pin9 with electrification function | |
| 1 x LPT headert | |
| 1 x LAN header, 2 x 7-pin | |
| 4 x USB 2.0 connectors, if mini PCIe is USB signal, then supports 2 USB | |
| 1 x PS/2 mouse and keyboard connector, 6-pin | |
| 1 x FP1 front panel function button and indicator light header, 2 x 5-pin | |
| 1 x audio connector(front panel audio port) | |
| 2 x power amplifier headers 2-pin | |
| 1 x SIM slot | |
| 1 x PWROUT HDD power supply connector | |
| 1 x ATX_12V power JACK, can be +12v input and output power interface | |
| 1 x LVDS INVERTER | |
| Fan connector | 1 x CPU Fan connector and 1 x System Fan connector, 4-pin |
| GPIO | Supports 4 channel GPIO |
| BIOS | AMI 32MB Flash ROM |
| Watch Dog | Supports hardware reset function(256 level, 0-255 seconds) |
| PSU | ITX-M18_D2 DC_12V single power supply |
| ITX-M18_A2 ATX PSU | |
| Working Temp | -10℃～60℃ |
| Storing Temp | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 170mm x 170mm |
| Mini ITX form factor |
-
