Armortec OEM ODM Mini Itx 4 bay NAS storage server case with
NAS-04AL-SK2P
OEM ODM Armortec 4 bay NAS Mini Itx storage server case with Intel 3855U Dual-Core Fans Power Supply
Feature:
System fan cooling structure, sheet metal material
System fan cooling structure, sheet metal material
Integrate @Intel Skylake-U 3855U CPU (Skylake-U and Kabylake-U series CPU OPTIONAL)
Dual-Core Dual-Thread processor
Supports 4 x 2.5” or 3.5” SSD/HDD ,1x12025 fan
Support 1x mSATA SSD
Mini-ITX Main board structure
DDR4 SO-DIMM 2400MHz memory, Max support 16GB
Supports 2 RJ45 ports(on-board), Max 4 x RJ45 ports by changing USB ports
NAS system that can integrate computers, routers, and set-top boxes into one, replacing traditional cloud disks, computers, routers, and set-top boxes
The IO ports in the image might be different from the real product, please refer to the spec sheet for correct IO details.
|
Model |
NAS-04AL-SK2P |
|
|
Chassis |
Material/structure |
Aluminum material, system fan cooling structure |
|
Color |
Black(OEM COLOR Wood grain MOQ 50PCS) |
|
|
Dimensions (L x W x H) |
263×190×180mm |
|
|
Installation |
Desktop |
|
|
Motherboard |
CPU |
Integrated @Intel Skylake-U 3855U CPU Dual-Core |
|
System chip |
SOC |
|
|
Display |
Integrated Intel® 1x HDMI1.4 (Max: 3840 x 2160@30Hz) |
|
|
RAM |
Support DDR4 SO-DIMM memory slot, Support 2400MHz memory, Max support 16GB |
|
|

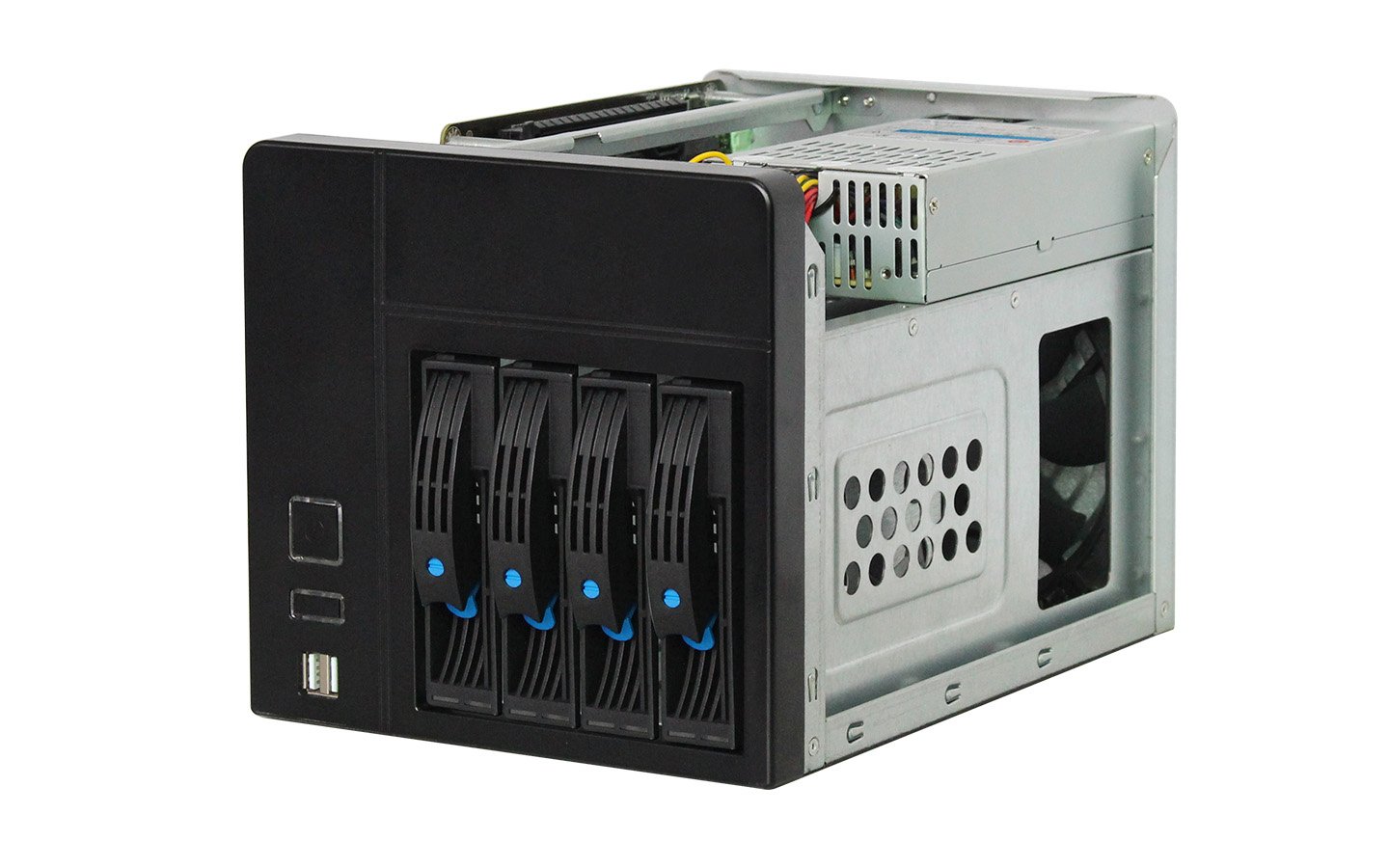

Front panel interface |
Power |
1 x Power switch |
|
Hard drive |
4 x SATA hard disk |
|
|
USB |
2x USB 2.0 port |
|
|
|
LED |
Power LED*1,HDD LED*1,Power SW*1,Reset*1 |
|

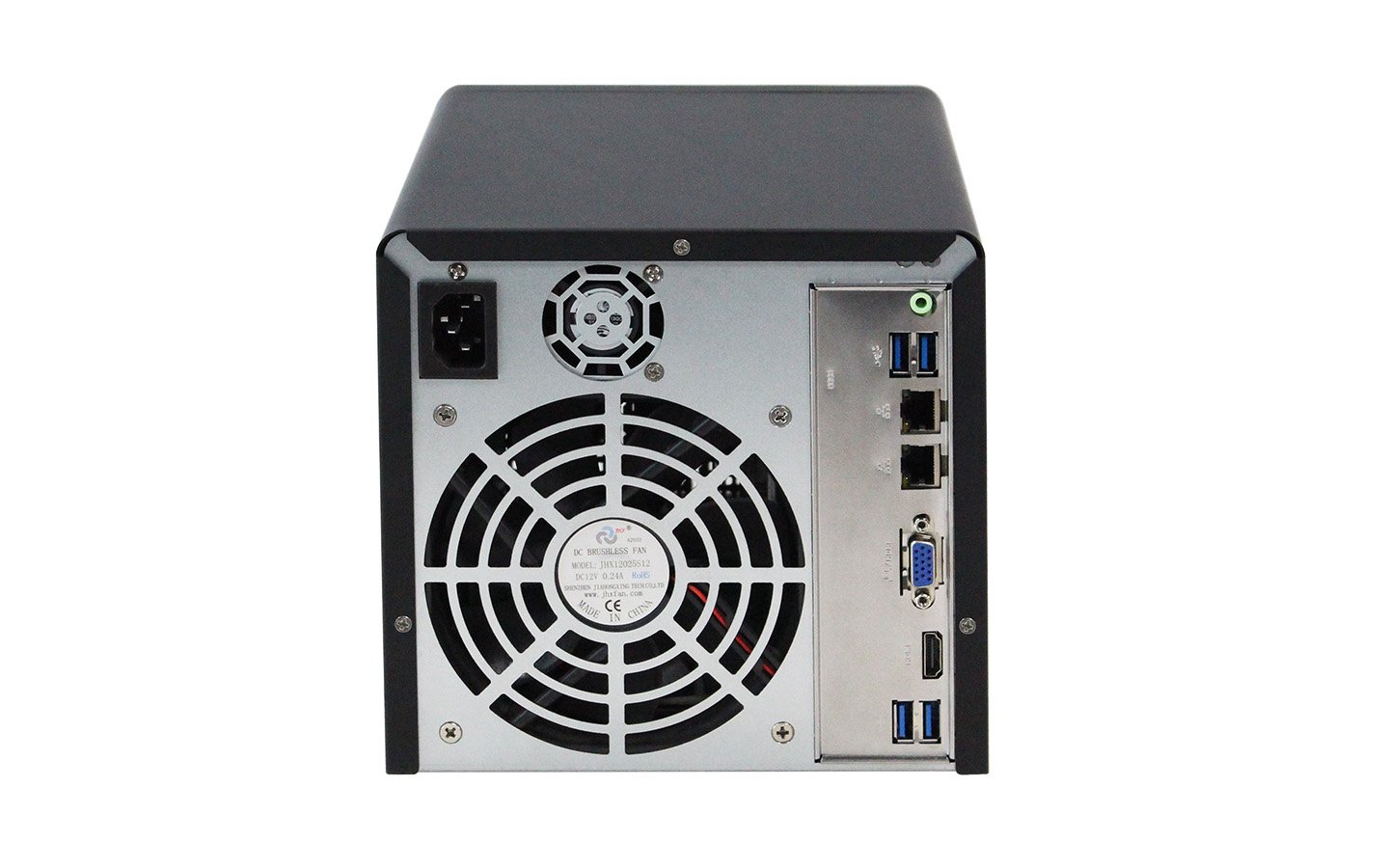

Rear panel interface |
Display interface |
1 x HDMI1.4 port (Max: 3840 x 2160@30Hz) |
|
LAN |
2 x I211AT Gigabit network card, support Wake on LAN/PXE function |
|
|
USB |
2 x USB3.0 port |
|
|
COM |
1x COM -RS232 Serial interface |
|
|
Audio |
Realtel ALC662-VDO 1x Audio_out + 1x Mic_in |
|
|
PS/2 |
1 x PS/2 keyboard and mouse interface |
|
|
Power supply |
1 x AC power connector, ATX power supply |
|
|
Storage |
SATA |
4 x 2.5/3.5-inch hard disk |
|
SSD |
1 x mSATA SSD expansion, SSD transmission speed up to 6Gbps |
|
|
Software Support |
Microsoft Windows |
Windows7, 8.1, 10;Linux |
|
Watch Dog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
|
Power requirements |
Power type |
Flex 1U power supply |
|
Voltage input |
AC 110~220V |
|
|
Environment |
Operating temperature |
-10℃~60℃ |
|
Storage temperature |
-20℃~70℃ |
|
|
Relative humidity |
5%-95% Relative humidity, no condensation |
|
|
Work shock |
0.5g rms/5-500HZ/random/operating |
|
-
