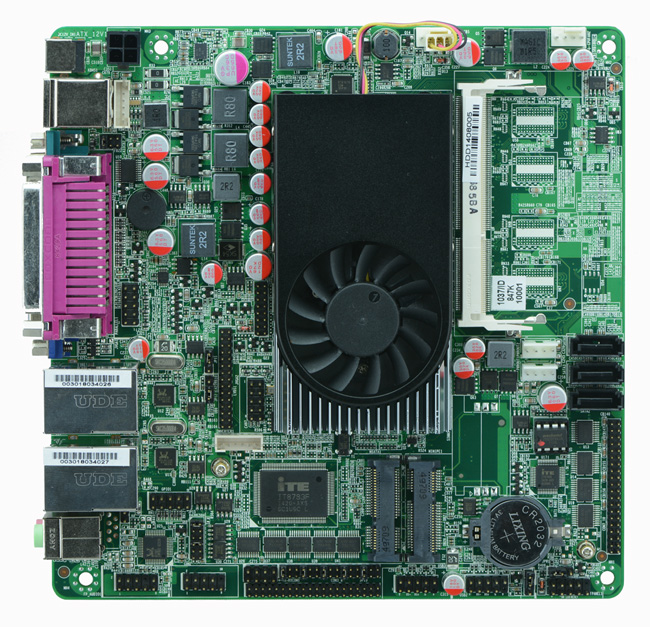

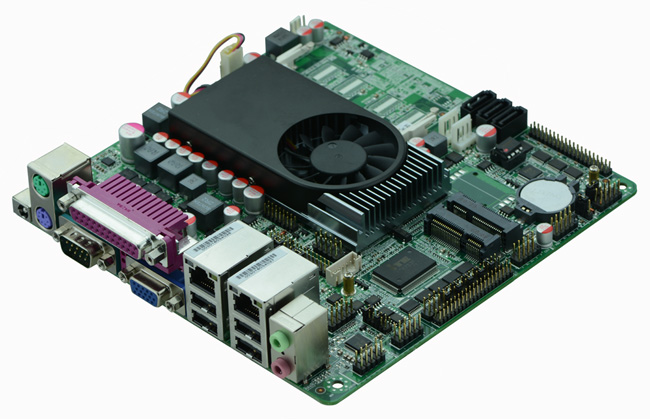

Intel Celeron 1037U mini itx motherboard new
Integrated Intel Celeron 1037 dual core processor(1.8GHz)
Intel NM70 express chipset
Integrated Intel HD graphics, supports VGA, HDMI and LVDS video output, supports 1080P
SO-DIMM DDR3 memory slot, supports 1333/1066 memory, Max, 8GB
Onboard 2 mini-PCIE slots, supports SSD/Wifi
Supports Max. 10 RS232 Serial ports
Onboard 2 RTL8111E 1000M Ethernet controllers, supports Wake On LAN and PXE
Integrated Realtek ALC662 6 channel high definition audio controller
DC power supply, voltage range 9-24V
Integrated Intel Celeron 1037 dual core processor(1.8GHz)
Intel NM70 express chipset
Integrated Intel HD graphics, supports VGA, HDMI and LVDS video output, supports 1080P
SO-DIMM DDR3 memory slot, supports 1333/1066 memory, Max, 8GB
Onboard 2 mini-PCIE slots, supports SSD/Wifi
Supports Max. 10 RS232 Serial ports
Onboard 2 RTL8111E 1000M Ethernet controllers, supports Wake On LAN and PXE
Integrated Realtek ALC662 6 channel high definition audio controller
DC power supply, voltage range 9-24V
Intel NM70 express chipset
Integrated Intel HD graphics, supports VGA, HDMI and LVDS video output, supports 1080P
SO-DIMM DDR3 memory slot, supports 1333/1066 memory, Max, 8GB
Onboard 2 mini-PCIE slots, supports SSD/Wifi
Supports Max. 10 RS232 Serial ports
Onboard 2 RTL8111E 1000M Ethernet controllers, supports Wake On LAN and PXE
Integrated Realtek ALC662 6 channel high definition audio controller
DC power supply, voltage range 9-24V
| Product Model | ITX-M847_K10 VER: 1.2 |
| CPU | Onboard Intel 1037U dual core 22nm processor (1.8Ghz) |
| Chipset | Intel NM70 Chipset |
| Memory | 1 x SO-DIMM DDR3 memory slots, supports 1333/1066 Mhz, Max. 8GB. |
| Video | Integrated Intel HD graphics core |
| 2 x VGA, 1 x HDMI, 1 x dual channel 24bit LVDS output, supports dual display | |
| Expansion Slot | 1 x mini PCI-e slot, supports wifi module |
| 1 x MSATA slot, suppports SSD/Wifi, SSD Max. transfer rate 6Gbps | |
| LAN | 2 x RTL8111E 1000M Ethernet controller, supports Wake On Lan, PXE booting. |
| Storage | 3 x SATAII HDD interface, Max. transfer rate 3Gbps |
| Audio | Realtek ALC6626 channel high fidelity audio chip, supports MIC, line out. |

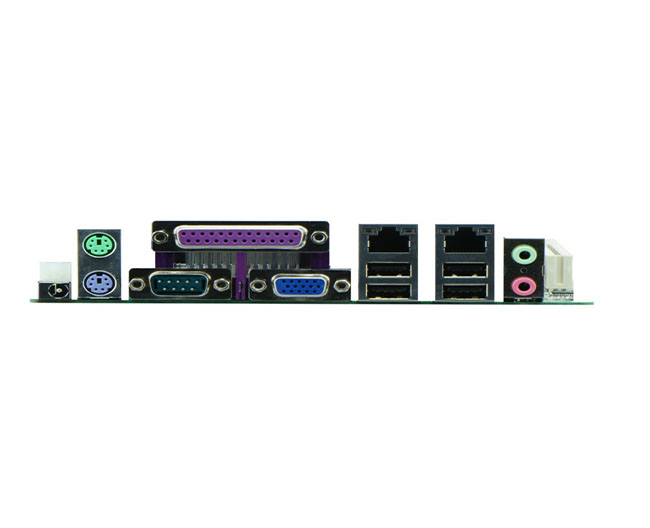

| Rear I/O panel | 1 x PS/2 keyboard and mouse connector |
| 1 x DB9 COM port, PIN9 with electrification function | |
| 1 x LPT port | |
| 1 x DB15 VGA port | |
| 2 x RJ-45 LAN ports | |
| 4 x USB 2.0 ports | |
| 1 x audio I/O interface(MIC and line out) | |
| 1 x 12V DC_JACK input(Supports 8-36V input, suggest using 9-24V) | |
| Internal I/O interface | 9 x COM, COM2 and COM3 support RS485/422 |
| 1 x LVDS connector, supports dual channel 24 bit LCD(dual 8) | |
| 1 x JHDMI connector, 2 x 8-pin | |
| 1 x JVGA1 connector, 2 x 5-pin, cannot work together with DB15(VGA port) | |
| 4 x USB 2.0 connectors, if Mini PCIe is USB signal, then supports 2 USB 2.0 | |
| 1 x audio connector | |
| 1 x FP1 front panel function button and indicator light header, 2 x 5-pin | |
| 1 x TX-RXCOM RS422/485 header, 2 x 4-pin | |
| 1 x PS/2 mouse and keyboard connector, 6-pin | |
| 1 x ATX_12V, available for +12V input and output power interface | |
| 2 x PWROUT HDD power interface | |
| Fan connector | 1 x CPU Fan connector and 1 x System Fan connector, 4-pin |
| GPIO | Supports 4 channel GPIO |
| BIOS | AMI 32MB Flash ROM |
| Watch Dog | Supports hardware reset function(256 level, 0-255 seconds) |
| PSU | Supports DC 8-36V input, suggest using 9-24V |
| Working Temp | -10℃～60℃ |
| Storing Temp | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 170mm x 170mm |
-
