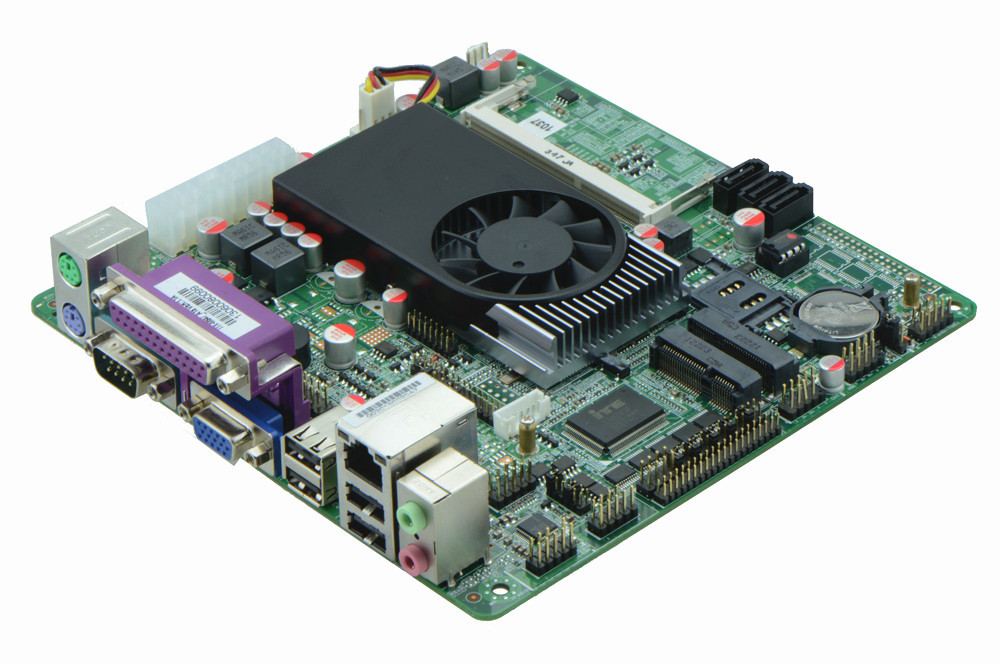

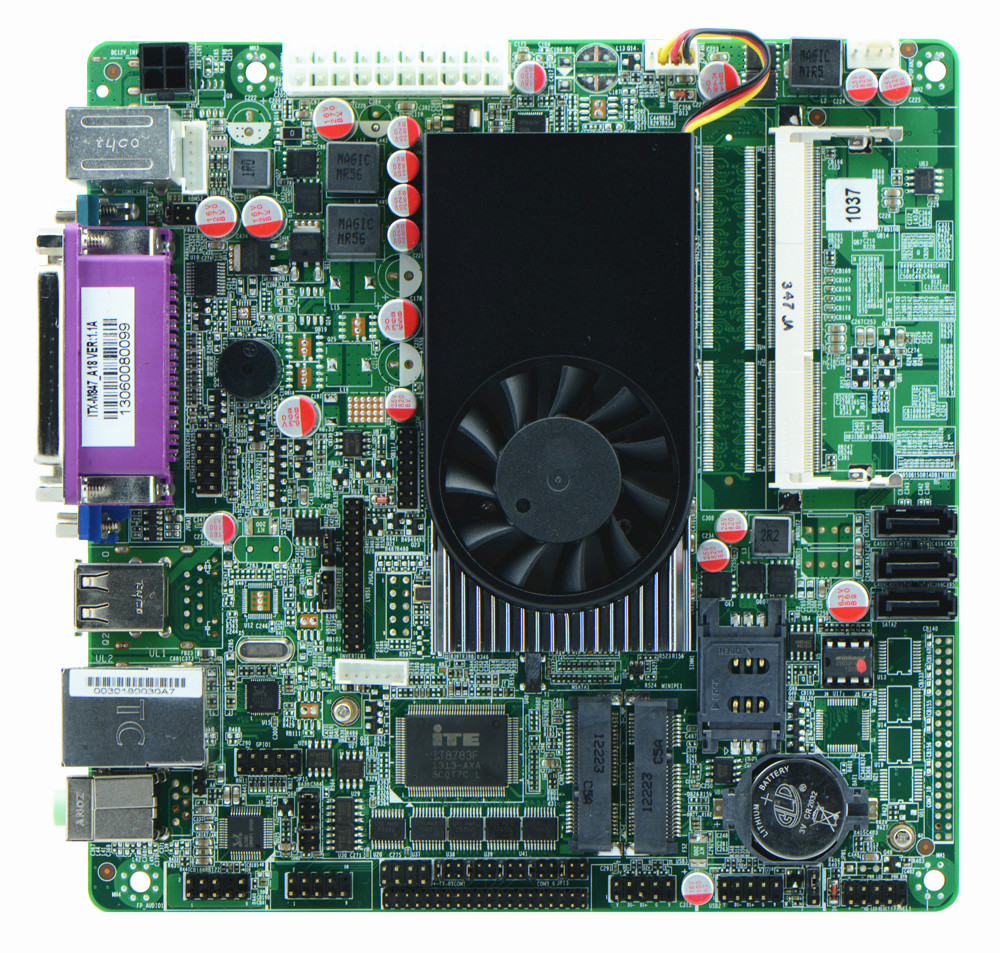

Intel Celeron 1037U mini itx motherboard
Integrated Intel Celeron 1037 dual core processor(1.8GHz)
Intel NM70 express chipset
Integrated Intel HD graphics, supports VGA, HDMI and LVDS video output
SO-DIMM DDR3 memory slot, supports 1333/1066 memory
Onboard 2 mini-PCIE slots, supports SSD/Wifi/3G modules
Supports Max. 10 RS232 Serial ports, COM2/3 supports RS422/485 modes
Onboard 2 RTL8111E 1000M Ethernet controllers, supports Wake On LAN
Integrated Realtek ALC662 6 channel high definition audio controller
Integrated Intel Celeron 1037 dual core processor(1.8GHz)
Intel NM70 express chipset
Integrated Intel HD graphics, supports VGA, HDMI and LVDS video output
SO-DIMM DDR3 memory slot, supports 1333/1066 memory
Onboard 2 mini-PCIE slots, supports SSD/Wifi/3G modules
Supports Max. 10 RS232 Serial ports, COM2/3 supports RS422/485 modes
Onboard 2 RTL8111E 1000M Ethernet controllers, supports Wake On LAN
Integrated Realtek ALC662 6 channel high definition audio controller
Intel NM70 express chipset
Integrated Intel HD graphics, supports VGA, HDMI and LVDS video output
SO-DIMM DDR3 memory slot, supports 1333/1066 memory
Onboard 2 mini-PCIE slots, supports SSD/Wifi/3G modules
Supports Max. 10 RS232 Serial ports, COM2/3 supports RS422/485 modes
Onboard 2 RTL8111E 1000M Ethernet controllers, supports Wake On LAN
Integrated Realtek ALC662 6 channel high definition audio controller
| Product Model | ITX-M847_A10(A18) VER: 1.2 |
| CPU | Onboard Intel 1037U dual core 22nm processor (1.8Ghz) |
| Chipset | Intel NM70 Chipset |
| Memory |
Dual channel SO-DIMM DDR3 memory slots, supports 1333/1066 Mhz, Max. 16GB. ITX-M847_A18 supports 1 memory slot, Max. 8GB |
| Video |
Integrated Intel HD graphics core Provides VGA, HDMI and dual channel 24 bit LVDS video output Supports HDMI/VGA synchronization/asynchronization Supports LVDS/VGA synchronization/asynchronization Supports LVDS/HDMI synchronization/asynchronization |
| Expansion Slot |
1 x mini PCI-e slot, supports wifi/3G module 1 x MSATA slot, suppports SSD/Wifi, SSD Max. transfer rate 6Gbps |
| LAN |
2 x RTL8111E 1000M Ethernet controller, supports Wake On Lan, PXE booting. 1 x RTL8105E 100M Ethernet controller(ITX-M847_A18 adapts) |
| Storage | 3 x SATAII HDD interface, Max. transfer rate 3Gbps |
| Audio | Onboard Realtek ALC662 6 channel high fidelity audio chip, supports MIC, line out. |
| Rear I/O panel |
1 x PS/2 keyboard and mouse connector 1 x DB9 COM port, PIN9 with electrification function 1 x LPT port 1 x DB15 VGA port 2 x RJ-45 LAN ports 4 x USB 2.0 ports 1 x audio I/O interface(MIC and line out) |
| Internal I/O interface |
9 x COM, COM2 and COM3 support RS485/422 (ITX-M847_A18 supports 5 internal COM) 1 x LVDS connector, supports dual channel 24 bit LCD, 2 x15-pin 1 x HDMI connector, 2 x 8-pin 1 x VGA1 connector, 2 x 5-pin 4 x USB 2.0 connectors 1 x audio connector 1 x FP1 front panel function button and indicator light header, 2 x 5-pin 1 x TX-RXCOM RS422/485 header, 2 x 4-pin 1 x PS/2 mouse and keyboard connector, 6-pin 1 x SIM slot |
| Fan connector | 1 x CPU Fan connector and 1 x System Fan connector, 4-pin |
| GPIO | Supports 4 channel GPIO |
| BIOS | AMI 32MB Flash ROM |
| Watch Dog | Supports hardware reset function(256 level, 0-255 seconds) |
| PSU | ATX power supply |
| Working Temp | -10℃～60℃ |
| Storing Temp | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension |
170mm x 170mm Mini ITX form factor |
-
