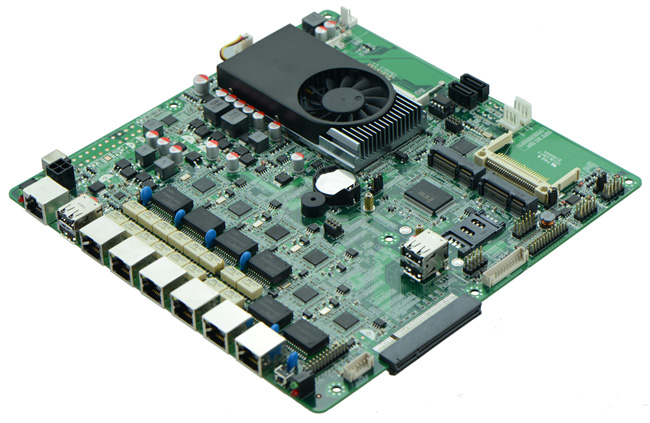

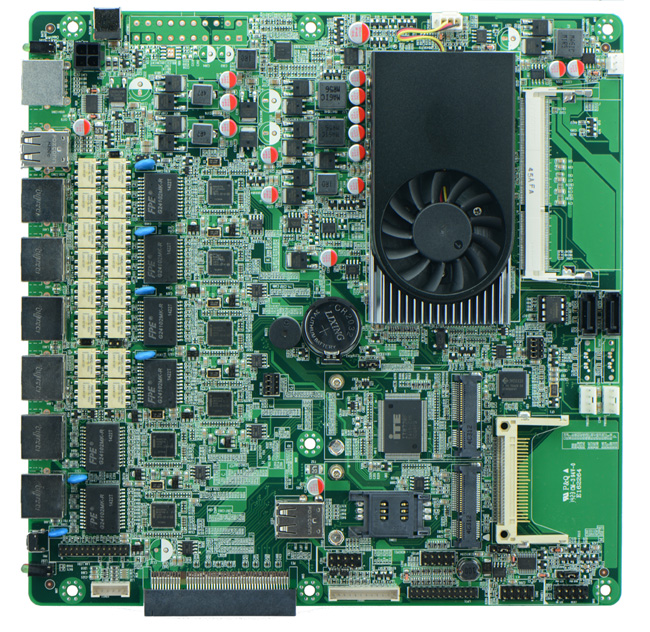

Intel Celeron 1037U firewall motherboard BYPASS
Integrated Intel Celeron 1037U dual core processor(1.8GHz)
Intel NM70 express chipset
Integrated Intel HD graphics core, provides VGA display
Single channel 1333/1066/800 memory, Max. 8Gb
Provides 2 mini PCIe slots, supports SSD/Wifi/3G module
Provides 6 RS232 headers, COM2/3 supports RS232/422/485 modes
6 x Intel 82574L 1000M Ethernet port, LAN1-4 supports 2 sets of BYPASS
Supports SATA, CF card, SSD storage
Integrated Intel Celeron 1037U dual core processor(1.8GHz)
Intel NM70 express chipset
Integrated Intel HD graphics core, provides VGA display
Single channel 1333/1066/800 memory, Max. 8Gb
Provides 2 mini PCIe slots, supports SSD/Wifi/3G module
Provides 6 RS232 headers, COM2/3 supports RS232/422/485 modes
6 x Intel 82574L 1000M Ethernet port, LAN1-4 supports 2 sets of BYPASS
Supports SATA, CF card, SSD storage
Intel NM70 express chipset
Integrated Intel HD graphics core, provides VGA display
Single channel 1333/1066/800 memory, Max. 8Gb
Provides 2 mini PCIe slots, supports SSD/Wifi/3G module
Provides 6 RS232 headers, COM2/3 supports RS232/422/485 modes
6 x Intel 82574L 1000M Ethernet port, LAN1-4 supports 2 sets of BYPASS
Supports SATA, CF card, SSD storage
| Product Model | FMN70SL_B |
| CPU | Onboard Intel Celeron 1037U dual core processor |
| Chipset | Intel NM70 express chipset |
| Memory | 1 x SO-DIMM DDR3 memory slot, supports 1333/1066 Mhz, Max. 8GB. |
| Video | Integrated Intel HD 2500 graphics core, supports VGA display ouput |
| Expansion Slot | 1 x PCI-e 8x slot, supports fiber optical and SFP module, alternative to mini PCIe slot |
| 1 x mini PCIe slot, supports Wifi and 3G module | |
| LAN | 6 x Intel 82574L 1000M Ethernet ports, supports PXE, Wake-on-LAN function, LAN1-4 supports 2 sets of BYPASS |
| Storage | 2 x SATA2 HDD interfaces, transfer rate reaches 3Gbps1 x MSATA slot, |
| 1 x MSATAIII, transit rate reaches 6Gbps | |
| 1 x CF card slot | |

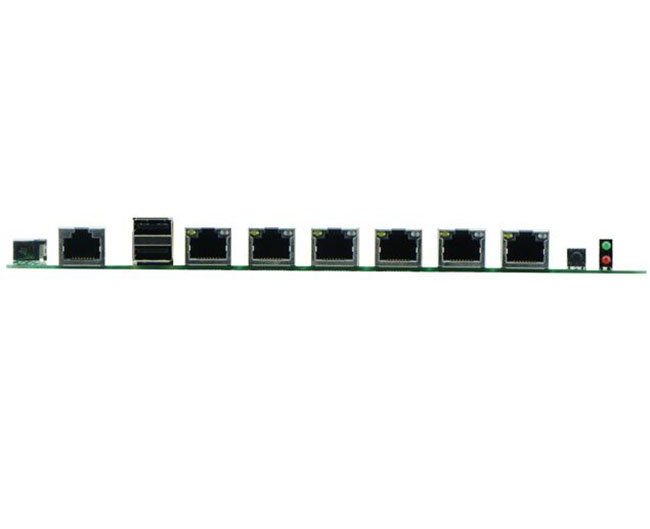

| Rear I/O Panel | 1 x COM CISCO standard port |
| 2 x USB 2.0 ports | |
| 6 x RJ-45 ports | |
| 1 x POWER switch | |
| 1 x LED1(POWERLED/HDDLED) | |
| 1 x 12V DC_JACK | |
| Internal I/O Interface | 1 x JVGA header, 2 x 5-pin |
| 1 x LAN_LED header, 2 x 13-pin | |
| 1 x LPT interface | |
| 4 x USB 2.0 headers | |
| 1 x RS232 headers | |
| 1 x FP1 header(2 x 5-pin, front panel function button and indicating light interface) | |
| 1 x PS/2 keyboard and mouse interface | |
| 1 x ATX_4 pin interface | |
| 2 x PWROUT, HDD power supply interface | |
| Fan connector | 1 x CPU Fan connector, 4-pin |
| 1 x System Fan connector, 3-pin | |
| GPIO | Supports 4 channel GPIO |
| BIOS | AMI 16MB DPI Flash ROM |
| Watch Dog | Supports hardware reset function(256 level, 0-255 seconds) |
| PSU | DC_12V single PSU |
| Working Temp | -10℃～60℃ |
| Storing Temp | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 220 x 220(mm) |
-
