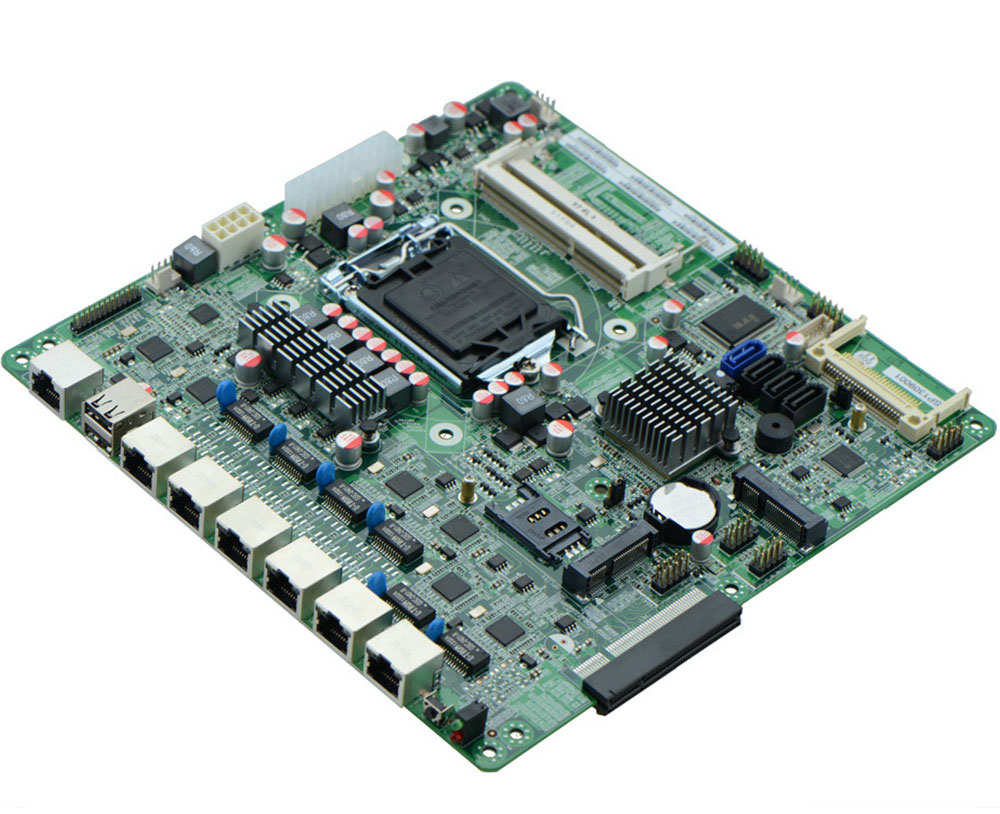

Intel H67 chipset LGA1155 firewall motherboard with 6 GbE LA
Supports Intel LGA1155 Core i3/i5/i7 32nm/22nm CPU
Intel H67 express chipset
Supports dual channel SO-DIMM DDR3 1333/1066 memory, Max. 16Gb
Built in HD graphics core, provides VGA display
Integrated 6 x 82583V 1000M Ethernet card, support Bypass function
1 x PCIe 8x slot, supports fiber optical module
4 x SATA HDD interface, provides 1 MSATA slot and 1 CF card slot
Provides 1 mini PCIe slot, supports Wifi/3G module
Supports Intel LGA1155 Core i3/i5/i7 32nm/22nm CPU
Intel H67 express chipset
Supports dual channel SO-DIMM DDR3 1333/1066 memory, Max. 16Gb
Built in HD graphics core, provides VGA display
Integrated 6 x 82583V 1000M Ethernet card, support Bypass function
1 x PCIe 8x slot, supports fiber optical module
4 x SATA HDD interface, provides 1 MSATA slot and 1 CF card slot
Provides 1 mini PCIe slot, supports Wifi/3G module
Intel H67 express chipset
Supports dual channel SO-DIMM DDR3 1333/1066 memory, Max. 16Gb
Built in HD graphics core, provides VGA display
Integrated 6 x 82583V 1000M Ethernet card, support Bypass function
1 x PCIe 8x slot, supports fiber optical module
4 x SATA HDD interface, provides 1 MSATA slot and 1 CF card slot
Provides 1 mini PCIe slot, supports Wifi/3G module
| Product Model | FMH67SL |
| CPU | Supports LGA1155 Intel Core i3/i5/i7 32nm/22nm processors |
| Chipset | Intel H67 express chipset |
| Memory | 2 x SO DDR3 memory slots, supports 1333/1066 Mhz, Max. 16GB. |
| Video | Integrated Intel HD graphics core, supports VGA display ouput |
| Expansion Slot | 1 x PCI-e 8x slot, supports fiber optical and SFP module |
| 1 x mini PCIe slot, supports Wifi and 3G module | |
| LAN | integrates 6 x Intel 82583V 1000M Ethernet ports |
| Storage | 1 x SATAIII interface, 6 Gbps |
| 3 x SATAII interfaces, 3 Gbps | |
| 1 x MSATA slot(supports SSD, 6Gbps) | |
| 1 x CF card slot | |

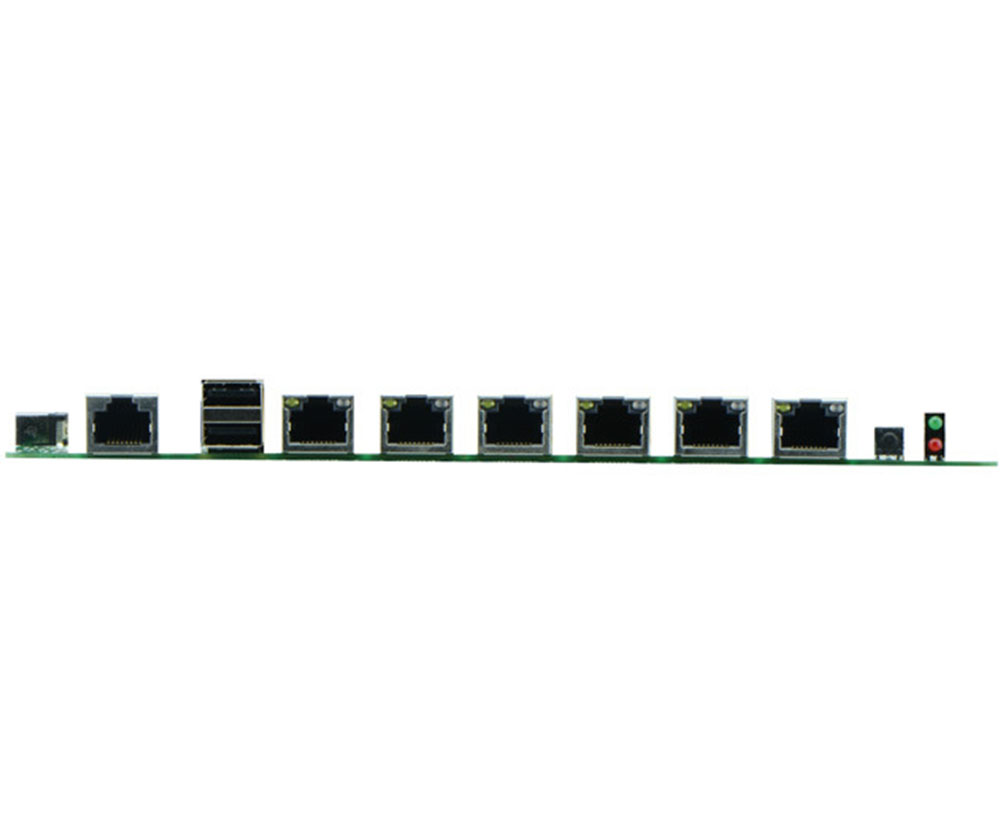

| Rear I/O Panel | 1 x COM CISCO standard port |
| 2 x USB 2.0 ports | |
| 6 x RJ-45 ports | |
| 1 x POWER switch | |
| 1 x LED1(POWERLED/HDDLED) | |
| Internal I/O Interface | 1 x JVGA header, 2 x 5-pin |
| 1 x LAN_LED header, 2 x 13-pin | |
| 1 x RS232 connector | |
| 1 x PS/2 keyboard and mouse interface | |
| 4 x USB 2.0 headers | |
| 1 x FP1 header(2 x 5-pin, front panel function button and indicating light interface) | |
| 1 x SIM card slot | |
| Fan connector | 1 x CPU Fan connector; and 2 x System Fan connector, 4-pin |
| GPIO | Supports 4 channel GPIO |
| BIOS | 32M SMT Flash ROM |
| Watch Dog | Supports hardware reset function(256 level, 0-255 seconds) |
| PSU | ATX 20-pin dedicated PSU |
| Working Temp | -10℃～60℃ |
| Storing Temp | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 220mm x 220mm |
-
