Armortec Mini PC Support Intel® Alder Lake-N Series Processo

　　Armortec Mini PC Support Intel® Alder Lake-N Series Processor HDMI,DDR4,TPM module,Type-C

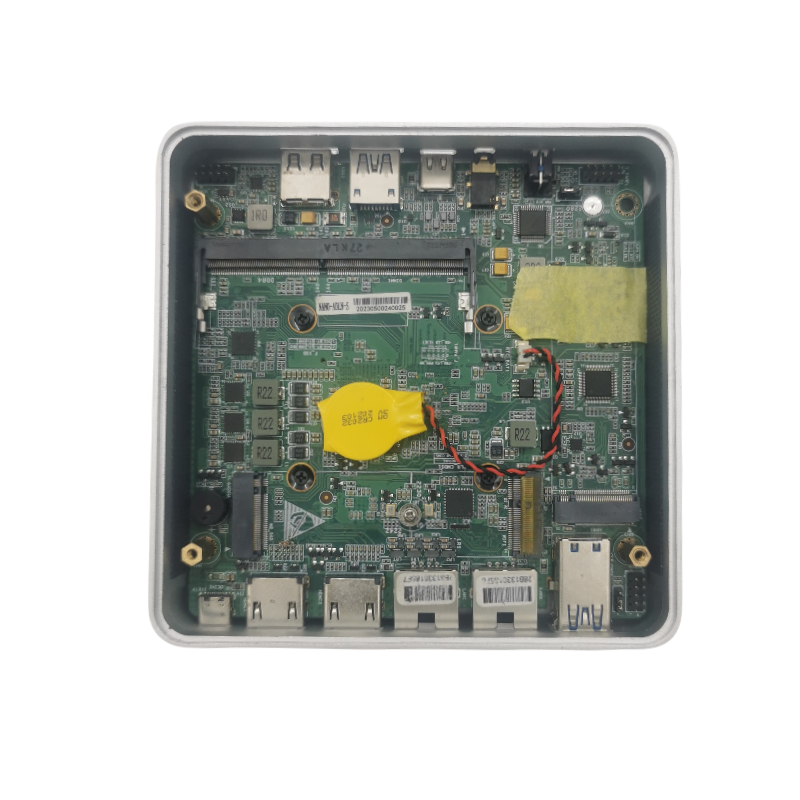

Supports Intel® Alder Lake-N Series N97/N100/N200 optional processor
I/O PLATE can be customized
with wallmout(optional)
Display: 2*HDMI 2.0
support dual screen
RAM: 1*DDR4 SO-DIMM, Max 16GB
2*intel 226 2.G Ethernet card, WOL, PXE
single channel DDR4 slot,Max support 16G
1*M.2 Key E, support WIFI+BT module
1*M.2 Key M, support 2242/2280 hhd
1*M.2 Key B, support 2242 SATA SSD
2*2.5G Intel226 network card
Onboard TPM module
1*Type-C
Specification:                          NUC-ALN2H2L
Model No. NUC-ALN2H2L
Processor Supports Intel® Alder Lake-N Series N97/N100/N200 optional processor
CPU Specification   N97 N100 N200
Total Cores 4 4 4
Total Threads For mobile 4 4
Max Turbo Frequency 3.60 GHz 3.40 GHz 3.70 GHz
Cache 6 MB Intel® Smart Cache 6 MB Intel® Smart Cache 6 MB Intel® Smart Cache
TDP 12W 6W 6 W
RAM 1*DDR4 SO-DIMM, maximum support 16GB
Display 2*HDMI2.0, Intel® UHD Graphics, Max resolution support 4096X2160@60Hz, support DualView, DualApplication function
The internet 2*intel 226 2.G Gigabit Ethernet, support Wake on LAN, PXE function
Store
 		 1*SATA, transmission speed can reach 6Gbps
1*M.2 Key M, support M.2 2242/2280 SATA/PCIE SSD
Expansion slot
 		 1*M.2 Key B，support 2242 SATA SSD
1*Mini-PCIE (M.2 Key E) slot, support WIFI, BT module
 Backplane I/O interface
 		 2* RJ-45 Gigabit network interface
2* HDMI interface
2*USB3.0
1*DC_IN(TYPE-C interface)，support 12~19V power supply
Frontplane I/O interface 1*power button (LED Indicator optional)
1*earphone/MIC in one
1*USB3.0，1*USB2.0
1*TYPE-C support USB3.1 and DP
 Built-in I/O Pin
 		 1*F_Panel
1*F_USB2.0 interface, can be extended to 2*USB2.0
1*AUTO_ON interface
1*CPU_FAN 4pin interface
1*CLR CMOS
OS windows10/11/Linux
GPIO N/A
BIOS AMI UEFI BIOS
Watchdog Support hardware reset function (256 levels, 0~255 seconds)
Power type 12~19V power supply DC
Operating temperature -10℃～70℃
Cooling Fan optional
Storage temperature -20℃~70℃
Motherboard Dimension 120*120mm
Working humidity 5%-95% relative humidity, non-condensing
Size
