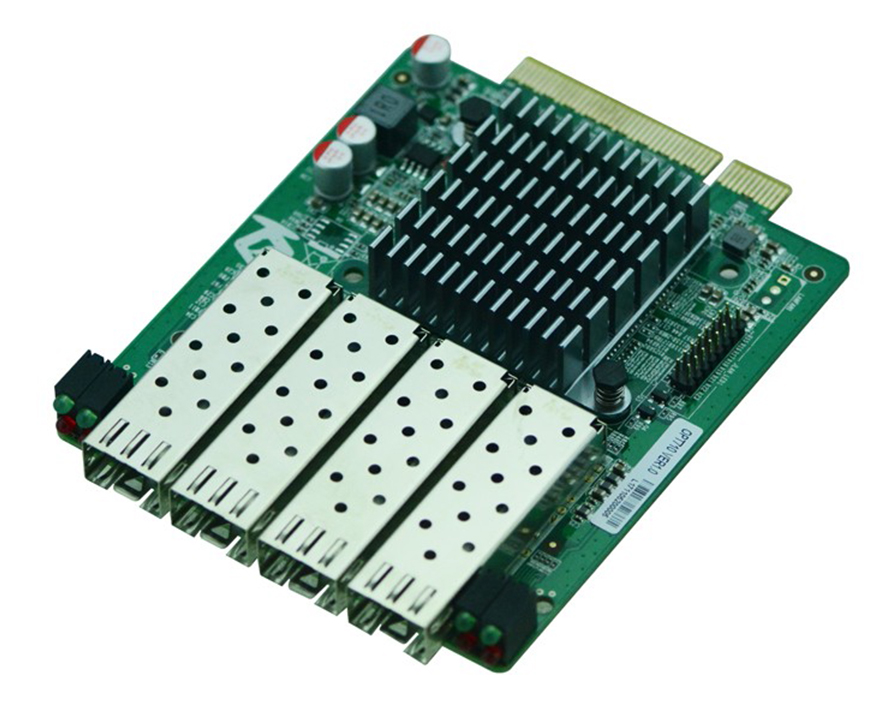

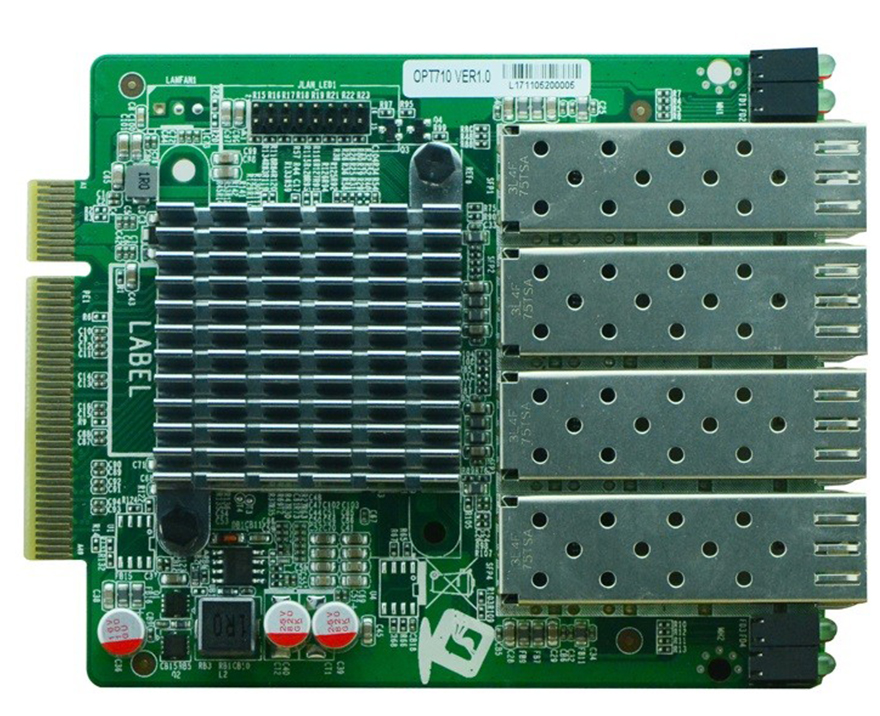

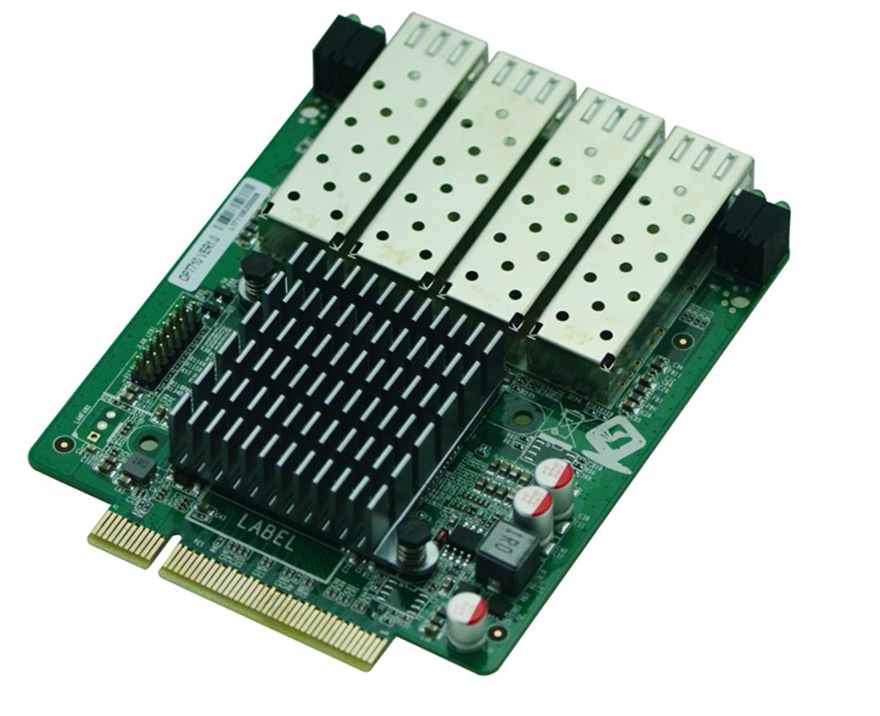

OPT710 VER:1.1
Chipset: Intel® XL710-BM2 10G NIC chip
Support 4*SFP+ 10G NIC Ethernet ports
Adopt PCIe X8 Gold finger power supply；
Chipset: Intel® XL710-BM2 10G NIC chip
Support 4*SFP+ 10G NIC Ethernet ports
Adopt PCIe X8 Gold finger power supply；
Support 4*SFP+ 10G NIC Ethernet ports
Adopt PCIe X8 Gold finger power supply；
| Model No. | OPT710 VER:1.1 |
| Network chip | Integrated Intel® XL710-BM2 high performance 10G NIC chip |
| Motherboard interface | PCI Express X8 channel |
| Support PCI Express 3.0 | |
| Narrow version adapter card ( can support 1U,2U Chassis at the same time ) | |
| Performance characteristics | Support MSI,MSI-X,support VMDq queue |
| support flexible port partitioning | |
| Support QOS Policy and traffic management | |
| Support PCI-SIG*SR-IOV | |
| LAN characteristics | Support IEEE1588 |
| Support IEEE 802.q VLAN tagging | |
| LAN interface | 4*10G optical port (Intel® XL710-BM2 10G network chip) |
| Operation System | Windows 7/8/10 |
| Windows Server 2008/2012 | |
| Linux | |
| VMware ESX/ESXI/FreeBSD 9 | |
| Support Motherboard | Using with H87SL/H81SL |
| Operating Temp | -10℃~60℃ |
| Operating Temp | -20℃~70℃ |
| Humidity | 5%—95% (relative humidity; non-condensing) |
| Dimension | 107mm(L)x85mm(W) |
-
