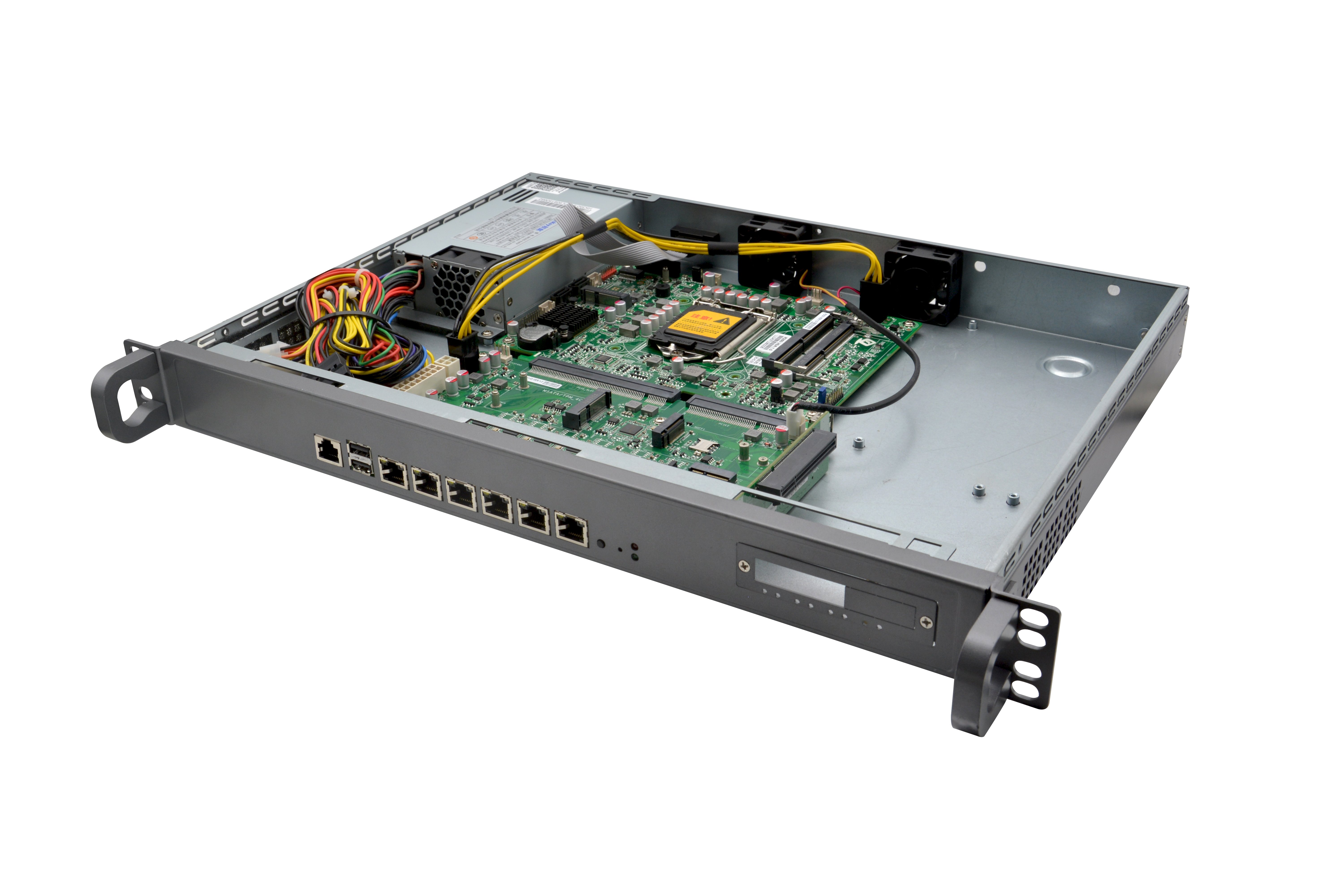

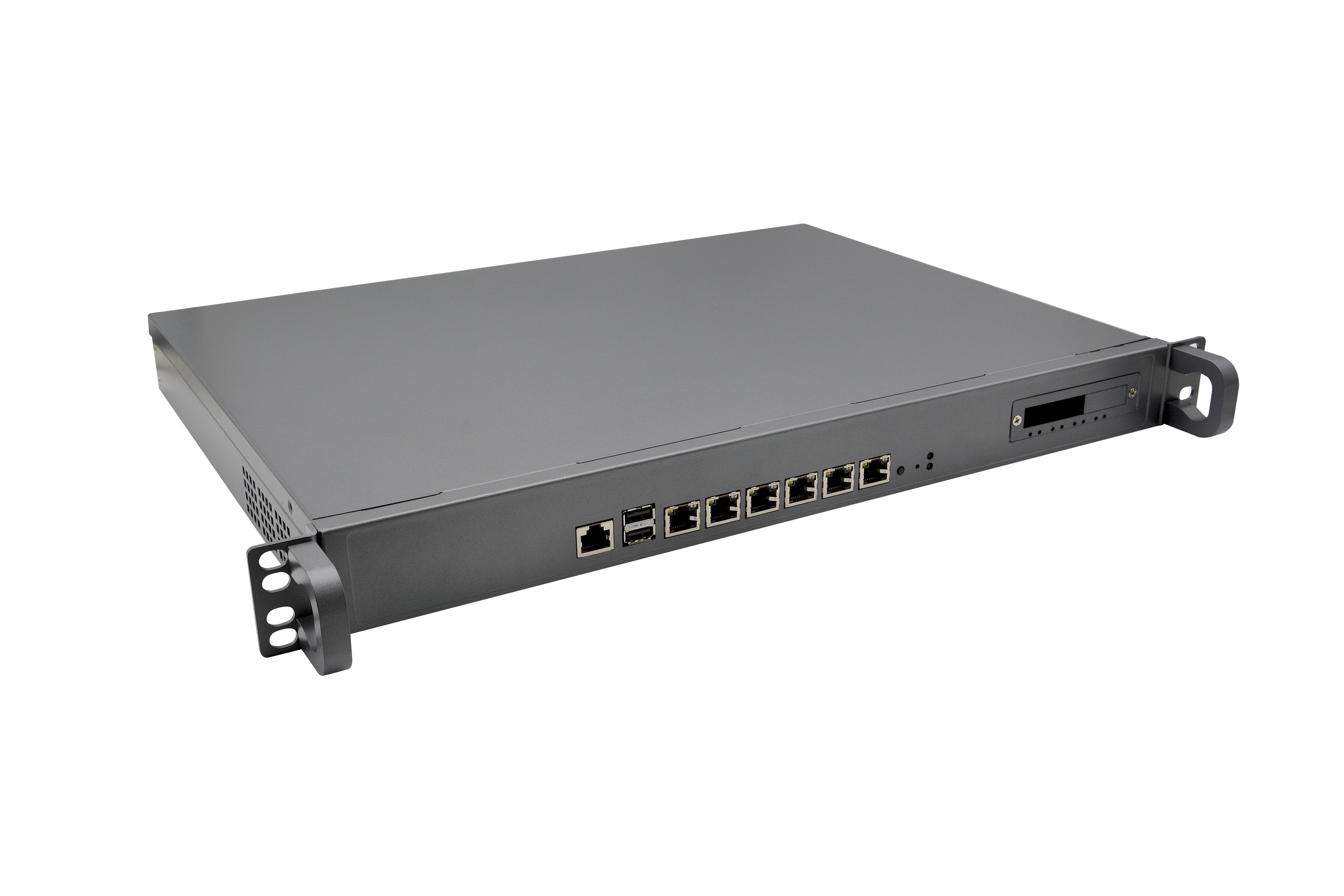

1U Rackmount Network Appliance with Intel LGA1155 2th/3th Ce

　　

FW-7565-1N

1U Rackmount Network Appliance with Intel®LGA1155 2th/3th Celeron/Pentium/Core i3/i5/i7 with 6 GbE LAN, 4 GbE SFP supporting2*DDR3 SODIMM and Wi-Fi/5G

Feature:

Adopts the dedicated multi Ethernet application scheme to design

Based on Intel B75 express chipset

Integrated with 6 x Intel I226V 2.5G 1000M Ethernet cards,supports BYPASS ( LAN1-4 ), supports wake-on-network, supports PXE,

Integrated 1 x Intel i350, supporting 2 x GbE SFP ports or 4 x GbE SFP(expasion optional)

Provides 1 PCIE X8 slot, supports Wi-Fi/5G modules

Provides 1 mSATA slot, supports SSD, transit rate reaches 6Gbps

Supports 1 x 2.5/3.5 inch HDD storage

Specification:                            FW-7565-1N

Model No.

FW-7565-1N

Form Factor

1U Rackmount

Platform

Processor Options

Intel®LGA1155 Intel B75 2th/3th Celeron/Pentium/Core i3/i5/i7

OS Support

Linux, Ubuntu, CentOS, pfSense, Windows All

BIOS

AMI 32M

System Memory

Technology

DDR3 1600/1333/1066MHz

Max. Capacity

16GB

Socket

2 x SO-DIMM

Networking

Ethernet Ports

6*Intel I226V 2.5G LAN

2 x GbE SFP OR 4 SFP Optional

Bypass

LAN1-4  BYPASS

Storage

HDD Bays

1 x 2.5/3.5 inch HDD storage

mSATA/M.2

1 x mSATA socket onboard,transit rate reaches 6Gbps

I/O Interface

Reset Button

1 x Reset Button

LED

1 x Power LED, 1 x HDD LED

Power Button

1 x Power Button Switch

Console

1 x RJ45 Console

USB

2 x USB 2.0

LCD Module

N/A

Display

1 x VGA output

Power Input

1 x AC Inlet

Expansion

PCIe

PCIE x8 slot, support 1000M/10000M ETHERNET

M.2

1* M.2 Key-E slot,support WiF module

1* M.2 slot,support 5G (onboard USB2.0 optional,R67motherboard can not support this function)

USB

1* USB2.0,can add TPM (M.2 5G optinal,default 5G),R67motherboard can not support this function

Mini PCIe

Mini PCIe, MSATA(TPM-4COM optional,after rooting BIOS which supportTPM-4COM , it can support 4 serial port)

Internal RTC with Li Battery

Yes

TPM

Yes

Environmental Parameters

Working Temperature

-10℃~50℃

Humidity

5% ~ 95%, non condensing

Power

Type/Watts

Built-in ATX/1U 250W

Input

AC 110-220V

Approvals and Compliance

CE, FCC
