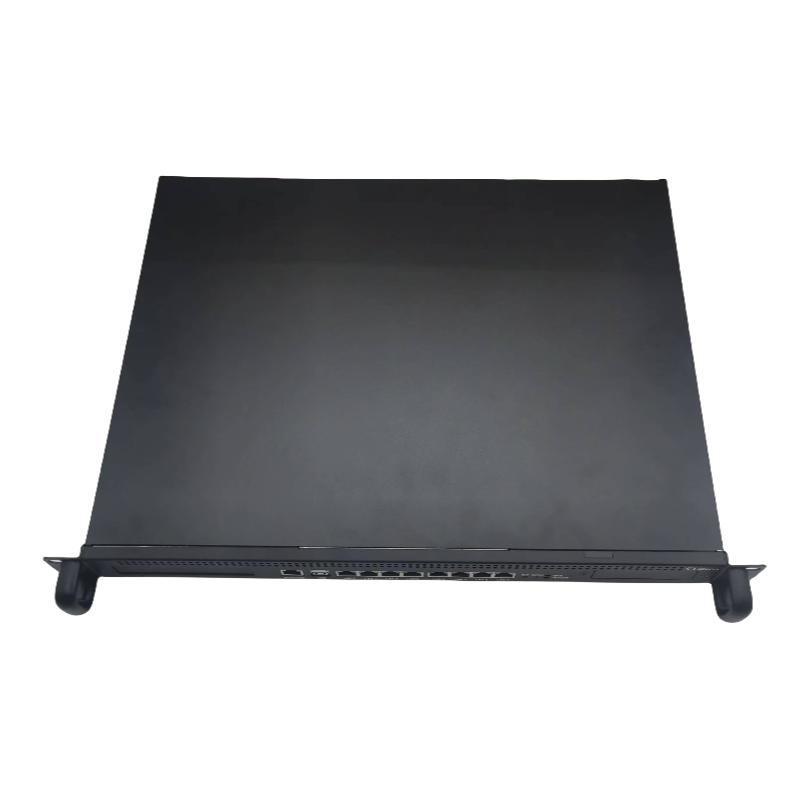

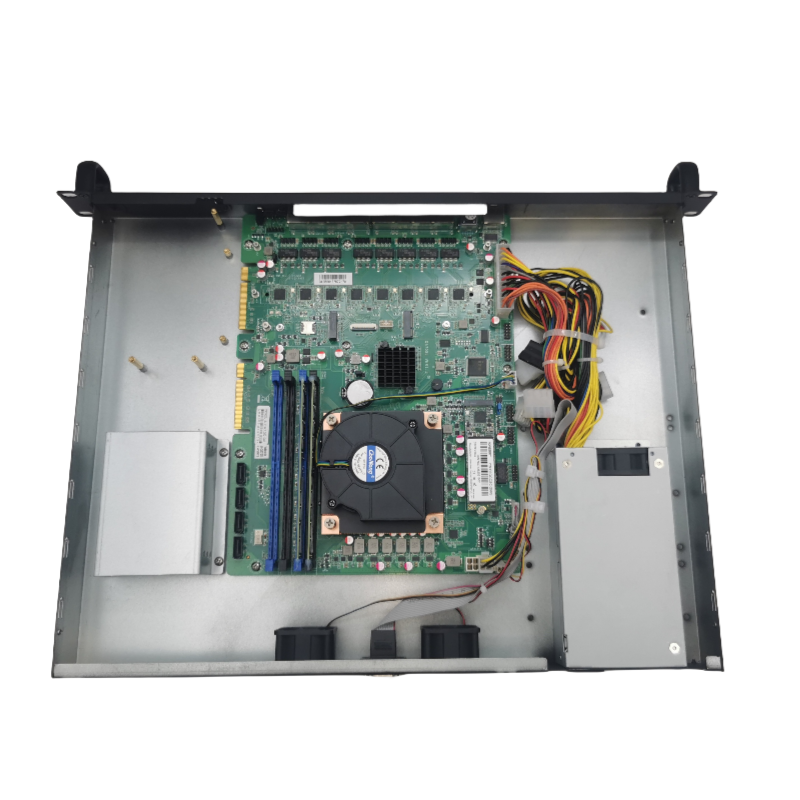

1U Rackmount Network Appliance Powered by LGA1200 10th/11th
FW-RL81-1N
1U Rackmount Network Appliance Powered by LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9, Xeon W-13XX Processor, 8 LAN, 3 M.2 slot, 1 PCIe X8 slot
1U Rackmount Network Appliance Powered by LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9, Xeon W-13XX Processor, 8 LAN, 3 M.2 slot, 1 PCIe X8 slot
Feature:
Support LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9, Xeon W-13XX processor (Note: Supports 10th/11th 125W CPU)
Adopting Intel W580 high-speed chipset
4 x DDR4 UDIMM memory slot, supports up to 3200MHz DDR4 memory, supports up to 128GB, and supports ECC memory
8 x Intel ® I210AT gigabit network card, supporting network wake-up and PXE functions, and supporting two sets of BYPASS functions
1 x M.2 slot, supporting M.2 Key M 2242/2280 PCIE x4/SATA adaptive standard SSD
1 x M.2 slot, supporting M.2 Key B 2242/2252 4G/5G modules
1 x M.2 slot, supporting M.2 Key E 2230 WIFI module
1 x PCIe X8 slot
Support LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9, Xeon W-13XX processor (Note: Supports 10th/11th 125W CPU)
Adopting Intel W580 high-speed chipset
4 x DDR4 UDIMM memory slot, supports up to 3200MHz DDR4 memory, supports up to 128GB, and supports ECC memory
8 x Intel ® I210AT gigabit network card, supporting network wake-up and PXE functions, and supporting two sets of BYPASS functions
1 x M.2 slot, supporting M.2 Key M 2242/2280 PCIE x4/SATA adaptive standard SSD
1 x M.2 slot, supporting M.2 Key B 2242/2252 4G/5G modules
1 x M.2 slot, supporting M.2 Key E 2230 WIFI module
1 x PCIe X8 slot
Specification: FW-RL81-1N
Ordering Information
Packing List
Contact:
Allen Dai / Sales Manager
Armortec Technology Limited
Email: allen.y.dai@armortec.net
Skype: allen.dai89
Tel: +86 150 1266 9595
| Model No. | FW-RL81-1N | |
| Form Factor | 1U Rackmount | |
| Platform | Processor Options | LGA1200 10th/11th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9, Xeon W-13XX processor (Note: supports 10th/11th 125W CPU) |
| CPU Socket | LGA1200 | |
| Chipset | Intel W580 | |
| Security Acceleration | N/A | |
| BIOS | 64Mb Flash ROM | |
| System Memory | Technology | DDR4 3200MHz |
| Max. Capacity | 128GB | |
| Socket | 4 x DDR4 UDIMM | |
| Networking | Ethernet Ports | 8 x Intel ® I210AT gigabit network card |
| Bypass | 2 Pair | |
| I/O Interface | Reset Button | 1 x Reset Button |
| LED | Power/Storage | |
| Power Button | 1 x Power Button | |
| Console | 1 x RJ45 | |
| USB | 2 x USB 3.0 | |
| LCD Module | - | |
| Display | 1 x HDMI or 1 x VGA | |
| Power Input | AC power inlet on PSU | |
| Storage | HDD/SSD Support | 3 x 2.5'' bays |
| Onboard Storage | 1 x M.2 slot, supporting M.2 Key M 2242/2280 PCIE x4/SATA adaptive standard SSD | |
| Expansion | PCIe | 1 x PCIE x8 |
| M.2 | 3 x M.2 | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU fan |
| System | 2 x Cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5%-95% Relative Humidity, non condensing | |
| System Dimensions | (WxHxD) | 450x45x352mm |
| Weight | 4.8 kg | |
| Package Dimensions | (WxHxD) | - |
| Weight | - | |
| Power | Type/Watts | 250W ATX Single PSU or 300W ATX Dual PSU |
| Input | 90~264V@47~63Hz | |
| Part number | CPU | DDR4 | 1 Gb LAN port | Bypass | Console | USB 3.0 | 2.5'' HDD | Expansion | Power |
| FW-RL81-1N | LGA1200 | 4 | 8 | 2 | 1 | 2 | 3 |
1 x PCIE x8 3 x M.2 |
250W ATX Single PSU or 300W ATX Dual PSU |
| 1 | 1 x SATA data cable (Optional) |
| 2 | 1 x Power cord(USA/Europe/UK/Brazil Type) |
| 3 | 2 x Rack ears |
| 4 | 1 x Accessory screw bag |
Allen Dai / Sales Manager
Armortec Technology Limited
Email: allen.y.dai@armortec.net
Skype: allen.dai89
Tel: +86 150 1266 9595
-
Document -
Image (High Resolution) -
SoftwareHow to find the hardware version?
For example: V1.6 = V1
