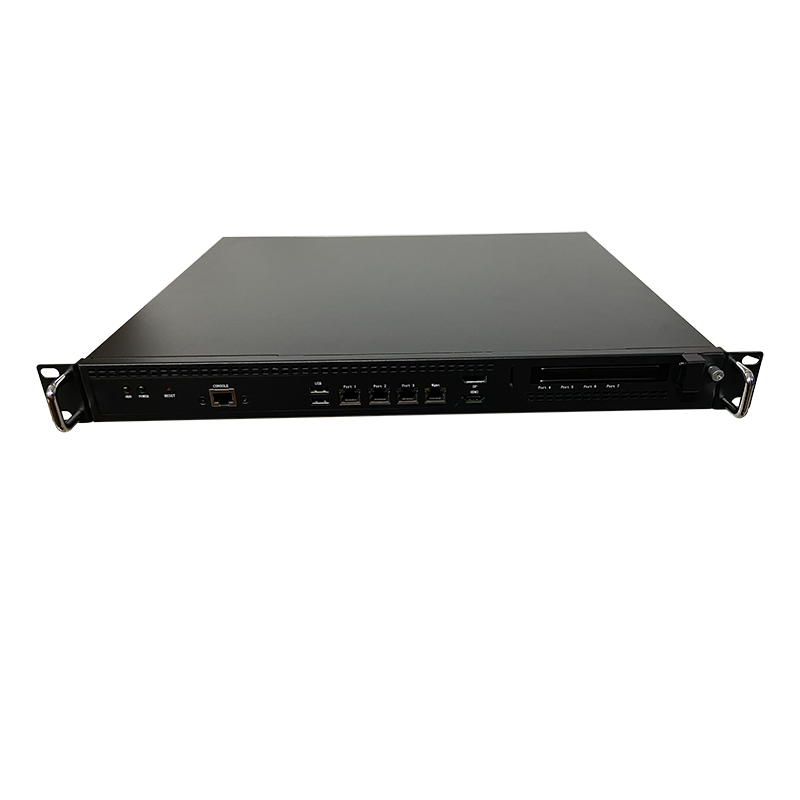

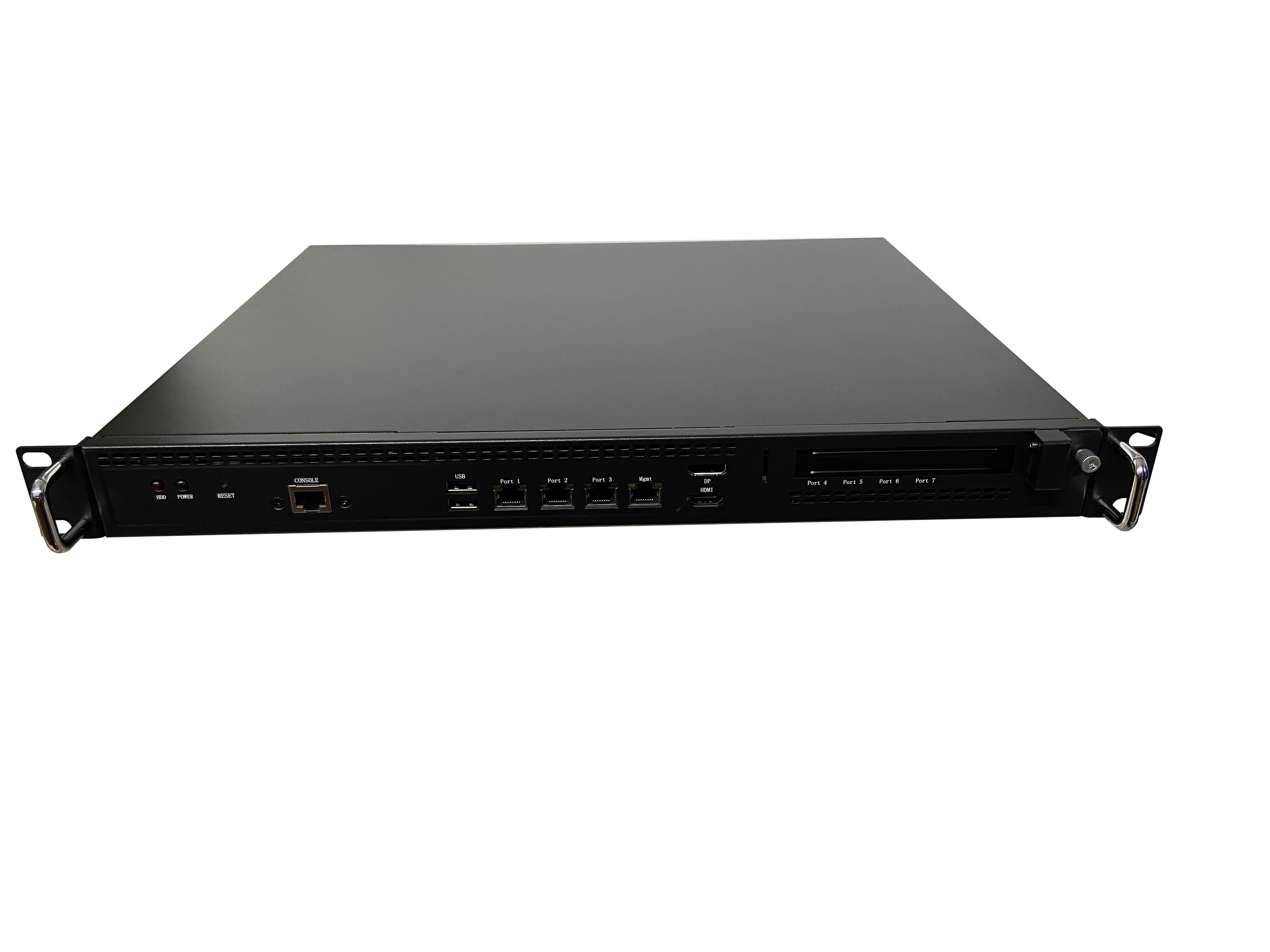

FW-3141-1N
1U Rackmount Network Appliance powered by Intel Coffee Lake 8th/9th Gen Core i3/i5/i7 CPU, H310 chipset, 4 LAN, 1 x NIC slot, mSATA
Supports Intel 8th/9th Coffee Lake-S CPU
Deploy Intel H310 express chipset
Supports 2 x DDR4 SO-DIMM memory, Max. 32GB
Integrated with 4 x Intel i211 GbE Ethernet Controller, supports Wake On LAN, PXE booting
Supports 1 x NIM slot
Supports 1 x console port (RJ45 type, Cisco Standard)
Supports 2 x USB 3.0, internal USB 2.0 headers
Supports MSATA SSD, SATA HDD storage
Support HDMI, DP(alternatively VGA)
Deploy Intel H310 express chipset
Supports 2 x DDR4 SO-DIMM memory, Max. 32GB
Integrated with 4 x Intel i211 GbE Ethernet Controller, supports Wake On LAN, PXE booting
Supports 1 x NIM slot
Supports 1 x console port (RJ45 type, Cisco Standard)
Supports 2 x USB 3.0, internal USB 2.0 headers
Supports MSATA SSD, SATA HDD storage
Support HDMI, DP(alternatively VGA)
Specification: FW-3141-1N
System Dimension
Packing List
Optional Accessories
| Model No. | FW-3141-1N | |
| Form Factor | 1U 19” Rackmount | |
| Platform | Processor Options | Supports Intel 8th /9th Coffee lake-S CPU(H310 chipset) |
| CPU Socket | 1x LGA1151 | |
| Chipset | Intel H310 | |
| Security Acceleration | AES-NI | |
| BIOS | AMI SPI Flash BIOS | |
| System Memory | Technology | DDR4 2400/2133 MHz |
| Max. Capacity | 32GB | |
| Socket | 2x 260pin SODIMM | |
| Networking | Ethernet Ports |
4 x GbE RJ45 Intel i211 1 x NIC slot(4 x GbE SFP or 4 x 1G RJ45) |
| Bypass | - | |
| I/O Interface | Reset Button | - |
| LED | Power/Storage | |
| Power Button | 1x Power button | |
| Console | 1x RJ45 | |
| USB | 2x USB 3.0 | |
| LCD Module | - | |
| Display | 1x HDMI, 1x DP(or 1 x VGA) | |
| Power Input | AC power inlet on PSU | |
| Storage | HDD/SSD Support | 2 x 2.5'' bays |
| Onboard Storage |
1 x m-SATA 1 x 2.5'' notebook SATA port |
|
| Expansion | PCIe | 1x PCIe X4 |
| Mini-PCIe | 1 x Mini PCIe(For WiFi and 4G), 1 x SIM(For 4G) | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU fan |
| System | 2 x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity |
5 ~ 90% non condensing / 5 ~ 95%, non condensing |
|
| System Dimensions | (WxHxD) | - |
| Weight | - | |
| Package Dimensions | (WxHxD) | - |
| Weight | - | |
| Power | Type/Watts |
220W single ATX PSU 300W redundant ATX PSU(Optional) |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC Class B | |

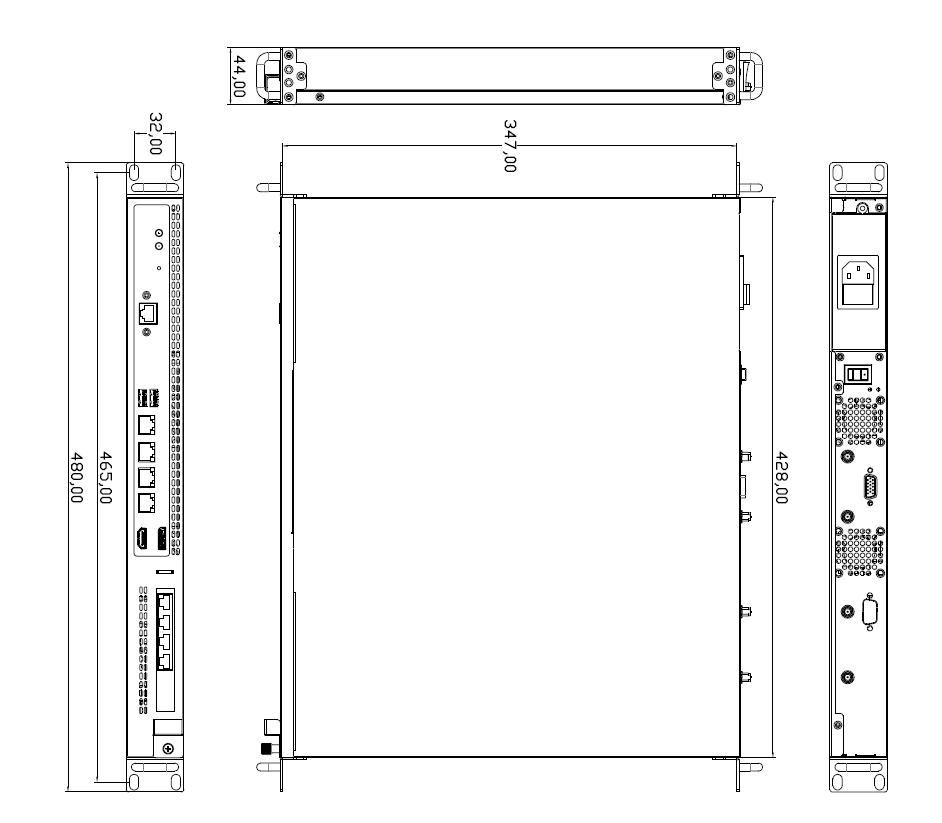

System Dimension
Packing List
| 1 | SATA data cable |
| 2 | Power cord 3P 180cm, China |
| 3 | Rack ears |
| 4 | Accessory screw bag |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
-
