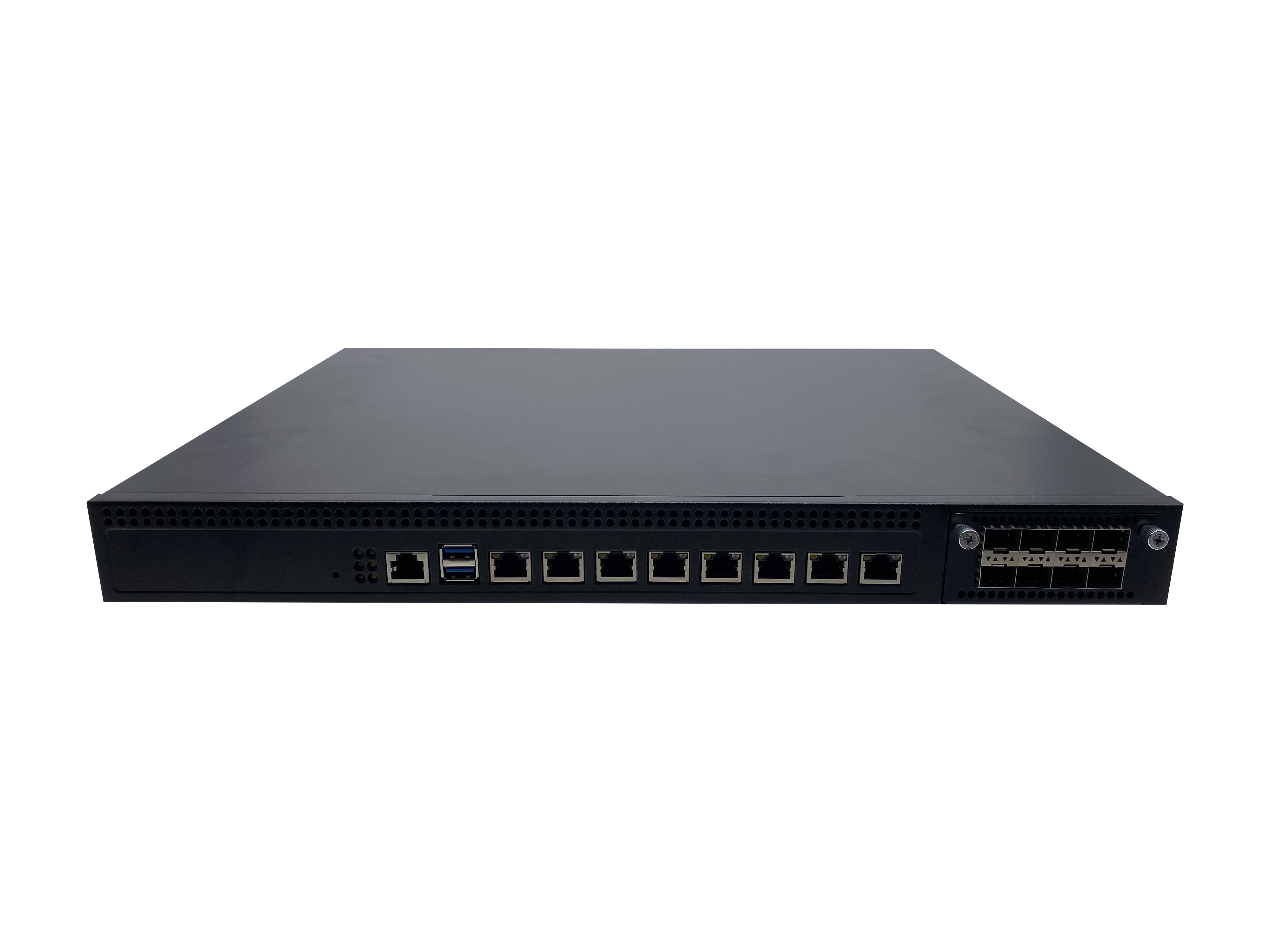

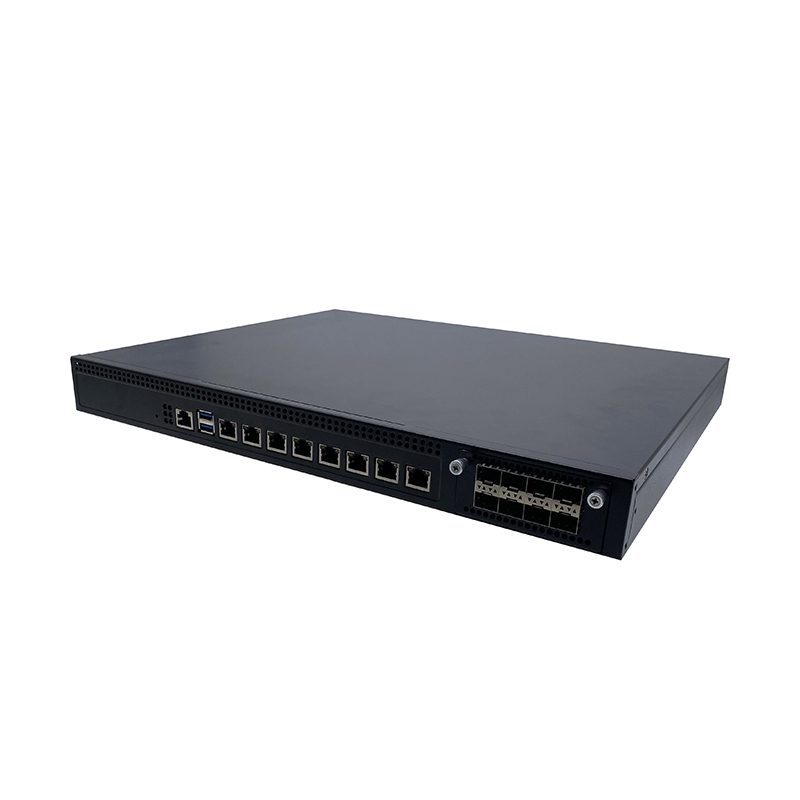

1U Rackmount Network Appliance with Intel Celeron J1900/J180
Feature:
Integrated Intel Celeron J1900 quad core processor(2.0GHz) or J1800 dual core(2.41GHz)
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3L 1600/1333MHz 1.35V memory, Max. 8Gb
1 x 2.5 inch HDD bay1 x MSATA slot(support ssd and usb wifi), 1 x CF card slot
8 x Intel i211 GbE network, 1 set of BYPASS optional
2 x AC Inlet(Internal 60W Open Frame), Redundant function
FW-BT81-1N
1U Rackmount Network Appliance with Intel Celeron J1900/J1800, 8 x GbE LAN, 1 Mini PCIe slot, m-SATA, Dual Power Supply
Feature:
Integrated Intel Celeron J1900 quad core processor(2.0GHz) or J1800 dual core(2.41GHz)
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3L 1600/1333MHz 1.35V memory, Max. 8Gb
1 x 2.5 inch HDD bay1 x MSATA slot(support ssd and usb wifi), 1 x CF card slot
8 x Intel i211 GbE network, 1 set of BYPASS optional
2 x AC Inlet(Internal 60W Open Frame), Redundant function
Specification: FW-BT81-1N
Ordering Information
Packing List
Optional Accessories
1U Rackmount Network Appliance with Intel Celeron J1900/J1800, 8 x GbE LAN, 1 Mini PCIe slot, m-SATA, Dual Power Supply
Feature:
Integrated Intel Celeron J1900 quad core processor(2.0GHz) or J1800 dual core(2.41GHz)
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3L 1600/1333MHz 1.35V memory, Max. 8Gb
1 x 2.5 inch HDD bay1 x MSATA slot(support ssd and usb wifi), 1 x CF card slot
8 x Intel i211 GbE network, 1 set of BYPASS optional
2 x AC Inlet(Internal 60W Open Frame), Redundant function
Specification: FW-BT81-1N
| Model No. | FW-BT81-1N | |
| Form Factor | 1U 19” Rackmount | |
| Platform | Processor Options | Intel Celeron J1900 2.0GHz Quad Core / Intel Celeron J1800 2.41GHz Dual Core |
| CPU Socket | Onboard | |
| Chipset | Baytrail SOC platform | |
| Security Acceleration | N/A | |
| BIOS | AMI Flash BIOS | |
| System Memory | Technology | DDR3L 1600/1333MHz |
| Max. Capacity | 8GB | |
| Socket | 1x 204pin SODIMM | |
| Networking | Ethernet Ports |
8 x GbE RJ45 Intel i211 1 x NIC slot |
| Bypass | Optional | |
| I/O Interface | Reset Button | - |
| LED | Power/Storage | |
| Power Button |
1x Power button 1 x HDD LED 1 x GPIO LED 3 x BYPASS LED |
|
| Console | 1x RJ45 | |
| USB | 2x USB 2.0 | |
| LCD Module | - | |
| Display | 1x VGA | |
| Power Input |
2 x AC power inlet 1 x AC power inlet(Optional) |
|
| Storage | HDD/SSD Support | 1 x 2.5 inch HDD bay |
| Onboard Storage | 1x m-SATA, 1 x CF card slot | |
| Expansion | PCIe | - |
| Mini-PCIe | 1x Mini-PCIe, 1 x SIM | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | Passive CPU heatsink |
| System | 2 x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity |
5 ~ 90% non condensing / 5 ~ 95%, non condensing |
|
| System Dimensions | (WxHxD) | 430x44x350mm |
| Weight | 4.0 kg | |
| Package Dimensions | (WxHxD) | |
| Weight | ||
| Power | Type/Watts |
2 x 60W Open Frame PSU 1 x 60W Open Frame PSU(Optional) |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC Class B | |
| Part number | CPU | DDR3 | 1Gb LAN port | Bypass | Console | USB 2.0 | 2.5'' HDD | 3.5'' HDD | Mini PCIe Expansion | Power |
| FW-BT81-1NA | J1900 | 1 | 8 x Intel i211 | - | 1 | 2 | 1 | - | 1 |
1 x AC 60W 2 x AC 60W(Opt.) |
| FW-BT81-1NB | J1800 | 1 | 8 x Intel i211 | 1 | 1 | 2 | 1 | - | 1 |
1 x AC 60W 2 x AC 60W(Opt.) |
| 1 | SATA data cable |
| 2 | SATA power cable |
| 3 | Power cord 3P 180cm, China |
| 4 | Rack ears |
| 5 | Accessory screw bag |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
 |
|
||||||||||||
-
