Intel Xeon E3 1200(v2), Core i3/i5/i7, Pentium and Celeron 1
Support 2nd/3rd Generation Intel Core i7/i5/i3 Quad/Dual-core CPU with B75 PCH (codenamed "Panther Point")
Entry-level 1U rackmount with 6 Intel GbE LAN ports
Shorter depth form factor design
Intel AES-NI, improves security without slowing response times
Supports up to 16 GB DDR3 memory
Intel 82583V LAN controller
3 x system cooling fans
Supports 2 groups LAN bypass
Optional front expansion slot

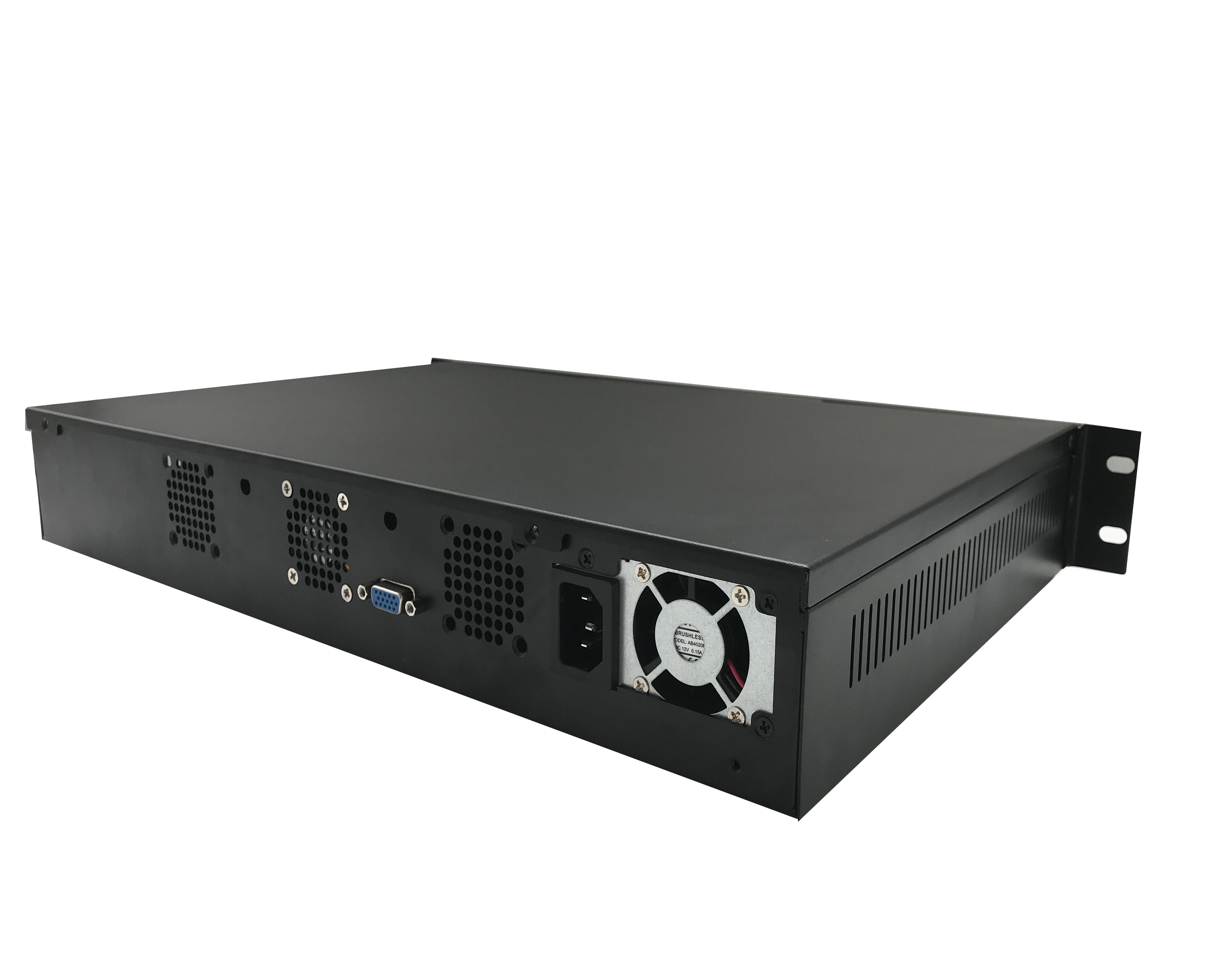

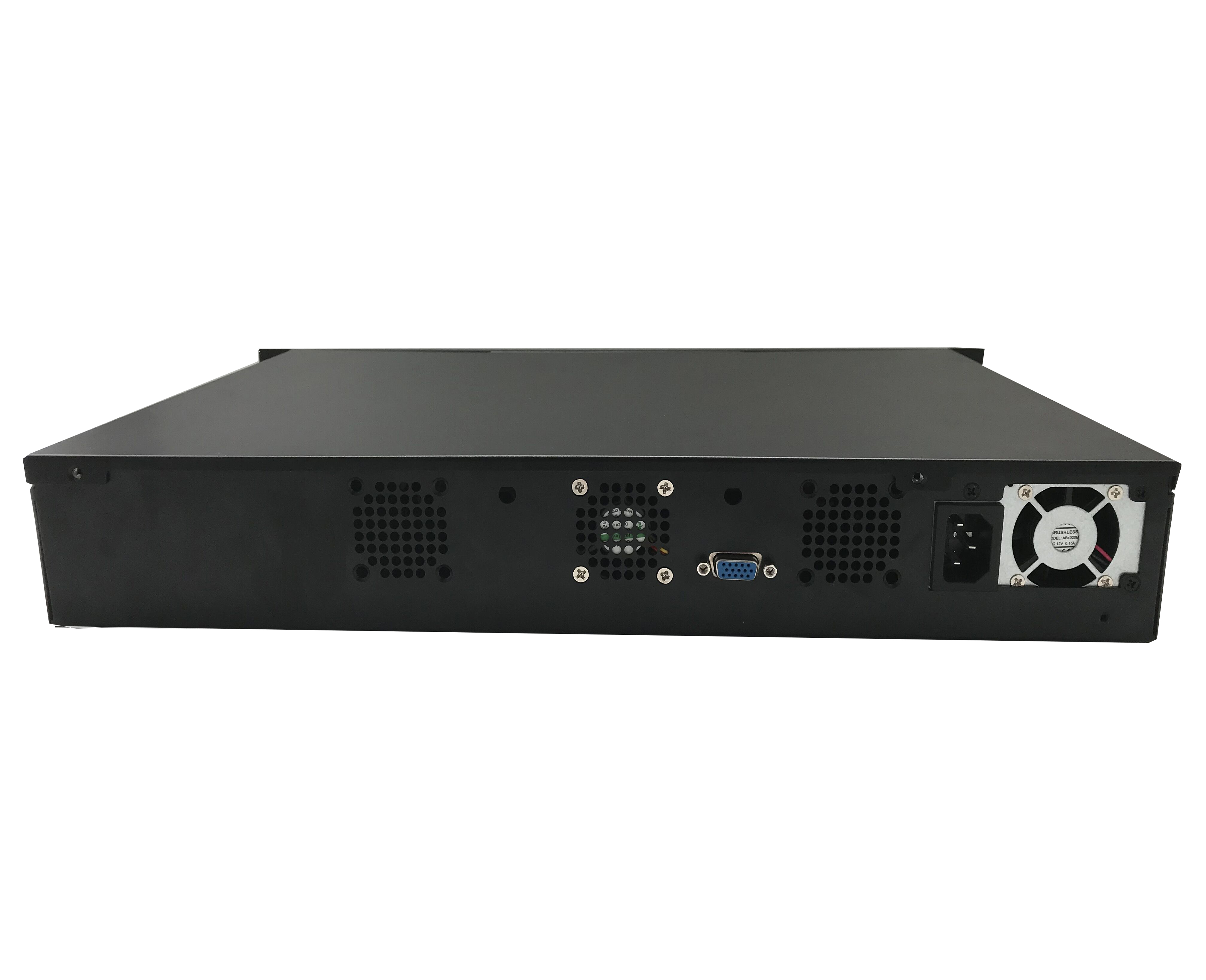

The FW-6015 is a short-depth 1U Rack mount network security system utilizing the cutting edge capabilities of
the Intel Panther Point platform (Based on Intel Sandy Bridge / Ivy Bridge CPU and B75 PCH). The system
includes Intel AES New Instruction (Intel AES-NI), allowing security algorithms to benefit from hardware
acceleration for data encryption and decryption.It is targeted at UTM, firewall, VPN, IPS and WAN optimization
applications for the small and medium business environment. The system has 6 Intel GbE LAN ports with LAN
Bypass built-in, 2 DDR3 1600 DIMMs (Max. up to 16 GB), 1 optional front PCIe slot, 3 system cooling fans and an
ATX power supply.
Support 2nd/3rd Generation Intel Core i7/i5/i3 Quad/Dual-core CPU with B75 PCH (codenamed "Panther Point")
Entry-level 1U rackmount with 6 Intel GbE LAN ports
Shorter depth form factor design
Intel AES-NI, improves security without slowing response times
Supports up to 16 GB DDR3 memory
Intel 82583V LAN controller
3 x system cooling fans
Supports 2 groups LAN bypass
Optional front expansion slot
| Model No. | FW-6015 | |
| Form Factor | 1.5U Rackmount | |
| Platform | Processor Options |
Intel LGA1155 Socket Sandy Bridge/Ivy Bridge Xeon E3 1200(v2), Core i3/i5/i7, Pentium and Celeron |
| CPU Socket | 1 x LGA1155 | |
| Chipset | Intel H67/B75 | |
| Security Acceleration | N/A | |
| BIOS | AMI BIOS | |
| System Memory | Technology | 204-pin DDR3 1600/1333 MHz SODIMM x 2, up to 16GB |
| Max. Capacity | 16GB | |
| Socket | 2x 204pin SODIMM | |
| Networking | Ethernet Ports | 6x GbE RJ45 Intel 82583V or |
| 6x GbE RJ45 Intel 82574L | ||
| Bypass | Optional | |
| I/O Interface | Reset Button | - |
| LED | Power LED x 1, HDD Active x 1, LAN LED x 12(Optoinal Status LED x 1) | |
| Power Button | Power Button x 1(alternative to reset button) | |
| Console | 1x RJ45 | |
| USB | USB 2.0 x 2 | |
| LCD Module | - | |
| Display | 1x VGA | |
| Power Input | 220W AC Inlet | |
| Storage | HDD/SSD Support | 2x 2.5'' bays or |
| 1x 3.5'' bay | ||
| Onboard Storage | 1x m-SATA, 1x CF(signal alternative to each other) | |
| Expansion | PCIe | 1个PCIe 8X slot |
| Mini-PCIe | Yes | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU fan |
| System | 3x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/-20℃～70℃ |
| Humidity | 5～90% non condensing | |
| System Dimensions | (WxHxD) | 428x300x66mm |
| Weight | 4.2 kg | |
| Package Dimensions | (WxHxD) | 530x400x150mm |
| Weight | 5.4 kg | |
| Power | Type/Watts | 220W 1U Flex Single ATX PSU |
| Input | - | |
| Approvals and Compliance | CE, FCC, RoHS | |
-
