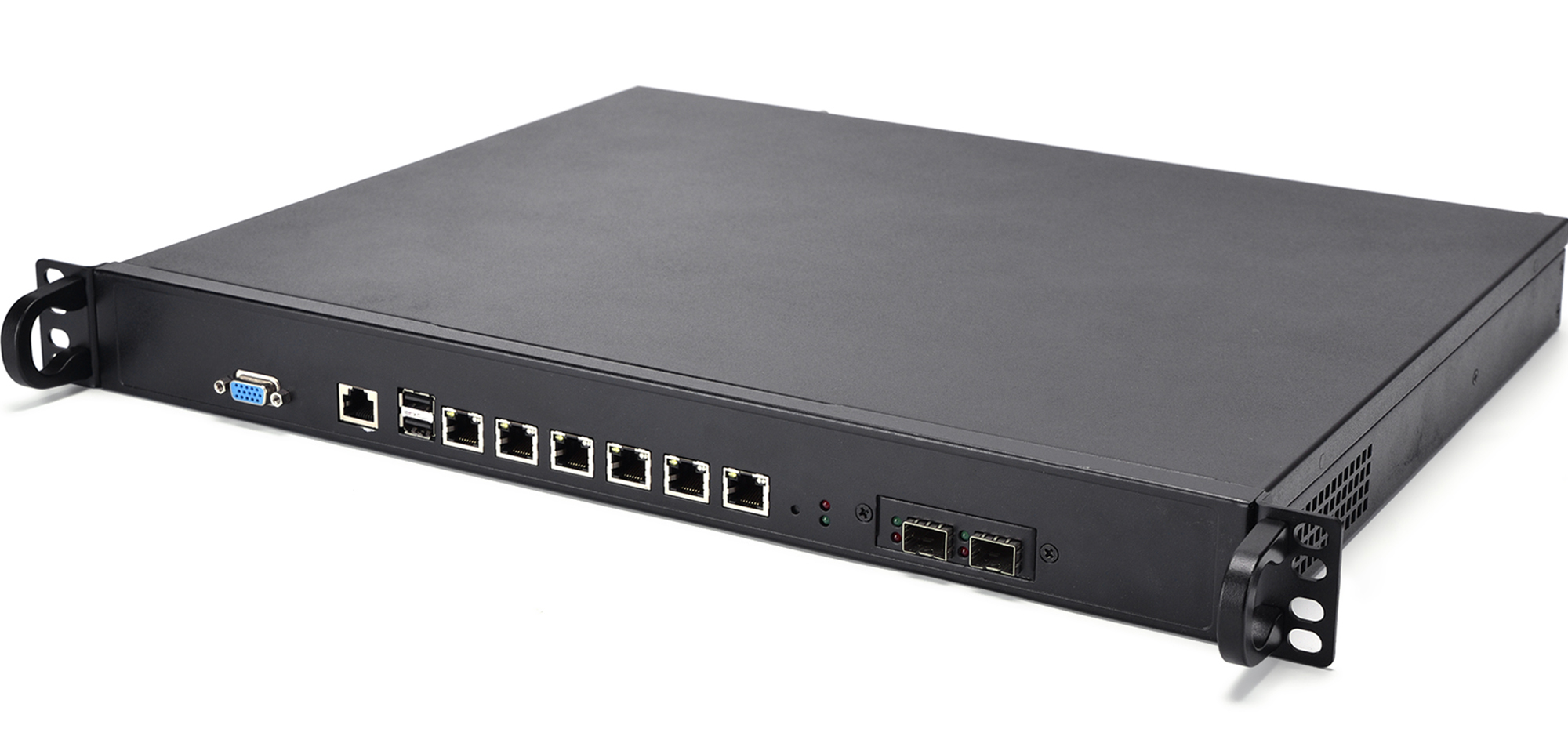

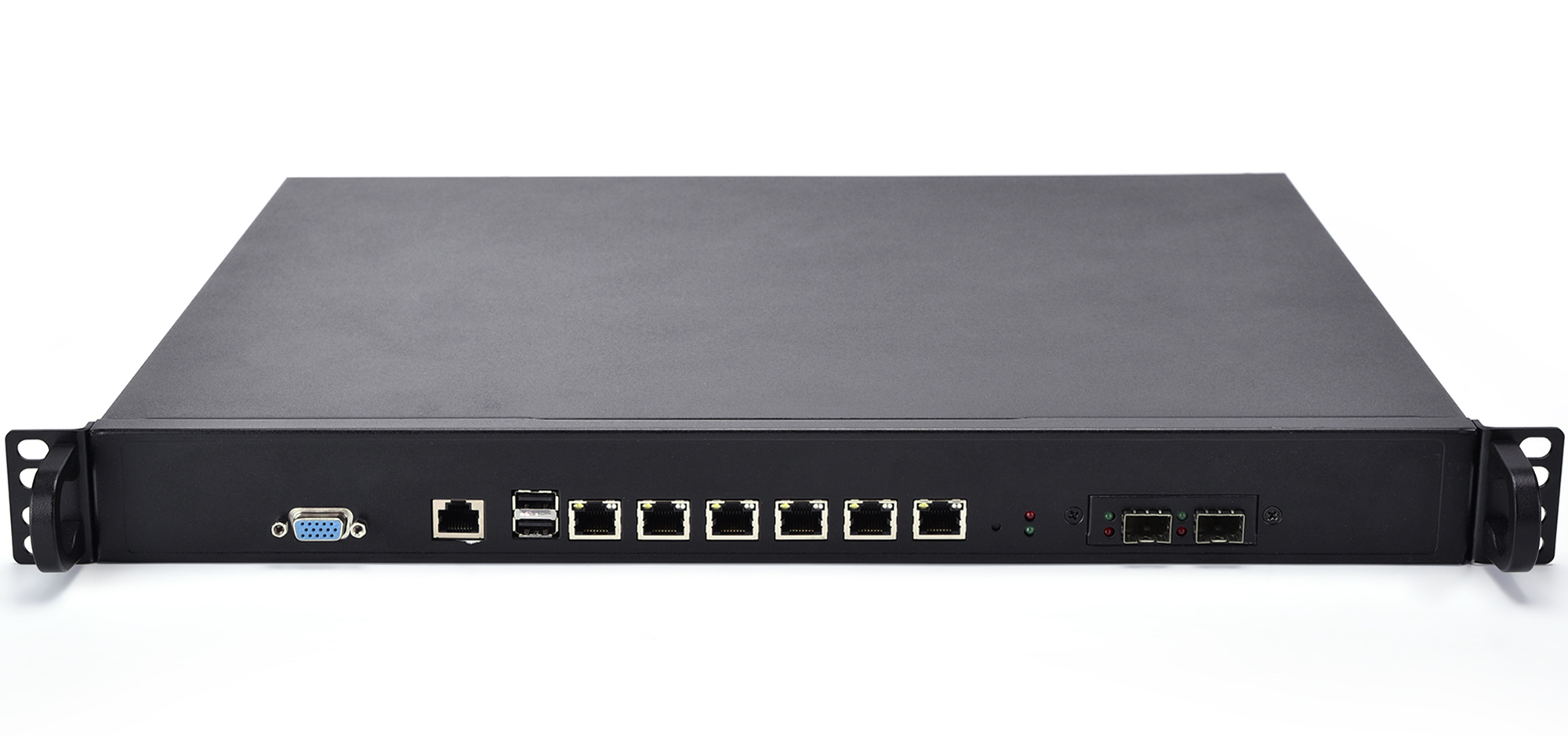

Intel Xeon 1275(V2), Core i7/i5/i3 6 GbE LAN 2 GbE/10GbE SFP
Adopts the dedicated multi Ethernet application scheme to design
Based on Intel H67/B75 express chipset
Integrated with 6 Intel 82583V/82574L 1000M Ethernet cards, supports 2 pairs BYPASS(FWK-6761-2OB)
Provides 1 Mini PCIe slot, supports wifi, 3G modules
Provides 1 mSATA slot, supports SSD, transit rate reaches 6Gbps
Provide 1 hot swappable HDD tray at the rear panel
Supports SSD, SATA HDD, CF card storage
Adopts the dedicated multi Ethernet application scheme to design
Based on Intel H67/B75 express chipset
Integrated with 6 Intel 82583V/82574L 1000M Ethernet cards, supports 2 pairs BYPASS(FWK-6761-2OB)
Provides 1 Mini PCIe slot, supports wifi, 3G modules
Provides 1 mSATA slot, supports SSD, transit rate reaches 6Gbps

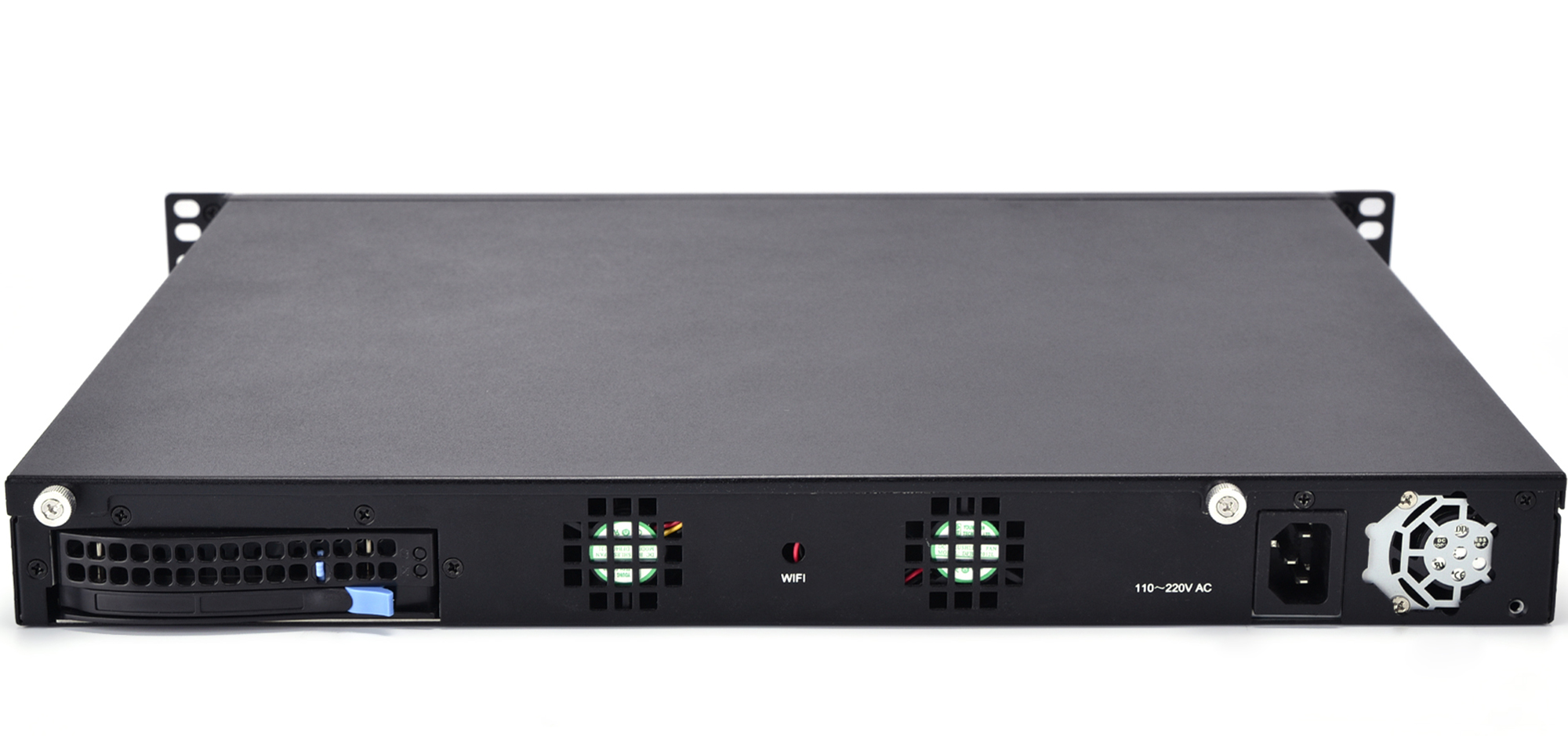

Provide 1 hot swappable HDD tray at the rear panel
Supports SSD, SATA HDD, CF card storage
Based on Intel H67/B75 express chipset
Integrated with 6 Intel 82583V/82574L 1000M Ethernet cards, supports 2 pairs BYPASS(FWK-6761-2OB)
Provides 1 Mini PCIe slot, supports wifi, 3G modules
Provides 1 mSATA slot, supports SSD, transit rate reaches 6Gbps
Provide 1 hot swappable HDD tray at the rear panel
Supports SSD, SATA HDD, CF card storage
| Form Factor | 1U 19” Rackmount | |
| Platform | Processor Options | Intel Core i7/i5/i3, Pentium, Celeron or Xeon E3 1275(V2)(Ivy Bridge or Sandy Bridge) |
| CPU Socket | 1x LGA1155 | |
| Chipset | Intel H67 or B75 | |
| Security Acceleration | N/A | |
| BIOS | AMI SPI Flash BIOS | |
| System Memory | Technology | DDR3 1600/1333MHz |
| Max. Capacity | 16GB | |
| Socket | 2x 204pin SODIMM | |
| Networking | Ethernet Ports | 6x GbE RJ45 Intel 82583V/82574L |
| 2x 10GbE SFP Intel 82599ES / GbE SFP NH82580DB (optional) | ||
| Bypass | Optional | |
| I/O Interface | Reset Button | - |
| LED | Power/Storage | |
| Power Button | 1x Power button | |
| Console | 1x RJ45 | |
| USB | 2x USB 2.0 | |
| LCD Module | - | |
| Display | 1x VGA | |
| Power Input | AC power inlet on PSU | |
| Storage | HDD/SSD Support | 1 x hotswappable 2.5’’/3.5’’ HDD bay |
| Onboard Storage | 1x m-SATA, 1x CF(signal alternative to each other) | |
| Expansion | PCIe | 1x PCIe X8 |
| Mini-PCIe | Yes | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU fan |
| System | 2x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5 ~ 90% non condensing / | |
| 5 ~ 95%, non condensing | ||
| System Dimensions | (WxHxD) | 430x44.5x360mm |
| Weight | 4.7 kg | |
| Package Dimensions | (WxHxD) | 520x130x440mm |
| Weight | 5.4 kg | |
| Power | Type/Watts | 220W ATX Single PSU |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC Class B | |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC Class B | |
-
