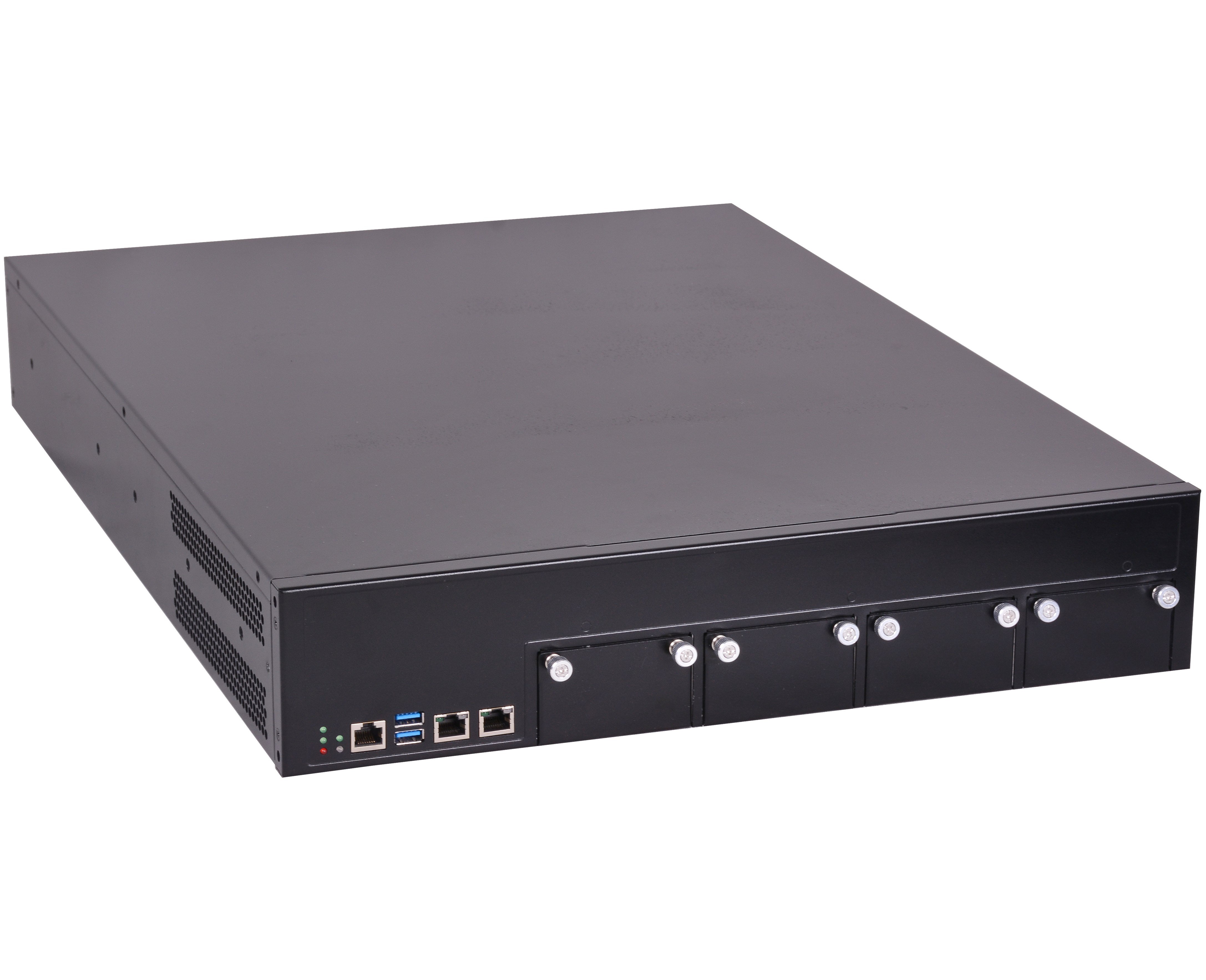

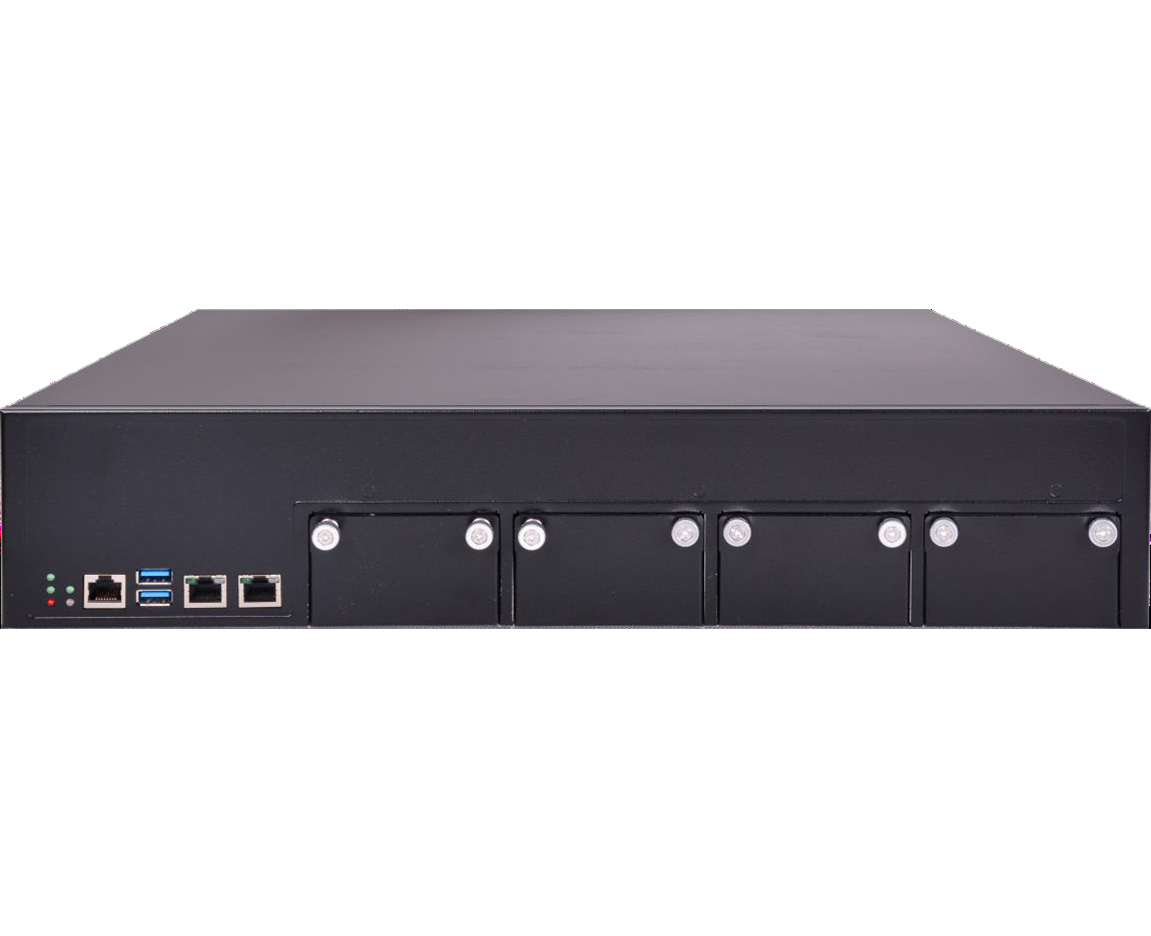

Dual Intel Xeon E5 2600 v3/v4 Family Procesors 2U Rackmount
Strong Application
-Applied where multi core, multi processors performance and highly expandable ports are needed
-Deep Packet Inspection and Unified Threat Management
High Reliability
-Built in 3 x 3.5/2.5 inch non hot-swap HDD bay. User can also select SATA DOM, CF card and mSATA SSD to install OS and programs;
-Standard configuration of 550W 1+1 redundant power supply, enhancing system’s redundancy and safety.
Extraordinary Performance
-Supports 2 x Intel Xeon E5-2600V3/V4 family Quad Core processors, supporting 64bit extension, I/O acceleration, Turbo and HT technology;
-8 x DIMM slots, supporting Max. 256GB 2133/2400MHz DDR4 ECC Reg memory;
-Standard configuration of 2 x RJ45 ports, 1 x RJ45 console port, 2 x USB3.0 ports.
-Expandable Max. 4 x NMC module, single module up to 8 copper or fiber ports, users can choose NMC combinations based on needs.
Flexible Configuration
-CPU, RAM, HDD, CF card, mSATA SSD, memory and customize RAID.
Thanks for choosing NET-926G, NET-926G is a X86 network application server platform designed for network security industry, the system adopts Intel C612 chipset, supports dual E5-2600 v3/v4 family processors, 8 x DIMM slots, Max. 256GB RAM. It is highly expandable with flexible copper/fiber port quantity and comprehensive customization feature. Supports Max. 32 fiber or copper ports, it’s designed dedicatedly to satisfy network security OEMer and network appliances supplier’s needs.
NET-926G uses built-in Intel Virtualization technology VT-x, VT-d and Intel I/O AT, deploying the latest Intel ethernet controller, intelligent configurability allows upgrading the internal motherboard, I/O panels independently, allowing the OEMer adjust the platform cost effectively, meeting clients’ wider performance and online capability. The system is optimized in terms of space, able to install multi HDDs and add-on adapting cards.
Strong Application
-Applied where multi core, multi processors performance and highly expandable ports are needed
-Deep Packet Inspection and Unified Threat Management
High Reliability
-Built in 3 x 3.5/2.5 inch non hot-swap HDD bay. User can also select SATA DOM, CF card and mSATA SSD to install OS and programs;
-Standard configuration of 550W 1+1 redundant power supply, enhancing system’s redundancy and safety.
Extraordinary Performance
-Supports 2 x Intel Xeon E5-2600V3/V4 family Quad Core processors, supporting 64bit extension, I/O acceleration, Turbo and HT technology;
-8 x DIMM slots, supporting Max. 256GB 2133/2400MHz DDR4 ECC Reg memory;
-Standard configuration of 2 x RJ45 ports, 1 x RJ45 console port, 2 x USB3.0 ports.
-Expandable Max. 4 x NMC module, single module up to 8 copper or fiber ports, users can choose NMC combinations based on needs.
Flexible Configuration
-CPU, RAM, HDD, CF card, mSATA SSD, memory and customize RAID.
Specification:
Packing List
Optional Accessories
| Product Model | FMITX-M8F |
| CPU | Onboard Intel Celeron J1800 Bay Trail dual core processor(2.41GHz) |
| Chipset | Based on Intel Bay Trail SOC platform, CPU integrated |
| Memory | 1 x SO-DIMM DDR3 memory slot, supports 1333/1066 Mhz, Max. 8GB. |
| Video | Integrated Intel HD graphics core |
| Expansion Slot | 1 x MSATA slot |
| 1 x MINI PCIE slot(supports wifi, 3g module) | |
| LAN | Integrated 4 x Intel 82583v 1000M Ethernet card, support Wake On LAN |
| Storage | 1 x 2.5 inch notebook hdd bay, can install hdd directly |
| 1 x SATAII HDD interface(alternative to 2.5 inch hdd) | |
| 1 x MSATA | |
| Rear I/O Panel | 1 x COM CISCO standard port |
| 2 x USB ports(Upper USB 2.0, down USB 3.0) | |
| 4 x RJ-45 ports | |
| 1 x POWER switch | |
| 1 x LED1(POWERLED/HDDLED) | |
| 1 x 12V-19V DC_JACK input interface | |
| Internal I/O Interface | 1 x VGA header, 1 x 12-pin |
| 1 x LAN_LED header, 2 x 8-pin | |
| 4 x USB 2.0 headers | |
| 1 x COM header | |
| 1 x PS/2 keyboard and mouse interface | |
| 1 x FP1 header(2 x 5-pin, front panel function button and indicating light interface) | |
| 1 x ATX 4PIN, can be used as 12V-19V input and output power supply interface | |
| 1 x 2PIN power header, can be used as 12V-19V input and output power supply interface | |
| 1 x HDD power header | |
| 1 x SIM slot | |
| Fan connector | 1 x CPU Fan connector, and 1 x System Fan connector |
| GPIO | Supports 4 channel GPIO |
| BIOS | AMI 32MB DPI Flash ROM |
| Watch Dog | Integrated in the chip(256 level, 0-255 seconds) |
| PSU | 12V-19V single PSU |
| Working Temp | -10℃～60℃ |
| Storing Temp | -20℃～70℃ |
| Working Humidity | 5%-95% relative humidity, non-condensing |
| Dimension | 170mm x 170mm |
Packing List
| 1 | SATA data cable |
| 2 | Power cord 3P 180cm, China |
| 3 | Rack ears |
| 4 | Accessory screw bag |
Optional Accessories
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
-
