Haswell Xeon, Core i7/i5/i3 8GbE RJ45 Expand 40GbE SFP Ports
Supports LGA1150 Xeon/Core i3/i5/i7 Pentium/Celeron processors
Deploy Intel Intel H87 express chipset
Supports 2 x DDRIII SO DIMM memory, Max. 16GB
Integrated with 8*Intel 82574L GbE Ethernet cards, supports Wake On LAN, PXE booting
Supports 4 x GbE/10GbE SFP(optional)
Supports 1 x RS232 console port(RJ45 type, Cisco Standard)
Supports 2 x USB 2.0 headers
Supports SSD, SATA HDD storage

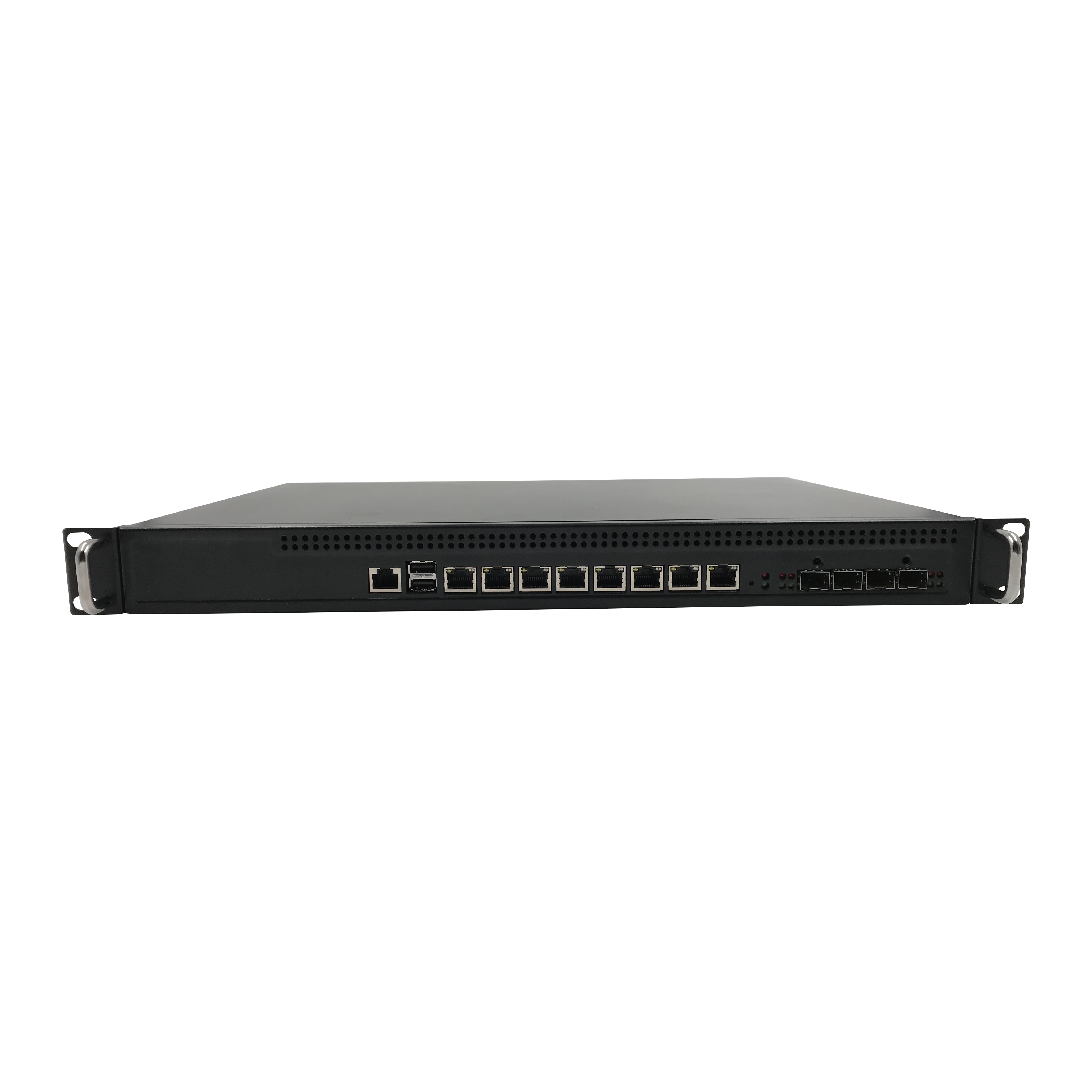

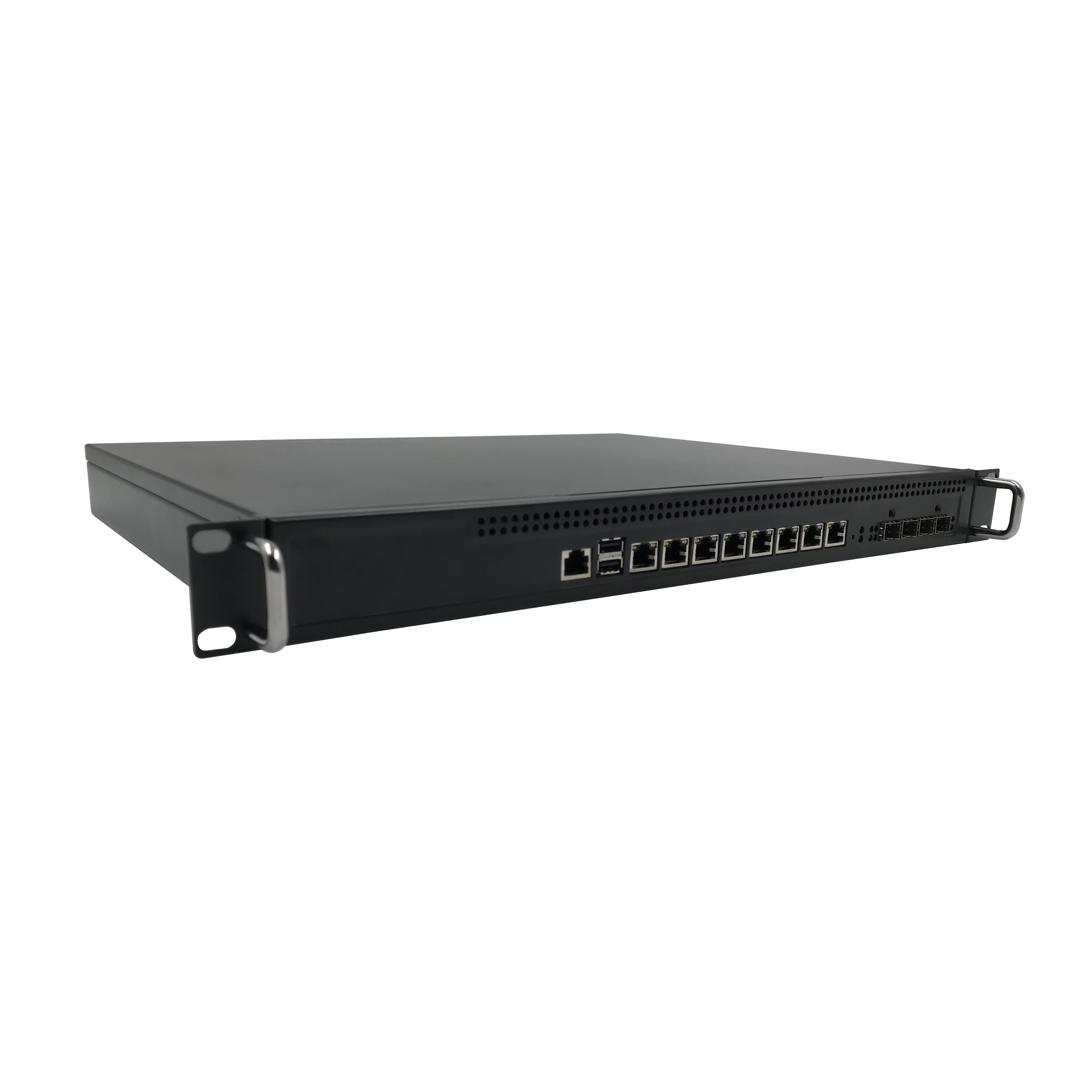

Thank you for choosing the FWA-8781-4O. The system is powered by the newest Intel Core Processors, codenamed Haswell, with the Intel H87 Series Chipset. It supports up to 16GB of DDR3 system memory at 1600MHz on dual-channel DIMM banks. The FWA-8781-4O is equipped with advanced I/O capacity which includes an RJ-45 console port, one PCIex8 (PCIe Generation 2.0) golden finger connected directly to the CPU for front expansion to 4 x GbE/10GbE SFP ports, 3 Serial-ATA ports (comply with SATA Standard 3.0),1 x notebook HDD/SSD slot, a mini SATA slot and a CompactFlash slot.
The onboard Ethernet ports be configured with bypass depending on the module specification.
The onboard Ethernet ports be configured with bypass depending on the module specification.
Supports LGA1150 Xeon/Core i3/i5/i7 Pentium/Celeron processors
Deploy Intel Intel H87 express chipset
Supports 2 x DDRIII SO DIMM memory, Max. 16GB
Integrated with 8*Intel 82574L GbE Ethernet cards, supports Wake On LAN, PXE booting
Supports 4 x GbE/10GbE SFP(optional)
Supports 1 x RS232 console port(RJ45 type, Cisco Standard)
Supports 2 x USB 2.0 headers
Supports SSD, SATA HDD storage
Deploy Intel Intel H87 express chipset
Supports 2 x DDRIII SO DIMM memory, Max. 16GB
Integrated with 8*Intel 82574L GbE Ethernet cards, supports Wake On LAN, PXE booting
Supports 4 x GbE/10GbE SFP(optional)
Supports 1 x RS232 console port(RJ45 type, Cisco Standard)
Supports 2 x USB 2.0 headers
Supports SSD, SATA HDD storage
| Model No. | FWA-8781-4O | |
| Form Factor | 1U 19” Rackmount | |
| Platform | Processor Options | Intel Core i7/i5/i3, Pentium, Celeron, Xeon E3(Haswell) |
| CPU Socket | 1x LGA1150 | |
| Chipset | Intel H87 | |
| Security Acceleration | N/A | |
| BIOS | AMI SPI Flash BIOS | |
| System Memory | Technology | DDR3 1600/1333MHz |
| Max. Capacity | 16GB | |
| Socket | 2x 204pin SODIMM | |
| Networking | Ethernet Ports | 8x GbE RJ45 Intel 82583V/82574L |
| 4x GbE SFP Intel 82580EB(Optional) | ||
| Bypass | Optional | |
| I/O Interface | Reset Button | - |
| LED | Power/Storage | |
| Power Button | 1x Power button | |
| Console | 1x RJ45 | |
| USB | 2x USB 2.0 | |
| LCD Module | - | |
| Display | 1x VGA | |
| Power Input | AC power inlet on PSU | |
| Storage | HDD/SSD Support | 2x 2.5'' bays or |
| 1x 3.5'' bay | ||
| Onboard Storage | 1x m-SATA, 1X 2.5'' notebook SATA port | |
| Expansion | PCIe | 1x PCIe X8 |
| Mini-PCIe | Yes | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU fan |
| System | 3x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5 ~ 90% non condensing / | |
| 5 ~ 95%, non condensing | ||
| System Dimensions | (WxHxD) | 430x44.5x360mm |
| Weight | 4.5 kg | |
| Package Dimensions | (WxHxD) | 520x130x440mm |
| Weight | 5.2 kg | |
| Power | Type/Watts | 220W ATX Single PSU |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC Class B | |
-
