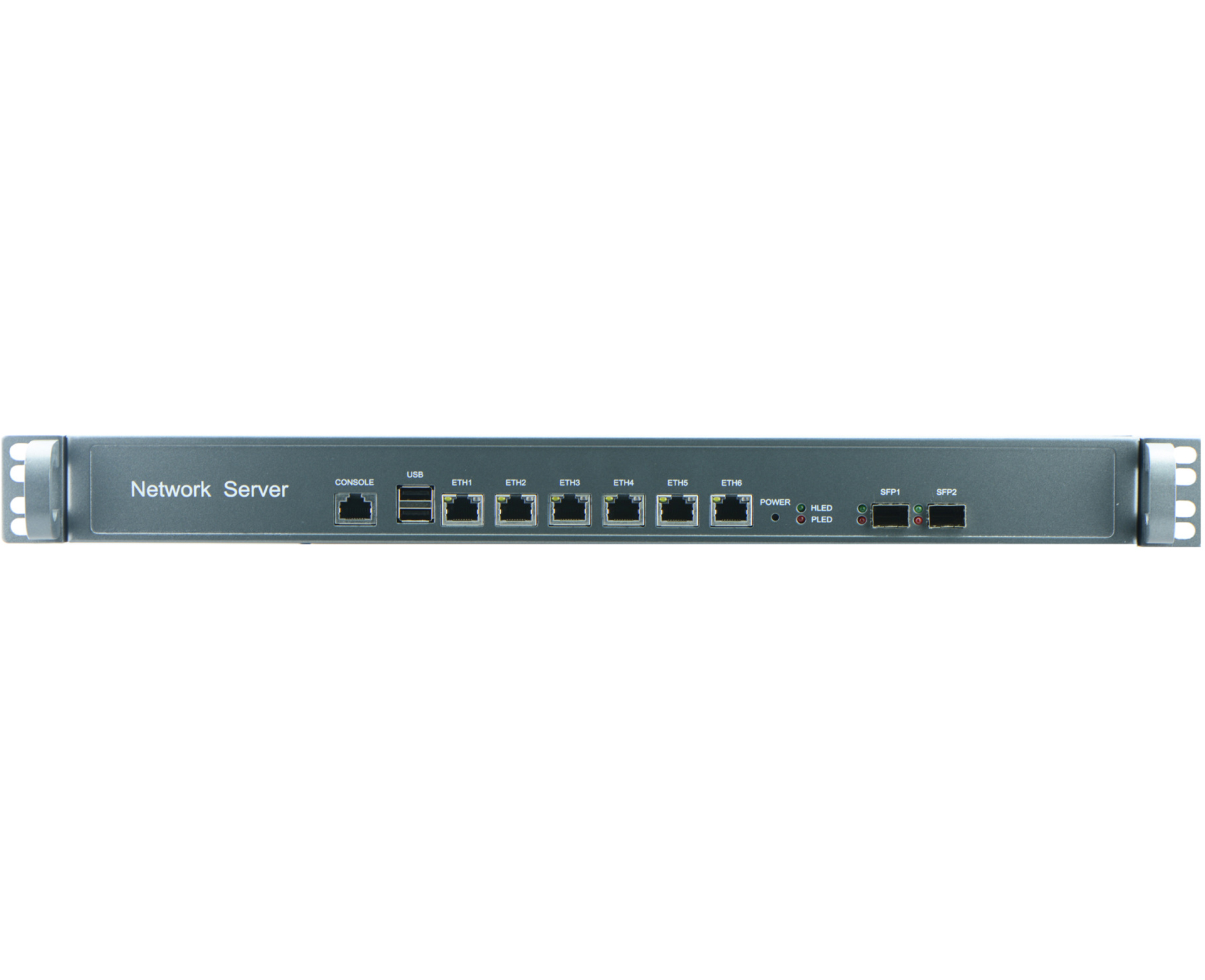

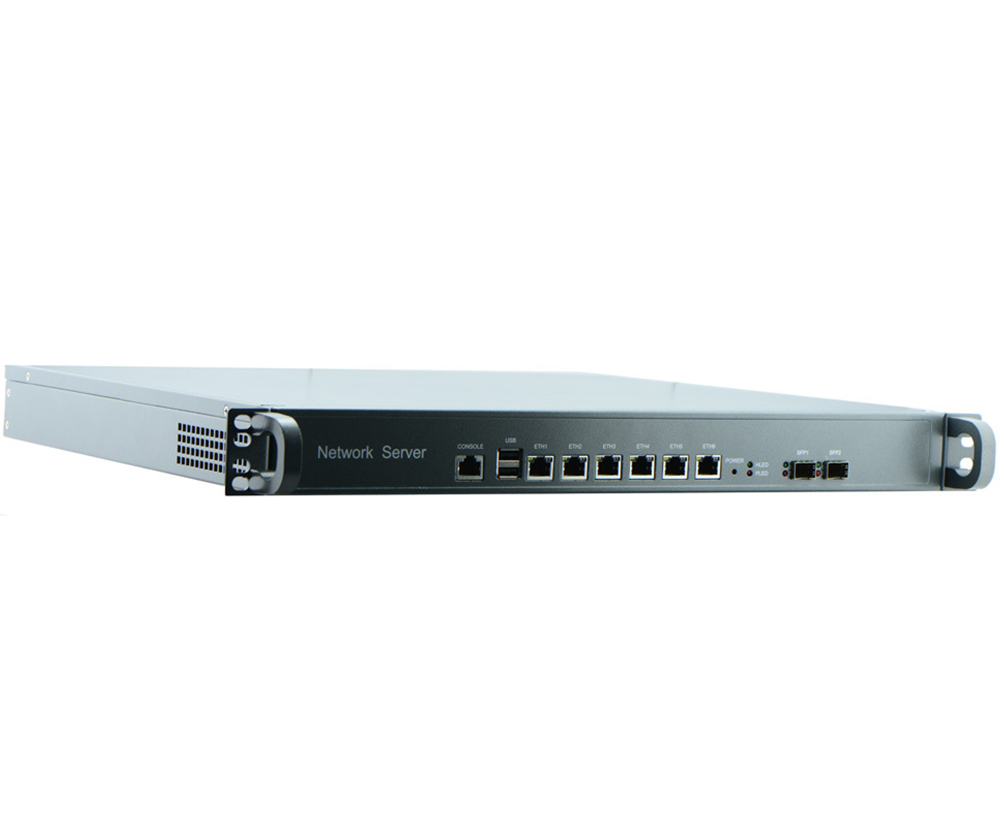

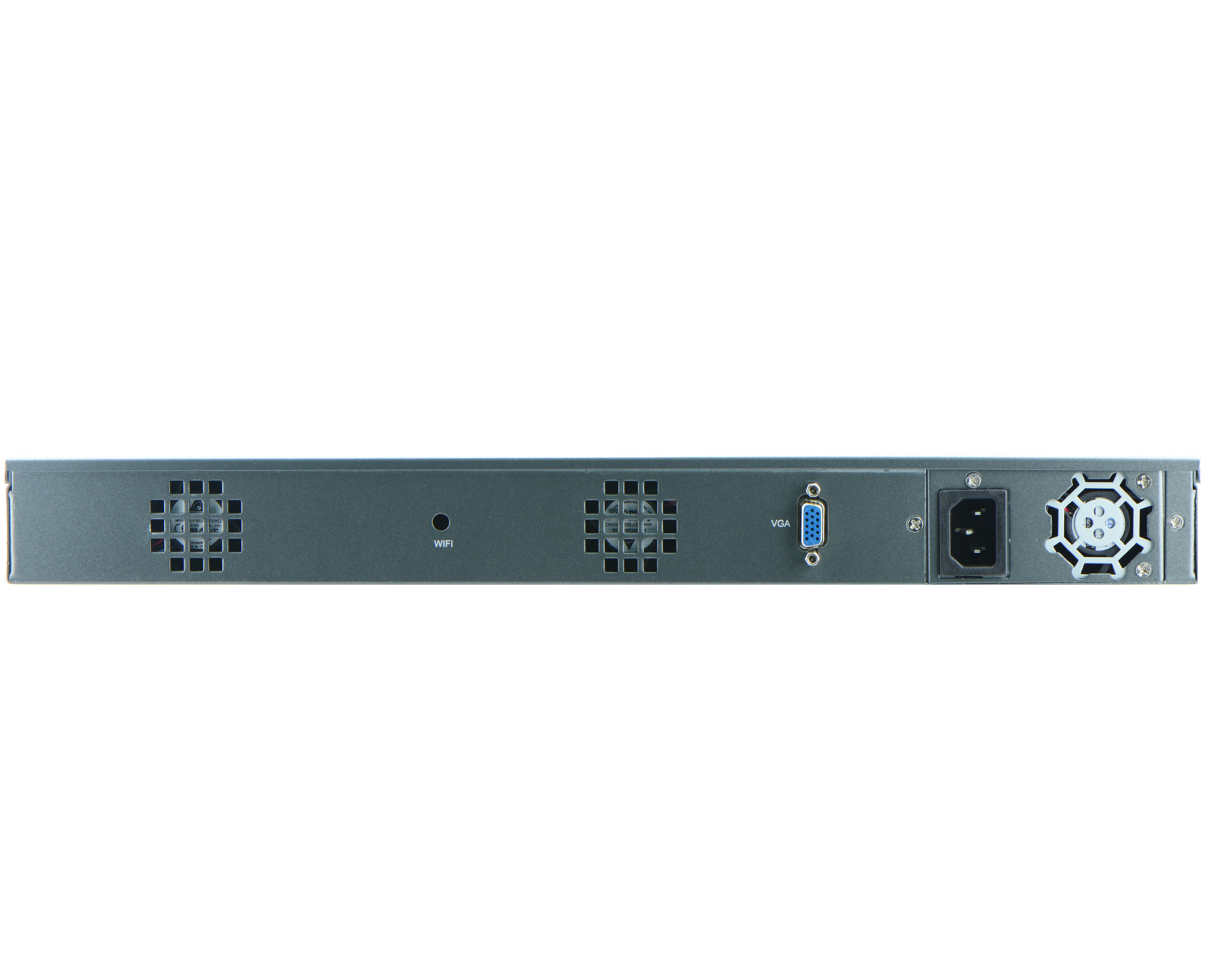

Intel H67 or B75 1U Rackmount 2x 10GbE SFP ports
Adopts the dedicated multi Ethernet application scheme to design
Based on Intel H67/B75 express chipset
Integrated with 6 Intel 82583V/82574L 1000M Ethernet cards
Integrated with 2 Intel 82580DB GbE or 82599ES 10 GbE SFP Ethernet cards(Optional)
Provides 1 Mini PCIe slot, supports wifi, 3G module
Provides 1 mSATA slot, supports SSD, transit rate reaches 6Gbps
Supports SSD, SATA HDD, CF card storage
Thank you for choosing the FWB-6761-2O. The system is powered by the newest Intel Core Processors, codenamed Ivy Bridge/Sandy Bridge, with the Intel H67 Series Chipset. It supports up to 16GB of DDR3 system memory at 1600MHz on dual-channel DIMM banks. The FWB-6761-2O is equipped with advanced I/O capacity which includes an RJ-45 console port, one PCIex8 (PCIe Generation 2.0) golden finger connected directly to the CPU for front expansion to 2 x GbE/10GbE SFP ports, one mini PCIe slot, 4 Serial-ATA ports (comply with SATA Standard 3.0 and 2.0), a mini SATA slot and a CompactFlash slot.
The onboard Ethernet ports be configured with bypass depending on the module specification.
The onboard Ethernet ports be configured with bypass depending on the module specification.
Adopts the dedicated multi Ethernet application scheme to design
Based on Intel H67/B75 express chipset
Integrated with 6 Intel 82583V/82574L 1000M Ethernet cards
Integrated with 2 Intel 82580DB GbE or 82599ES 10 GbE SFP Ethernet cards(Optional)
Provides 1 Mini PCIe slot, supports wifi, 3G module
Provides 1 mSATA slot, supports SSD, transit rate reaches 6Gbps
Supports SSD, SATA HDD, CF card storage
Based on Intel H67/B75 express chipset
Integrated with 6 Intel 82583V/82574L 1000M Ethernet cards
Integrated with 2 Intel 82580DB GbE or 82599ES 10 GbE SFP Ethernet cards(Optional)
Provides 1 Mini PCIe slot, supports wifi, 3G module
Provides 1 mSATA slot, supports SSD, transit rate reaches 6Gbps
Supports SSD, SATA HDD, CF card storage
| Model No. | FWB-6761-2O | |
| Form Factor | 1U 19” Rackmount | |
| Platform | Processor Options | Intel Core i7/i5/i3, Pentium, Celeron or Xeon E3(Ivy Bridge or Sandy Bridge) |
| CPU Socket | 1x LGA1155 | |
| Chipset | Intel H67 or B75 | |
| Security Acceleration | N/A | |
| BIOS | AMI SPI Flash BIOS | |
| System Memory | Technology | DDR3 1600/1333MHz |
| Max. Capacity | 16GB | |
| Socket | 2x 204pin SODIMM | |
| Networking | Ethernet Ports | 6x GbE RJ45 Intel 82583V/82574L |
| 2x 10GbE SFP Intel 82599ES / GbE SFP NH82580DB | ||
| Bypass | Optional | |
| I/O Interface | Reset Button | - |
| LED | Power/Storage | |
| Power Button | 1x Power button | |
| Console | 1x RJ45 | |
| USB | 2x USB 2.0 | |
| LCD Module | - | |
| Display | 1x VGA | |
| Power Input | AC power inlet on PSU | |
| Storage | HDD/SSD Support | 2x 2.5'' bays or |
| 1x 3.5'' bay | ||
| Onboard Storage | 1x m-SATA, 1x CF(signal alternative to each other) | |
| Expansion | PCIe | 1x PCIe X8 |
| Mini-PCIe | Yes | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU fan |
| System | 2x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5 ~ 90% non condensing / | |
| 5 ~ 95%, non condensing | ||
| System Dimensions | (WxHxD) | 430x44.5x380mm |
| Weight | 4.7 kg | |
| Package Dimensions | (WxHxD) | 520x130x460mm |
| Weight | 5.4 kg | |
| Power | Type/Watts | 220W ATX Single PSU |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC Class B | |
-
