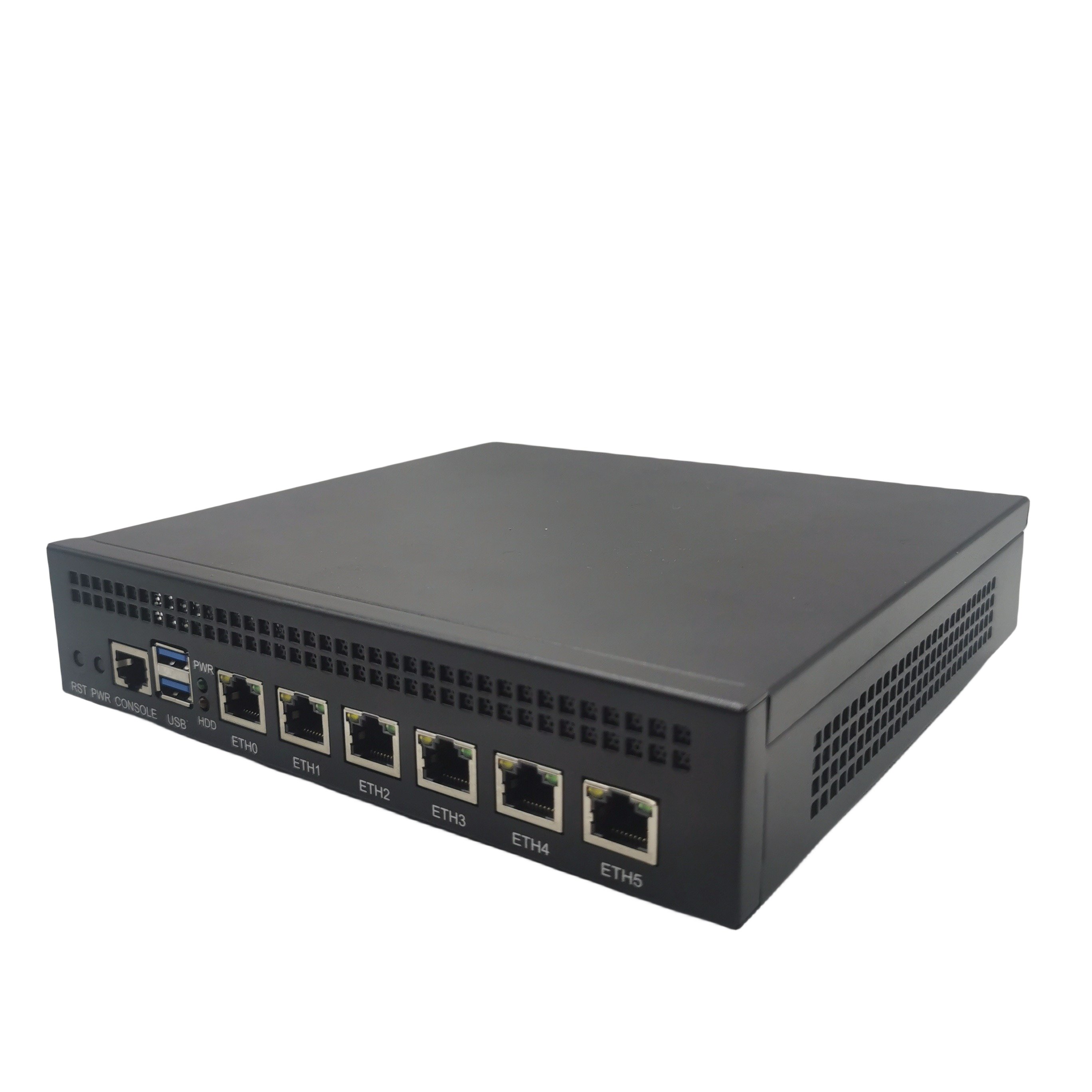

Armortec Desktop Network Appliance firewall PC with Intel Ce_Armortec

NC-GM6M-X

Desktop Network Appliance with Intel Celeron J4125 Processors, 6 LAN, m-SATA slot

In-tel Celeron J4125. Quad-core four threads. Main frequency 2GHz (14nm. TDP 10W)

6 x Intel i211AT Gigabit LAN Port or 6 x Intel i225/i226 2.5Gbps LAN

Support 1 x DDR4 SODIMM memory/Max 32GB

1 x MSATA slot, 1 x MINI-PCIE slot(WIFI/3G-4G module) Integrated Intel HD Graphics (core graphics card)

Mini Desktop Form Factor, High-quality all-aluminum alloy shell (no fan, silent and stable) 2 x USB 3.0 port

1 x VGA port

1 x DC 12V input interface

Specification: NC-GM6M-X

Model No.		NC-GM6M-X
Form Factor		Desktop
Platform	Processor Options	Intel Celeron J4125. Quad-core four threads. Main frequency 2GHz (14nm. Power consumption 10W)
	CPU Socket	Onboard
	Chipset	SoC
OS Support		Wi-ndows/Linux/FreeBSD
BIOS		AMI BIOS
Display		1 x VGA
System Memory	Technology	DDR4 2400 MHz
	Max. Capacity	32GB
	Socket	1 x 204pin SODIMM
Networking	Ethernet Ports	6 x Intel@ i211AT Gigabit LAN or 6 x Intel i225 2.5Gps LAN
Networking	Bypass	Optional
Storage	HDD/SSD Support	1 x 2.5 inch HDD bays
	CF/SD	-
	mSATA	1 x MSATA slot, support Intel protocol SSD, speed up to 3Gbps
I/O Interface	Reset Button	1 x Reset Button
	Display	1 x VGA
	LED	Power LED x 1, HDD Active x 1
	Power Button	1 x Power Button
	Console	1*RJ-45 to COM
	USB	2 x USB 3.0
	Ethernet	6 x I-ntel i211AT Gigabit LAN or 6 x In-tel i225 2.5Gps LAN
Expansion	Mini-PCIe	1*MINI-PCIE slot(WIFI/3G-4G module)
Expansion	Mini-PCIe	-
Miscellaneous	Watchdog	Yes
	Internal RTC with Li Battery	Yes
	GPIO	-
Cooling	Fan interface	CPU Heat Sink
Environmental Parameters	Temperature	-10℃~60℃
Environmental Parameters	Humidity	0% ~ 90% non condensing
System Dimensions	(WxHxD)	210mm x 202mm x 45mm
System Dimensions	Weight	2KG
Package Dimensions	(WxHxD)
Package Dimensions	Weight
Power	Type/Watts	60W Desktop adaptor
Power	Input	90~264V@47~63Hz
Approvals and Compliance		CE, FCC, RoHS
