Model No.

NUC-ALN11

Form Factor

Desktop

Platform

Processor Options

Intel Alder Lake-N N100/N200

CPU Socket

Onboard

Chipset

SoC

OS Support

OS: Wi-ndows 10/11;Lin-ux

BIOS

-

System Memory

Technology

a maximum of 16GB memory

Max. Capacity

16GB

Socket

-

Networking

Ethernet Ports

1x RTL8111F

PXE / Wake On LAN

Storage

M.2

1 x64GB eMMC onboard

M.2

mSATA

-

Mini SAS

-

HDD/SSD Support

-

I/O Interface

LED

Power Button

1 x Power Button

Console

-

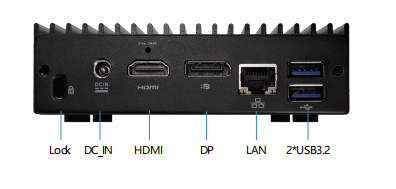

 Display

1x H-DMI2.0(Max. 3840x2160@60Hz)

1x DP1.2(Max. 4096x2304@60Hz)

LAN

Reset Button

-

Display

1 x D-PI port, 1 x H-DMI port

Power Input

DC 12V

Expansion

PCIe X1

-

1 x Mini PCIe

-

M.2

1x M.2 2230,supports WIFI/BT

1x Mini_PCIe,supports 4G/5G

USB

4 x USB 3.2 interface

Miscellaneous

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Internal RTC with Li Battery

Yes

TPM

-

Cooling

Processor

NO

System

NO

Environmental Parameters

Temperature

-10℃~60℃(Operating)/ -20℃~70℃(Storage)

Humidity

5 ~ 90% Non condensing

System Dimensions

(WxHxD)

117 x 107 x 34mm

Weight

 0.45KG

Package Dimensions

(WxHxD)

235 x190 x 75mm

Weight

 0.75KG

Power

Type/Watts

AC TO DC, 36W / 60W (optional)

Input

90~264V @47~63Hz

Approvals and Compliance

CE, FCC, RoHS
