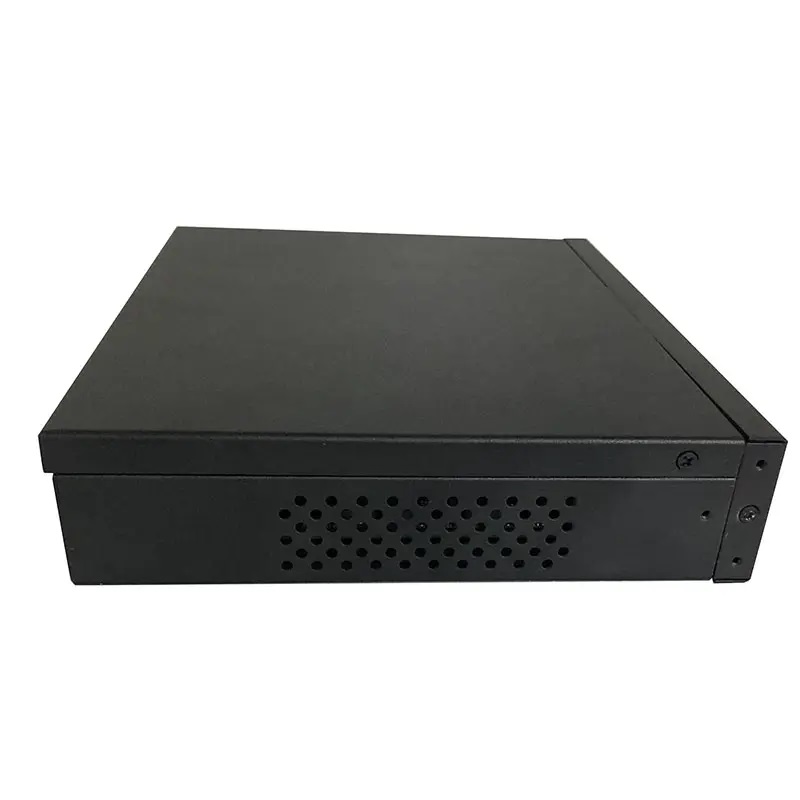

Armortec Desktop Network Appliance with Intel Elkhart Lake J
NC-EL6M
Desktop Network Appliance with Intel Elkhart Lake J6413/J6415 CPU, 6 x 2.5G LAN, PCIE X2, M.2, MSATA, SATA, USB 3.0, USB2.0
Intel Elkhart Lake J6413/J6415 CPU (quad core quad threaded) 10W
Support 6 x 2.5GI225 network port
Support 1 x USB 3.0,1 x USB2.0
Support 1 x MSATA, 1 x SATA, 2 x M.2
Support 1 x PCIE X2
Mini desktop model
Specification: NC-EL6M
|
Model No. |
NC-EL6M |
|
|
Form Factor |
Desktop |
|
|
Platform |
Processor Options |
Intel Elkhart Lake J6413/J6415 CPU (quad core quad threaded) 10W |
|
CPU Socket |
Onboard |
|
|
Chipset |
SoC |
|
|
BIOS |
AMI BIOS |
|
|
System Memory |
Technology |
DDR4 |
|
Max. Capacity |
64GB |
|
|
Socket |
2 x SODIMM |
|
|
Networking |
Ethernet Ports |
6 x 2.5G network port, support LAN/PXE function |
|
Storage |
M-SATA |
1 x M-SATA |
|
SATA |
1 x SATA |
|
|
M.2 |
2 x M.2 |
|
|
I/O Interface |

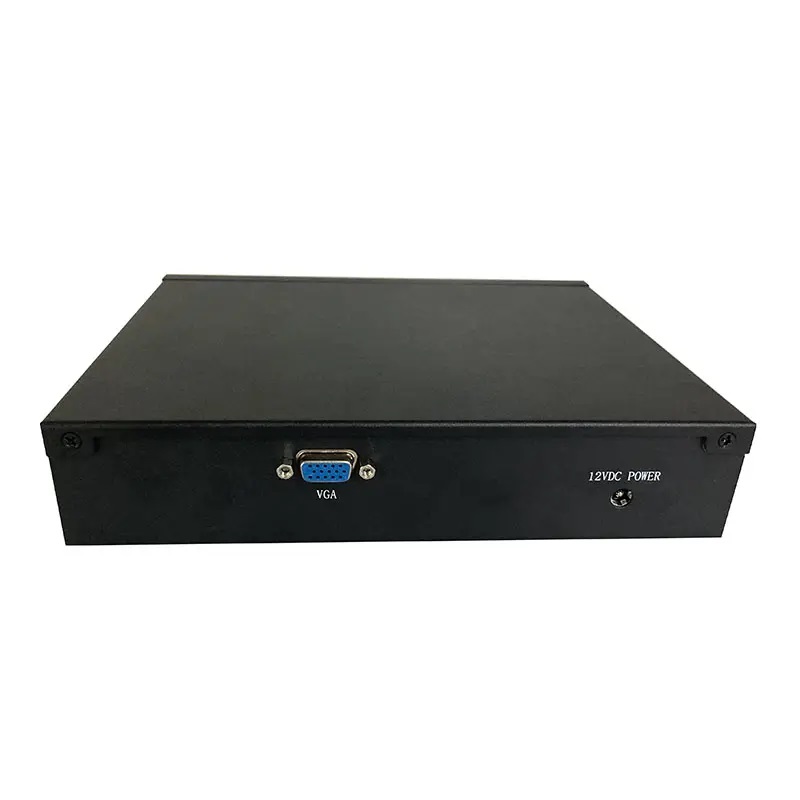

Power Input |
1 x DC 12V input |
|
Power Button |
1 x Power Button |
|
|
Console |
1 x RJ45 Console |
|
|
USB |
1 x USB 3.0,1 x USB2.0 |
|
|
Reset Button |
1 x Reset Button |
|
|
Expansion |
Mini PCIe |
1 x Mini PCIe |
|
Miscellaneous |
Watchdog |
0-255S, system reset |
|
Internal RTC with Li Battery |
No |
|
|
TPM |
- |
|
|
Cooling |
Processor |
1 x CPU fan |
|
System Dimensions |
(WxHxD) |
215x185x45mm |
|
Weight |
1.5 kg |
|
|
Package Dimensions |
(WxHxD) |
266x235x80mm |
|
Weight |
2.3 kg |
|
|
Power |
Type/Watts |
60W Desktop adapter |
|
Input |
||
|
Approvals and Compliance |
CE, FCC, RoHS |
|
-
