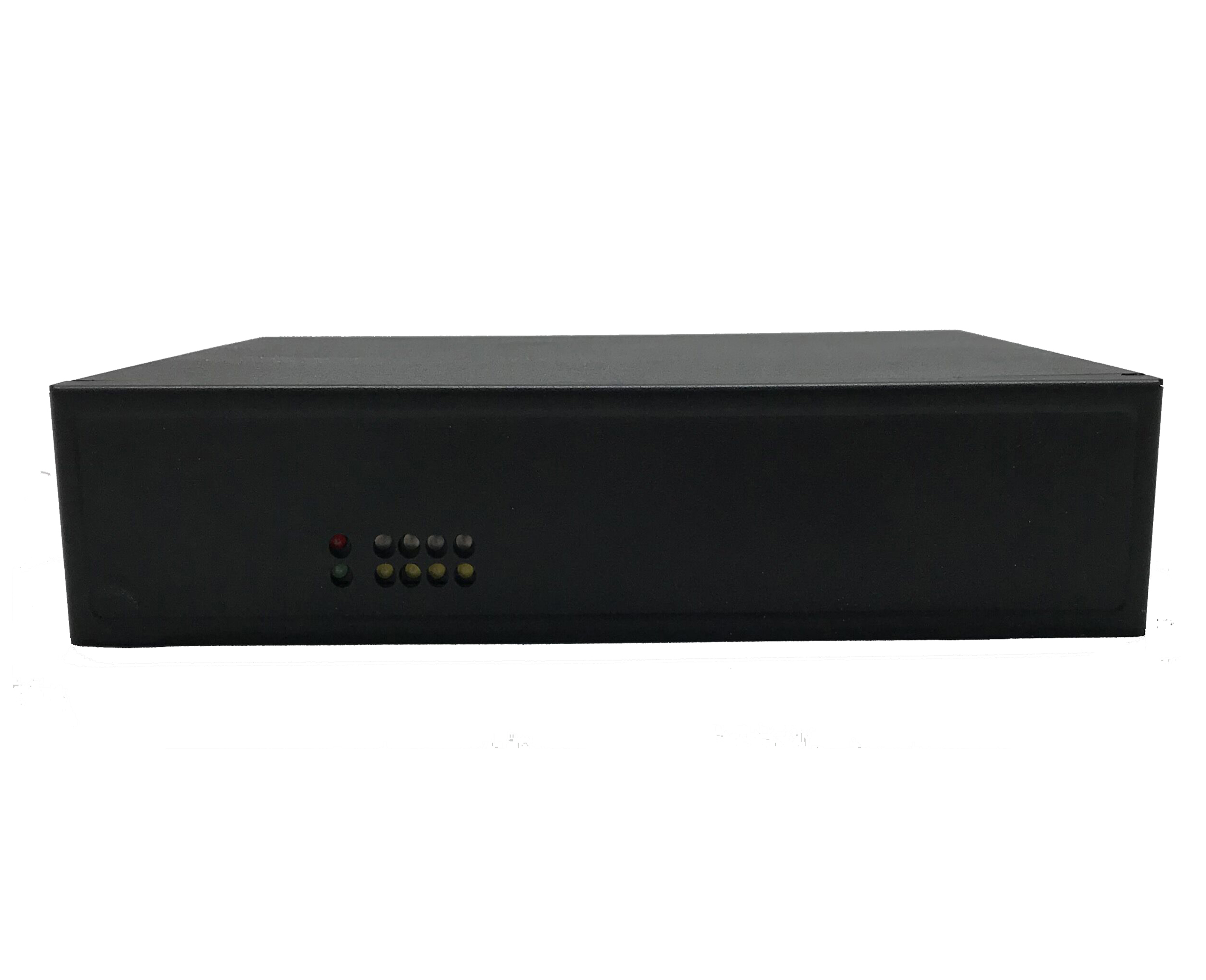

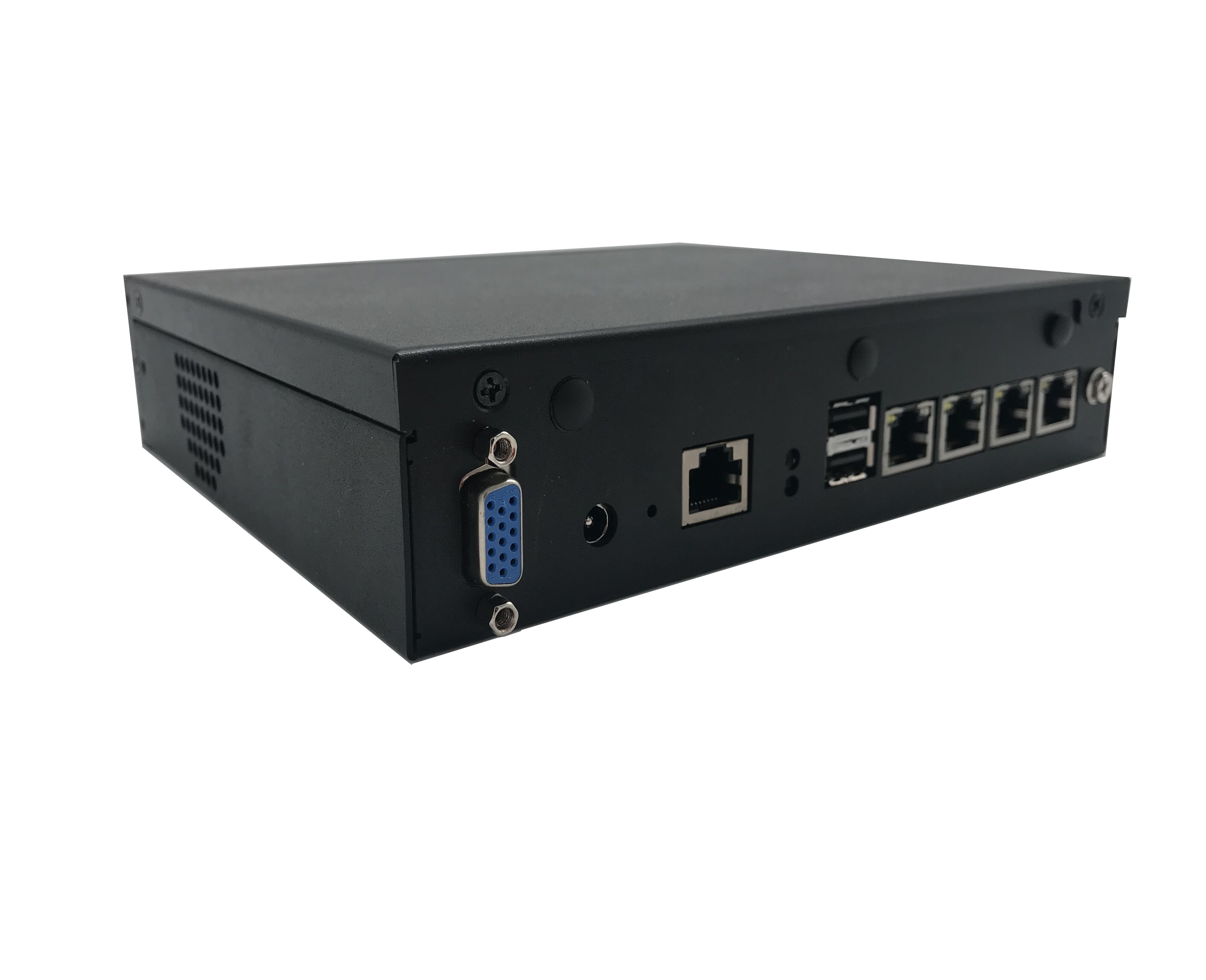

Armortec Desktop Network Appliance powered by Intel Celeron
Integrated Intel® Celeron J4125 2.0GHz quad-core four-thread processor, TDP 10W
4 x RJ45 Port , 1 x RJ45 Console Port
1 x SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB
1 x Mini-PCIe Socket (PCIe/USB2.0 Signal)
Mini Desktop Form Factor
2 x USB 3.0 Port, 1 x VGA Port
|
Model No. |
NC-GM4M |
|
|
Form Factor |
Desktop |
|
|
Platform |
Processor Options |
Intel Celeron J4125 |
|
CPU Socket |
Onboard |
|
|
Chipset |
SoC |
|
|
OS Support |
Windows Server, Linux/Centos |
|
|
BIOS |
AMI BIOS |
|
|
System Memory |
Technology |
DDR4 2400MHz |
|
Max. Capacity |
8GB |
|
|
Socket |
1 x 204pin SODIMM |
|
|
Networking |
Ethernet Ports |
Intel Ethernet Controller I225, 2.5 Gigabit or Intel i211-AT GbE Ethernet x 4 |
|
Bypass |
Optional |
|
|
Storage |
-- | |
|
eMMC |
- |
|
|
mSATA |
1x m-SATA |
|
|
Mini SAS |
- |
|
|
HDD/SSD Support |
HDD/SSD Support |
|
|
I/O Interface |
LED |
Power LED x 1, HDD Active x 1, LAN LED x 8(Optoinal Status LED x 1) |
|
Power Button |
1 x Power Button |
|
|
Console |
1 x RJ45 Console |
|
|
USB |
1 x USB 3.0 |
|
|
Reset Button |
- |
|
|
Display |
1 x VGA |
|
|
Power Input |
2 x 12V DC IN redundant power supply |
|
|
Expansion |
PCIe X1 |
1 x PCIe x1 slot |
|
1 x Mini PCIe |
1 x Mini PCIe slot |
|
|
M.2 |
1 x M.2 Key A 2230 support WIFI 1 x M.2 Key B 3042/3052 support 4G/5G module |
|
|
USB |
2 x USB 2.0 Pin |
|
|
Miscellaneous |
Watchdog |
Yes |
|
Internal RTC with Li Battery |
Yes |
|
|
TPM |
- |
|
|
Cooling |
Processor |
1 x CPU fan |
|
System |
1x Cooling fan |
|
|
Temperature |
-10℃~60℃(Operating)/ -20℃~70℃(Storage) |
|
|
Humidity |
5 ~ 90% Non condensing |
|
|
System Dimensions |
(WxHxD) |
235x45x185mm |
|
Weight |
1.35kg |
|
|
Package Dimensions |
(WxHxD) |
285x160x260mm |
|
Weight |
2.1kg |
|
|
Power |
Type/Watts |
60W Desktop adapter |
|
Input |
||
|
Approvals and Compliance |
CE, FCC, RoHS |
|
-
