Desktop Network Appliance with Intel Tiger Lake Celeron 6305

　　
Support Intel Celeron 6305, Core i5 1135G7, Core i7 1165G7 CPUs
Support 6 x 2.5G Intel i225 network port
Support 2 x USB 3.0
Support 1 x MSATA, 1 x SATA, 1 x M.2
Support 1 x Mini PCIe
Mini desktop model
Model No. NC-TG6M
Form Factor Desktop
Platform Processor Options Intel Celeron 6305, Core i5 1135G7, Core i7 1165G7 CPUs
  CPU Socket Onboard
  Chipset SoC
BIOS AMI BIOS
System Memory Technology DDR4
  Max. Capacity 64GB
  Socket 2 x SODIMM

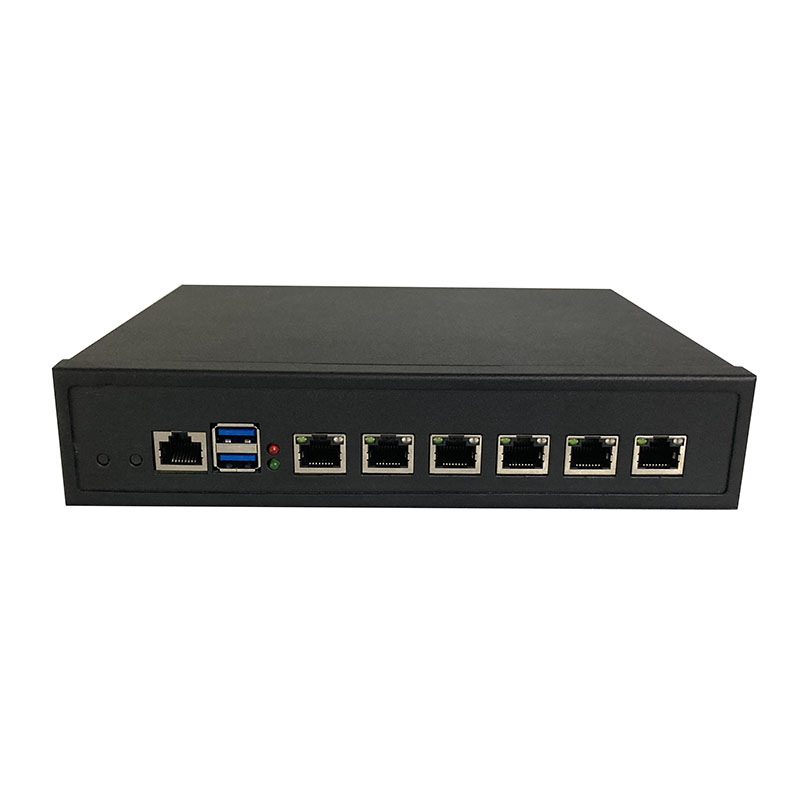

Networking Ethernet Ports 6 x 2.5G Intel i225 network port, support LAN/PXE function
Storage M-SATA 1 x M-SATA
  SATA 1 x SATA
  M.2 1 x M.2 2280/22110 PCIe signal

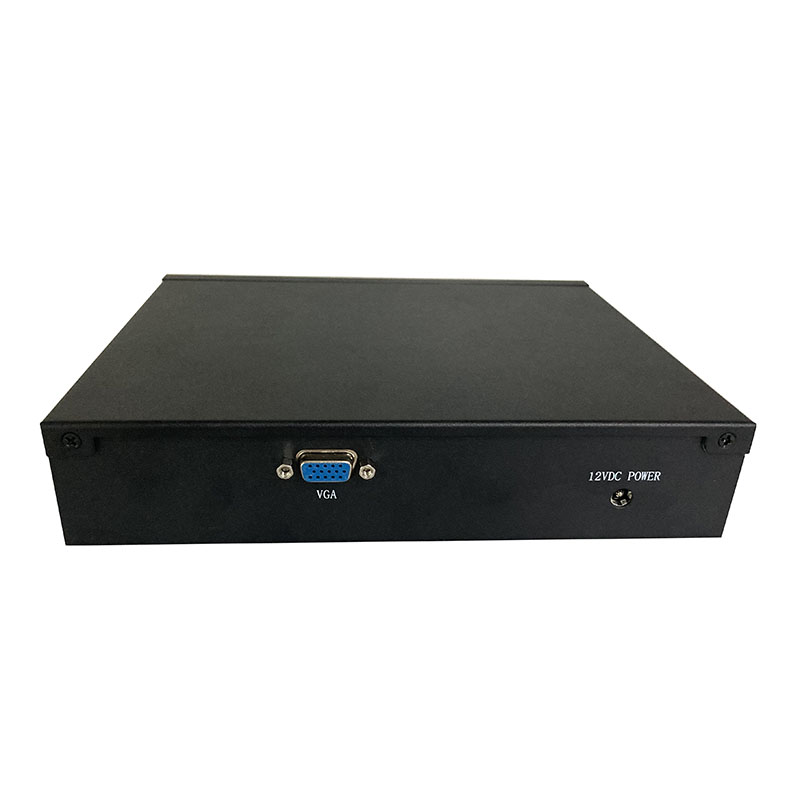

I/O Interface Power Input 1 x DC 12V input
  Power Button 1 x Power Button
  Console 1 x RJ45 Console
  USB 2 x USB 3.0
  Reset Button 1 x Reset Button
Expansion Mini PCIe 1 x Mini PCIe
Miscellaneous Watchdog 0-255S, system reset
  Internal RTC with Li Battery Yes
  TPM -
Cooling Processor 1 x CPU fan
Environmental Parameters Temperature -20°C~60°C(Operating)/ -20°C~70°C(Storage)
  Humidity 5 ~ 90% Non condensing
System Dimensions (WxHxD) 215x185x45mm
  Weight 1.5 kg
Package Dimensions (WxHxD) 265x235x80mm
  Weight 2.3 kg
Power Type/Watts 60W Desktop adapter
  Input 90~264V@47~63Hz
Approvals and Compliance CE, FCC, RoHS

  • DocumentDocument

    1. V1:
    2. V2:
      • ' target='_blank'>Datasheet
      • ' target='_blank'>User Guide
      • ' target='_blank'>3G/4G USB Modem Compatibility List
      • ' target='_blank'>Quick Installation Guide

  • Image (High Resolution)

  • SoftwareSoftware

    1. V1:
      • ' target='_blank'>Firmware
    2. V2:
      • ' target='_blank'>Firmware
    How to find the hardware version?
    For example: V1.6 = V1
