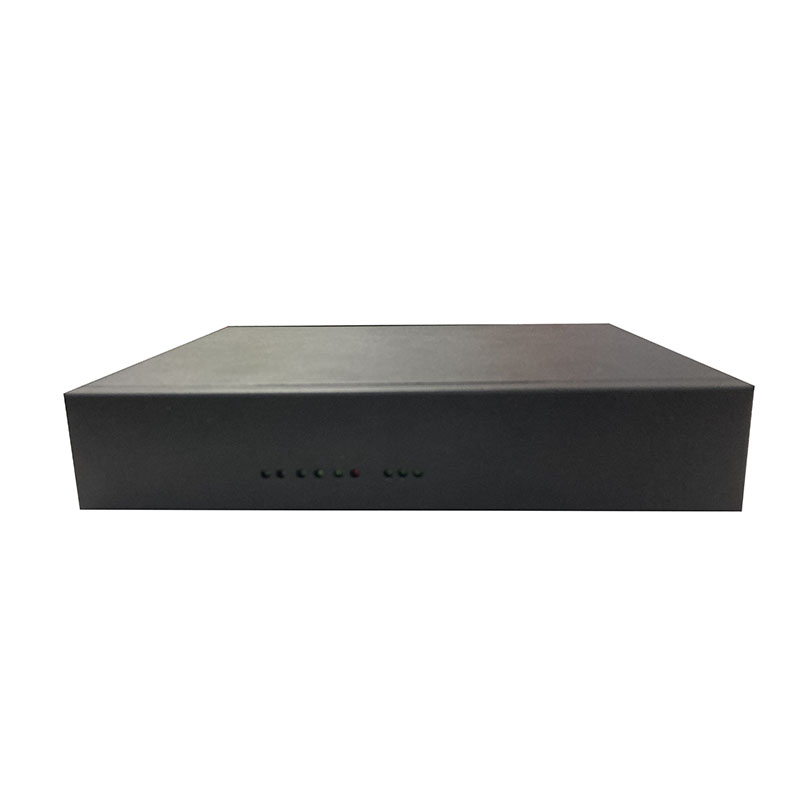

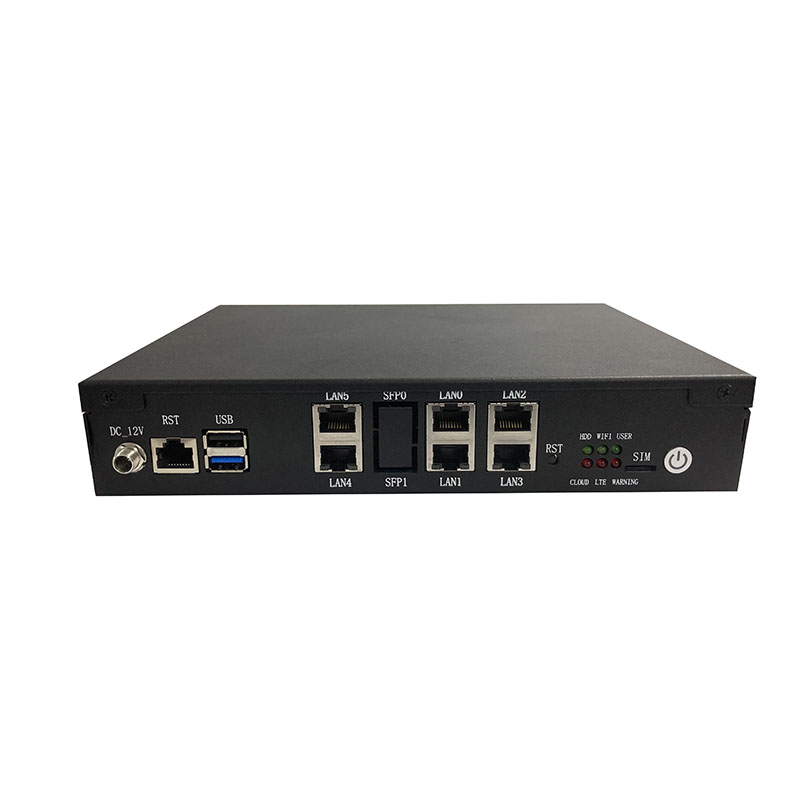

Desktop Network Appliance with Intel Denverton Atom C3336 C3
The NC-C362-DA, powered by Intel® formerly Denverton AtomC3000 series processors, is a desktop server designed for entry-level network security, gateway, vCPE or SD-WAN.
Intel® Denverton Atom C3336 1.5GHz dual-core processor/C3558 2.2GHz 4-core processor/C3758 2.2GHz 8-core processor
Support 6 x GbE LAN and 2 x 10GbE SFP+
Support max 64GB DDR4 RAM, 2 x SODIMM
1 x Mini PCIe
1 x M.2 2280/22110 support SSD
2 x Mini SAS sockets
1 x M.2 Key A 2230 support WIFI
1 x M.2 Key B 3042/3052 support 4G/5G module
1 x External SIM expansion slot
2 x USB，1x VGA display
Mini desktop model
Support 6 x GbE LAN and 2 x 10GbE SFP+
Support max 64GB DDR4 RAM, 2 x SODIMM
1 x Mini PCIe
1 x M.2 2280/22110 support SSD
2 x Mini SAS sockets
1 x M.2 Key A 2230 support WIFI
1 x M.2 Key B 3042/3052 support 4G/5G module
1 x External SIM expansion slot
2 x USB，1x VGA display
Mini desktop model
| Model No. | NC-C362-DA | |
| Form Factor | Desktop | |
| Platform | Processor Options |
Intel Denverton Atom C3336 1.5GHz dual-core processor Intel Denverton Atom C3558 2.2GHz 4-core processor, Intel Denverton Atom C3758 2.2GHz 8-core processor |
| CPU Socket | Onboard | |
| Chipset | SoC | |
| OS Support | Windows Server, Linux/Centos | |
| BIOS | AMI BIOS | |
| System Memory | Technology | DDR4 |
| Max. Capacity | 64GB | |
| Socket | 2 x SODIMM | |
| Networking | Ethernet Ports |
6 x Intel i211AT Gigabit network card(Optional support Bypass function) 2 x SFP+ Optical port(C3758/C3558 support, C3336 doesn’t support) |
| Storage | M.2 | 1 x M.2 2280/22110 |
| eMMC | 32G/64G eMMC(Optional onboard) | |
| mSATA | 1 x Mini PCIe | |
| Mini SAS | 2 x Mini SAS | |
| HDD/SSD Support | 1 x 2.5'' bays | |
| I/O Interface | LED |
Power LED x 1 HDD Active x 1 WiFi LED x 1 LTE LED x 3 GPIO LED x 1 LAN LED x 6 Warning LED x 1 Cloud LED x 1 |
| Power Button | 1 x Power Button | |
| Console | 1 x RJ45 Console | |
| USB |
2 x USB 2.0 1 x USB 3.0 |
|
| Reset Button | 1 x Reset Button | |
| Display | 1 x VGA | |
| Power Input | 2 x 12V DC IN redundant power supply | |
| Expansion | PCIe X1 | 1 x PCIe x1 slot |
| 1 x Mini PCIe | 1 x Mini PCIe slot | |
| M.2 |
1 x M.2 Key A 2230 support WIFI 1 x M.2 Key B 3042/3052 support 4G/5G module |
|
| USB | 2 x USB 2.0 Pin | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | 1 x CPU fan |
| System | 1x Cooling fan | |
| Environmental Parameters | Temperature | -10℃～60℃(Operating)/ -20℃～70℃(Storage) |
| Humidity | 5 ~ 90% Non condensing | |
| System Dimensions | (WxHxD) | 235x45x185mm |
| Weight | 1.35kg | |
| Package Dimensions | (WxHxD) | 285x160x260mm |
| Weight | 2.1kg | |
| Power | Type/Watts | 60W Desktop adapter |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC, RoHS | |
-
