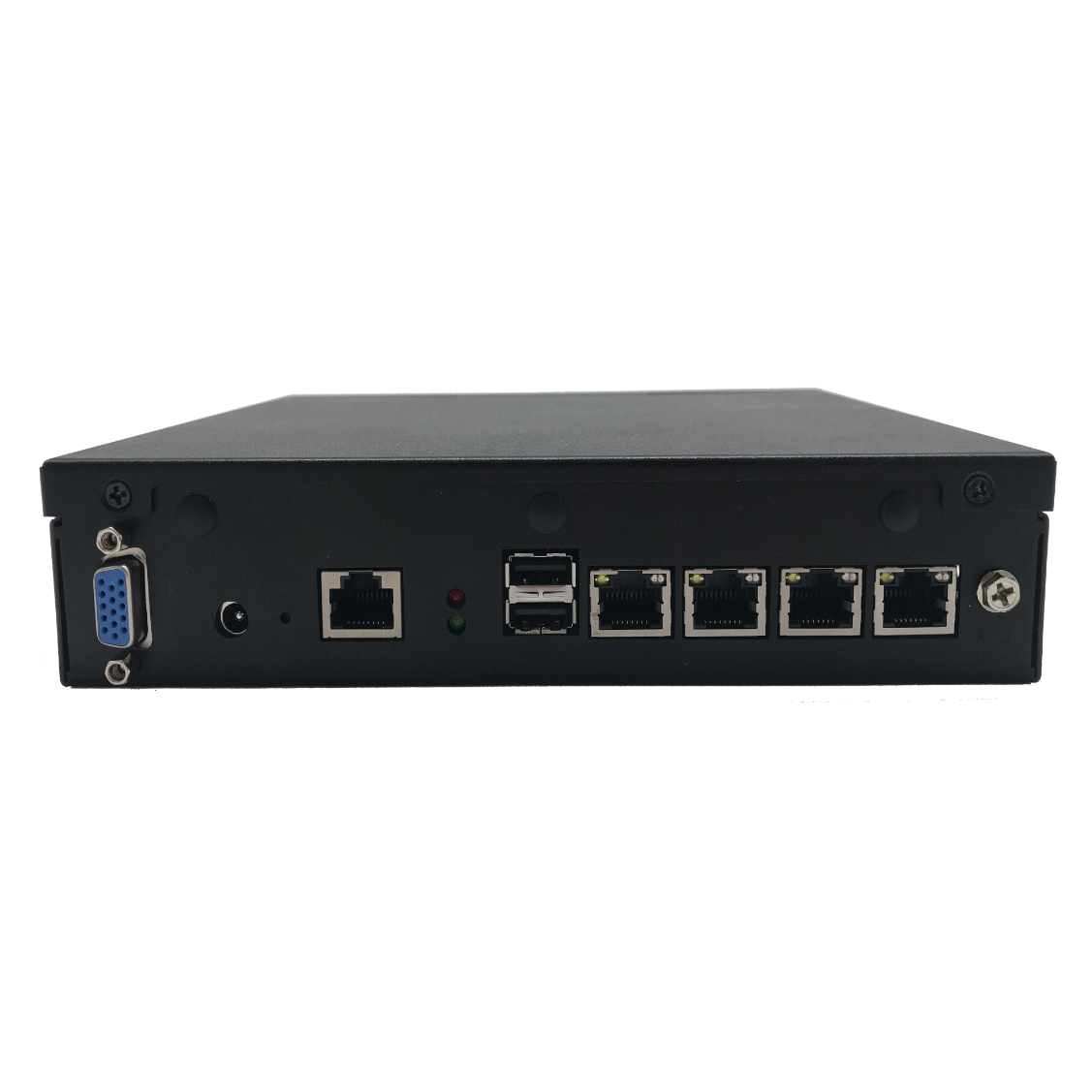

Desktop Network Appliance with Intel Celeron J4125 Processor
The NC-GM4M, powered by the Celeron J4125 processor, is a desktop form factor network appliance designed for entry-level network security, gateway or vCPE.
Integrated Intel® Celeron J4125 2.0GHz quad-core four-thread processor, TDP 10W
4 x GbE RJ45 Port , 1 x RJ45 Console Port
1 x SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB
1 x Mini-PCIe Socket (PCIe/USB2.0 Signal)
Mini Desktop Form Factor
2 x USB 2.0 Port, 1 x VGA Port
4 x GbE RJ45 Port , 1 x RJ45 Console Port
1 x SODIMM slot, support single channel 2400MHz DDR4 memory, maximum support 8GB
1 x Mini-PCIe Socket (PCIe/USB2.0 Signal)
Mini Desktop Form Factor
2 x USB 2.0 Port, 1 x VGA Port
Specification: NC-GM4M
System Dimension:
Ordering Information
Packing List
Optional Accessories
| Model No. | NC-GM4M | |
| Form Factor | Desktop | |
| Platform | Processor Options | Intel Celeron J4125 |
| CPU Socket | Onboard | |
| Chipset | SoC | |
| OS Support | Linux, Ubuntu, CentOS, pfSense, Windows 7 or above | |
| BIOS | AMI BIOS | |
| System Memory | Technology | DDR4 2400MHz |
| Max. Capacity | 8GB | |
| Socket | 1 x 204pin SODIMM | |
| Networking | Ethernet Ports | Intel Ethernet Controller I211, Gigabit Ethernet x 4 |
| Bypass | Optional | |
| Storage | HDD/SSD Support | 1 x 2.5 inch HDD bays |
| CF/SD | - | |
| mSATA | 1x m-SATA | |
| I/O Interface | Reset Button | - |
| LED |
Power LED x 1, HDD Active x 1, LAN LED x 8(Optoinal Status LED x 1) |
|
| Power Button | 1 x Power Button | |
| Console | 1 x RJ45 | |
| USB | 2 x USB 2.0 | |
| LCD Module | - | |
| Display | 1 x VGA | |
| Power Input | 60W, 12V DC-in power connector | |
| Expansion | PCIe | - |
| Mini-PCIe | Yes | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | - | |
| Cooling | Processor | CPU Heat Sink |
| System | 1 x cooling fans | |
| Environmental Parameters | Temperature | 0℃～45℃/ -20℃～70℃ |
| Humidity | 5 ~ 90% non condensing | |
| System Dimensions | (WxHxD) | 200x44x174mm |
| Weight | 4.2 kg | |
| Package Dimensions | (WxHxD) | 220x50x3194mm |
| Weight | 5.4 kg | |
| Power | Type/Watts | 60W Open Frame PSU |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC, RoHS | |

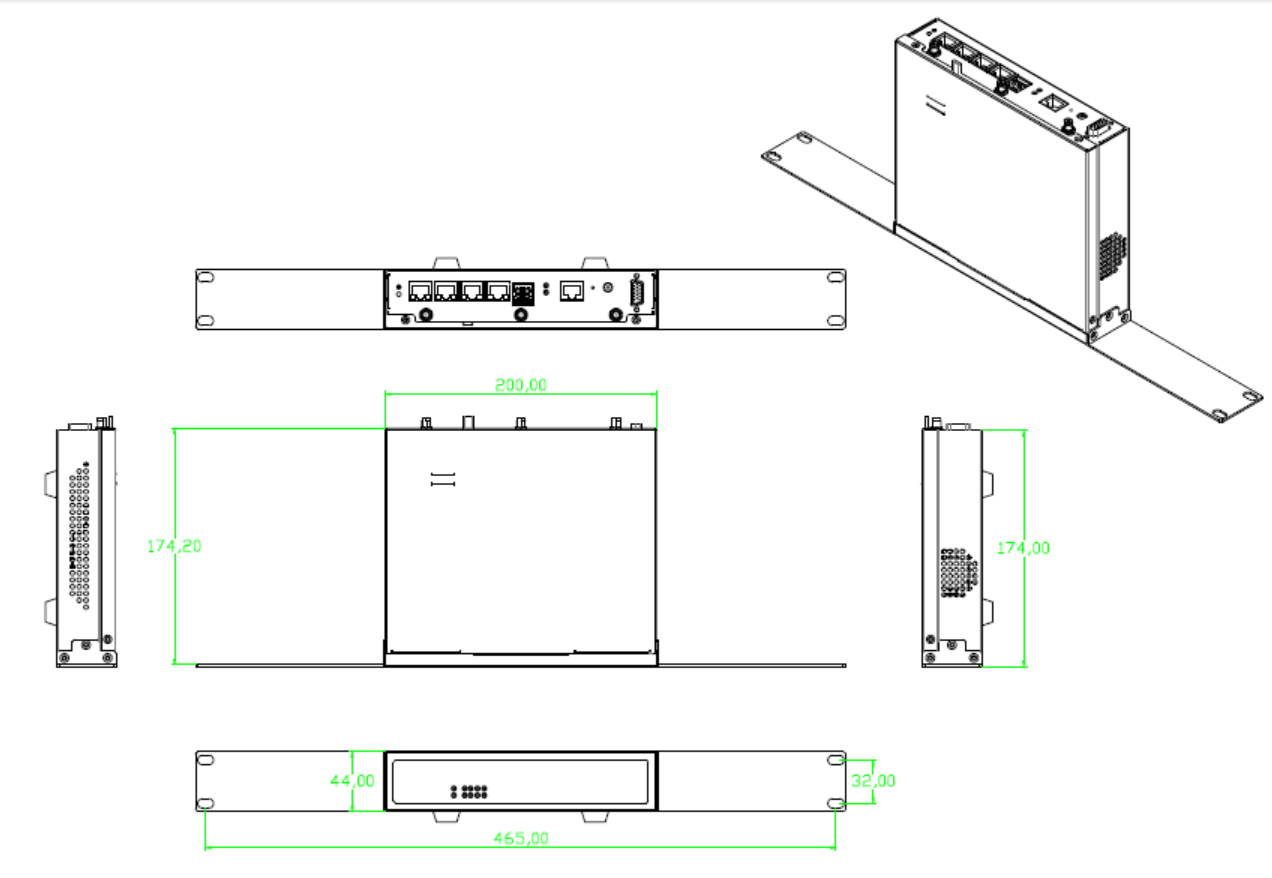

System Dimension:
Ordering Information
| Part number | PCH | DDR4 | 1Gb LAN port | Bypass | Console | USB 2.0 | 2.5'' HDD | Mini PCIe Expansion | Power |
| NC-GM4M | Onboard | 1 | 4 x Intel I211 | - | 1 | 2 | 2 | 1 | AC 60W single |
| 1 | 2 x Rackmount ear |
| 2 | 1 x SATA signal cable |
| 3 | 1 x Screw bag |
| 4 | 1 x Power cord |
| 5 | 1 x SATA power cable |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
-
