Fanless Desktop Firewall PC with 6 GbE LAN Core i5 7200U i7
Overview:
Thank you for choosing the NCF-7260. The system is powered by Intel 7th/6th Pentium/Celeron/I3/I5/I7 U series Processors, with the SOC Chipset. It supports up to 32GB of DDR4 system memory at 2133MHz on dual-channel SO-DIMM SLOT. The NCF-7260 is equipped with advanced I/O capacity which includes an RJ-45 console port, 1 x MSATA slot and 1 x MINI PCIe slot.
Thank you for choosing the NCF-7260. The system is powered by Intel 7th/6th Pentium/Celeron/I3/I5/I7 U series Processors, with the SOC Chipset. It supports up to 32GB of DDR4 system memory at 2133MHz on dual-channel SO-DIMM SLOT. The NCF-7260 is equipped with advanced I/O capacity which includes an RJ-45 console port, 1 x MSATA slot and 1 x MINI PCIe slot.
Feature:
Intel® 7th/6th Pentium/Celeron/I3/I5/I7 U series processors
6 x Intel i211 Gigabit network control chip
Support dual channel DDR4 memory, up to 32G
Support HDMI 4K display output
Support MSATA 3.0 SSD+SATA3.0 port
Support Wi-Fi + Bluetooth expansion module; support 4G expansion module
Support soft restart function, support incoming call self-start
Built-in TPM/TCM hardware encryption chip (can be added)
Support Wake-on-LAN, Intel Virtualization Technology, Unattended Technology
Industrial-grade workmanship, dustproof, adapt to various harsh environments
Low power consumption and fanless design, 24 hours of uninterrupted and stable operation
Intel® 7th/6th Pentium/Celeron/I3/I5/I7 U series processors
6 x Intel i211 Gigabit network control chip
Support dual channel DDR4 memory, up to 32G
Support HDMI 4K display output
Support MSATA 3.0 SSD+SATA3.0 port
Support Wi-Fi + Bluetooth expansion module; support 4G expansion module
Support soft restart function, support incoming call self-start
Built-in TPM/TCM hardware encryption chip (can be added)
Support Wake-on-LAN, Intel Virtualization Technology, Unattended Technology
Industrial-grade workmanship, dustproof, adapt to various harsh environments
Low power consumption and fanless design, 24 hours of uninterrupted and stable operation

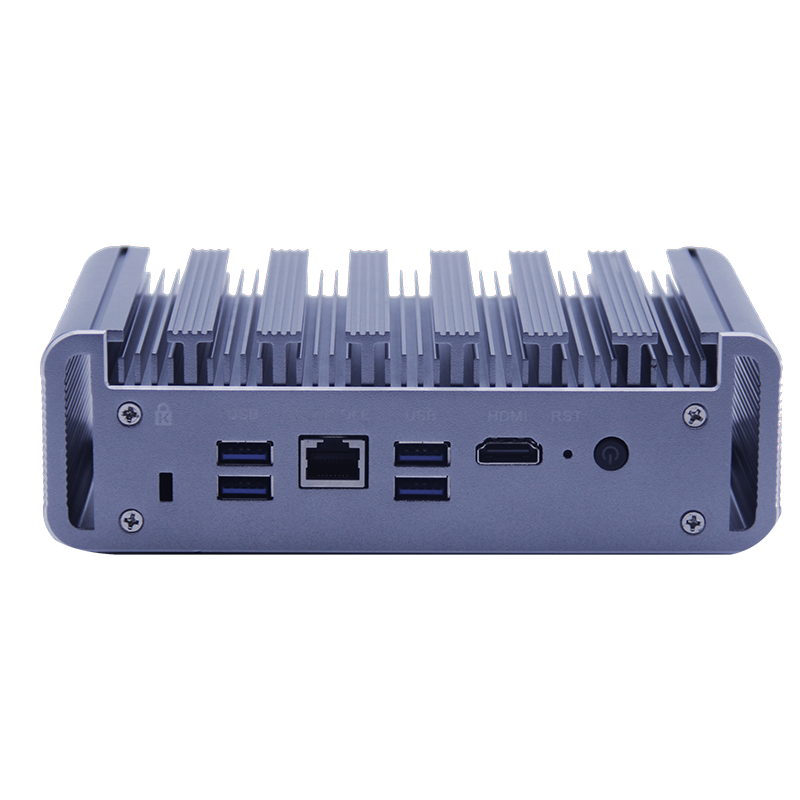

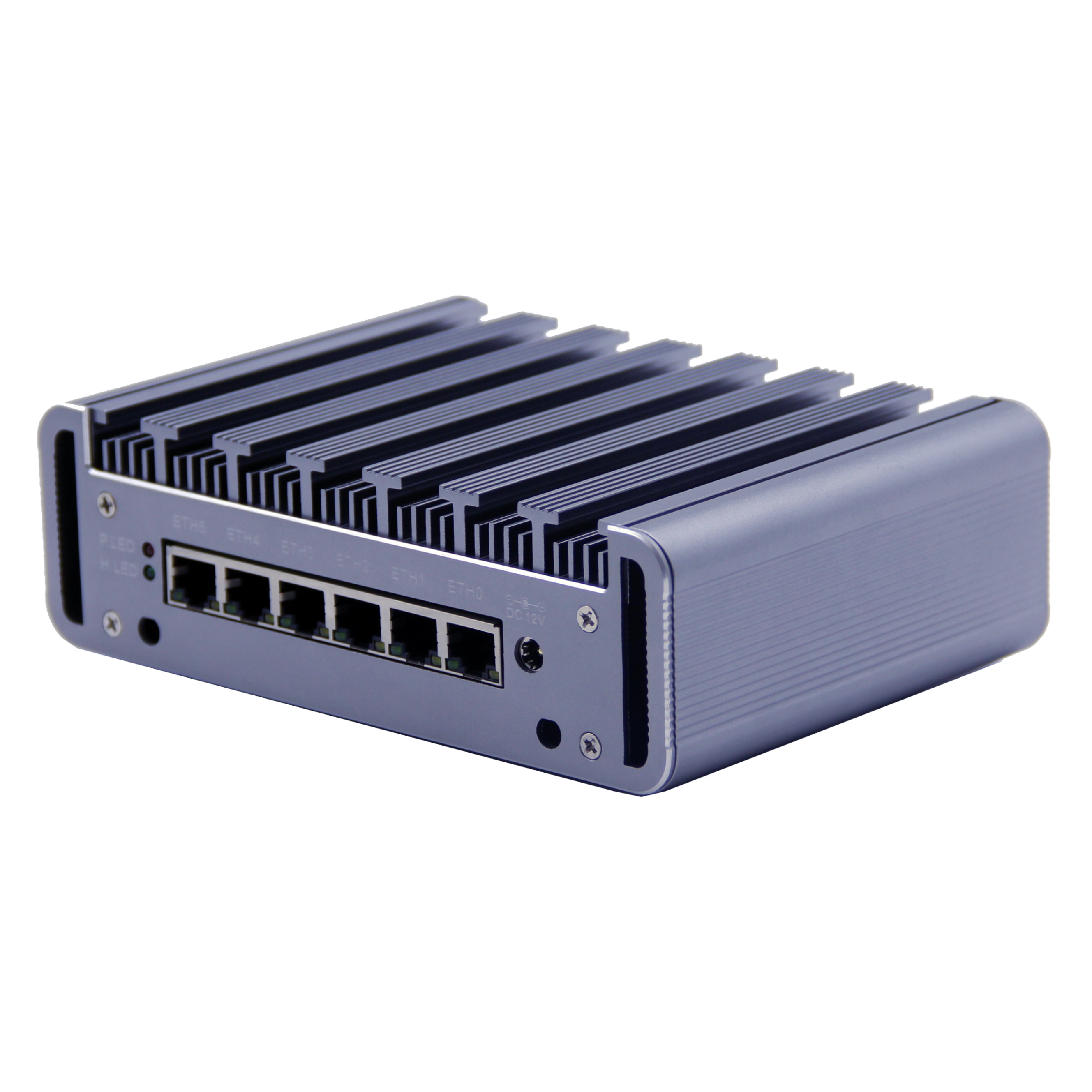

NCF-7260Desktop Network Appliance Powered by Intel 7th/6th Pentium/Celeron/I3/I5/I7 with 6 GbE LAN, Console, USB and HDMI
Specification: NCF-7260
Ordering Information
Packing List
Optional Accessories
Contact:
Allen Dai / Sales Manager
Armortec Technology Limited
Email: allen.y.dai@armortec.net
Skype: allen.dai89
Tel: +86 150 1266 9595
Specification: NCF-7260
| Model No. | NCF-7260 | |
| Form Factor | Desktop | |
| Platform | Processor Options | Intel® 7th/6th (Kabylake-U/Skylake-U) Pentium/Celeron/I3/I5/I7 processor |
| CPU Socket | Onboard | |
| Chipset | Intel® HD Graphics (determined by the selected CPU) | |
| OS Support | Windows 7 / windows10 / Linux | |
| BIOS | AMI BIOS | |
| System Memory | Technology | DDR4 2133MHz |
| Max. Capacity |
32G |
|
| Socket | 2 x SO-DIMM | |
| Networking | Ethernet Ports | 6 x Intel I211AT GbE LAN (I210 optional) |
| Bypass | No | |
| Storage | HDD Bays | 1 x 2.5 inch |
| CF/SD | No | |
| mSATA/M.2 | 1 x mSATA socket onboard | |
| I/O Interface | Reset Button | 1 x Reset Button |
| LED | 1 x Power LED, 1 x HDD LED | |
| Power Button | 1 x Power Button | |
| Console | 1 x RJ45 Console | |
| USB | 4 x USB 3.0 | |
| LCD Module | N/A | |
| Display | 1 x HDMI output | |
| Power Input | 1 x DC Inlet | |
| Expansion | PCIe | N/A |
| Mini-PCIe/M.2 | 1 x MINI PCIe, supporting Wi-Fi module | |
| SIM | 1 x SIM slot | |
| Miscellaneous | Watchdog | Yes |
| Internal RTC with Li Battery | Yes | |
| TPM | N/A | |
| Cooling | Processor | 1 x CPU Fan |
| System | No | |
| Environmental Parameters | Temperature | Working temperature: 0℃ ~60℃, Storage temperature: -20~70℃ |
| Humidity | 5% ~ 90%, non condensing | |
| Physical Dimensions | (WxHxD) | - |
| Weight | - | |
| Package Dimensions | (WxHxD) | - |
| Weight | - | |
| Power | Type/Watts | 60W |
| Input | 90~264V@47~63Hz | |
| Approvals and Compliance | CE, FCC | |
Ordering Information
| Part number | CPU | DDR4 | 1Gb LAN port | Console | USB 3.0 | 2.5'' HDD | MINI PCIe | Power |
| NCF-7260A | Intel Celeron 3865U | 2 | 6 x Intel I211AT | 1 | 4 | 1 | 1 | DC 12V |
| NCF-7260B | Intel Core i5 7200U | 2 | 6 x Intel I211AT | 1 | 4 | 1 | 1 | DC 12V |
| NCF-7260C | Intel Core i7 7500U | 2 | 6 x Intel I211AT | 1 | 4 | 1 | 1 | DC 12V |
| 1 | SATA data cable |
| 2 | Power cord 3P 180cm, China |
| 3 | Rack ears |
| 4 | Accessory screw bag |
| 1 | Power cord 3P 180cm, USA |
| 2 | Power cord 3P 180cm, Europe |
| 3 | Power cord 3P 180cm, UK |
| 4 | Power cord 3P 180cm, Japan |
| 5 | Power cord 3P 180cm, India |
